Mixer amplifier 60W at 100V

Name: Mixer amplifier 60W at 100V
Brand: RONDSON
SKU: MA-60

Reference : MA-60

SKU : 02277

EAN13 : 3701567904622

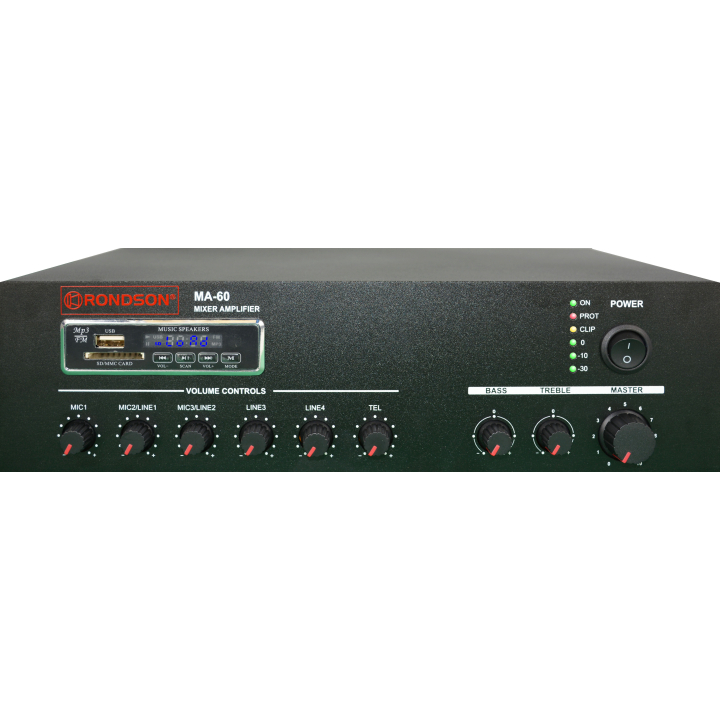

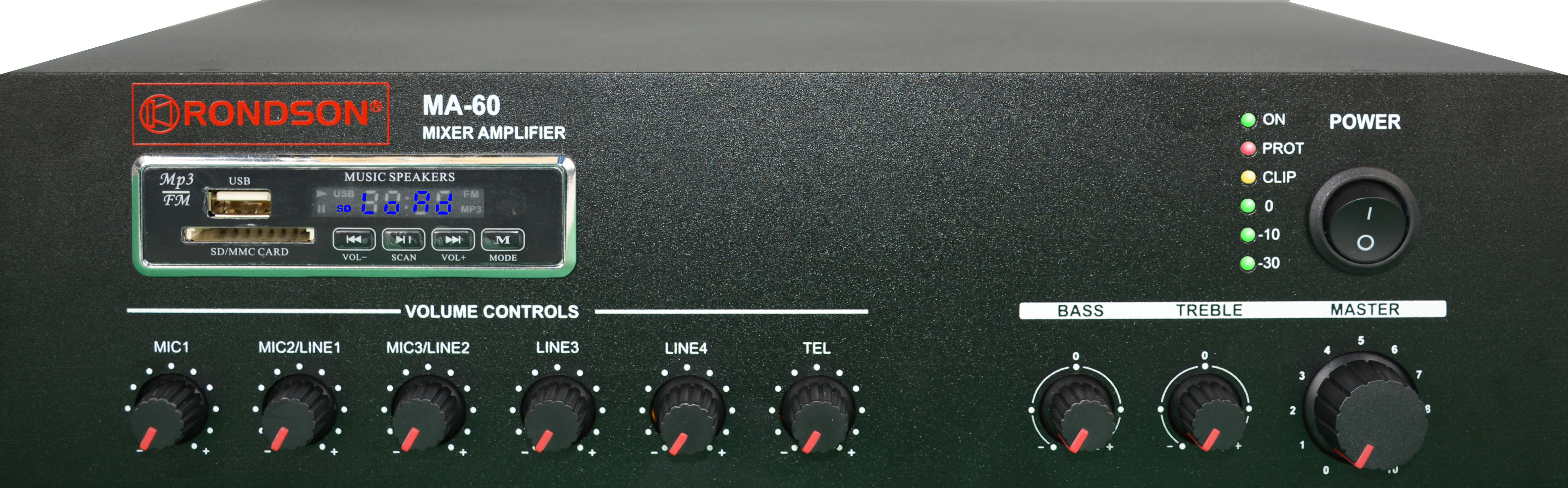

60W mixer amplifier

100V line

Multimedia player (Tuner / MP3 / USB / SD / Bluetooth)

Remote control

19" rack-mountable (3U)

Power output

60 W

MA-30 - MA-60 - MA-120

Download (7.08MB)

MA-60

Download (1.01MB)

Description

This mixer-amplifier is available in 60W.
Standard operation 4 - 8 - 16 Ω in Low Impedance or 70V and 100V.
It operates on 220/115V - 50/60 Hz or DC 24V.

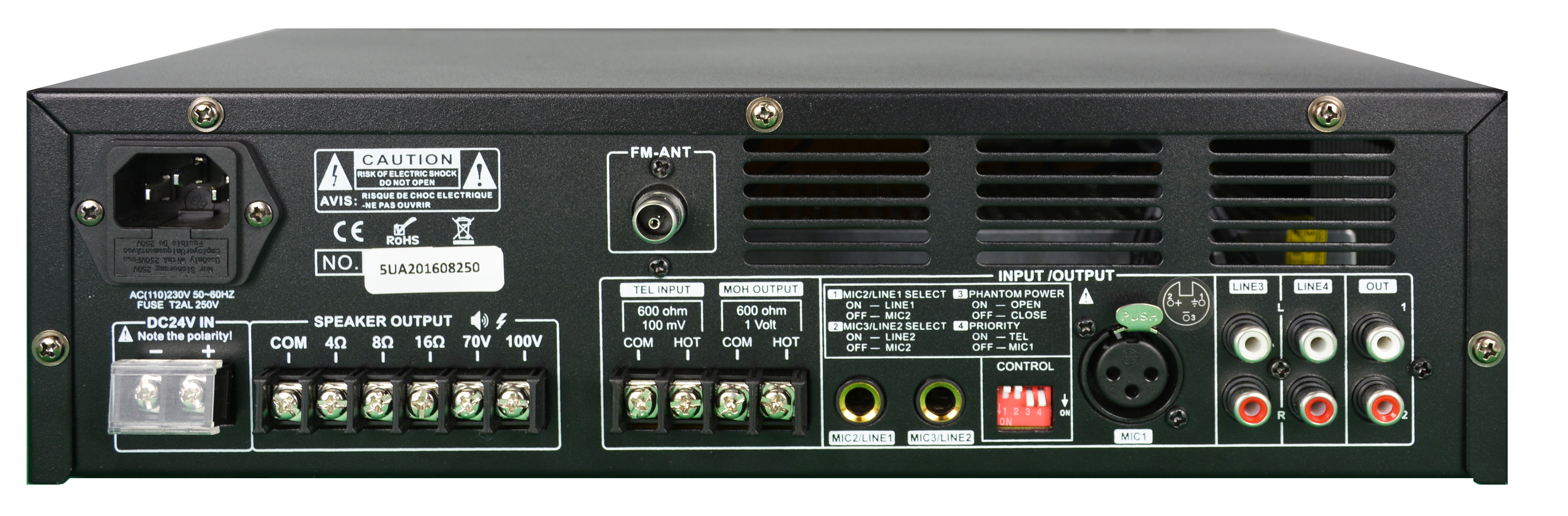

Features:

It is equipped with:

FM Tuner and MP3/USB/SD player and Bluetooth
1 MIC input - XLR balanced with 24V phantom power
2 switchable MIC/LINE inputs with unbalanced jack
2 LINE inputs - RCA
1 telephone input
1 LINE OUT - RCA
1 individual volume control per input, 1 master volume control
Thermal, overload and short-circuit protection
Supplied with remote control

Product Details

Brand
Reference

MA-60
SKU

02277
EAN13

3701567904622

Data sheet

Type

Ampli-mélangeur avec tuner/MP3/USB/SD/BLUETOOTH
Output power

60 W RMS
Speaker outputs

4 - 8 -16 Ω / 70V – 100V
Power consumption

100 W
Signal-to-noise ratio

MIC : +65 dB - AUX/LINE : +70 dB
Alimentation

AC 220V – 50/60 Hz
Alimentation fantôme

+ 24 V commutable
Distorsion harmonique totale

0,5 %
Bande passante

60 Hz – 15 000 Hz (± 3 dB)
Protection et refroidissement

Ventilateur, Protection thermique, surcharge et court-circuit
Réglages tonalité

Graves : ± 10 dB à 100 Hz Aigus : ± 10 dB à 10 000 Hz
Dimensions (W × D × H)

300 x 275 x 88 mm
Weight

6,7 kg
Autre

LINE Out
