Standard 100V amplifiers preamplifiers

Name: Standard 100V amplifiers preamplifiers
Brand: RONDSON
SKU: AM 240C

Reference : AM 240C

SKU : 00826

EAN13 : 3701567910463

These amplifiers are available in 4 powers :

Reference: AM 30A - Code: 00510

Reference: AM 60A - Code: 00511

Reference: AM 120A - Code: 00512

Reference : AM 240C - Code : 00826

Power output

240 W (2 U)

Impédance

100V

Coupure sono

Zones

AM 30A

Download (5.57MB)

AM 240C

Download (1.47MB)

Description

Description :

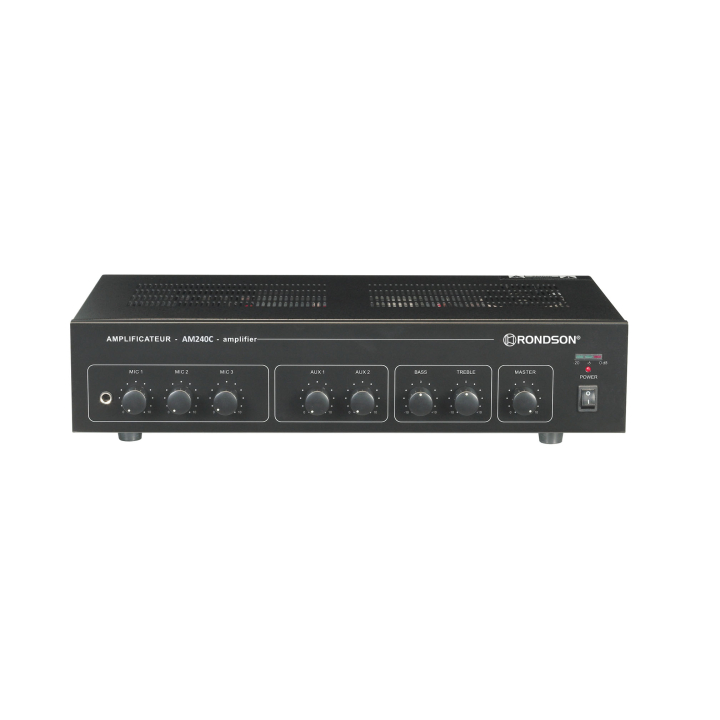

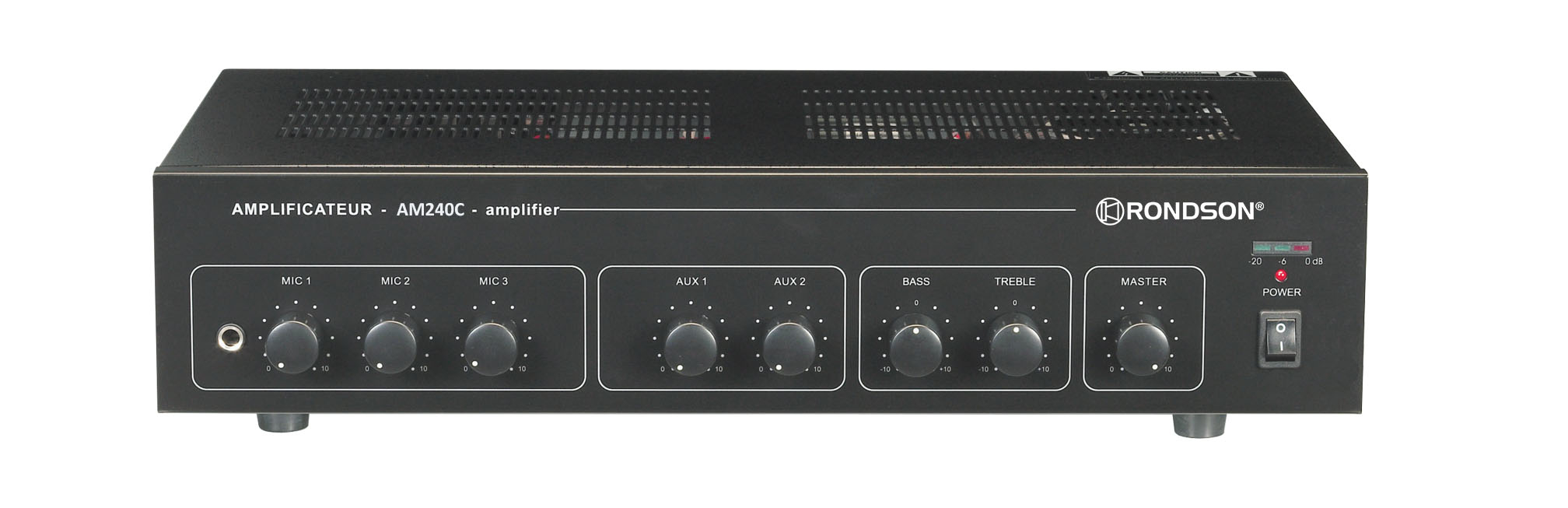

These mixing amplifiers are available in 4 powers: 30 W, 60 W, 120 W and 240 W.

They include 100 V, 70 V and 25 V loudspeaker outputs, as well as 8 Ω (Low Impedance).

They operate on mains (230 V) or DC (24 V).

Features :

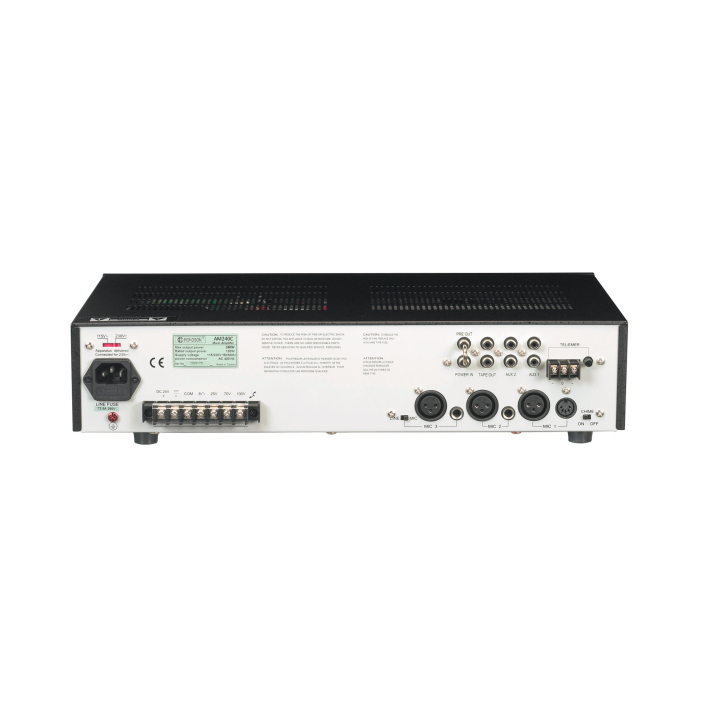

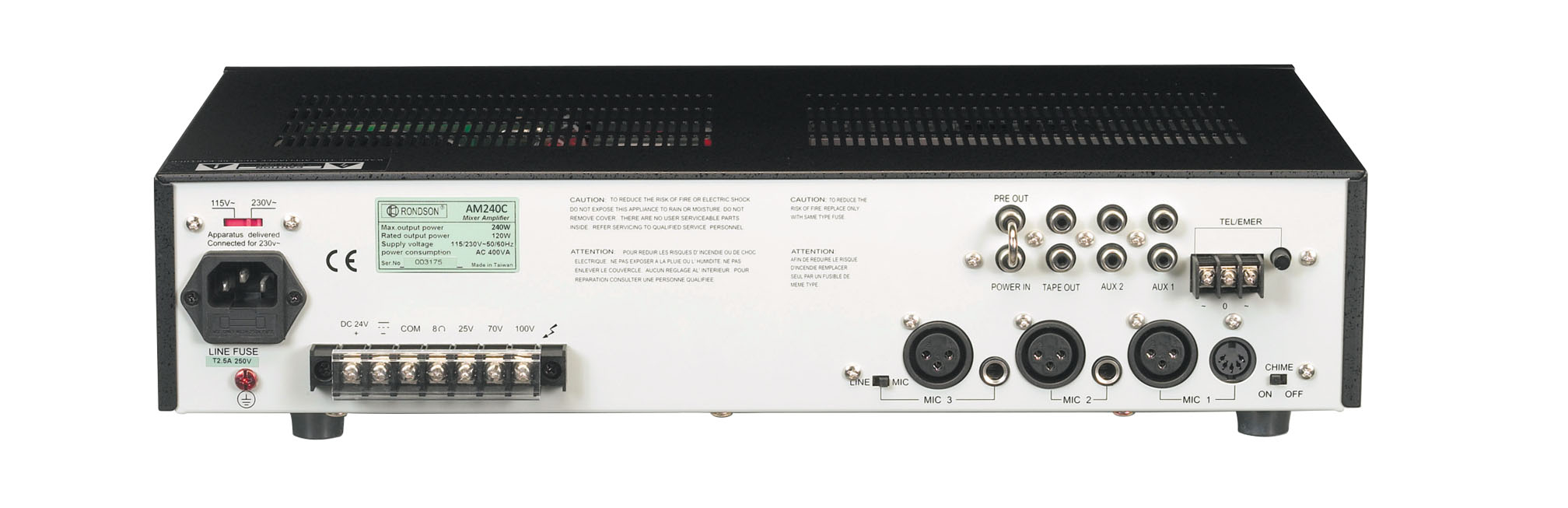

They are equipped with :

1 balanced DIN-JACK-XLR MIC1 balanced microphone input (priority) via talkover or remote control.
2 balanced microphone inputs (JACK-XLR) MIC2 and MIC3

All three inputs can be switched to phantom-powered microphones (internal operation), the MIC 3 can be switched online, a chime (2-tone "ding dong") can be activated by the MIC 1 microphone connected to the 5-pin DIN socket (PA 100D Call Microphone Panel) or to the stereo jack on the front panel (PA 100J Panel).

1 telephone input, super priority emergency message
2 RCA AUX inputs (Tuner, K7, CD, etc.)
1 input and output for equalizer or power unit
1 recording output for tape recorder
HP outputs on terminal block BI 8 Ω, HI 25 V, 70 V or 100 Volts
1 cooling fan

SPECIFICATIONS	AM 30A	AM 60A	AM 120A	AM 240C
Type	Amplifier-preamplifier
Power supply	AC 115 V/230 V - 50/60 Hz ±10 % - switchable DC 24 V (maximum deviation 10 %)
Output power	30 W RMS 45 W MAX	60 W RMS 90 W MAX	120 W RMS 180 W MAX	240 W RMS
Speaker outputs	8 Ω - 25 V - 70 V - 100 V
Output Recording - PARE	350 mV, 4,75 KΩ
Line Output - PRE OUT	1 V, 600 Ω
Inputs	MIC 1 to 3: 1 mV, 250 Ω symmetrical phantom powering configurable AUX 1: 200 mV, 47 KΩ, asymmetrical AUX 2: 500 mV, 47 KΩ, asymmetrical LINE (Mic 3): 200 mV, 47 KΩ, symmetrical TEL: 0.1 to 1 V, 600 Ω, symmetrical, adjustable Power In: 1 V, 47 KΩ, asymmetrical
Frequency Response	MIC 1 à 3 : 60 Hz – 15 000 Hz ± 3 dB AUX 1 - 2 : 60 Hz – 15 000 Hz ± 3 dB TEL : 100 Hz – 15 000 Hz ± 3 dB
Total harmonic distortion	Less than 1% at 1 kHz at RMS power
Signal to Noise Ratio	All CCW volume settings: 75 dB below rated power MIC 1 to 3: 60 dB below RMS power AUX 1 - 2: 70 dB below RMS power TEL: 70 dB below RMS power
Tone Settings	Bass : ± 10 dB à 100 Hz - Treble : ± 10 dB à 10 kHz
Settings	MIC 1 to 3: volume control AUX 1 - 2: volume control MASTER volume control Tonality: Low and high notes TEL: input level Mic 3 (Line/Mic): switch CHIME: inter ON/OFF 115 V/230 V: voltage switch
Consumption	Sector : 90 W Battery: 2 A	Sector : 170 W Battery: 4 A	Sector : 360 W Battery: 8 A	Power supply : 720 W Battery: 16 A
Chime	2 tones Ding Dong preceding 1 microphone call
Priority	By detection / MIC 1 connected to DIN, Jack or XLR
Priority levels	TEL/EMER 3	MIC 1 2	MIC 2 1	AUX/CD 1
Dimensions (W x D x H)	430 x 260 x 88 mm
Weight	6,5 kg	8 kg	9,5 kg	13 kg
Option montage rack 19" 2 U	Mounting brackets EQ 2000
