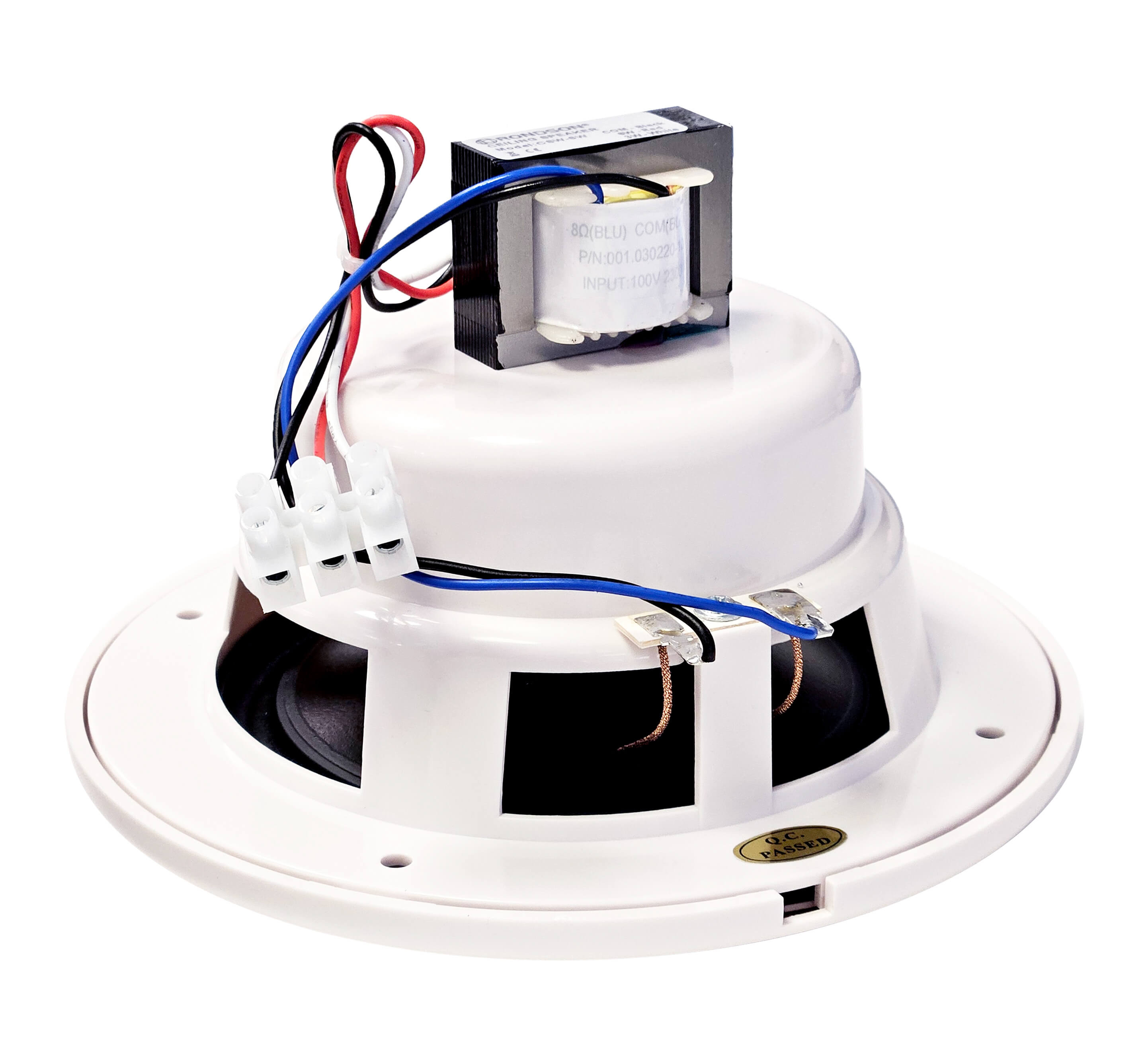

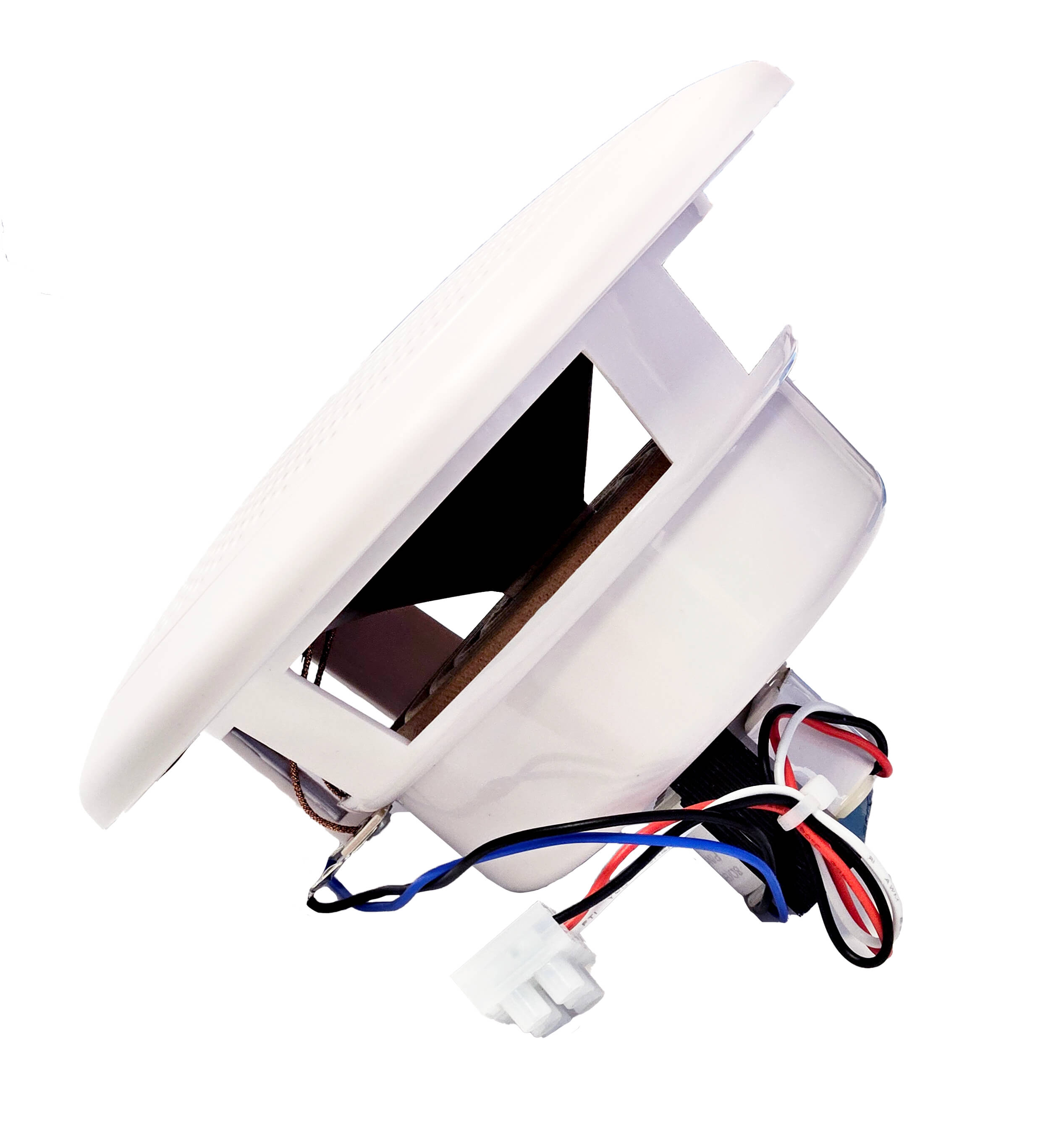

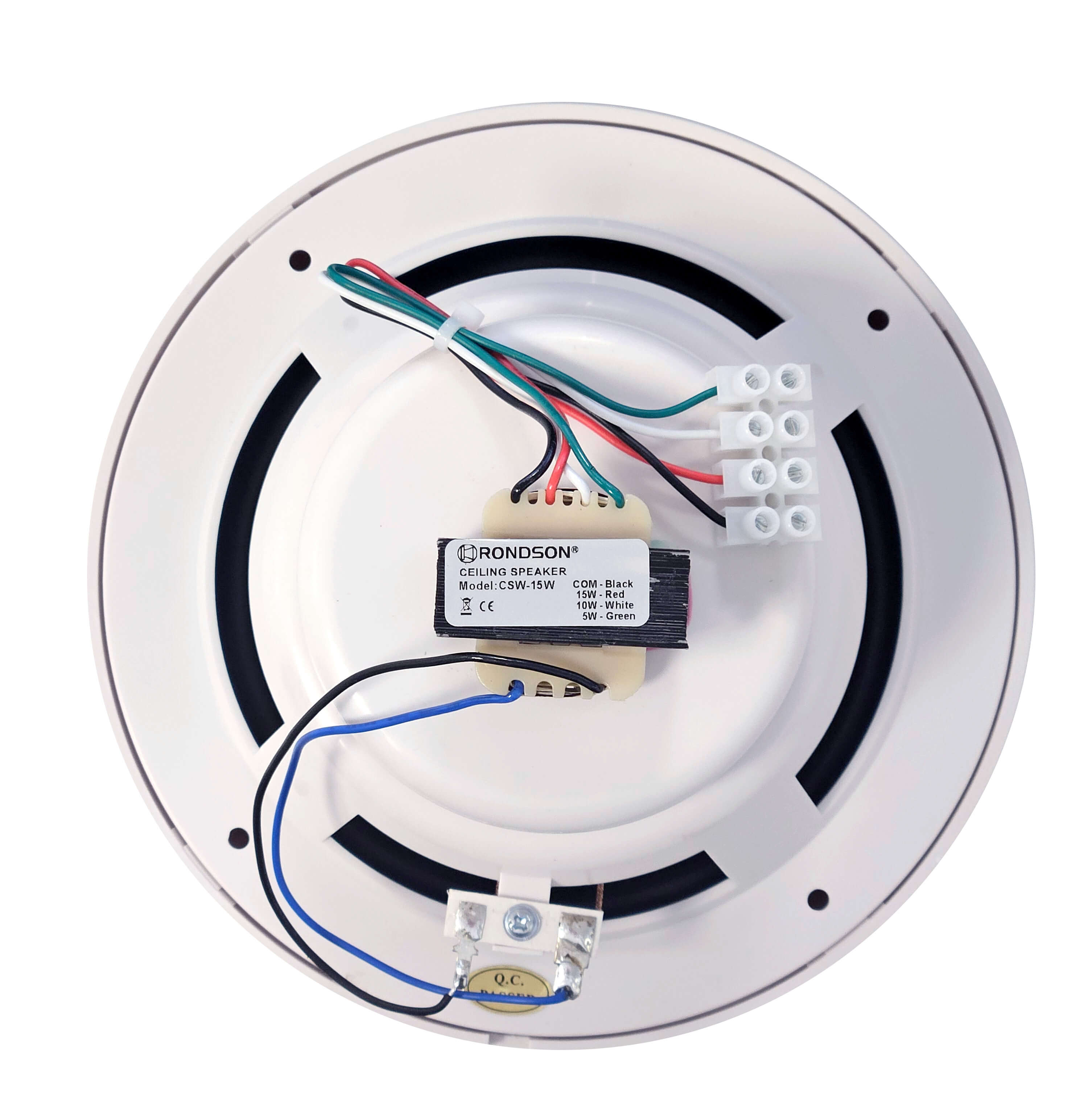

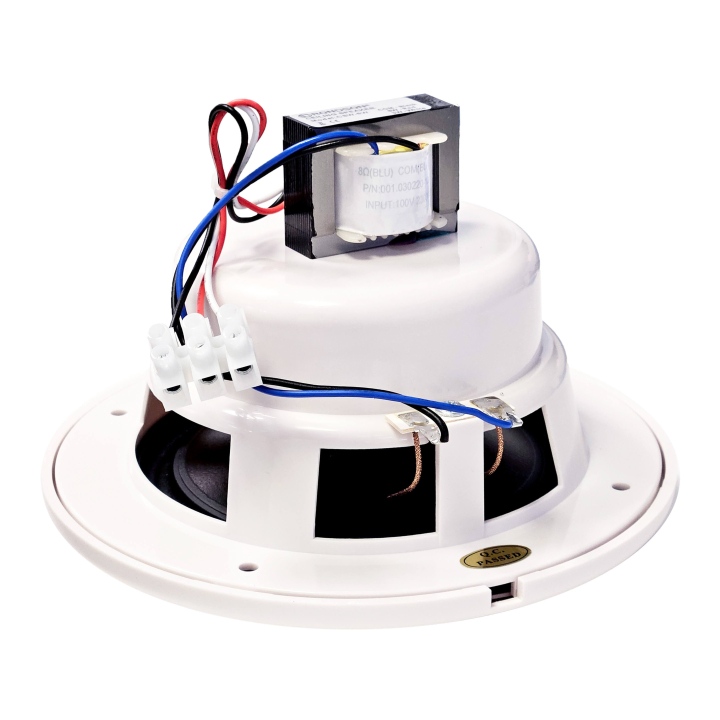

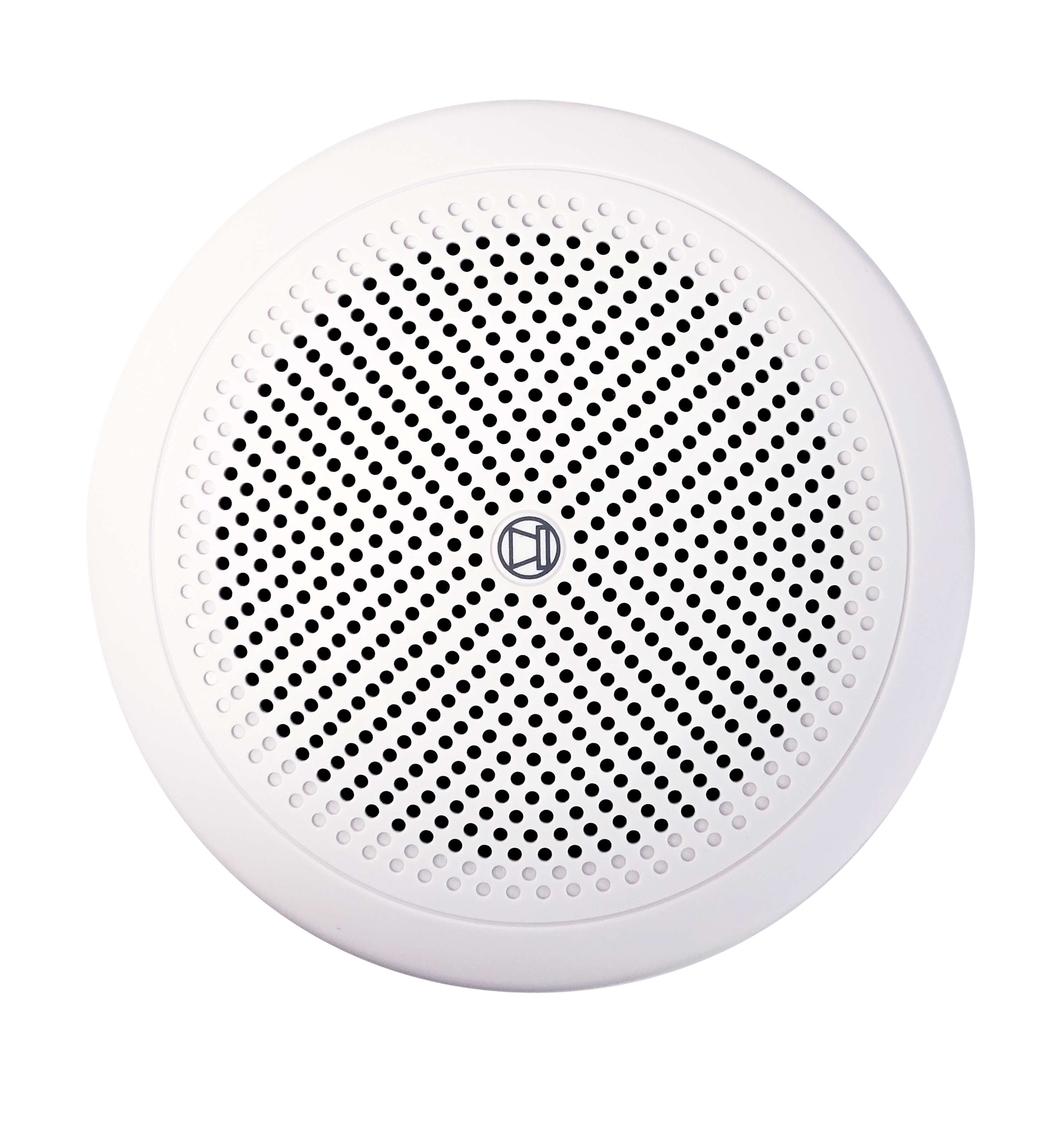

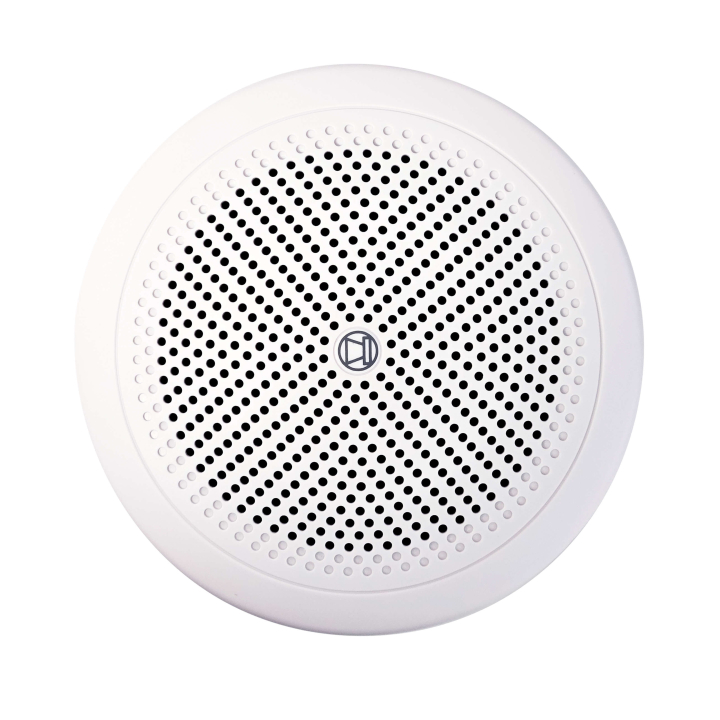

15W ceiling speakers with IP44 waterproofing
Reference : CSW-15W
SKU : 02709
EAN13 : 3701567911637
underwater built-in speakers for wet environments, aquatic complexes, etc...
Power: 15W per loudspeaker in 100V
Protection rating: IP44
Description
Datasheet PDF
- 2-way waterproof (IP44) in-wall/in-ceiling speaker
- Weatherproof membrane, periphery protected
- Anti-corrosion silicone coated wire outlet.
- Plastic housing and grille tested according to ASTM D4329 & ASTM D2244 (600 hours U.V. resistance test)
- Tested according to ASTMB117 (salt water splash test 400 hours)
- For use in high impedance applications
- Easy to use fixation system
| SPECIFICATIONS | CSW-15W |
| Type | Ceiling speaker |
| Material | Plastic |
| Sensitivity | 90 dB / 1 W / 1 m (± 2 dB) |
| Frequency Response | 95–20000 Hz |
| Line Power | 15W RMS |
| Impedances | 100V |
| Connecting | On terminal block |
| Dimensions (Ø x h) | Ø 190 x 103 mm |
| Weight | 0,82 kg |
| Hole for mounting | Ø 145 mm |
Product Details
-
Brand
-
ReferenceCSW-15W
-
SKU02709
-
EAN133701567911637
