10W ceiling loudspeaker

Reference : CSL-610
SKU : 02228
EAN13 : 3701567907777

10W ceiling loudspeaker

In-line 100V

Power output
Impédance
Pouces / Inch
Share

Description

DATA SHEET IN PDF

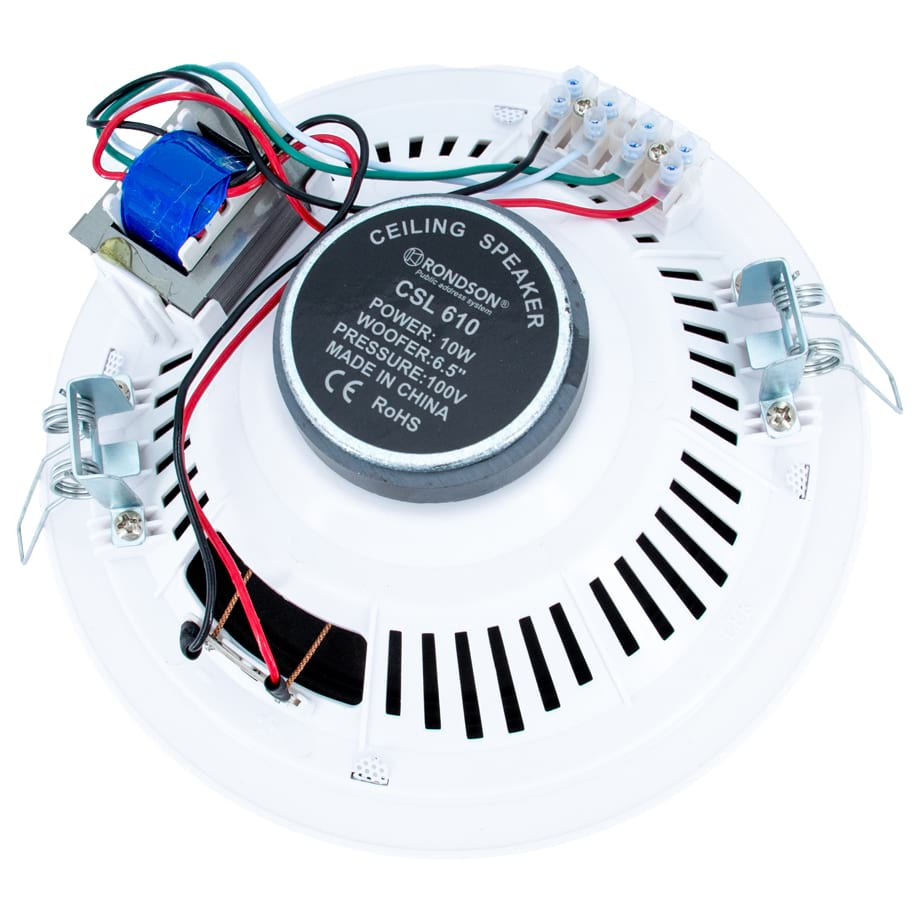

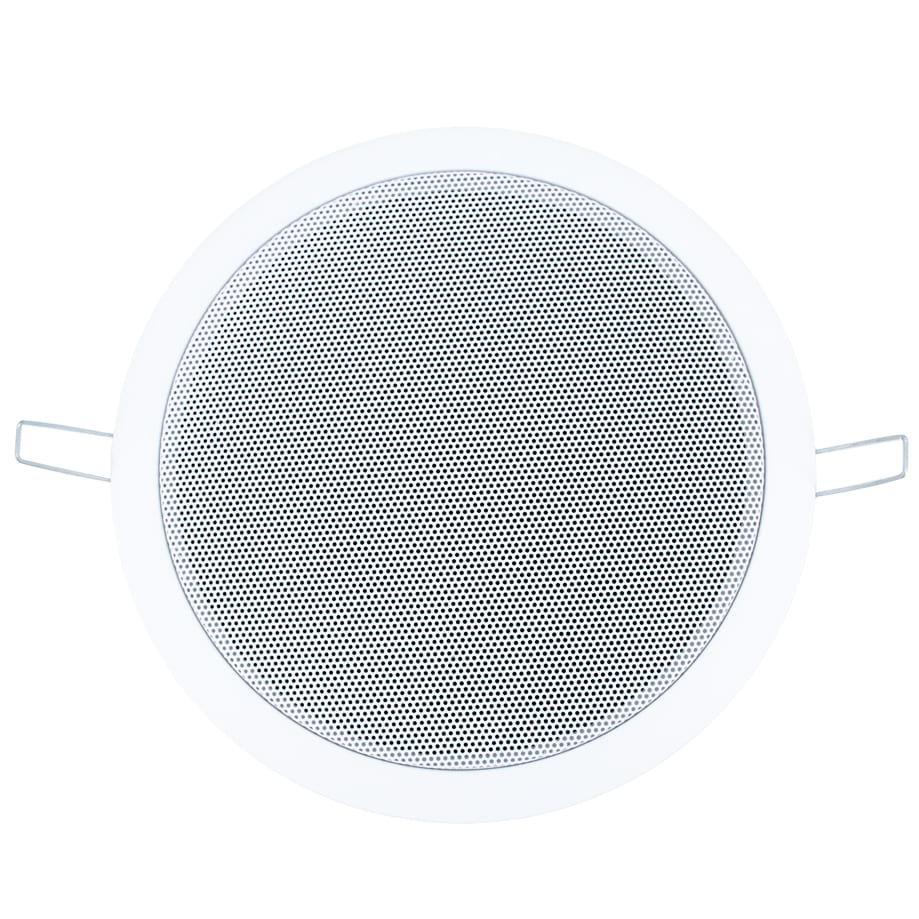

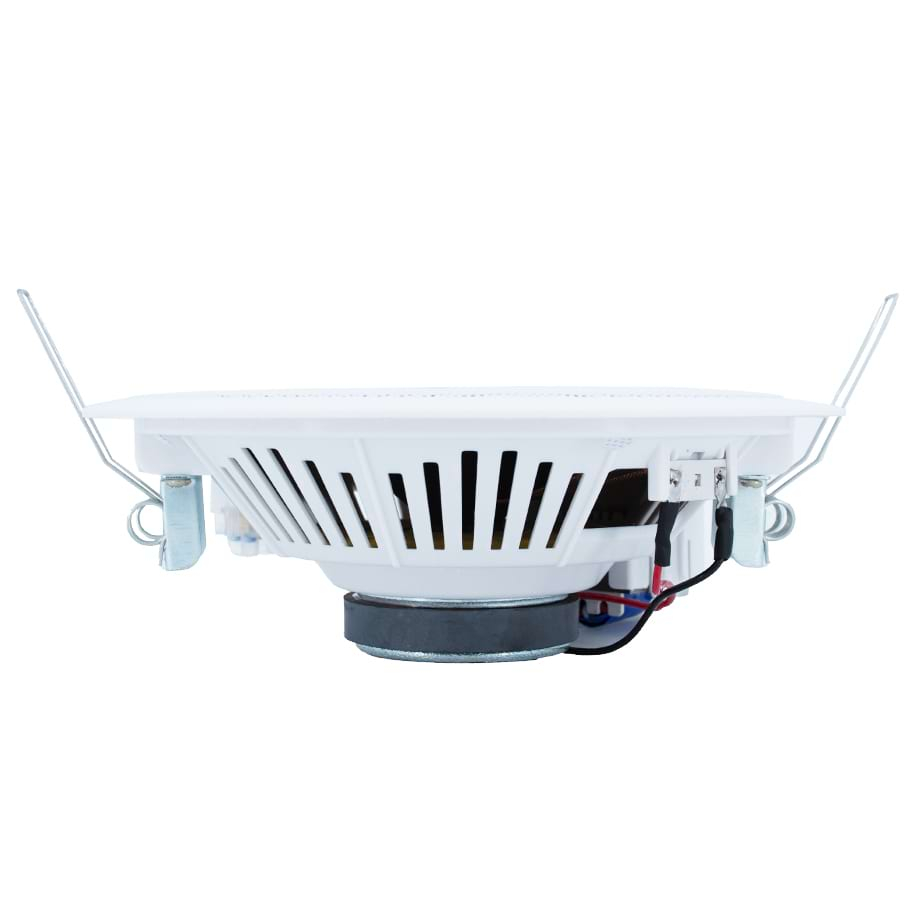

  • Quick-fit ceiling loudspeaker in plastic enclosure and metal grille, for use with 70 and 100 V lines, 3 power levels selectable via domino switch
  • Good value for money
  • Discreet, modern design
FEATURES CSL-610
Type Ceiling loudspeaker
Material ABS + metal grille
Loudspeaker Ø 160 mm - 8Ω - 6"
Acoustic pressure 92 dB / 1W / 1 m
Frequency band 150 - 15000 Hz
Line RMS power 10 - 5 - 2,5 W
Impedance 100 V 1 KΩ / 2 KΩ / 4 KΩ
Connection On domino

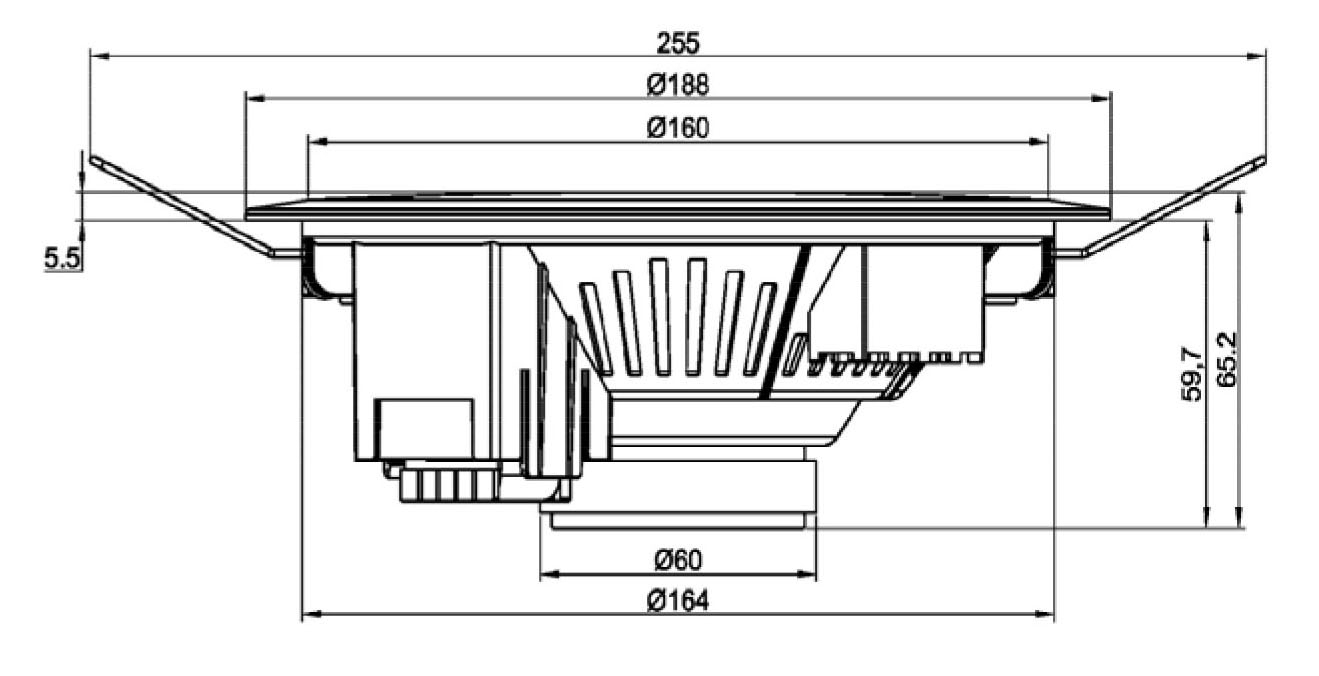

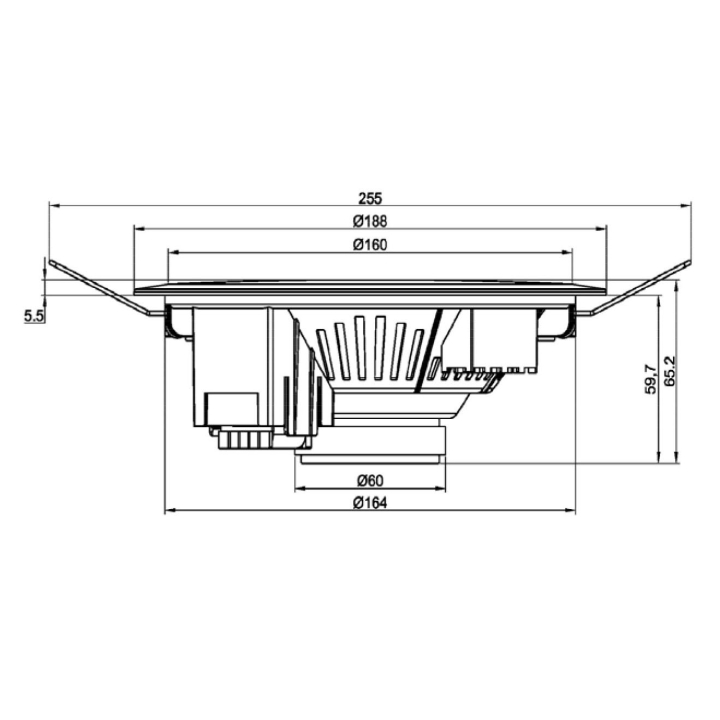

Dimensions (Ø x h) Ø 188 x 65,2 mm
Weight 0.6 kg
Built-in diameter Ø 165 mm

Product Details

  • Brand
  • Reference
    CSL-610
  • SKU
    02228
  • EAN13
    3701567907777
