20W built-in speaker
Reference : IW-165 FTPC
SKU : 00090
EAN13 : 3701567905520

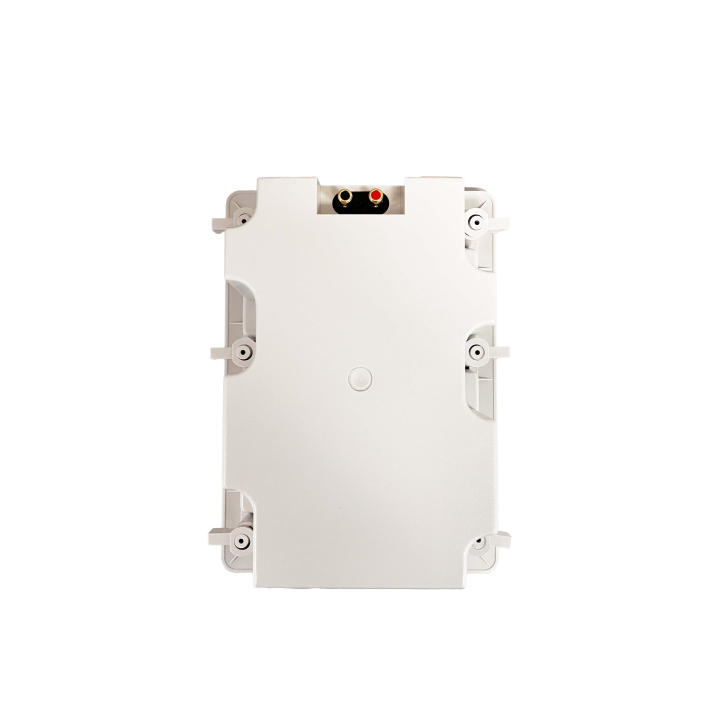

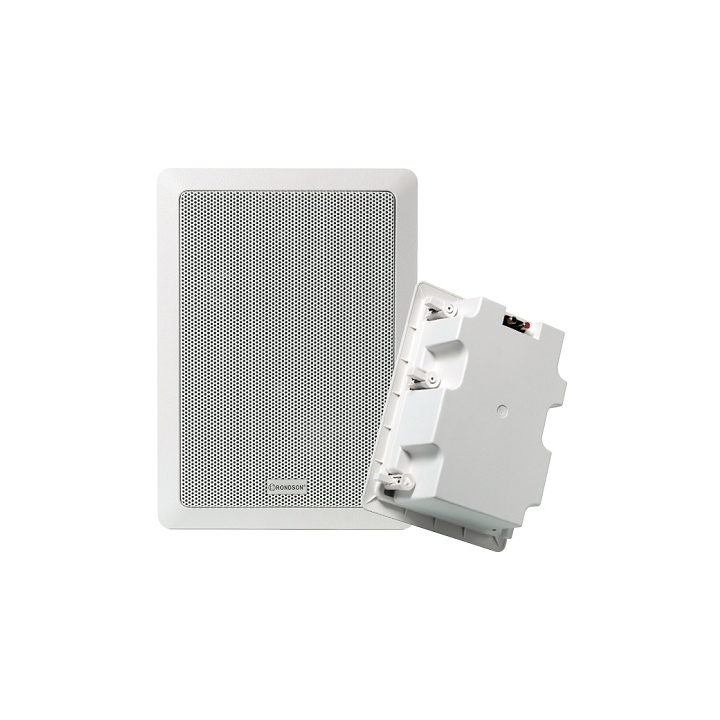

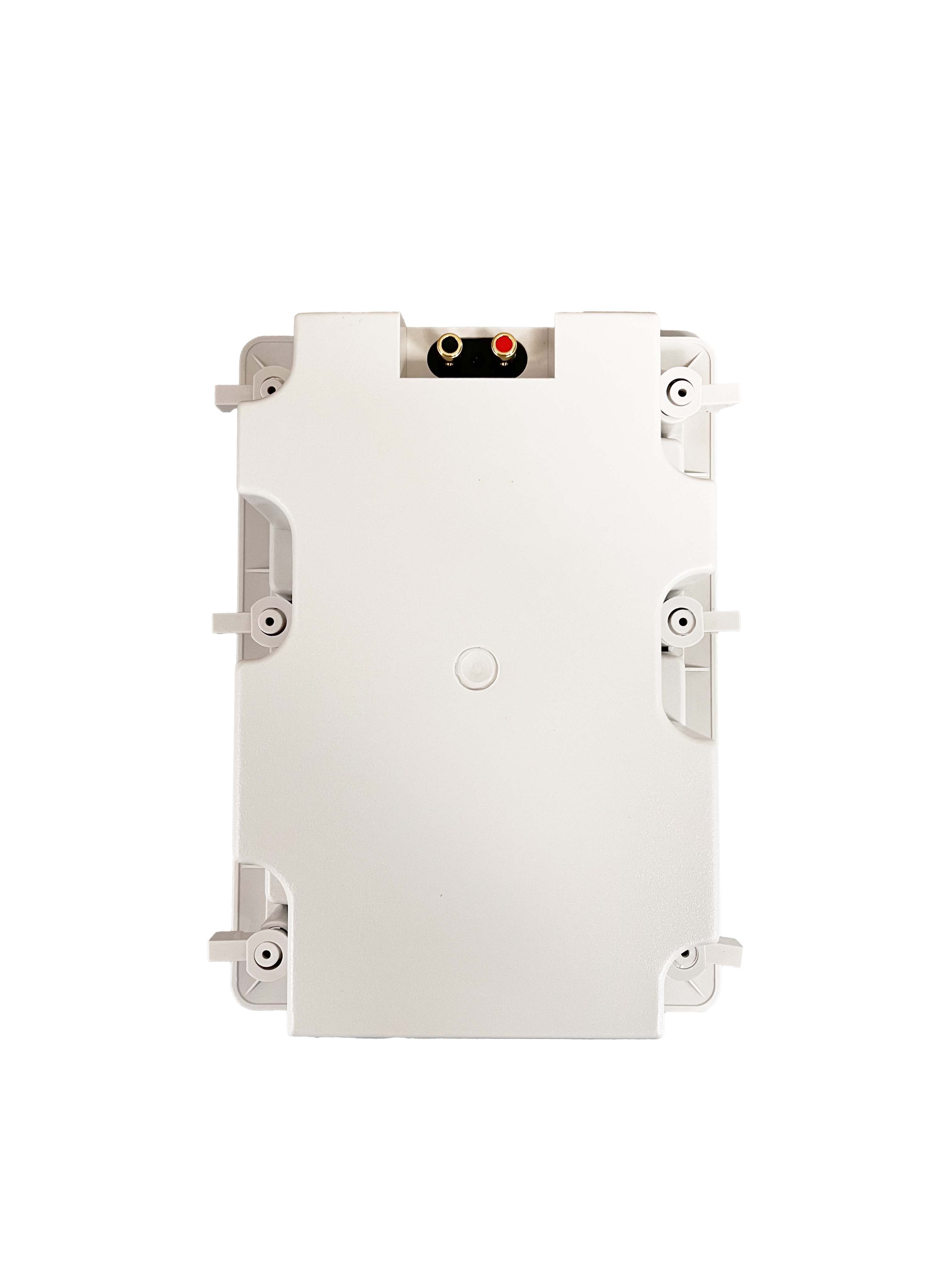

6" recessed ceiling speaker
20 - 15 - 10 - 5W
100V line
2-way coaxial
Colour: white
Description
HIFI-quality rectangular in-ceiling speaker for in-wall installation
6-point locking system (anti-theft system) with back box
Equipped with a 16 cm Ø woofer, an eyeball tweeter, a 100 V line transformer with power adjustment by means of a switch on the front panel.
Product Details
-
Brand
-
ReferenceIW-165 FTPC
-
SKU00090
-
EAN133701567905520
Data sheet
-
TypeCeiling speaker
-
SubjectABS + metal grille
-
100 V line impedances500 / 670 / 1 / 2 K
-
LoudspeakersWoofer Ø 16 cm + tweeter
-
Sound pressure level87 dB / 1 W / 1 m
-
Bande passante50 – 20 000 Hz
-
Puissance ligne BI8 Ω– 20 W RMS
-
Puissance ligne 100 V20 - 10 - 5 W RMS
-
Diamètre encastrement270 mm
-
ConnectionsSur borniers poussoirs
-
Dimensions (W × D × H)307 x 220 x 110 mm
-
Weight2,9 kg
