100 Volt acoustic columns from 20W to 60W

Name: 100 Volt acoustic columns from 20W to 60W
Brand: JD-MEDIA
SKU: CO120 / CO130 / CO140 / CO160

Reference : CO 140

SKU : 00147

EAN13 : 8809267798031

100V 2-way acoustic columns available in 4 powers and 4 sizes :

Reference : CO 120 - Code : 00145

Reference : CO 130 - Code : 00146

Reference : CO 140 - Code : 00147

Reference : CO 160 - Code : 00148

Power output

20 W

40 W

60 W

30 W

Color

Types d'applications

LIEUX DE CULTE

Pouces / Inch

CO120 / CO130 / CO140 / CO160

Description

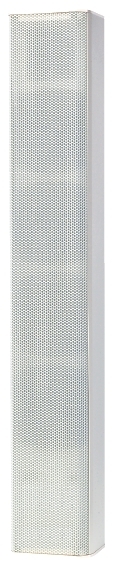

2-way acoustic columns specially designed to provide speech and sound intelligibility in places with difficult acoustics.
Solid steel construction with light grey paint finish, tropicalised speakers for indoor and outdoor use (under shelter).
Line transformer for 50V or 100V constant voltage installation
3-position switch + direct Bl to set the sound power level
Tweeter and low-pass filter for better speech reproduction
Easily removable grille for access to the low-pass filter selector and power switch.
90 mm wide to meet today's architectural requirements
Applications: sound systems for places of worship, amphitheatres, conference rooms, etc.

SPECIFICATIONS	CO 120	CO 130	CO 140	CO 160
Type	Acoustic columns
Material	STEEL
Speaker	75 mm x 2 + tweeter / 3" x 2	75 mm x 3 + tweeter / 3" x 3	75 mm x 4 + tweeter / 3" x 4	75 mm x 6 + tweeter / 3" x 6
Sensitivity	89 dB / 1W / 1m	90 dB / 1W / 1m	92 dB / 1W / 1m	94 dB / 1W / 1m
Frequency Response	150 – 20 000 Hz
100 V Line power	20 - 10 - 5 W RMS	30 - 15 - 7,5 W RMS	40 - 20 - 10 W RMS	60 - 40 - 30 W RMS
100 V Impedance	500 Ω / 1 / 2 KΩ	333 / 666 Ω / 1,3 KΩ	250 / 500 Ω / 1 KΩ	166 / 250 Ω / 366 Ω
Connecting	On wire
Dimensions	90 x 85 x 360 mm	90 x 85 x 470 mm	90 x 85 x 560 mm	90 x 85 x 760 mm
Weight	2,5 kg	3,5 kg	4 kg	5,5 kg
Brackets	Delivered with 2 fixing brackets
