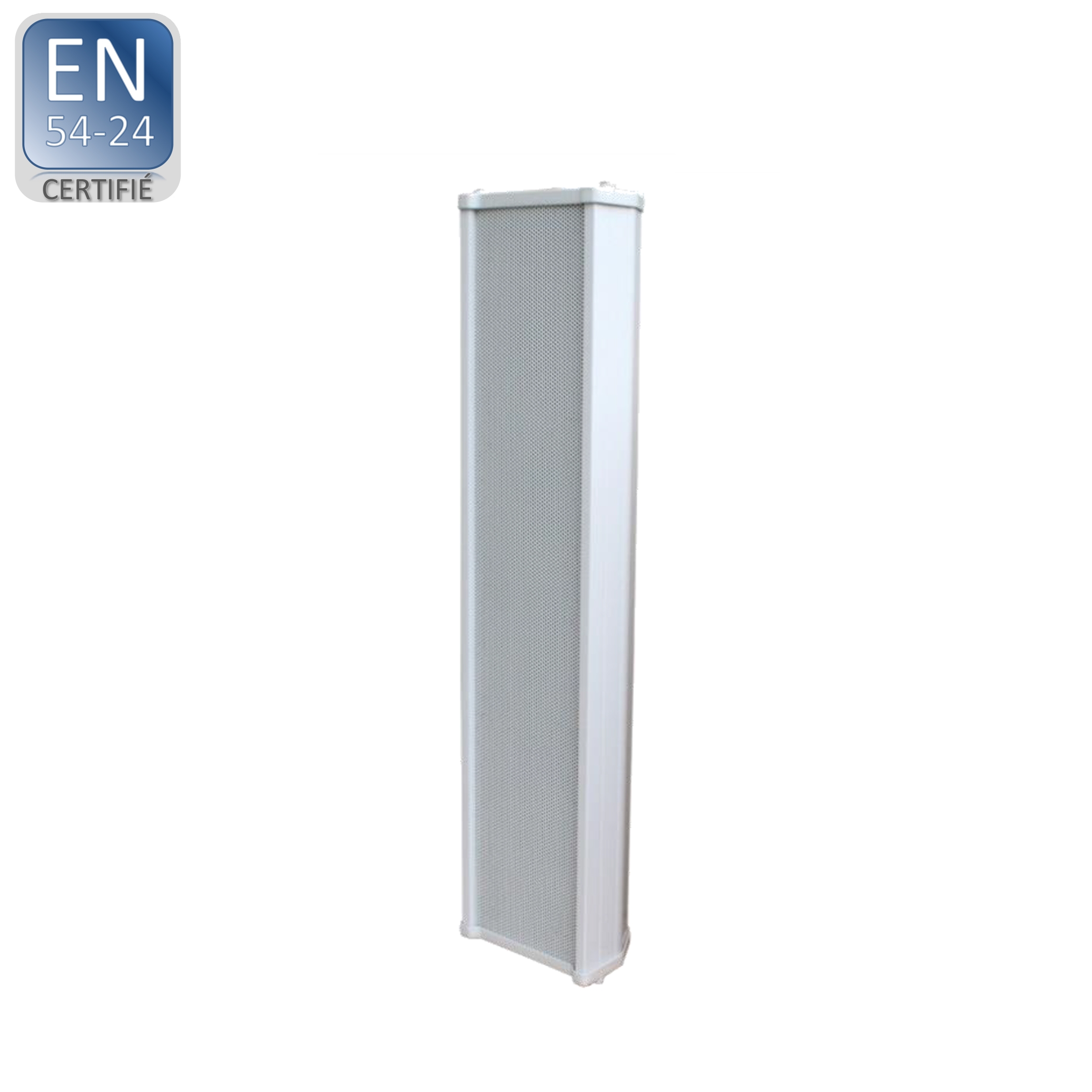

Acoustic column EN 54-24

Reference : CS-50-WA / EN5424

SKU : 02482

EAN13 : 3701567908019

Available in 2 colours:

Reference : CS-50-WA / WHITE

Reference : CS-50-WA / BLACK

Color

Description

(Availability: within 10 days)

EN 54-24 certification
High quality voice and music reproduction
Type B - Outdoor and indoor use
Quick and easy installation

Description

White acoustic column for large areas, places of worship, airport lobbies, etc. ....

Public address and escape speaker

For use in public address and evacuation systems specifically intended for areas where voice communication systems are regulated.

The loudspeaker is certified according to EN 54-24.

Its ABS construction with aluminium grill makes it shock and weather resistant.

Sound quality

The high quality loudspeaker reproduces a very natural sound with a uniform sound field.

Mounting

A fixing system that guarantees quick and easy assembly, making it easy to orientate during installation.

Aluminium grille and bracket, V2A stainless steel screws.

Ceramic terminal block with thermo-fuse available as an option.

It ensures that the speaker circuit to which it is connected is not damaged in the event of fire or damage, thus preserving the integrity of the system.

SPECIFICATIONS	CS-50-WA / EN5424
Line power 100 V	50 W nominal - (50/40/30/20W)
Frequency Response	70-18000 Hz
Sensitivity 1W/1M	99 dB (2.6 KHz)
Sensitivity 50W/1M	114 dB (2.6 KHz)
Opening angle H	360° / 194° / 122° / 79°
Opening angle V	117° / 49° / 26° /13°
Dimensions	150 x 100 x 615 mm
Application	Type B - Outdoor and indoor use
Connection	Sur fils
Material	ABS (aluminium grille)
Weight	3.9 Kg
