Multimedia mixing amplifier 2 x 200W in 4-8 ohms operation

Reference : LA-2200D
SKU : 02855
EAN13 : 3701567913518

Multimedia mixing amplifier 2 x 200W

2 channels

4/8 Ohms low impedance operation

Power output
TUNER
BLUETOOTH
USB
Impédance
Share

Description

Description

This power amplifier is available in 2 x 200W, with a built-in multimedia player.

Standard operation in 8 Ω low impedance.

It operates on AC 220-240V / 50-60Hz mains.

Designed for installations such as restaurants, gyms, and shops.

Product Data Sheet (PDF):
Download LA-2200D product sheet in PDF

Features

Equipped with:

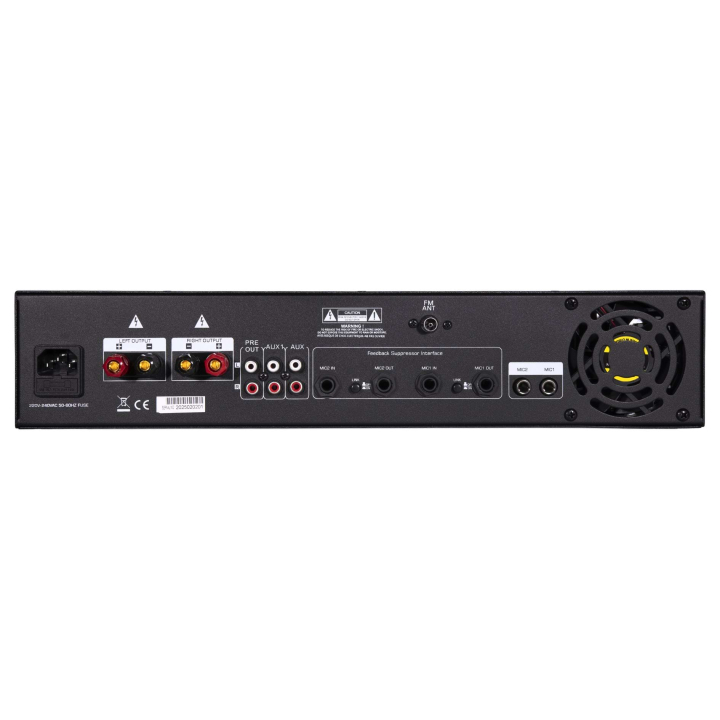

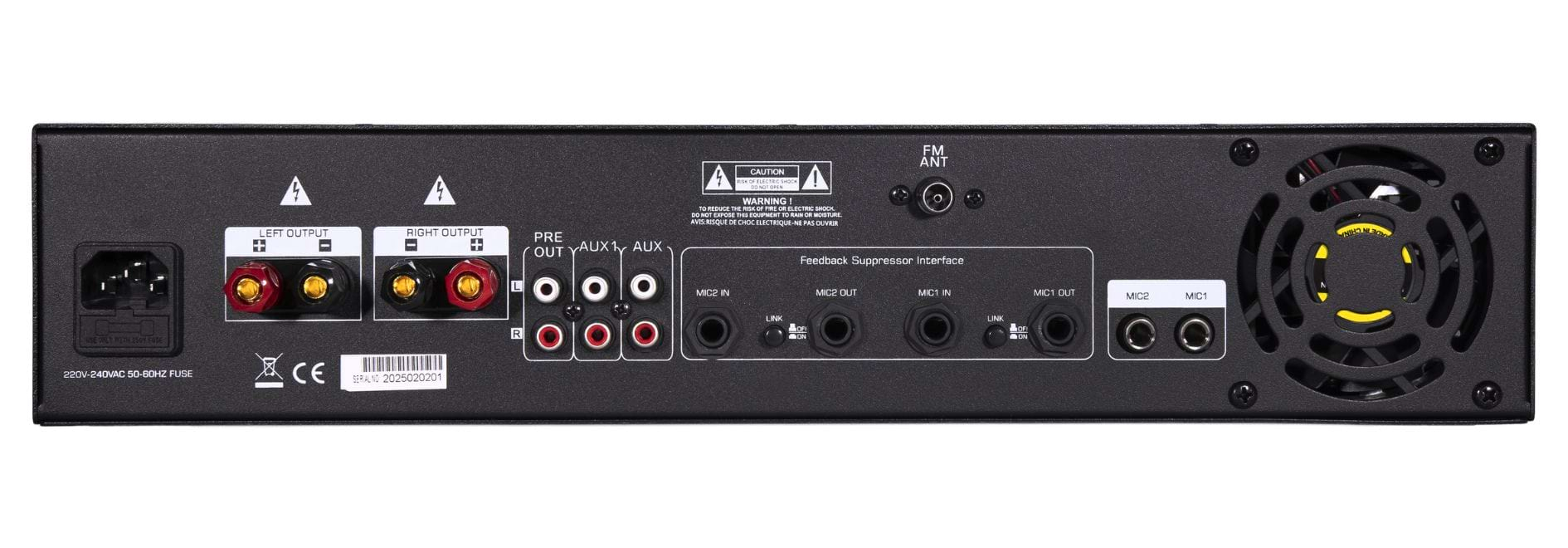

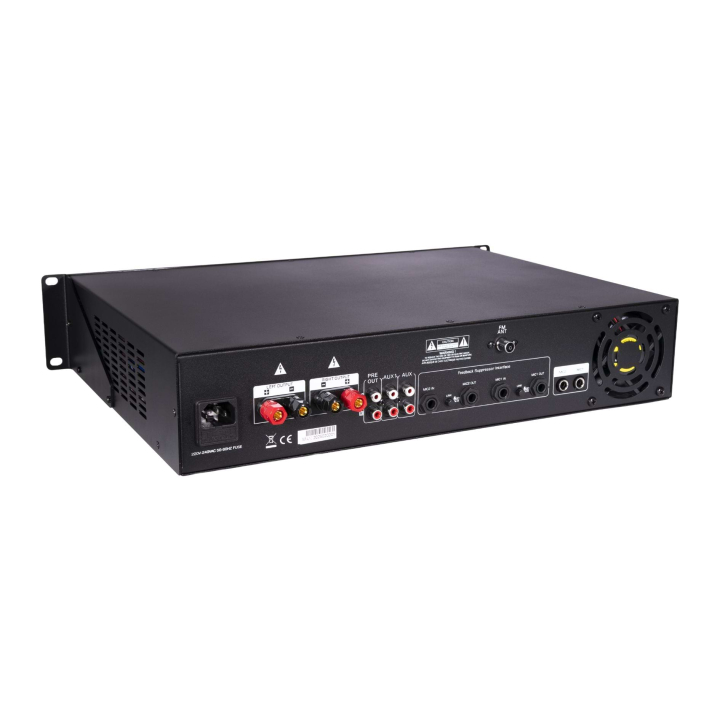

  • 2 MIC inputs and outputs on 6.35 mm JACK (link feedback compressor button)
  • 2 MIC inputs on 6.35 mm JACK
  • 2 RCA AUX inputs and 1 RCA AUX PRE OUT
  • 1 AUX input on 6.35 mm mini-jack (front panel)

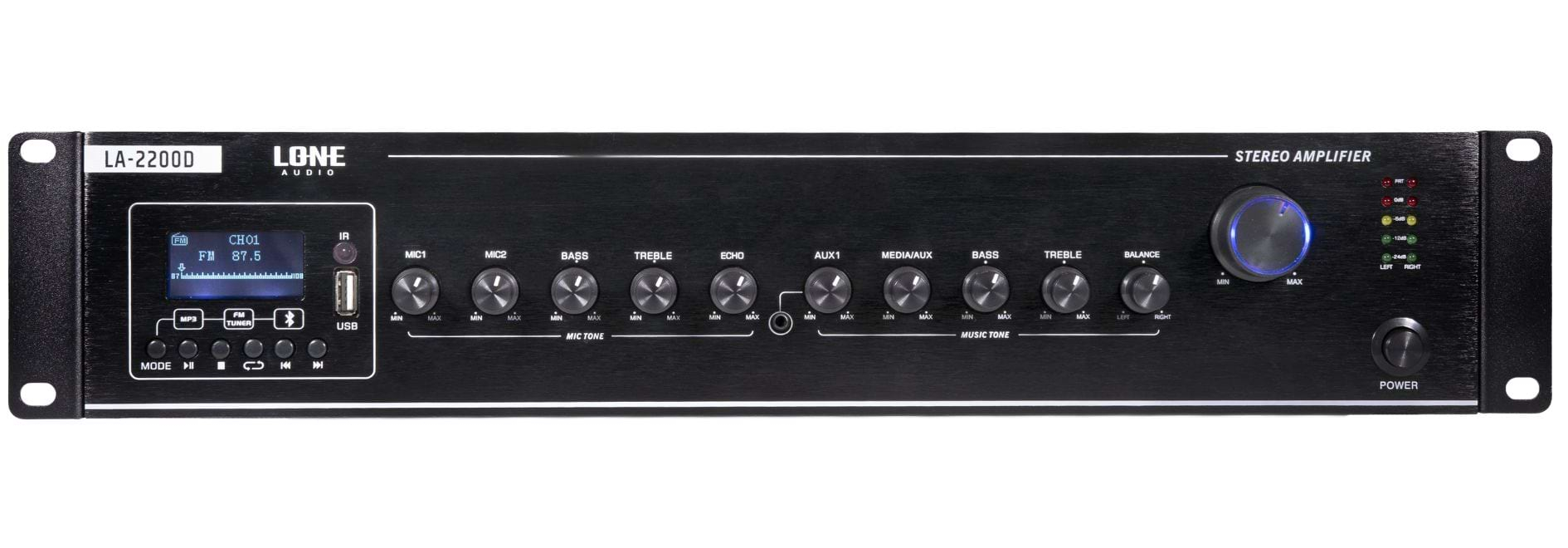

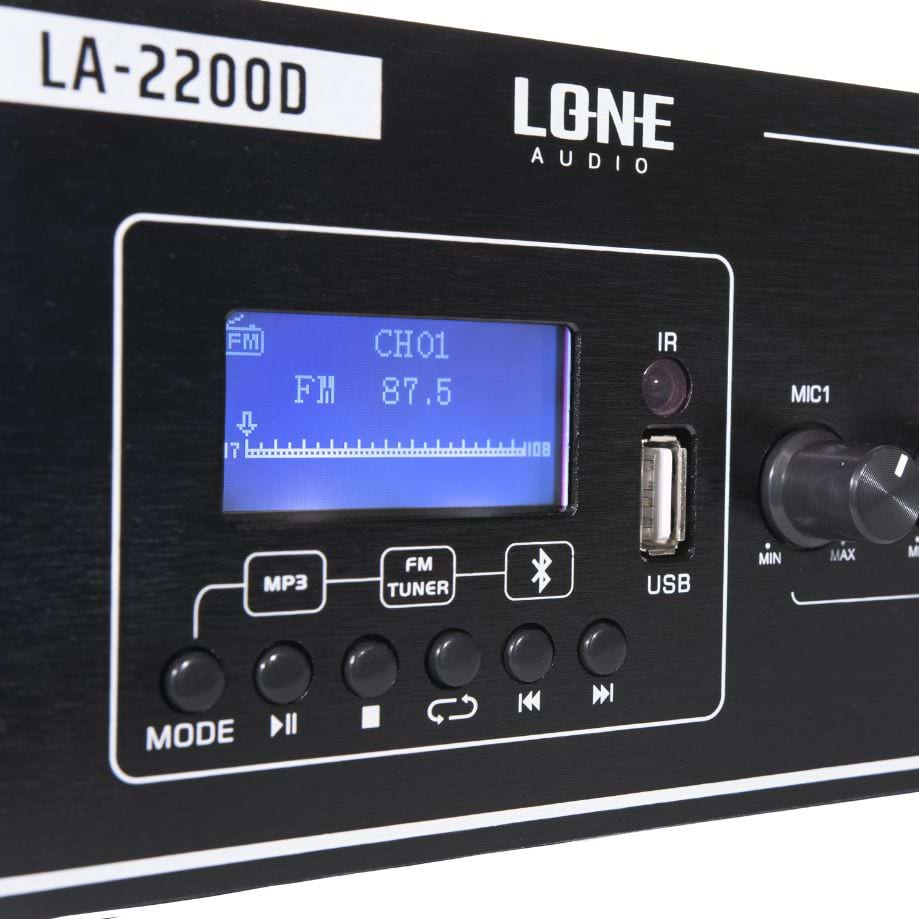

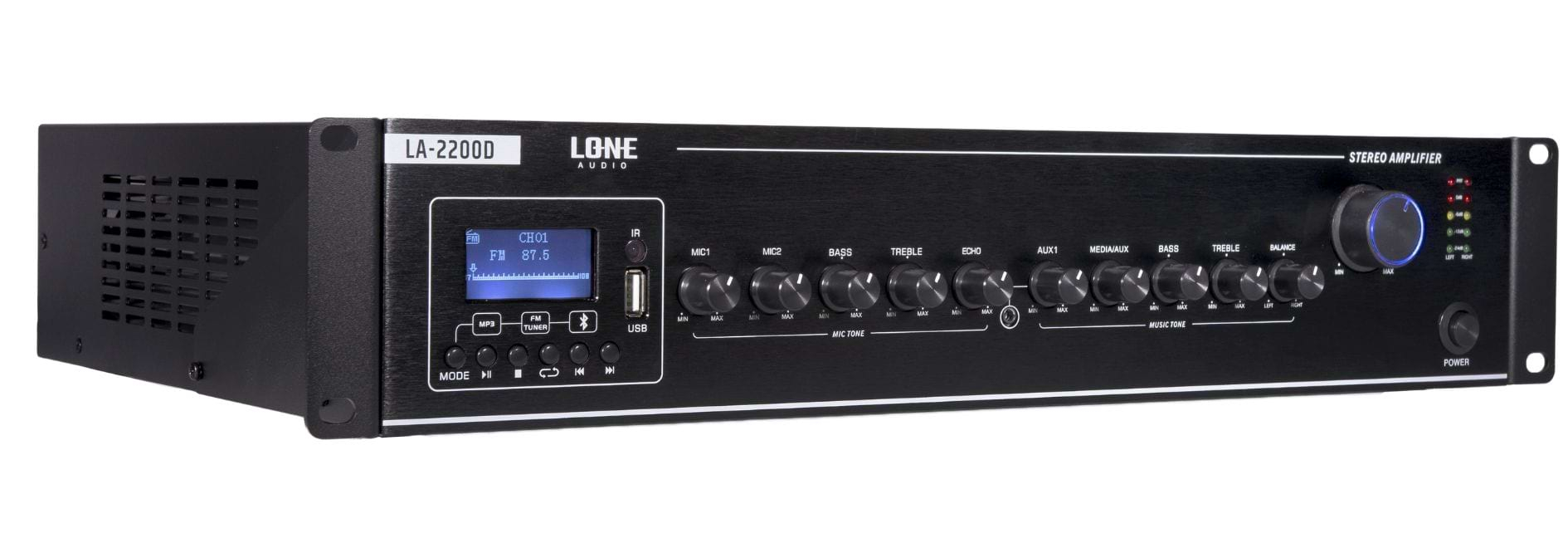

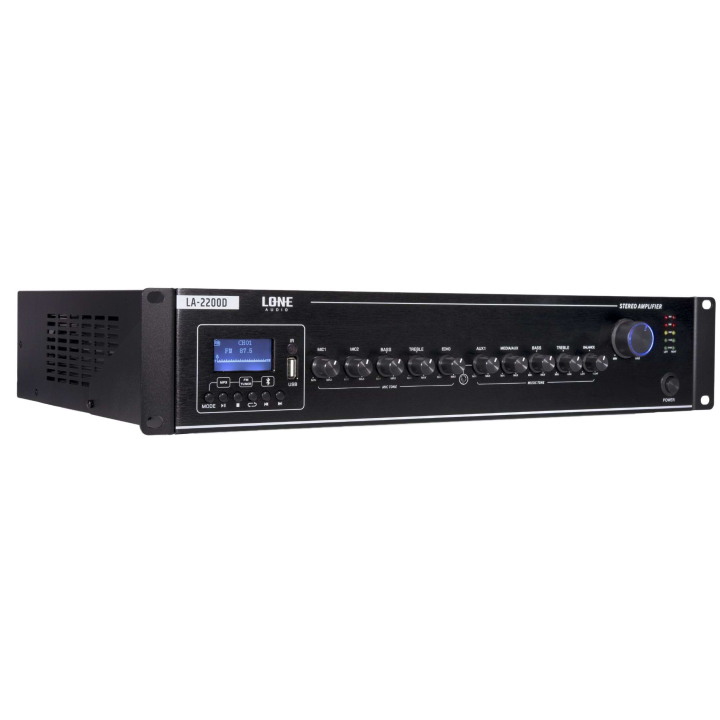

  • Front panel controls: Media, Mic, Line, Treble, Bass, Master level

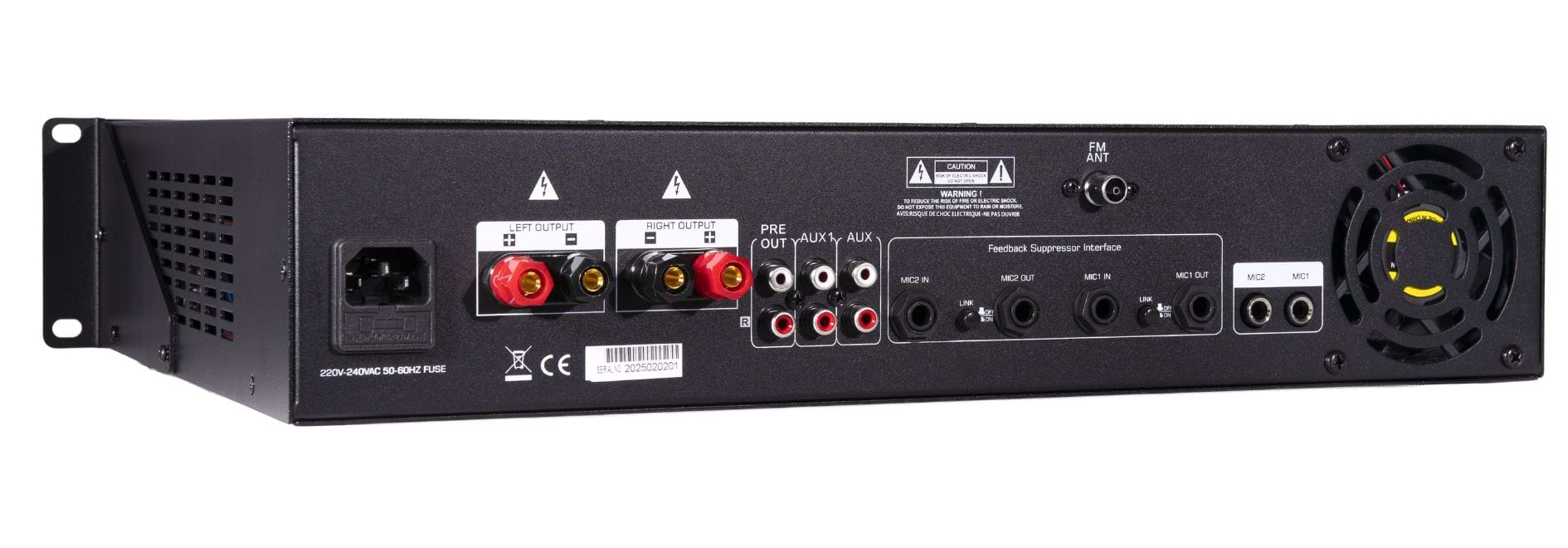

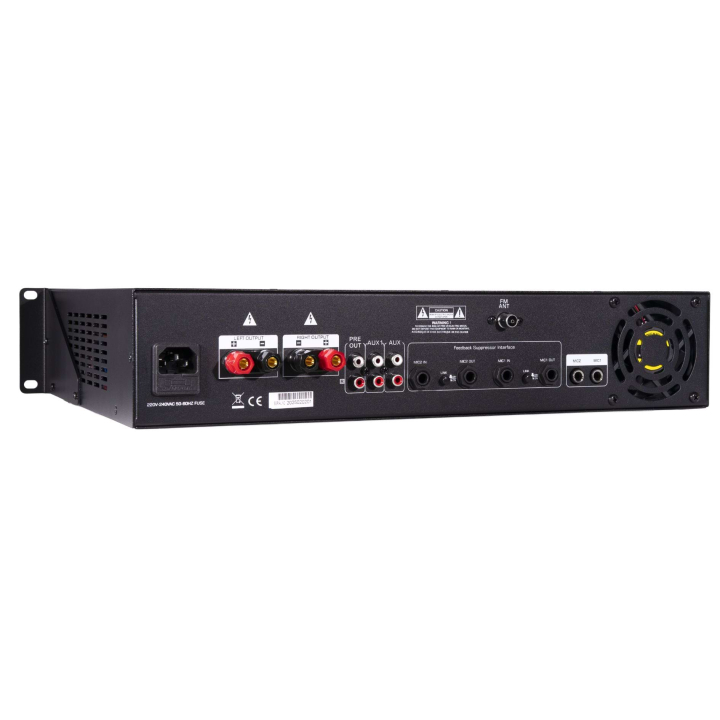

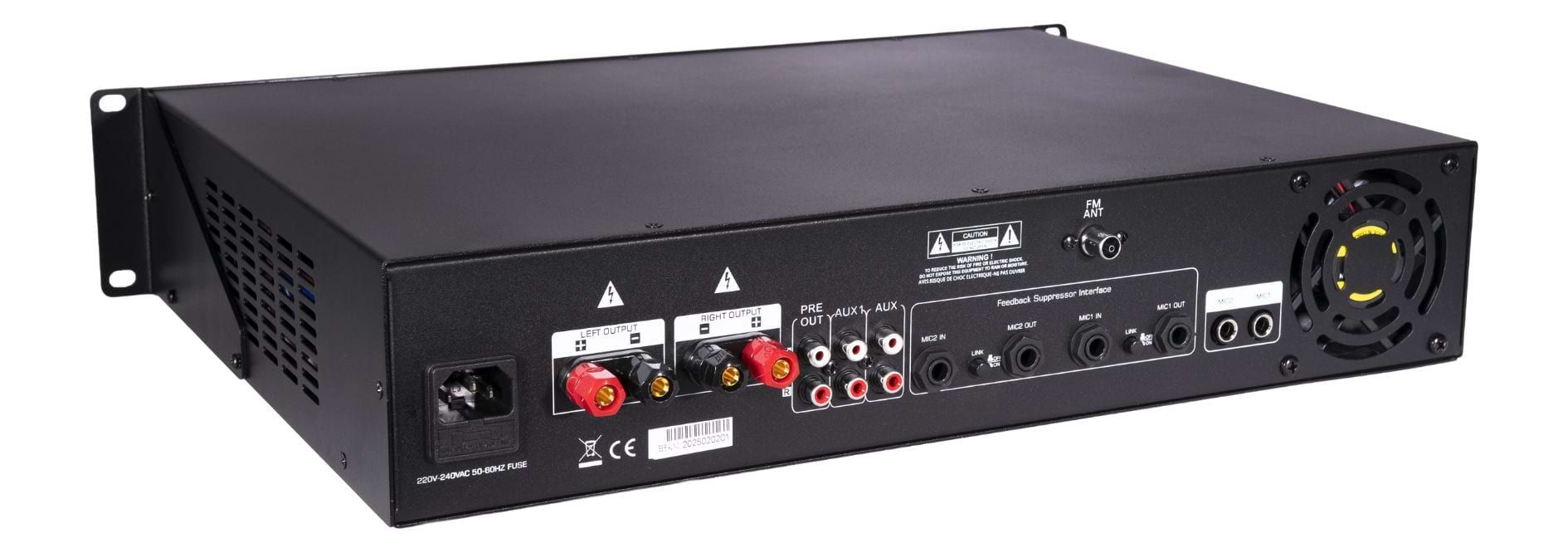

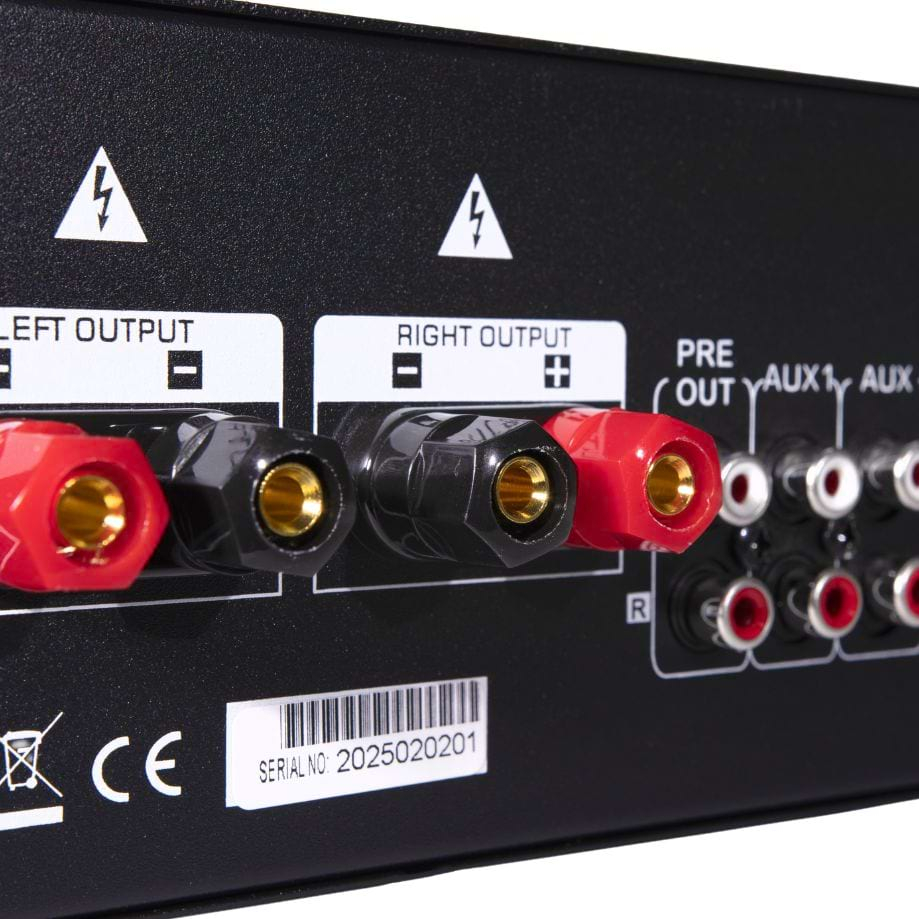

  • 2 Speaker outputs (LEFT / RIGHT)
  • 1 individual volume control per input
  • Thermal, overload, and short-circuit protection

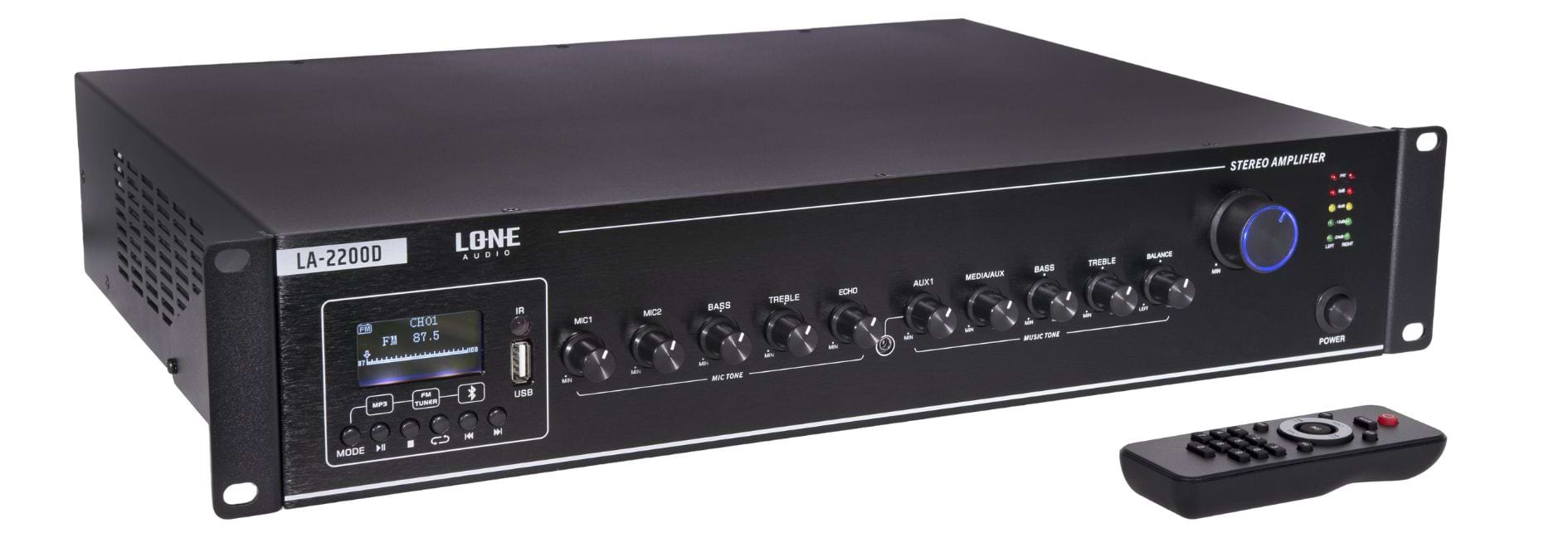

  • Remote control
Technical Specifications — LA-2200D
Specifications LA-2200D
Type Stereo Amplifier
Power supply AC 220-240V - 50 Hz
Output power 2 x 200 W
Speaker outputs 8 Ω
Inputs AUX: 500 mV / Mic: 10 mV
Multimedia Bluetooth
USB / FM
Frequency response 20 Hz – 20,000 Hz
Total harmonic distortion < 0.2 %
Signal-to-noise ratio > 85 dB
Cooling Fan
Consumption 800 W
Protection Thermal, overload, and short-circuit
Dimensions (W x D x H) 485 x 320 x 88 mm
Weight 10 kg
Installation space 2U

Product Details

  • Brand
  • Reference
    LA-2200D
  • SKU
    02855
  • EAN13
    3701567913518
