Magnetic induction loop kit 200 m2

Name: Magnetic induction loop kit 200 m2
Brand: RONDSON
SKU: AKM1

Reference : AKM1

SKU : 02000

EAN13 : 3701567910593

Magnetic induction loop kit system 200 m2

Types d'applications

BOUCLE MAGNÉTIQUE

Superficie

200 m²

AKM1 / PDA200E

Download (974.51KB)

Description

Induction loop kit system 200 m2

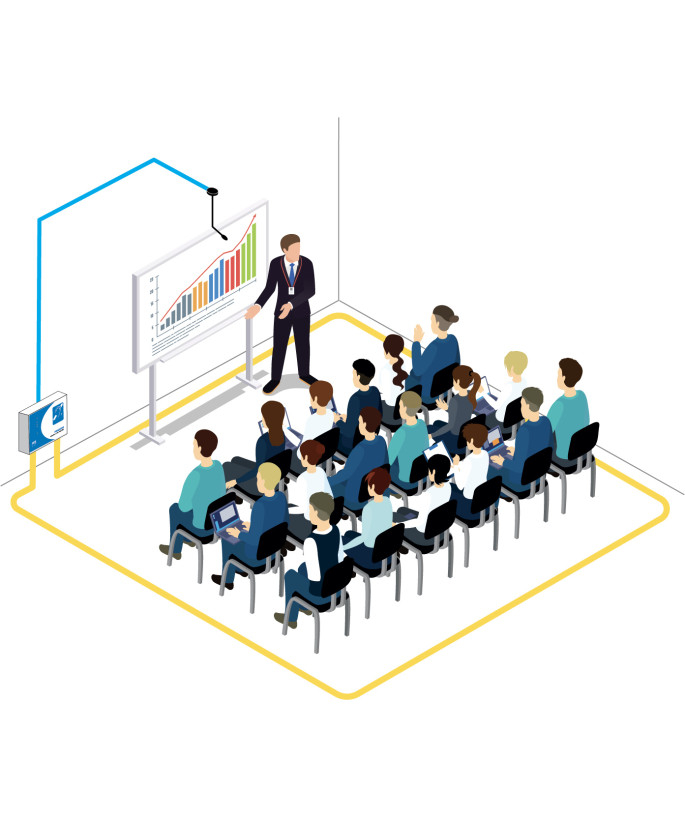

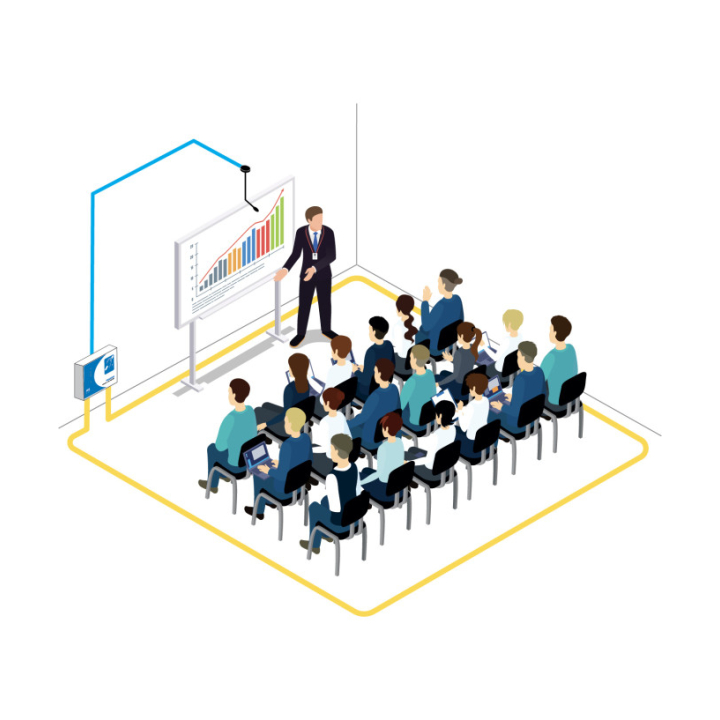

- Sound solution to assist hearing impaired people equipped for rooms such as bank branches, theatres, schools, town halls, shops, etc.
- Covers 200 m2 for a rectangular room of 20 m x 10 m
- Easy internal screw connections
- Fixed wall installation ideal for schools or colleges where classes are often left unattended
- Temperature, level and tone setting resistant internal driver
- One balanced/unbalanced microphone input
- One symmetrical/unsymmetrical line input
- Acoustic alarm input for door chime, fire alarm, security system, etc...
- 100V line input for connection to PA system
- Automatic limiter/compressor
- Pilot possibility 2 Ω to increase coverage at higher frequencies
- Complies with EN60118-4 (BS6083) and BS7594-1993 standards

- Please note that the magnetic loop is not included in the scope of supply!

Find more information about the Magnetic Loop.

SPECIFICATIONS	AKM1
Type	Wall-mounted amplifier with induction loop
Material	ABS
Power supply	230 V / 50 - 60 Hz
Coverage	200 m² (20 M x 10 M)
Inputs	built-in microphone x 1 - sym/asym line x 1 - sym/asym
Total Harmonic Distortion	0,5 %
Settings	input level Mix Loop
Display	Operating indicator Entry level (limit) Loop current (1,2,3)
Dimensions (W x D x H)	237 x 77 x 3200 mm
Weight	2,9 kg

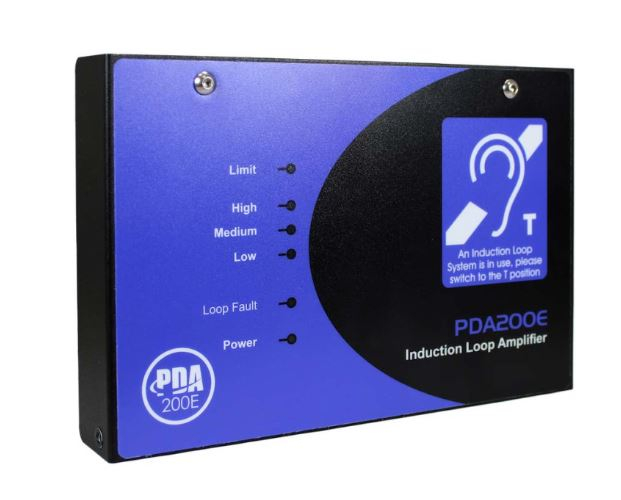

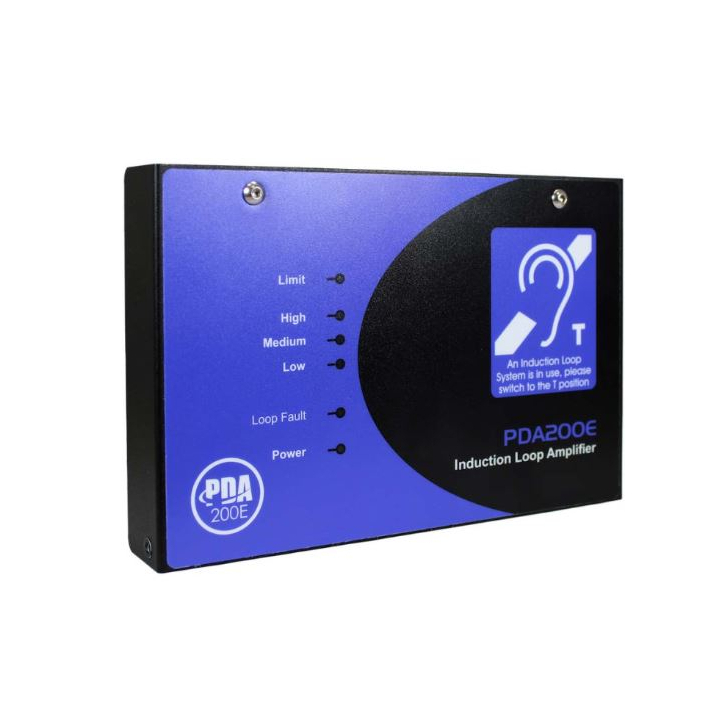

Composition of the kit	Ampli PDA200E + micro APM
