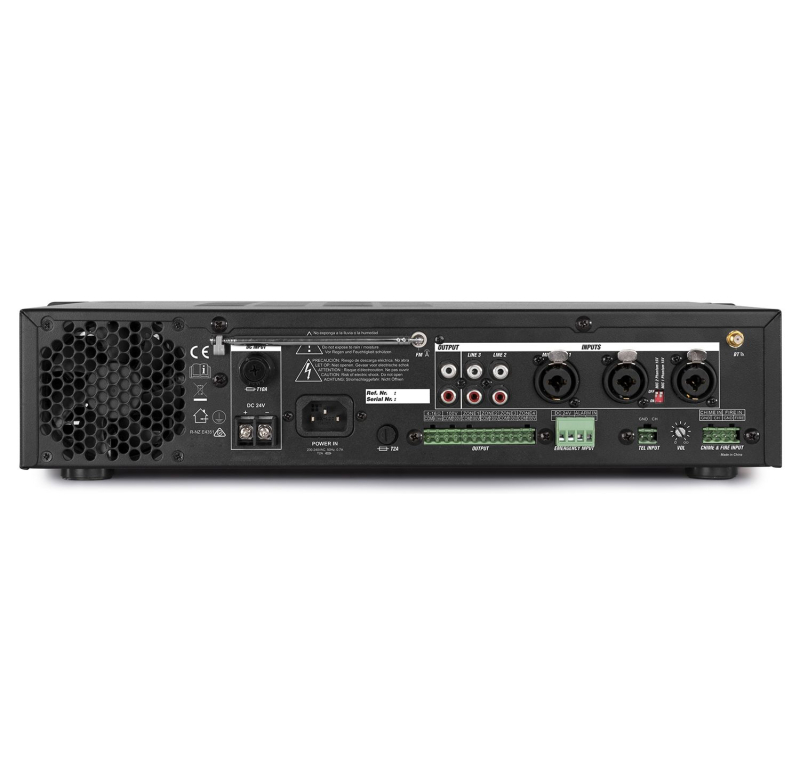

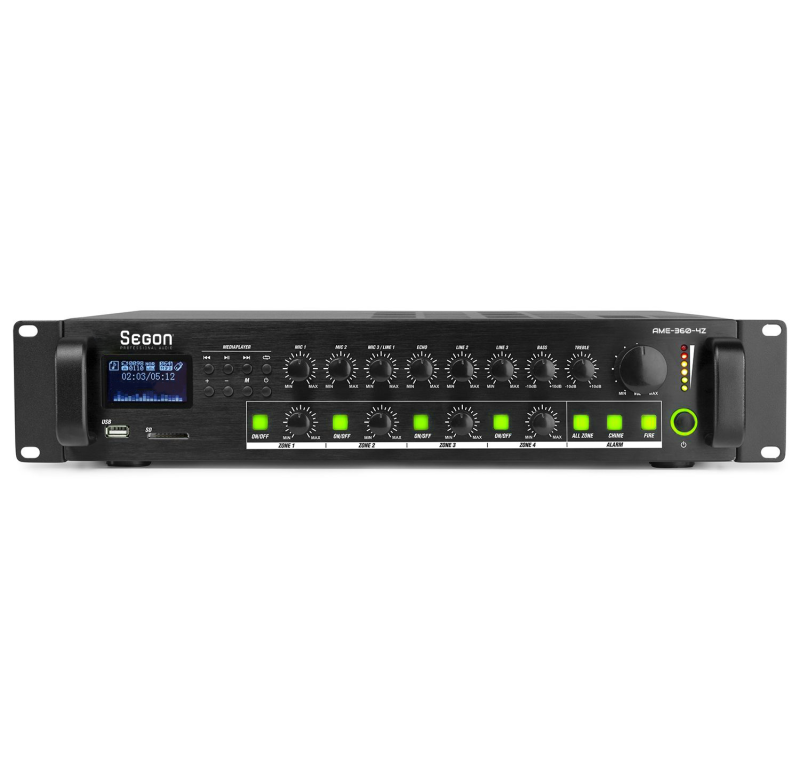

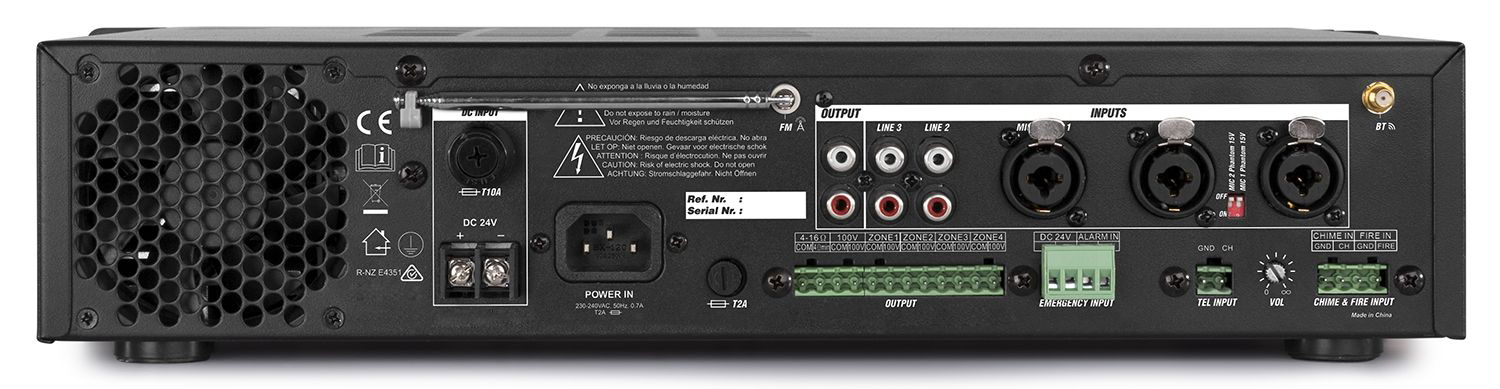

Mixer Amplifier 4 zones 360W
3701567910999
02684
4 Zone 360W Mixer Amplifier
Media player
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usDATA SHEET IN PDF
Description :
This 4 zone mixer amplifier is available in 360W.
It offers 100V, 70V and 4 - 8 Ω low impedance speaker outputs.
It operates on 220V-240V - 50/60 Hz and DC 24V
Features:
It is equipped with :
- 1 USB/CD/Bluetooth player and AM/FM Tuner
- 3 MIC/LINE balanced XLR and unbalanced jack inputs with switchable 24V phantom power
- Microphone priority terminal with dry contact
- 1 RCA input: AUX
- 1 REC Out / LINE Out
- Individual volume control for each input, MASTER volume control
- 70V and 100V or 4 Ω and 8 Ω speaker outputs on screw terminal
- Thermal, overload and short-circuit protection
- Output level meter
- Supplied with 19″ mounting brackets.
- Fire shutdown
| SPECIFICATIONS | AME-360-4Z |
| Type | Mixer amplifier with tuner/MP3/USB/SD/BLUETOOTH |
| Power supply | AC 220V/240 V – 50/60 Hz |
| Power output | 360 W RMS |
| Speaker outputs | 4 - 8 Ω / 70V – 100V |
| Frequency Response | MIC/LINE : 80 Hz – 16 000 Hz (± 3 dB) AUX : 30 Hz – 20 000 Hz (± 3 dB) |
| Total harmonic distortion | < 1 % |
| Signal to noise ratio |
MIC : > 65 dB |
| Tone Settings |
Bass: +10dB at 100 Hz |
| Cooling | Fan |
| Consumption | 280 W |
| Phantom power |
+ 24 V switchable |
| Protection |
Protection thermique, surcharge et court-circuit |
| Other |
REC Out : 1V |
| Dimensions (W x D x H) |
420x320x100 |
|
Weight |
10,2 kg |
