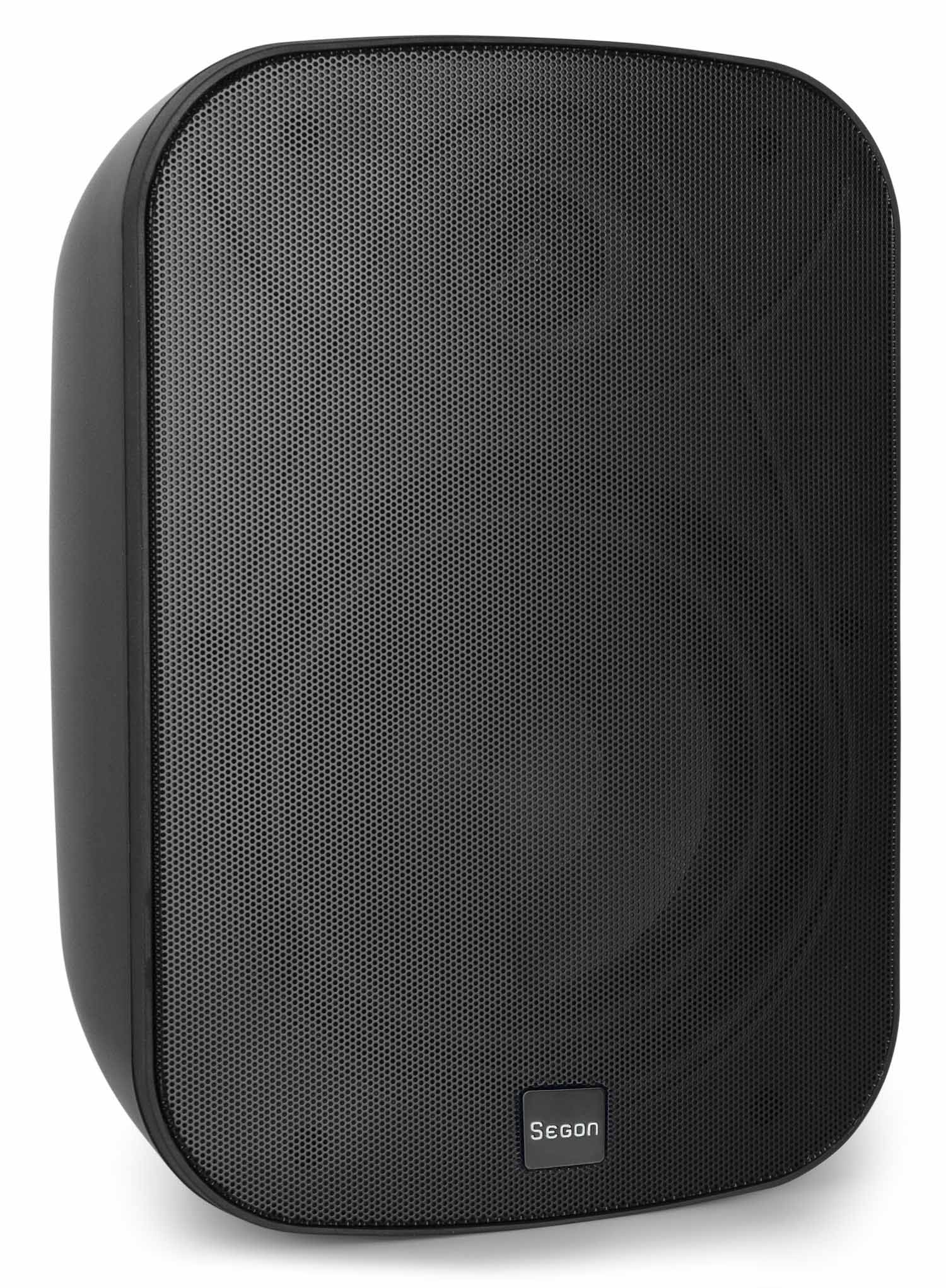

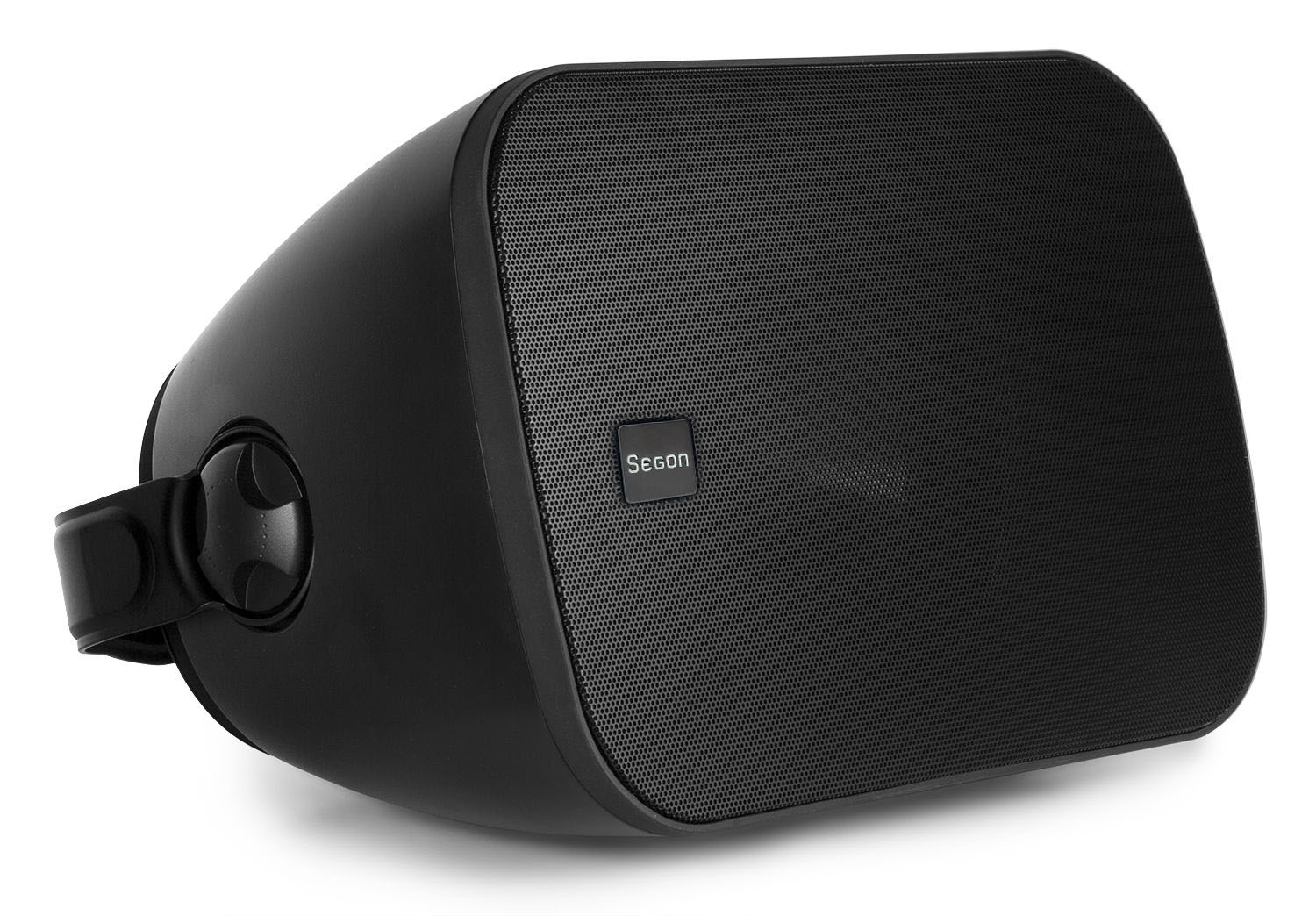

Weatherproof wall-mounted compact loudspeakers 40W
Reference : JS-BSM40N
SKU : 02604
EAN13 : 3701567905438
Weatherproof 40W compact wall-mounted speaker in 2 colours:
Reference : JS-BSM40B - Code : 02605
Reference : JS-BSM40N - Code : 02604
Description
- Compact 2-way 40W 2-way wall-mounted speaker systems for indoor and outdoor use
- Aluminium grille and fixing bracket, woofer with polypropylene membrane
- Online use 100 V or 8 Ω in low impedance
- Equipped with 10 cm midrange speaker and dome tweeter
- High weather resistance IP66

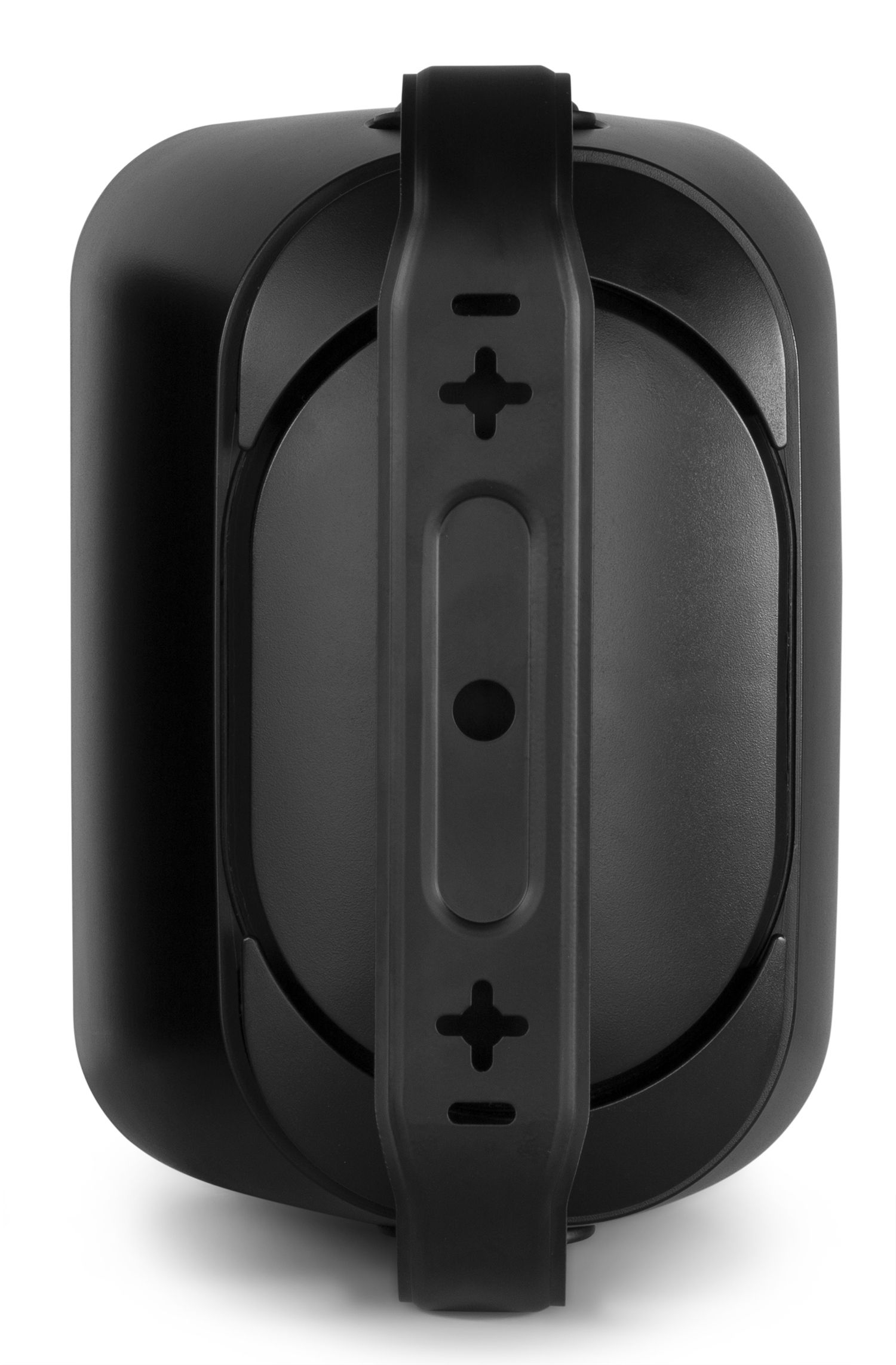

- Default wall mounting bracket included
- A U bracket
- Applications: Sports halls, aquatic complexes, station halls, etc.
|
SPECIFICATIONS |
JS-BSM40B - JS-BSM40N |
|
Type |
2-way wall-mounted compact speakers |
|
Material |
ABS case + aluminium grille |
|
Colour |
White and Black |
|
Speaker |
16 cm + tweeter / 6" |
|
Sensitivity |
89 dB / 1 W / 1 m |
|
Frequency Response |
90 - 20 000 Hz (-3dB) 65 - 20 000 Hz (-10dB) |
|
Directivity |
120° x 90° |
|
100V Line power |
10 W / 20 W / 40 W |
|
100V Impedance |
8 Ω |
|
Maximum SPL |
104 dB continuous, 110 dB peak |
|
Protection rating |
|
|
Connecting |
on Euroblocks terminal blocks |
|
Dimensions |
285 x 200 x 195 mm |
|
Weight |
3 Kg |
|
Accessory |
U mounting BRACKET |
Product Details
-
Brand
-
ReferenceJS-BSM40N
-
SKU02604
-
EAN133701567905438
