Sound rack from 8U to 20U in 19" standard

Reference : M8U

SKU : 00906

EAN13 : 3701567904660

Sound rack available in 4 sizes:

Reference: M8U - Code: 00906

Reference: M12U - Code: 00907

Reference: M16U - Code: 00908

Reference : M20U - Code : 00909

Désignation

Rack 8U

Rack 12U

Rack 16U

Rack 20U

Description

Racks from 8 U to 20 U

(without door or base) for 19" (483 mm) standard equipment.
Made of 1.2 mm thick laminated metal with a black lacquered finish.
The racks are delivered flat with 4 castors, 4 adjustable rubber feet, brackets and screws (1)
Useful depth: 420 mm maximum.

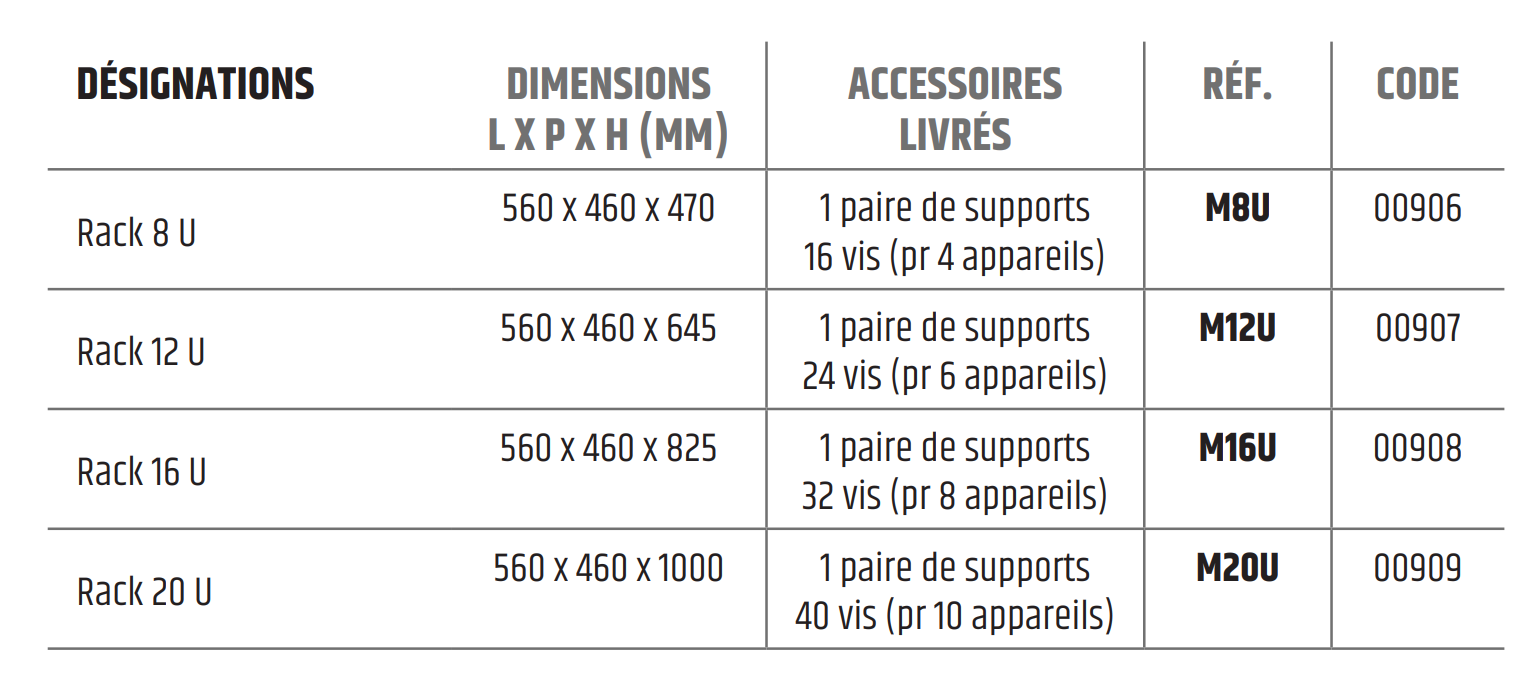

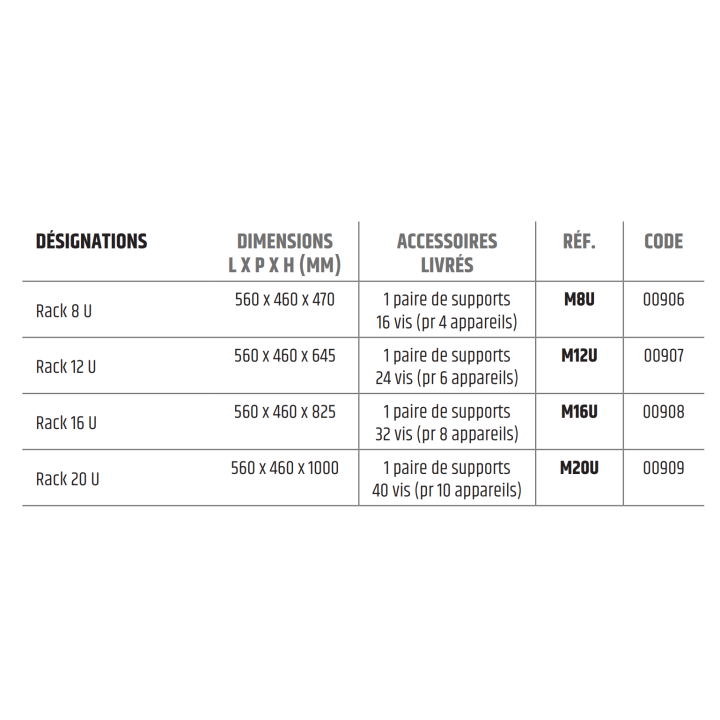

SPECIFICATIONS	DIMENSIONS L X P X H (MM)	SUPPLIED ACCESSORIES	REF	CODE
Rack 8 U	560 x 460 x 470	1 pair of 16 screw brackets (for 4 units)	M8U	00906
Rack 12 U	560 x 460 x 645	1 pair of 24 screw brackets (for 6 units)	M12U	00907
Rack 16 U	560 x 460 x 825	1 pair of 32 screw brackets (for 8 units)	M16U	00908
Rack 20 U	560 x 460 x 1000	1 pair of 40 screw brackets (for 10 units)	M20U	00909
