100 V line attenuators with level restoration

Reference : ATR 12
SKU : 00220
EAN13 : 3701567909825

100 V line attenuators with level restoration available in 4 power ratings :

Reference: ATR 12 - Code: 00220

Reference: ATR 24 - Code: 00221

Reference: ATR 36 - Code: 00222

Reference: ATR 50 - Code: 00223 (out of stock)

Power output
Share

Description

  • Attenuation in 10 steps (from 0 dB to - 33 dB) step 0 = stop
  • 24 V level restoration relay

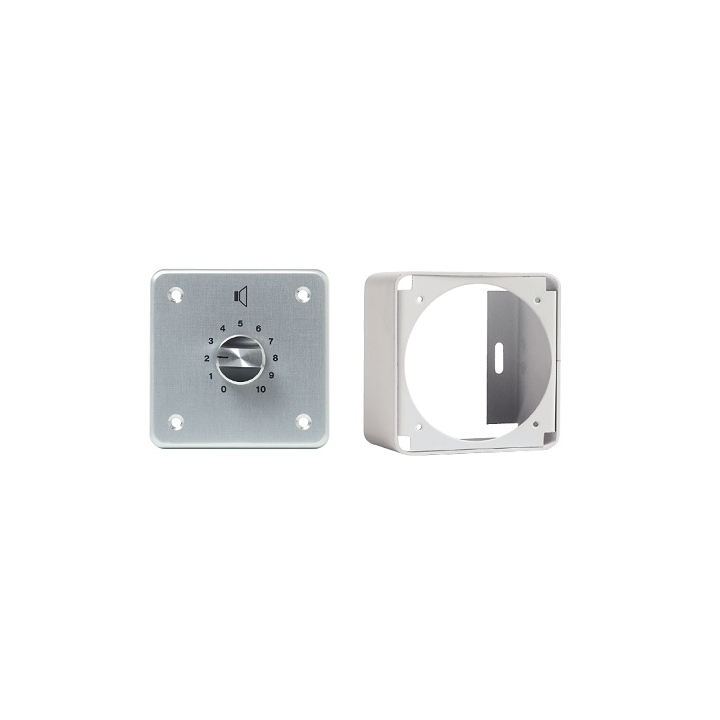

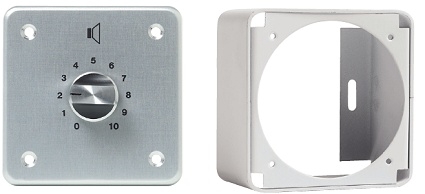

  • Front panel and adjustment knob in anodised aluminium
  • Matching metal housing for surface or flush mounting
SPECIFICATIONS ATR 12 ATR 24 ATR36

ATR 50
Frequency Response
50-18000 Hz
Rated power 12W 24W 36W 50W
Relais

Oui
Dimensions 80 x 45 x80

Product Details

  • Brand
  • Reference
    ATR 12
  • SKU
    00220
  • EAN13
    3701567909825
