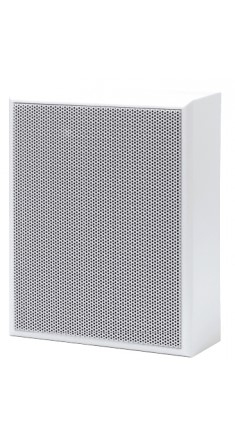

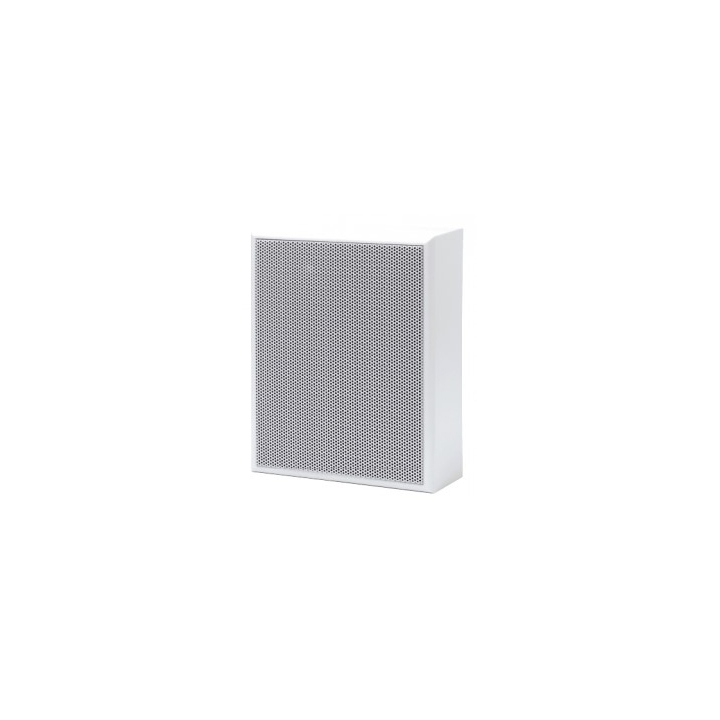

Wall mounted speaker 2 x 6W at 100V

Reference : CS 652
SKU : 00838
EAN13 : 3701567908132

Altoparlante da parete

Linea da 100 V

6 W

Power output
Impédance
Share

Description

Double wall-mounted loudspeaker for public address installation with A/B cabling according to EN 60849

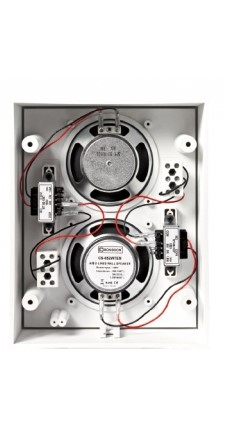

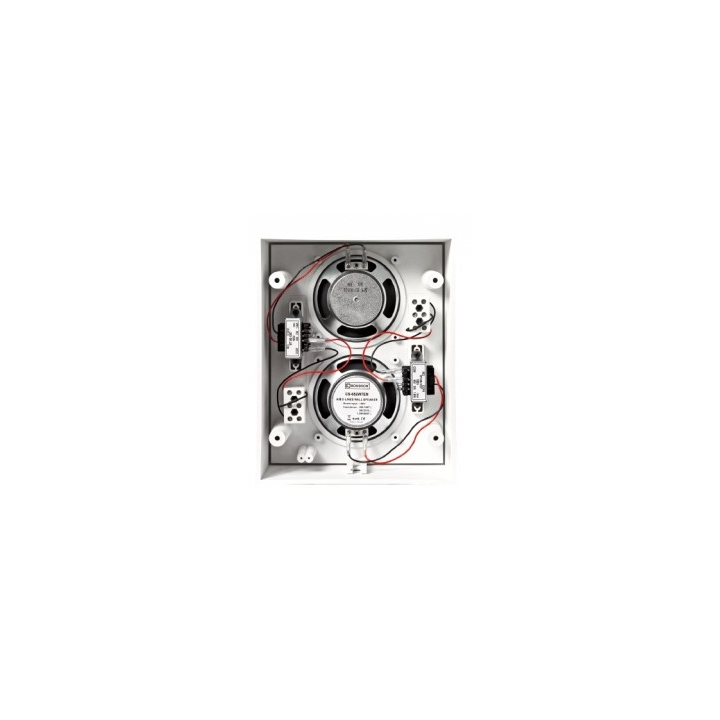

2 separate 100 mm loudspeakers with their own 6 W in-line 100 V transformer

Ceramic terminal blocks with thermal protection fuse (1)

3 level settings on terminal block (6 - 3 - 1.5 W: 100 V)

White plastic case with removable metal grid for theft-proof mounting

(1) Thermal fuse 1A/150° to separate a defective loudspeaker in case of short circuit (fire) so that the operation of the loudspeaker line is maintained.

Product Details

  • Brand
  • Reference
    CS 652
  • SKU
    00838
  • EAN13
    3701567908132

Data sheet

  • Type
    Haut-parleur mural double
  • Subject
    ABS
  • 100 V line impedances
    1,7 / 3,3 / 6,6 K
  • Loudspeakers
    10 cm large bande bicônes
  • Sound pressure level
    89 dB / 1 W /1 m
  • Bande passante
    140 – 20000 Hz
  • Puissance ligne 100 V
    2 x 6 – 3 — 1,5 W RMS
  • Connections
    Bornier céramique à vis
  • Dimensions (W × D × H)
    200 x 85 x 250 mm
  • Weight
    1,75 Kg
