UHF transmitter station for simultaneous translation

Name: UHF transmitter station for simultaneous translation
Brand: RONDSON
SKU: ST-200T

Reference : ST-200T

SKU : 02559

EAN13 : 3701567901805

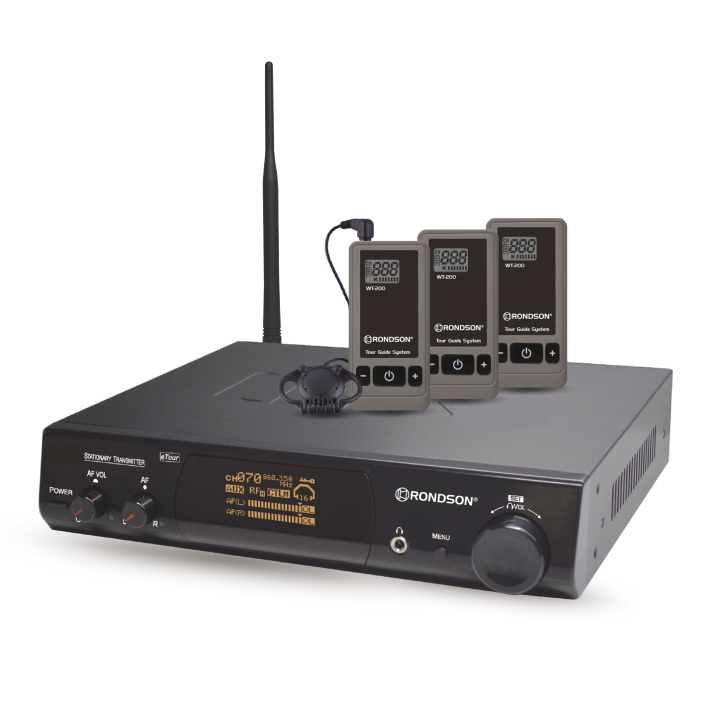

Station émetteur fixe pour système de visite UHF avec 1 récepteur EJ-7R

This UHF system is suitable for simultaneous interpreting, which consists of translating the speaker's speech in real time and without interruption.

Compatible with the WT-200R receiver boxes.

Wireless handheld microphone accessories WT-200MIC

Types d'applications

SYSTEMES VISITES GUIDÉES

ST-200T

Download (2.49MB)

Description

Description :

The single-channel fixed transmitter station is used to transmit a reliable and optimal quality audio broadcast to portable receiver boxes. The wireless system offers complete transmission coverage with many key configurations.

The station manages multiple inputs, microphones and auxiliary devices with adjustable settings. The OLED display shows channel status, input volumes and many details on operating parameters. Ideal for flexible use in different locations, it meets the essential needs of the group guide.

système de traduction simultanée - scénario 1

Characteristics :

High-resolution OLED display with easy navigation in the operating menu

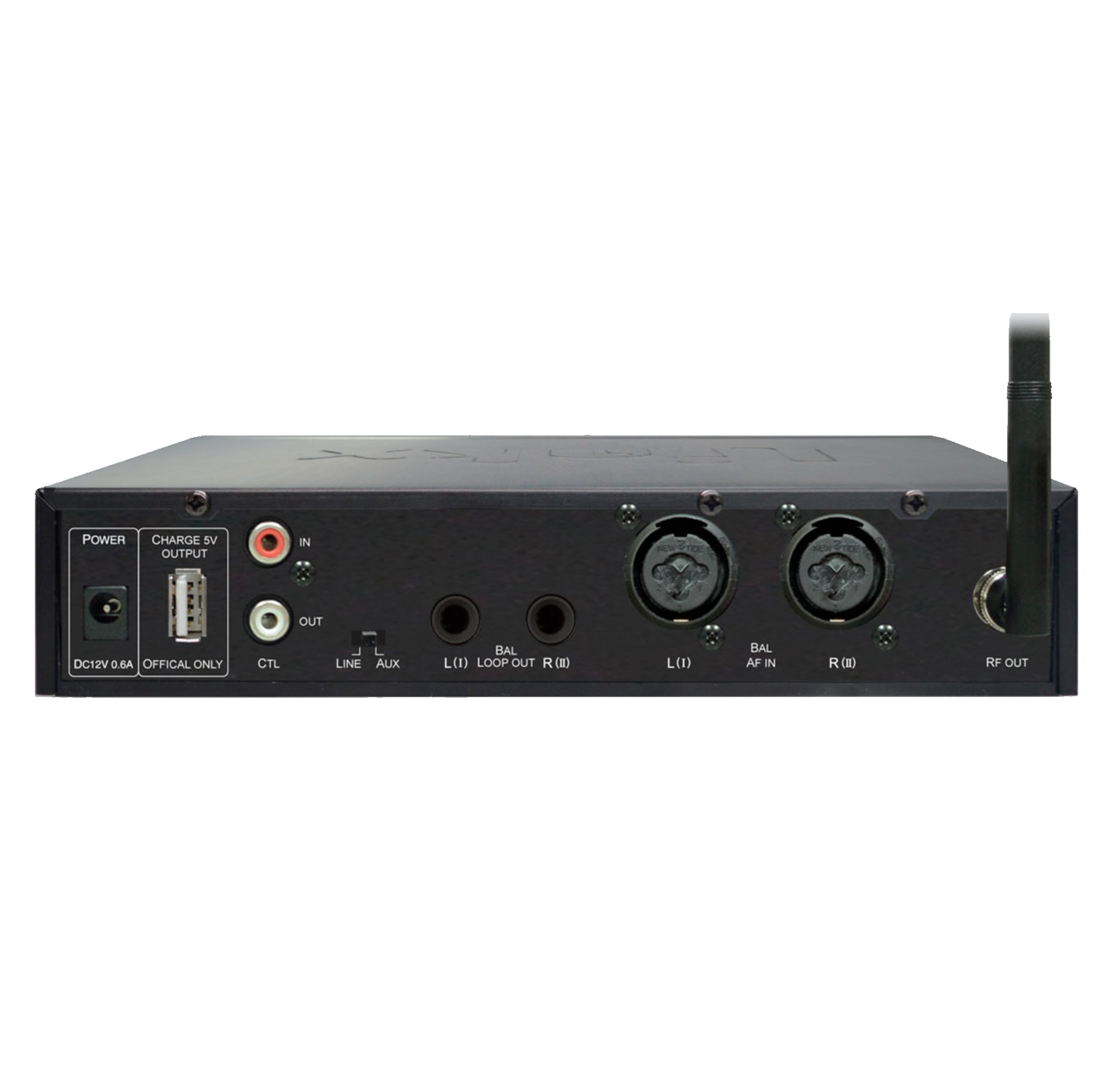

Two inputs accept a wide variety of audio sources, XLR and 6.35mm combo connector with selectable Aux/Line signal level
AF output L ( I ) variable/AF R ( II ) balanced
Wide range of frequencies available
eTour channel process technology for channel coordination and assignments between multiple transmitters
Adjustable RF output power
Headset for monitoring content transmission
Improved transmission distance with the DA-100 directional antenna

SPECIFICATIONS	ST-200T
Type	UHF interpretation transmitter station
Transmission frequency	863 - 865 MHz
Transmission power	10 mW
Reach	approx. 400 m with antenna DA-100
Noise signal	50 dB
Modulation	GFSK
Audio sampling	8 KHz 16 bits
Latency	20 mS
Dynamic range	80 dB
Power supply	DC 15V / 1.6A
Consumption	525 mA
THD à 1 KHz	1%
Dimensions (W x D x H )	215 x 190 x 44 mm
Weight	516 gr station with antenna
