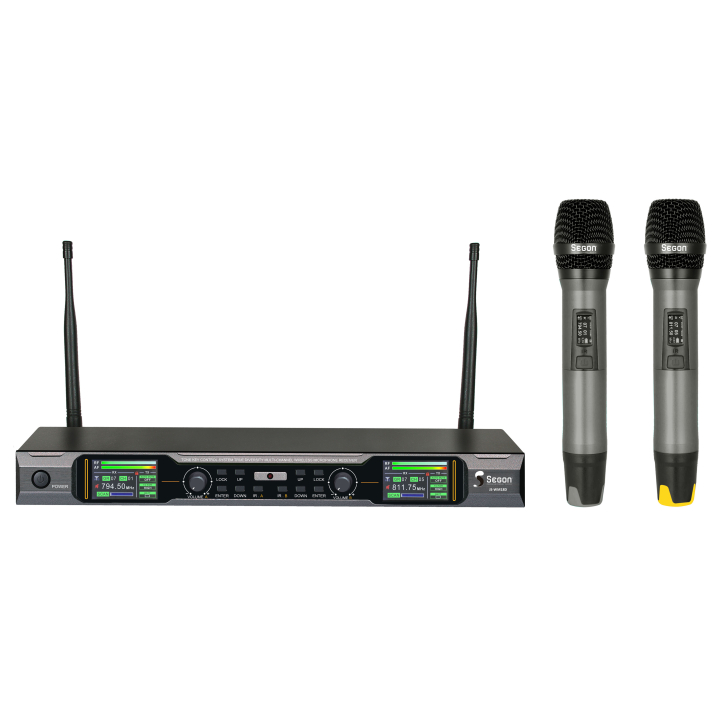

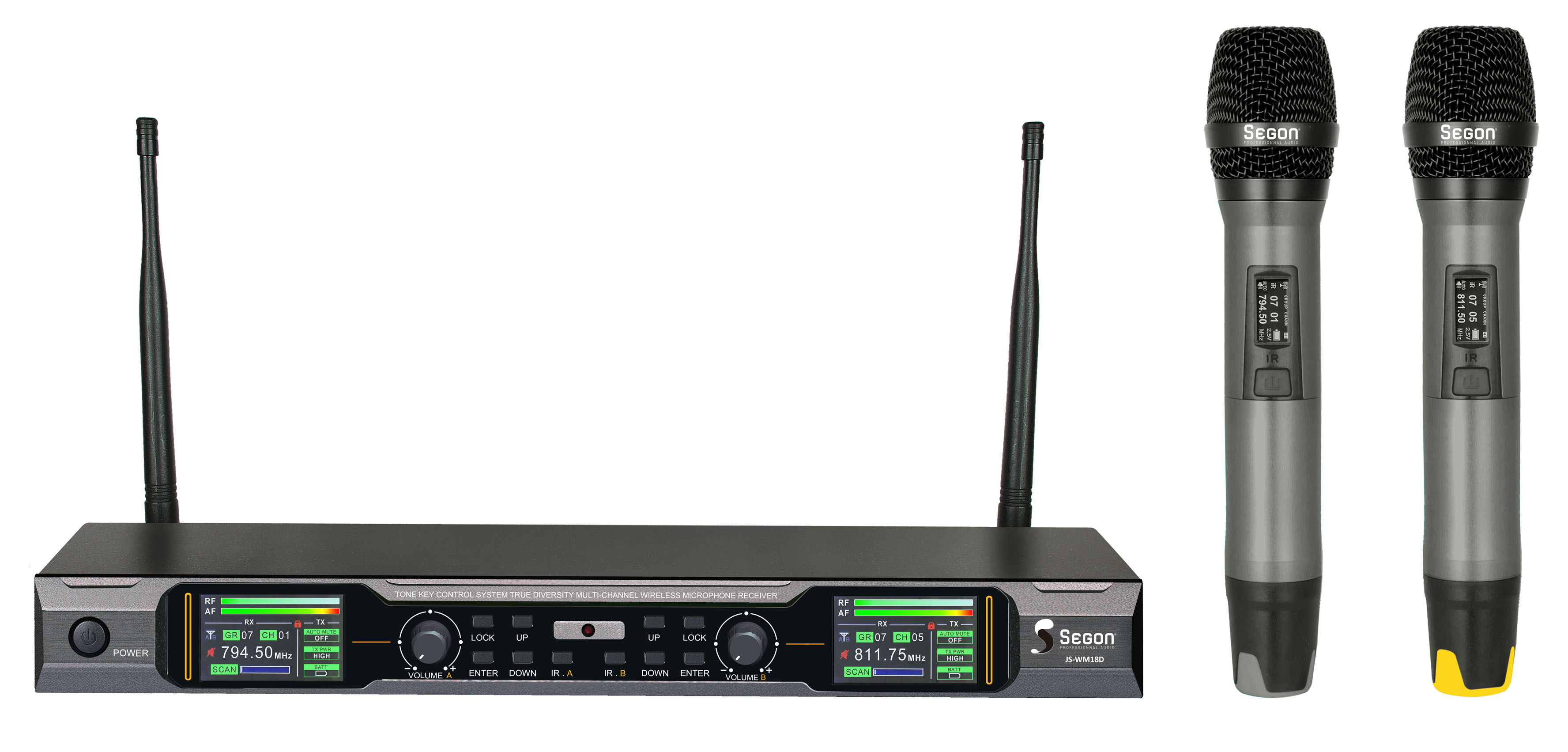

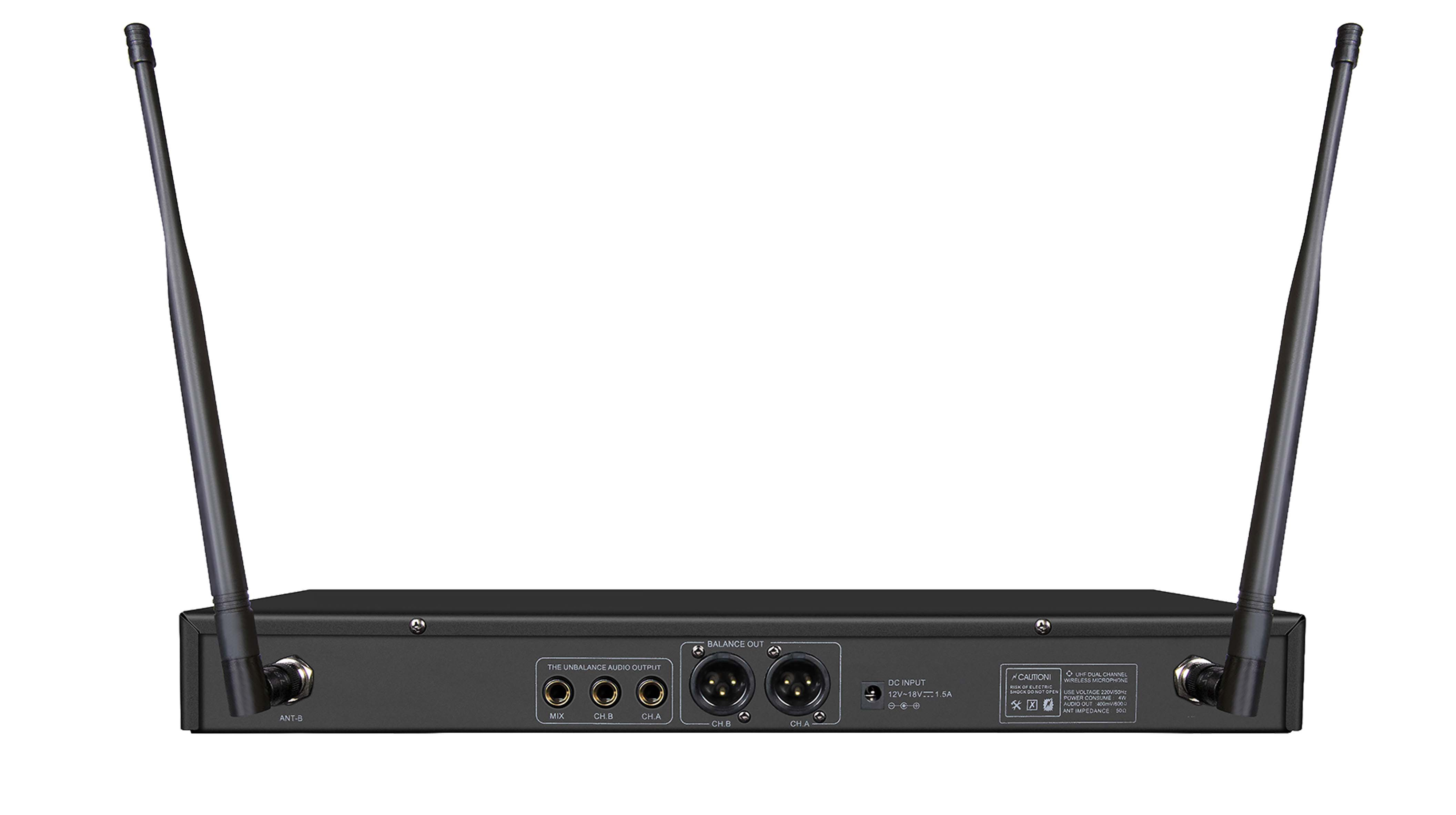

Dual receiver set with 2 wireless handheld microphones

Reference : JS-WM18D
SKU : 02317
EAN13 : 3701567905179

TRUE DIVERSITY UHF Receiver Microphone Set

2 handheld microphones

600–999 MHz – 20 selectable frequencies

30 mW

Canaux
Fréquences modulables
Share

Description

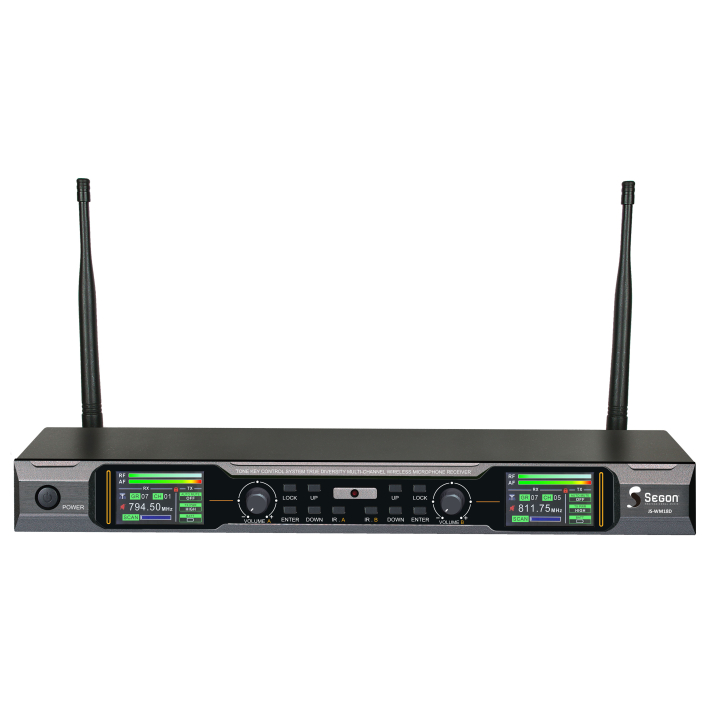

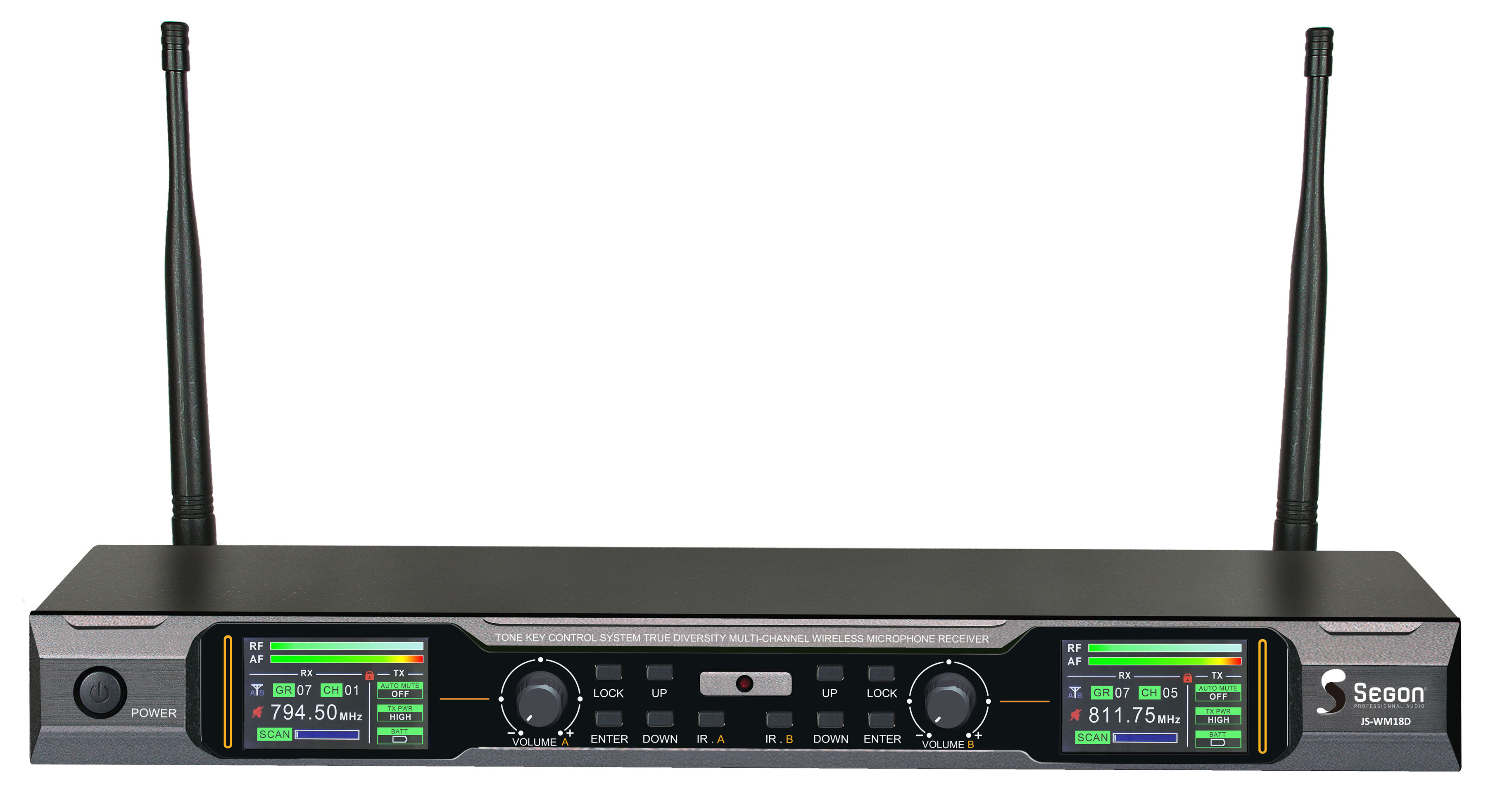

Receiver:

  • UHF receiver equipped with receiver modules for 30 selectable PLL synthesised group frequencies (240 channels)
  • Frequency range: 660-690 MHz
  • True Diversity Automatic Reception System
  • Anti-interference system for simultaneous operation of several units
  • Reception distance of 80 metres
  • Function display on LCD screen
  • Infrared "sync" function to transmit the frequency to the transmitters.
  • Ideal for vocal, singing or professional audio applications on stage
  • 19" Rackable
  • 1 jack cord (mix output) and 2 XLR cords

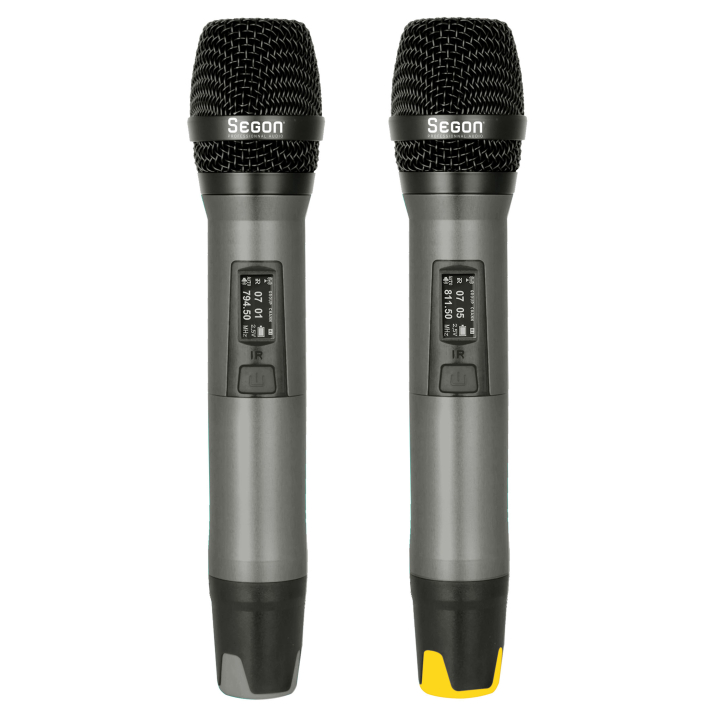

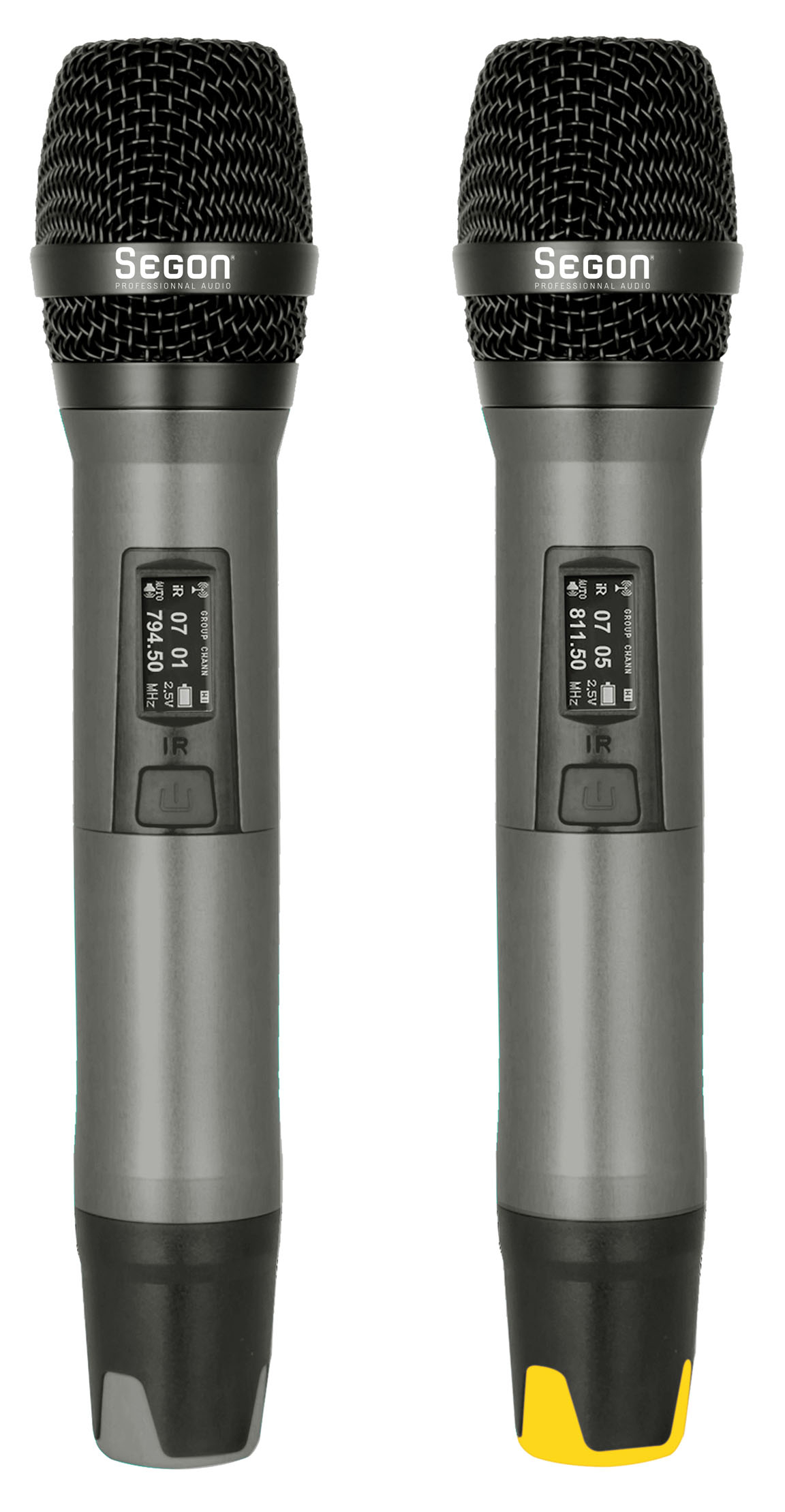

Hand-held micro transmitters:

  • Transmitter power: 30 mW
  • Type of FM modulation
  • Deviation: 40 KHz
  • Information display on LCD screen
  • Battery Voltage: 3V (2 x 1,5V AA Battery)
  • Autonomy of continuous use: 5 hours

Product Details

  • Brand
  • Reference
    JS-WM18D
  • SKU
    02317
  • EAN13
    3701567905179

Data sheet

  • System
    Synthétisé PLL
  • Output impedance
    600 Ω
  • Power consumption
    5 W
  • Reception method
    Ensemble UHF double Diversity, 2 micros main
  • Frequency stability
    + 30 ppm
  • Image rejection ratio
    + 80 dB
  • Signal-to-noise ratio
    90 dB
  • Audio output level
    400 mV, Symétrique/Asymétrique
  • Prises d’antenne
    2 x BNC
  • Alimentation
    DC 12V-18 V
  • Affichage
    LCD
  • Distorsion harmonique totale
    0,5 %
  • Bande passante
    40 Hz – 15 000 Hz (± 3 dB)

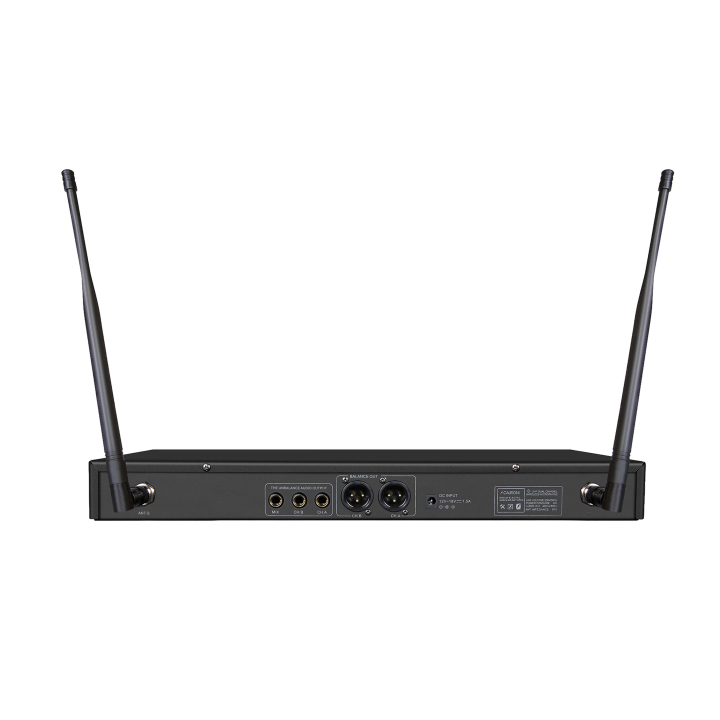

  • Prises sortie audio
    2 XLR symétrique, 3 Jack asymétrique
  • Sensibilité
    - 17 dBuV
  • Batteries or rechargeable batteries
    2 x AA / 1,5 V (livrées)
  • Dimensions (W × D × H)
    420 x 225 x 45 mm
  • Weight
    2,75 Kg (récepteur + micro main)
  • Boîtier émetteur + micro cravate
    JS-WM18B
