CS Wired Conference System - Delegates microphone unit

Name: CS Wired Conference System - Delegates microphone unit
Brand: RONDSON
SKU: CS-022R

Reference : CS-022R

SKU : 02219

EAN13 : 3701567908118

"Delegate" microphone stand of the CS-120 wired conference system

Built-in loudspeaker

Types d'applications

SOLUTION DE CONFÉRENCE

Notice CS-120

Description

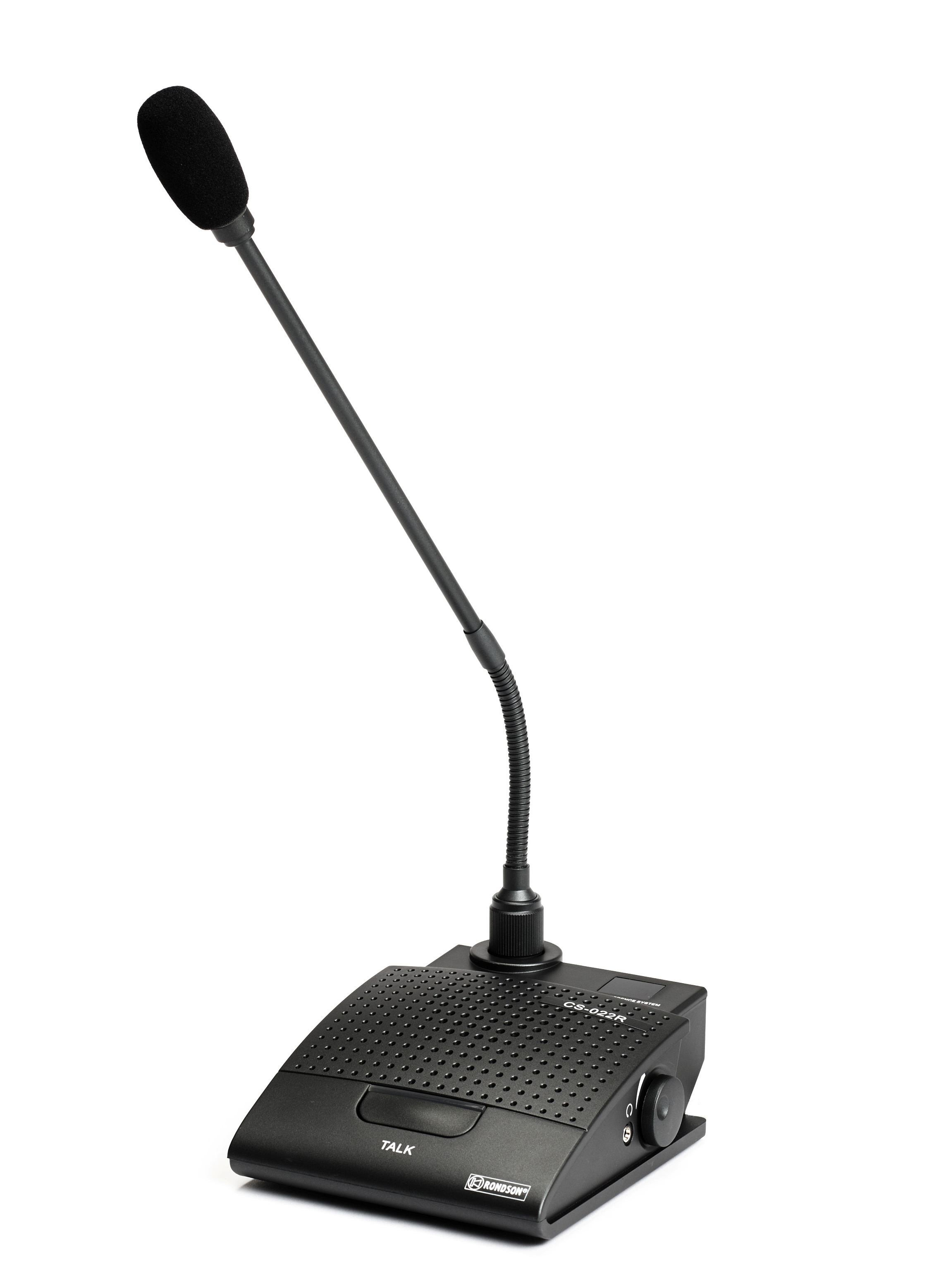

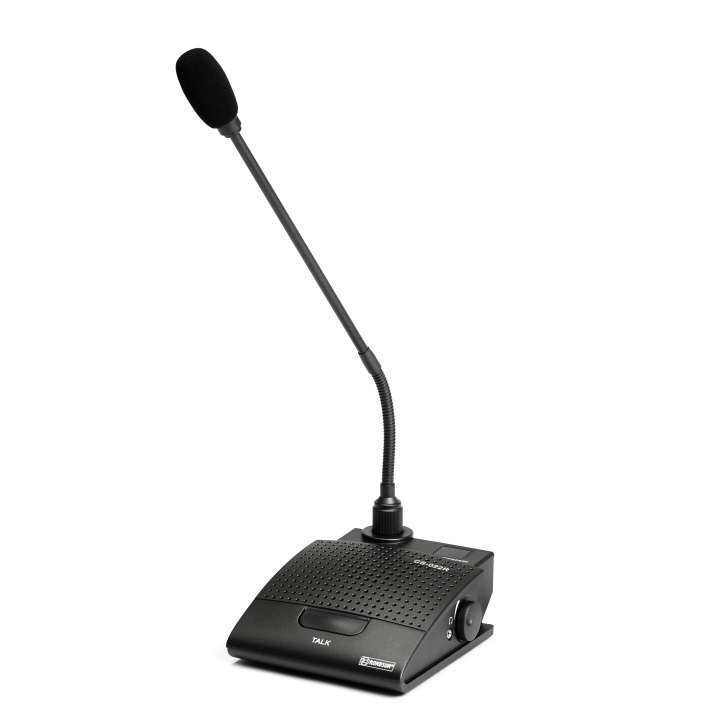

Delegate Microphone Unit

Each lectern has its own built-in 3W loudspeaker and a headphone socket for listening.
The CS-022R "Delegate" lectern has a "TALK" button and is at the same priority level as the other participants.
All lecterns are equipped with a semi-rigid fine electret microphone with a red light ring that lights up when the microphone is switched on. The microphone boom uses a 4-pin CB connector, which allows quick connection / disconnection.
Selectable AUTO/FIFO modes.
The microphone can pick up sound up to 50 cm (20 inches).
Volume adjustment by potentiometer.
Digital display indicating the lectern number.
Good sound quality on long distance transmission
Quick and easy installation thanks to the connecting cables supplied (1.3 ml with the microphone consoles + 10 ml with the control unit).
Input and output sockets in DIN 8-pin.
Dimensions (W x D x H) :
Desk: 135 x 150 x 50 mm - Weight: 0.95 Kg
Microphone hose: L 360 x Ø 30 mm, incl. lens cap
Jack socket for equipping the microphone desk with an EM-101 earpiece or a NL-90 hearing aid earring
