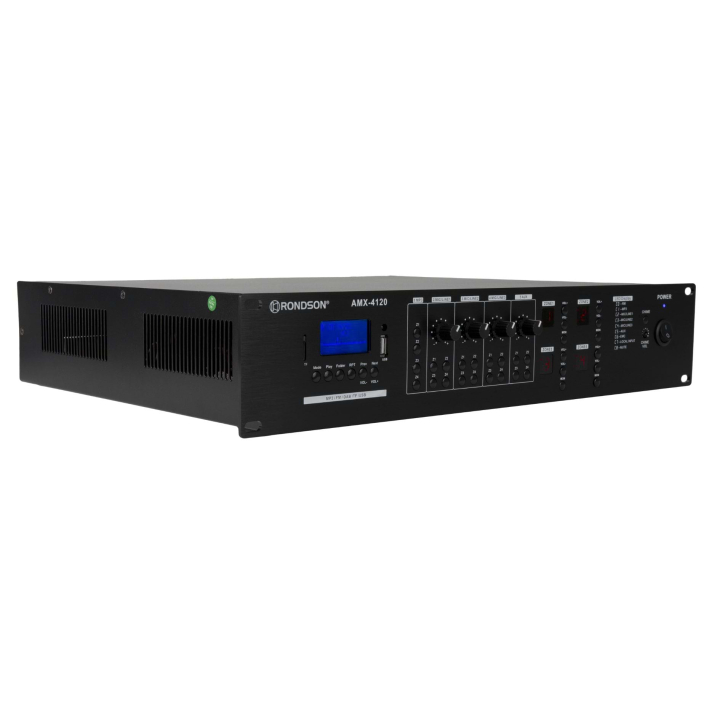

120W 4-zone mixing amplifier with multimedia player

Reference : AMX-4120
SKU : 02823
EAN13 : 3701567913211

120W 4-zone mixer amplifier

Built-in media player

100V line

24V DC

Compatible with call-out microphone console and wall-mounted control panel

Dry contact for PA system cut-off

19" rack-mountable (2U)

Power output
TUNER
BLUETOOTH
USB
SD
Coupure sono
DC 24V
Zones
Share

Description

Amplifier-mixer 4 x 120W

Provides a complete solution for multi-zone calls and multi-source selection systems.

It operates on 230 V - 50/60 Hz or DC 24 V.

It has integrated sources such as MP3 player / USB / SD / FM Tuner / Bluetooth.

Features :

It is equipped with :

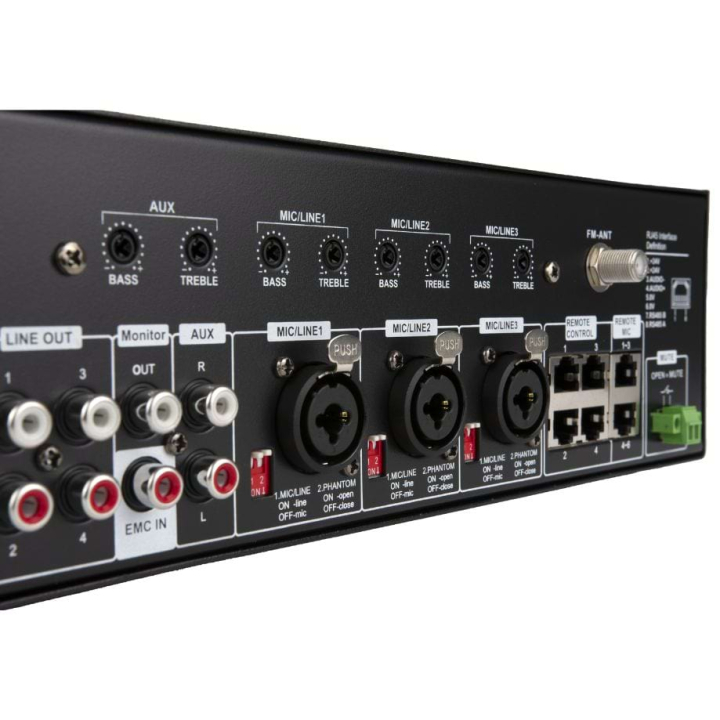

  • 3 MIC / line inputs on Combo connectors

  • 2 RCA inputs (AUX 1-2)

  • 1 Euroblock terminal block (Remote trigger)

  • 1 RCA input (EMC IN)

  • RJ45 for AMX-4B wall panel control and AMX-4A console microphone zone selection control

  • 1 DC 24 V input

  • LINE OUT on RCA/zones

  • 1 RCA Monitor output

  • Individual volume control for inputs and zones

  • Settings :

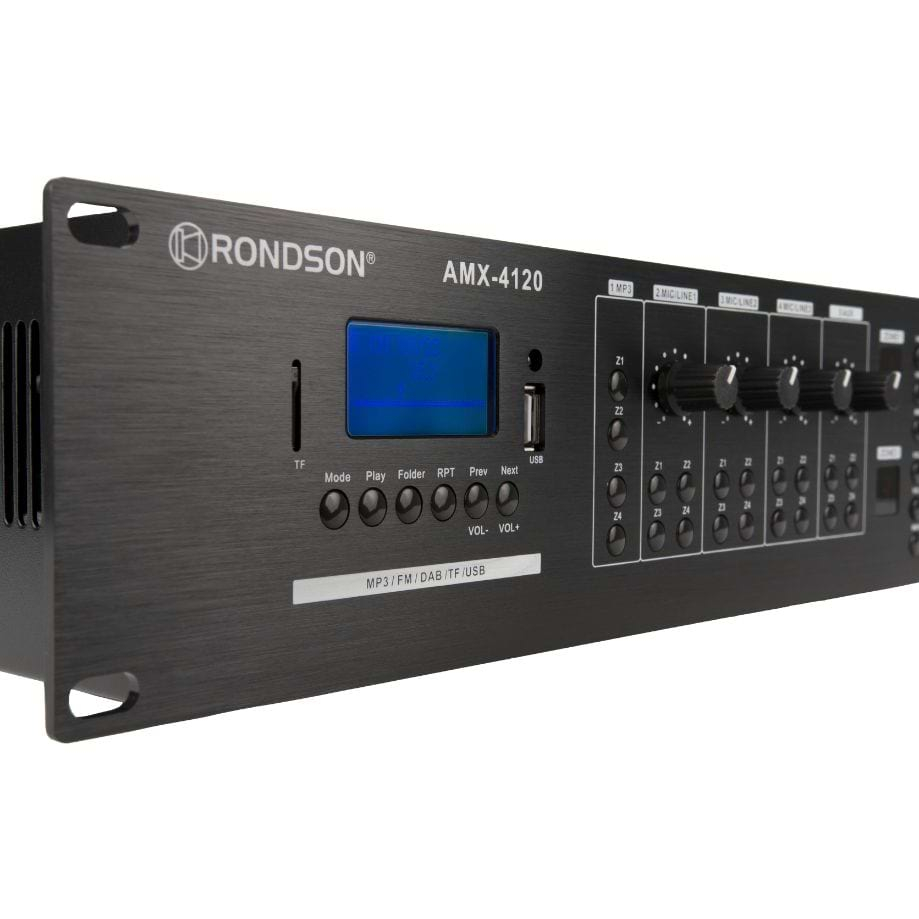

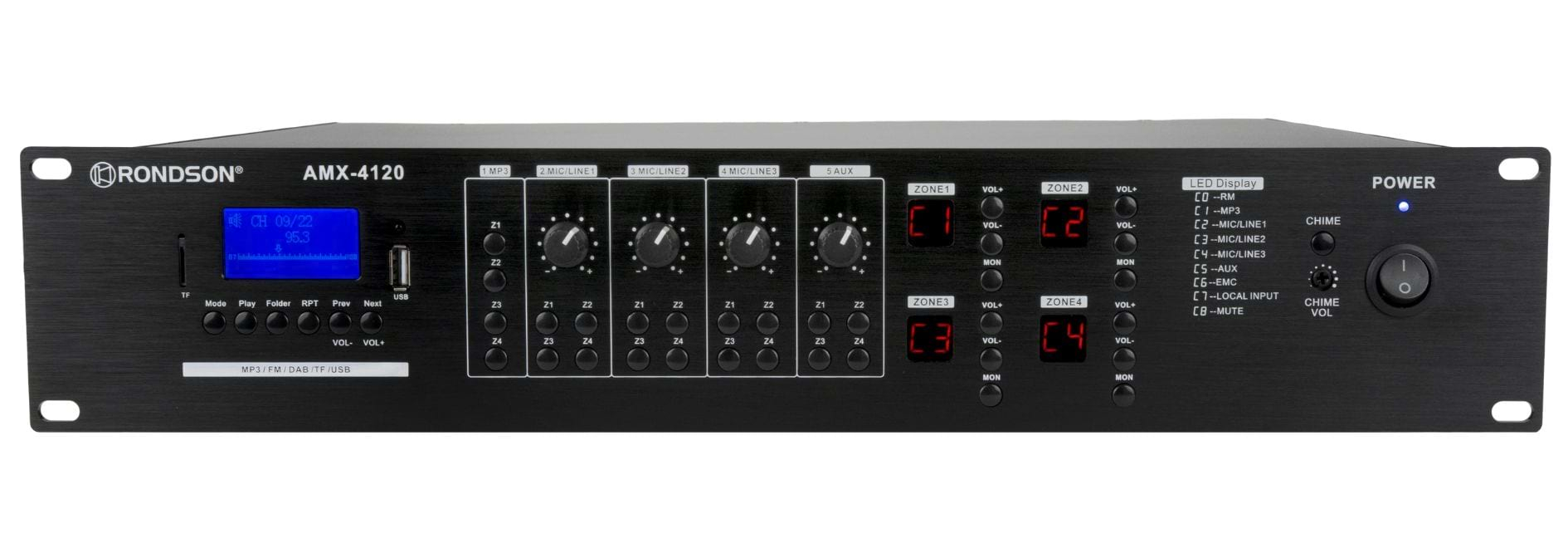

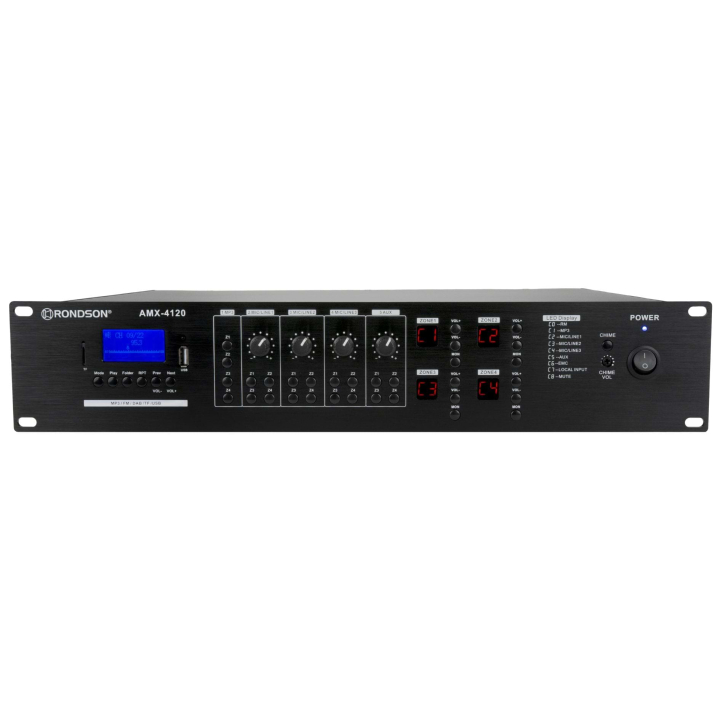

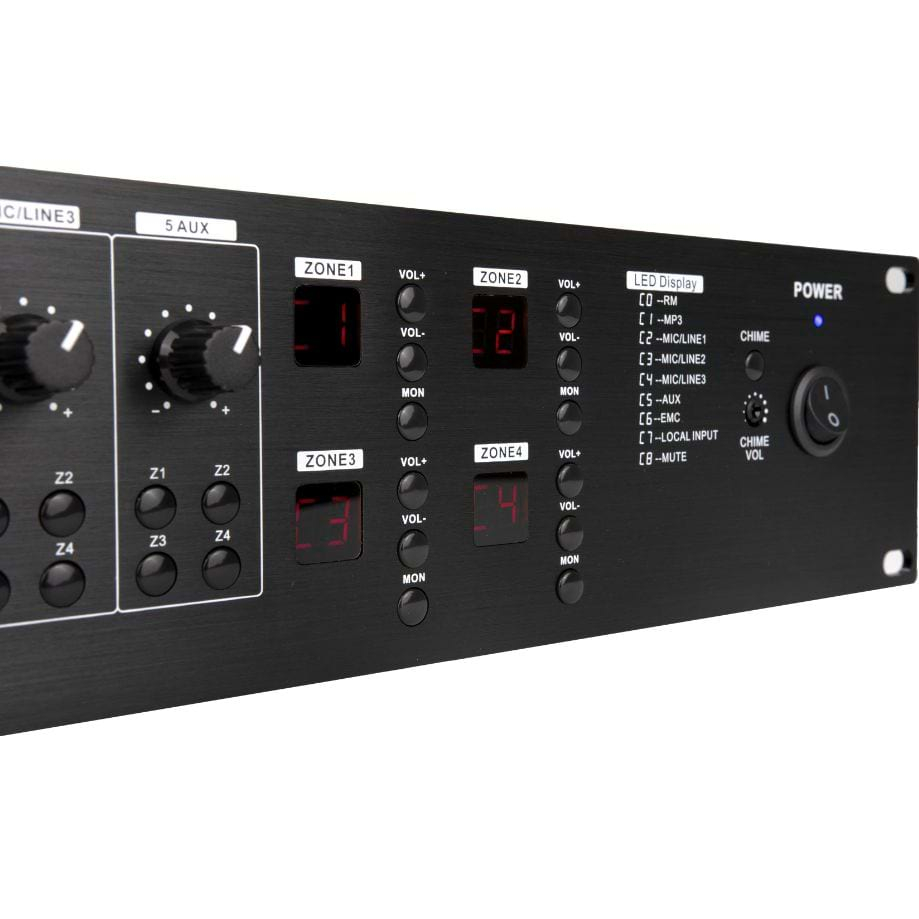

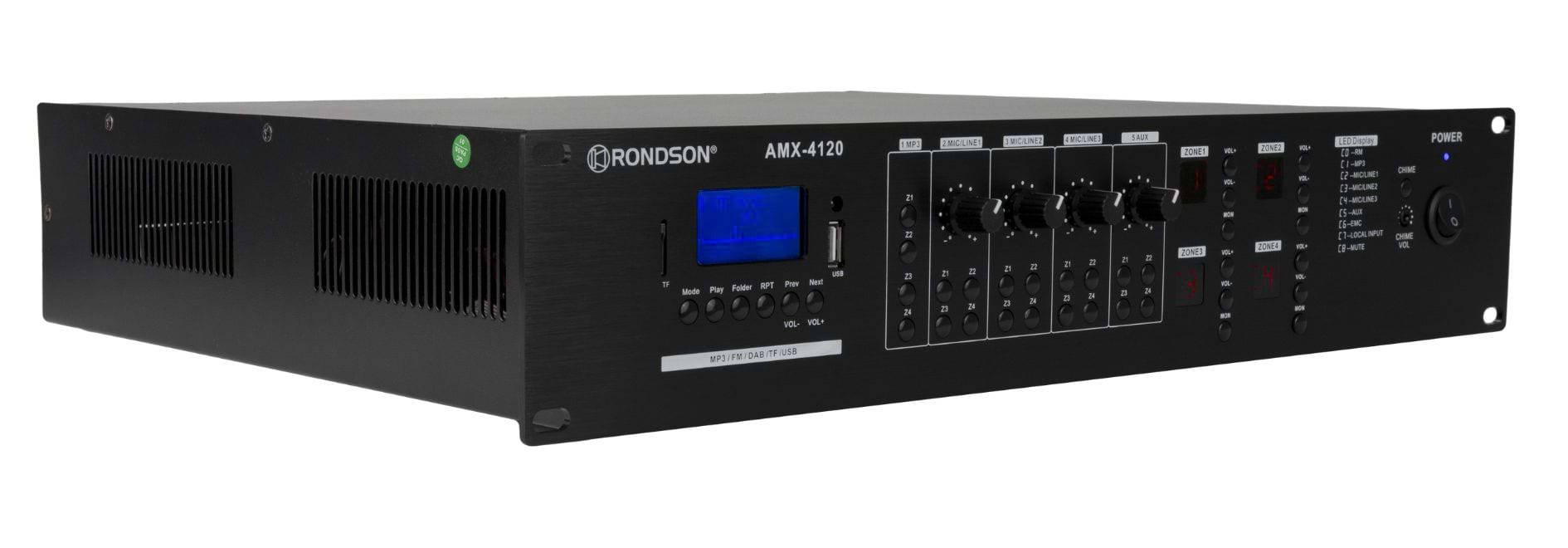

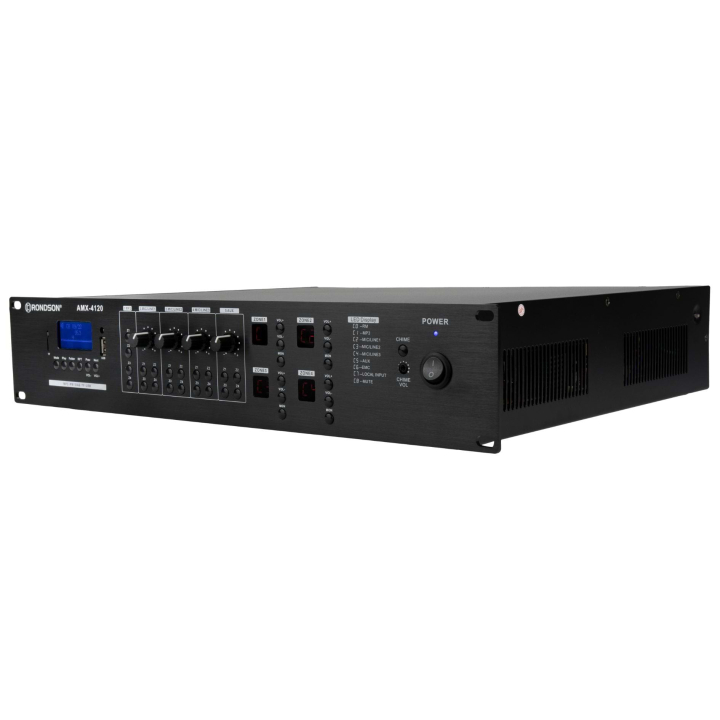

Front panel: 2 MIC/LINE volume controls (LINE 1-2) with tone controls and zone selectors 2 AUX volume controls (AUX 1-2) with zone selectors

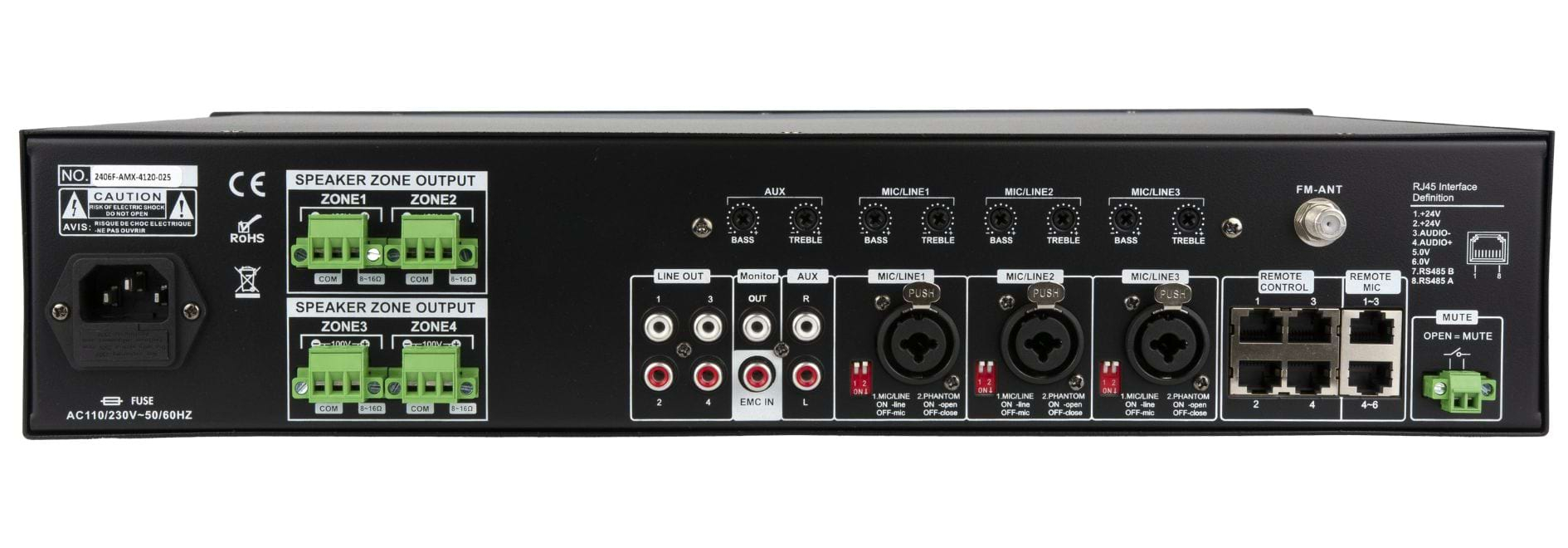

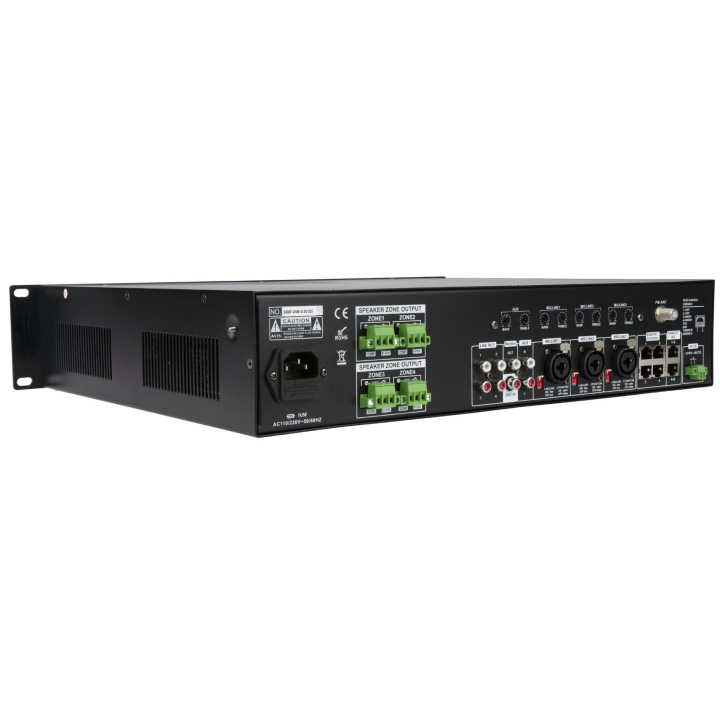

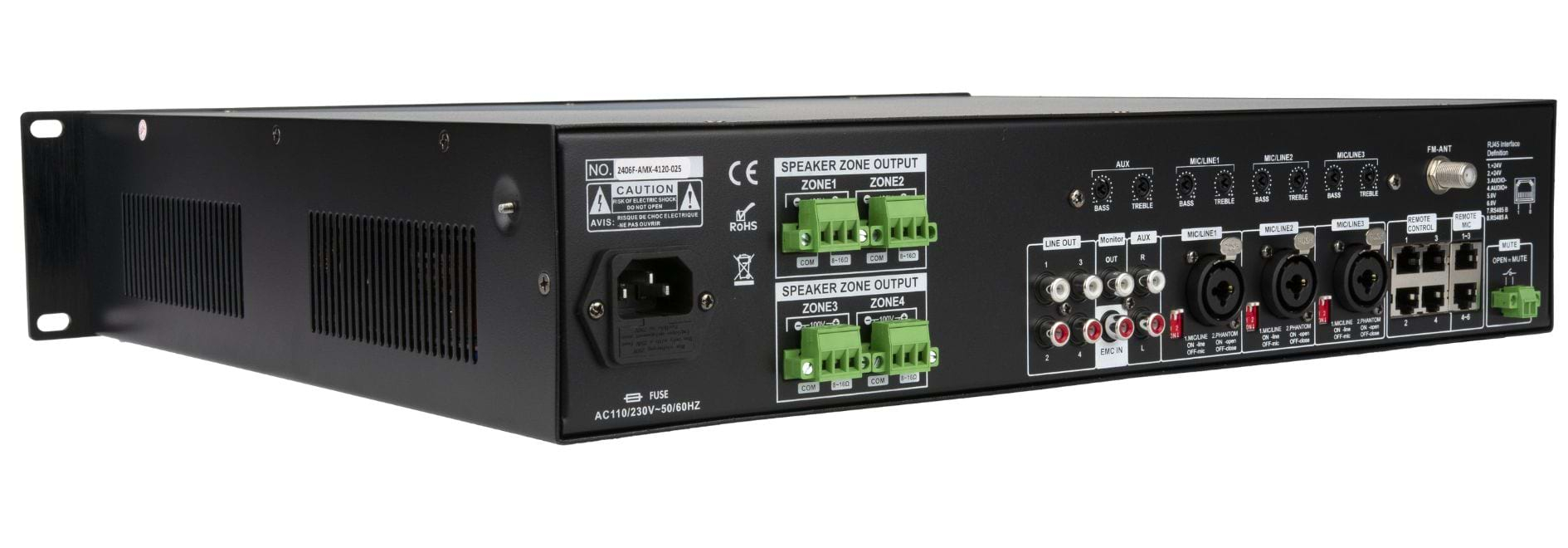

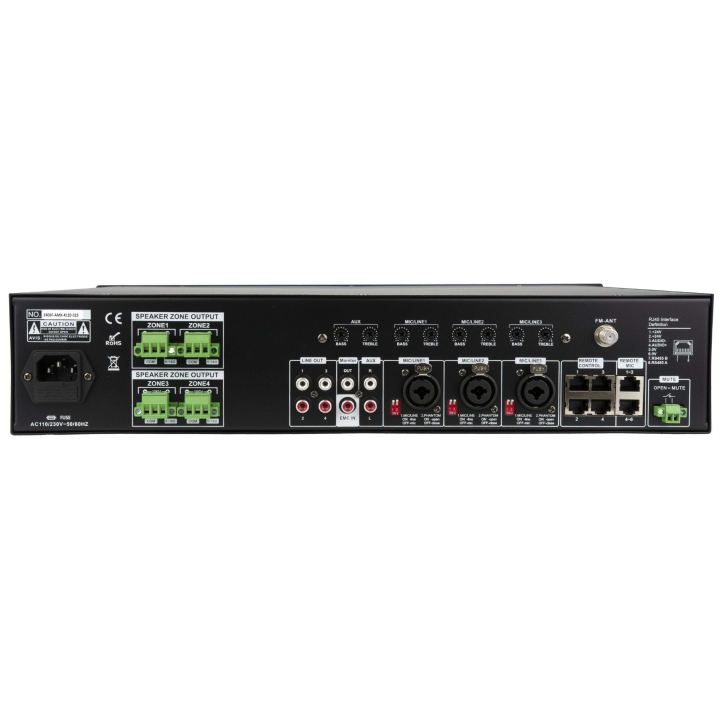

Rear panel: 4 gain settings for each input 1 monitor HP output on euroblock 8-16 Ω / 2-5 W

  • Dry contact

  • Thermal, overload and short-circuit protection

  • Integrated 19’ 2U mounting brackets

Product Details

  • Brand
  • Reference
    AMX-4120
  • SKU
    02823
  • EAN13
    3701567913211

Data sheet

  • Type
    4 x 120W
  • Speaker outputs
    4 canaux, 100V, 8 - 16 Ω
  • Power consumption
    550 W
  • Signal-to-noise ratio
    + 80 dB
  • Audio output level
    0 dB / 600 Ω symétrique
  • Alimentation
    AC 230 V – 50 / 60 Hz
  • Distorsion harmonique totale
    0,5 %
  • Bande passante
    70 - 20 000 Hz
  • Protection et refroidissement
    Ventilateur, Protection thermique, surcharge et court-circuit
  • Entrées / Sensibilité
    MIC/LINE 1-3 : 60 dB – 16 dB / 20 KΩ Symétrique LINE 1 : 20 dB + dB / 20 KΩ Symétrique 2 RJ45 : 0 dB / 600 Ω symétrique
  • Sources intégrées
    MP3 / USB / SD / TUNER / BLUETOOTH
  • Réglage de tonalité Entrée
    Aigus : 12 kHz / Med : 2,5 kHz / Graves : 80 Hz (+15 dB)
  • Réglage de tonalité Sortie
    Aigus : 10 kHz / graves : 100 Hz (+15 dB)
  • Dimensions (W × D × H)
    484 x 405 x 88 mm
  • Weight
    6,3 kg
