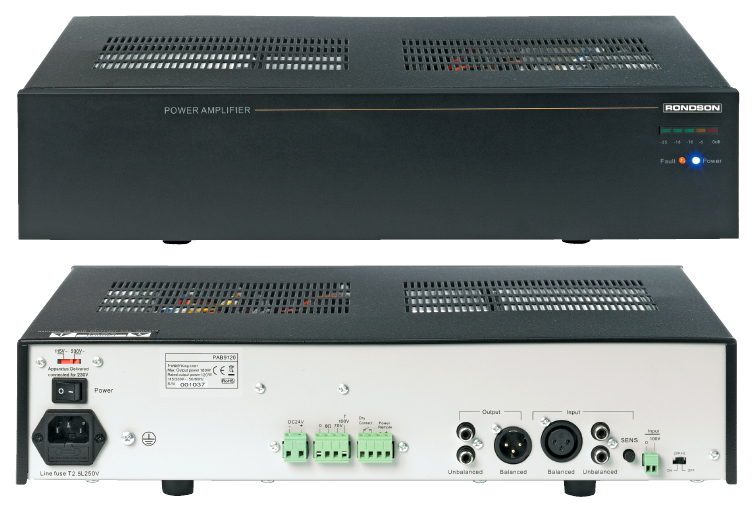

Power amplifiers 480W in 100V

Name: Power amplifiers 480W in 100V
Brand: RONDSON
SKU: AP 480/2

Reference : AP 480/2

SKU : 02078

EAN13 : 3701567909962

Power amplifier 480W

100V line

DC 24V

Power output

480 W

Impédance

100V

Zones

AP 120-2

Download (4.23MB)

AP 480/2

Download (492.15KB)

Description

Description :

This power amplifier is available in 480W.
It includes speaker outputs in 70 and 100 Volts as well as low impedance 8 Ω
They operate on 230 V or DC 24 V mains.

Characteristics :

20 KHz detection circuit used to detect whether the device is operating normally or not
100 V input terminal block for operating a long-distance network system
Balanced XLR or unbalanced RCA input
The device can be triggered by remote control
Output 0 - 8 Ω - 70V or 100V allows the choice between different output impedances and voltages.

SPECIFICATIONS	AP 480/2
Type	Power amplifiers
Power supply	AC 115 - 230 V / 50 - 60 Hz - DC 24 V
Output power	480 W
Consumption	1440 W
Speaker outputs	en basse impédance 8 Ω en ligne 70 et 100 Volts
Inputs / Sensitivity	LINE IN : 1 V, XLR symmetrical LINE IN : 1 V, 10 KΩ RCA asymmetrical
Settings	VR sensitivity potentiometer to adjust the input signal level Inter ON/OFF continuous signal 20 KHz
Priority	By detection on MIC inputs 1 to 4 (30 dB attenuation)
Total Harmonic Distortion	1 %
Frequency Response	50 Hz - 20 000 Hz
signal-to-noise ratio	greater than 85 dB
Display	Power-on indicator Loop power meter compression indicator
Dimensions (W x D x H)	430 x 300 x 88 mm
Weight	19 kg
19" rack mounting option	Mounting brackets EQ 2000
