Compact 60W amplifier in 100V with multimedia player

Reference : CA-60M
SKU : 02847
EAN13 : 8809267791735

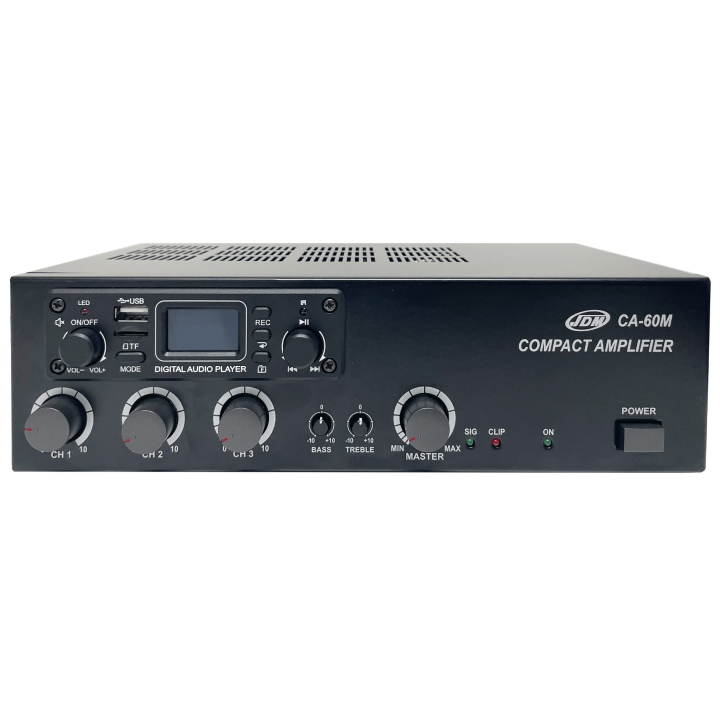

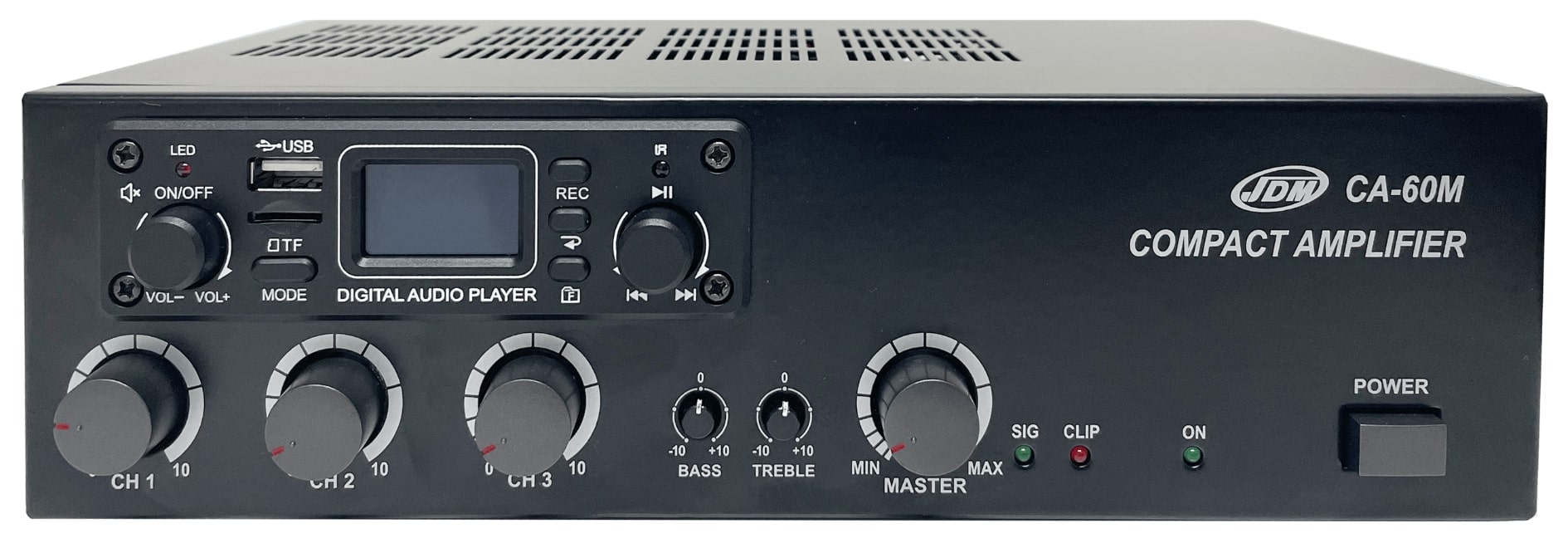

Compact 60W amplifiers in 100V with multimedia player from JD-MEDIA

Power output
USB
SD
Impédance
Share

Description

- Compact portable amplifier.

- Integrated CLASS D amplifier and SMPS.

- Phantom power for MIC 1 input.

- Operation with PTT-100N

- Hold music function

- Integrated digital audio playback module

-(FM / MP3 (USB/SD) / BT)

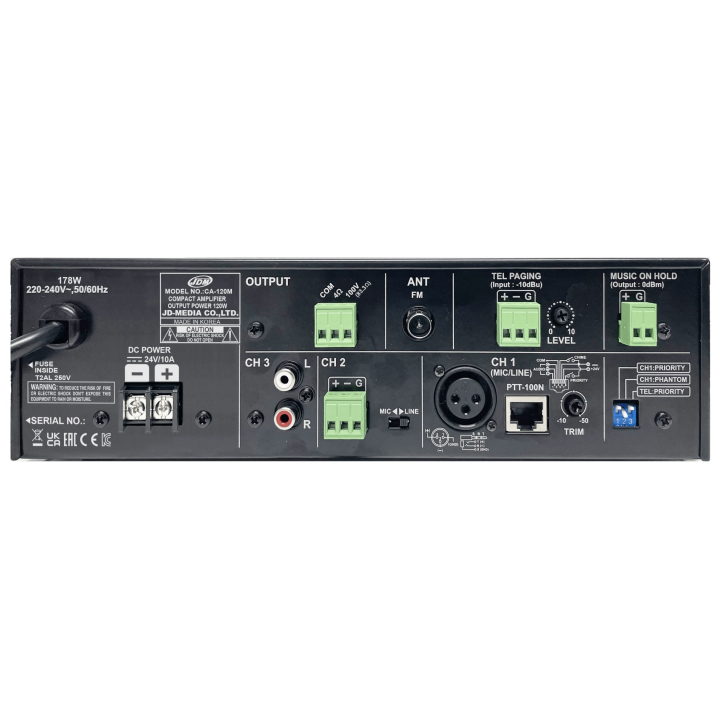

- 2 MIC/LINE inputs and 1 AUX input

- 1 TEL PAGING input

FEATURES

 CA-60M
Power supply

220V/240V AC 50-60Hz

Frequency response

100㎐ ~ 17㎑ ( –3㏈ )

 T.H.D

@ 1khz Less Than 0.5%( “A” WEIGHT )

Output Impedance

 30W(100V 333Ω, 4Ω)

Power Consumption

50W

Signal to Noise Ratio

More Than 78㏈ ( “A” WEIGHT )

  Dimensions

270(W) x 170(D) x 75(H) mm

Weight(kg)

2.6kg

DIGITAL AUDIO PLAYER MODULE

File System

FAT32

Support Format

MP3 / WMA / WAV

USB, SD

UP TO 64GB
 Record

MP3 Format
Dot Matrix LCD  128 x 64 Dots (31.0 X 20.0mm)

Product Details

  • Brand
  • Reference
    CA-60M
  • SKU
    02847
  • EAN13
    8809267791735
