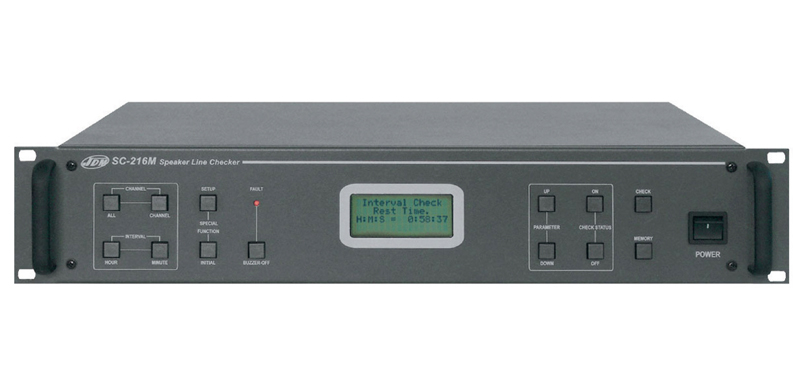

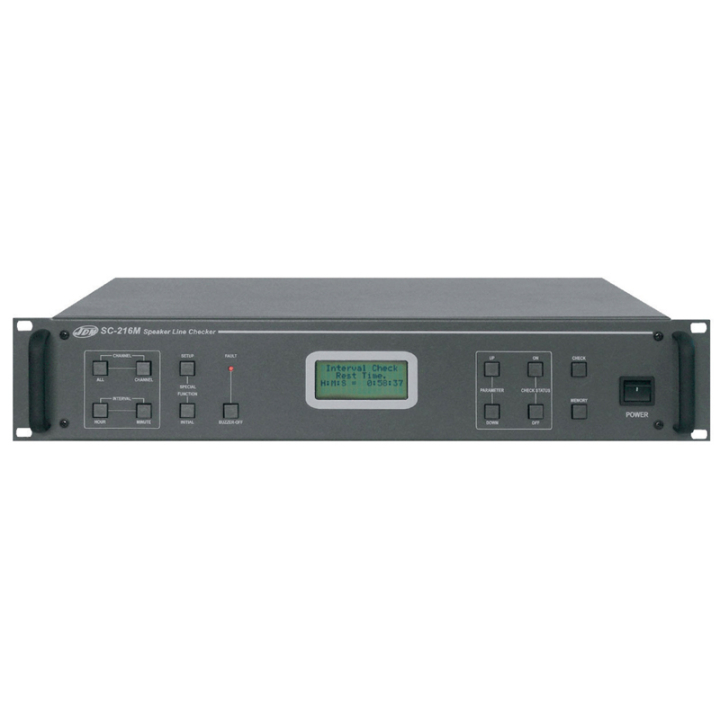

HP Line Controller

Name: HP Line Controller
Brand: JD-MEDIA
SKU: SC-216M

Reference : SC-216M

SKU : 02274

EAN13 : 8809267793272

Speaker Line Controller with Fault Detection | 24/48H Delivery

HP Line Controller : Fault / Impedance / Overload / Short-Circuit

Zones

Description

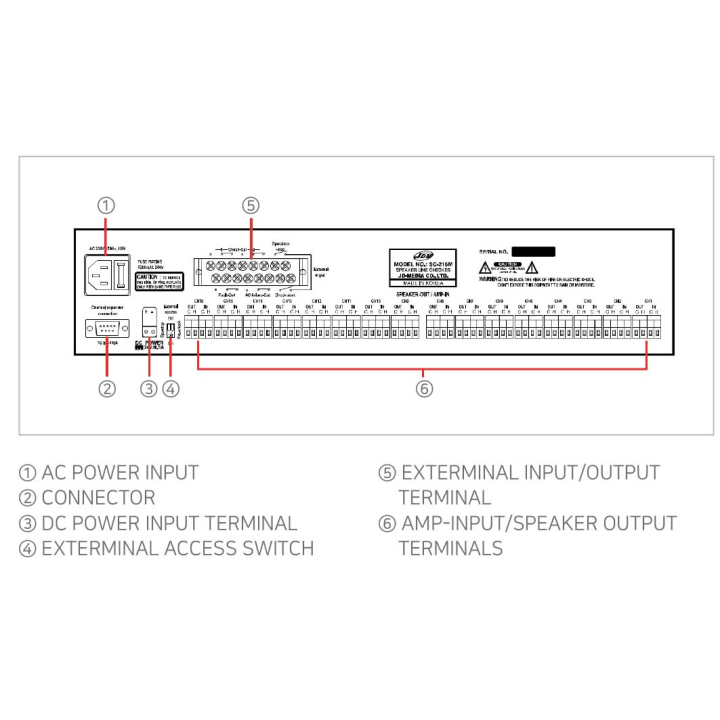

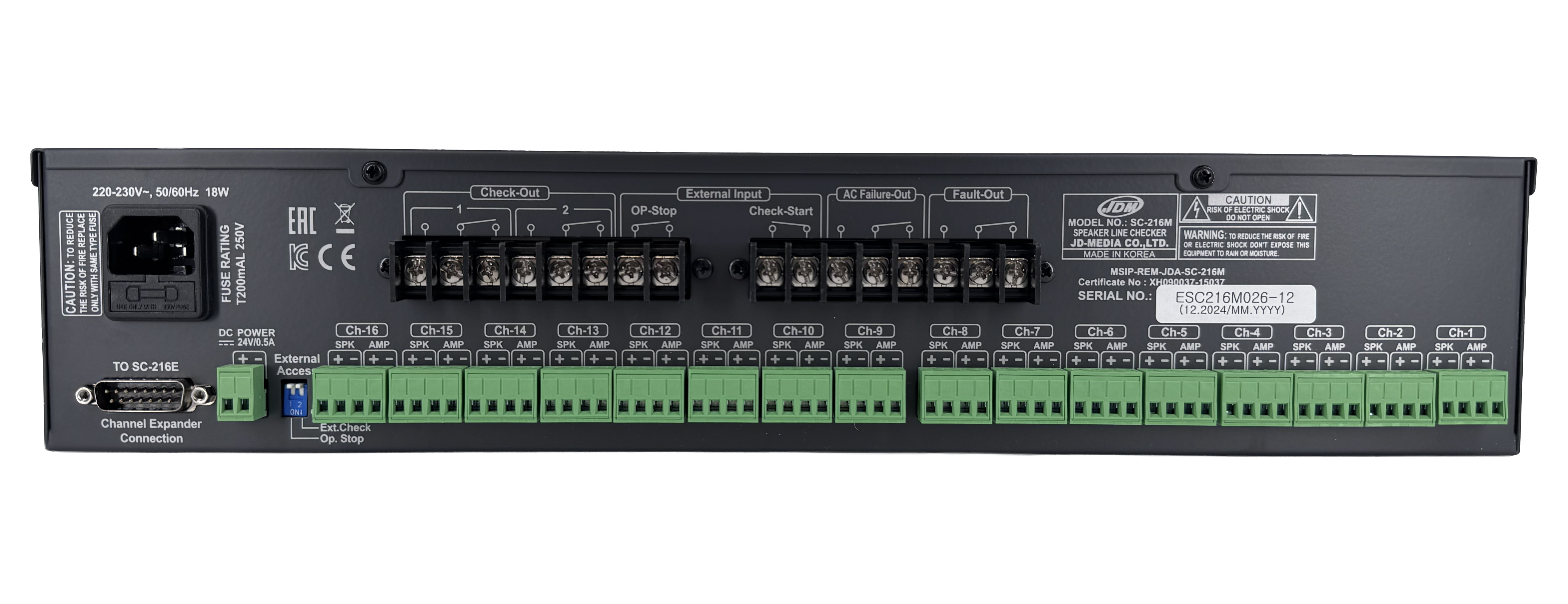

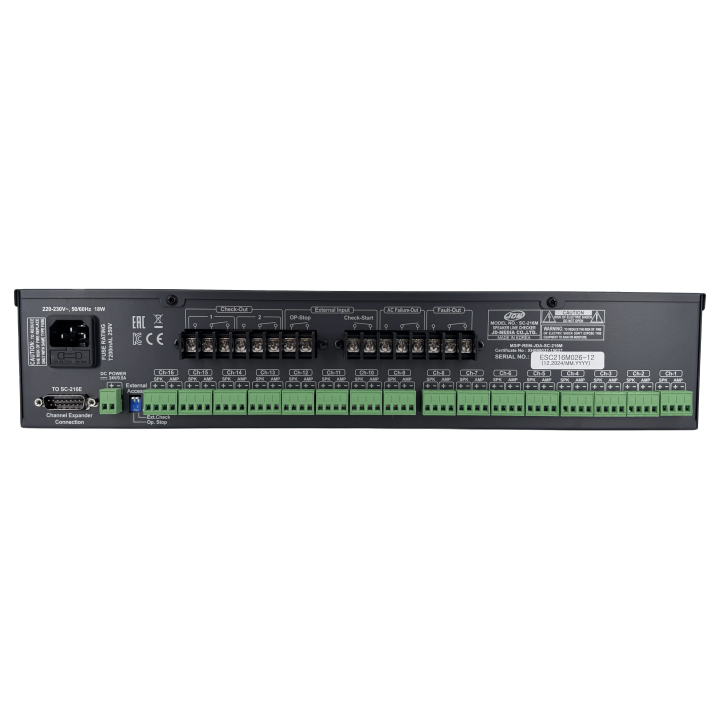

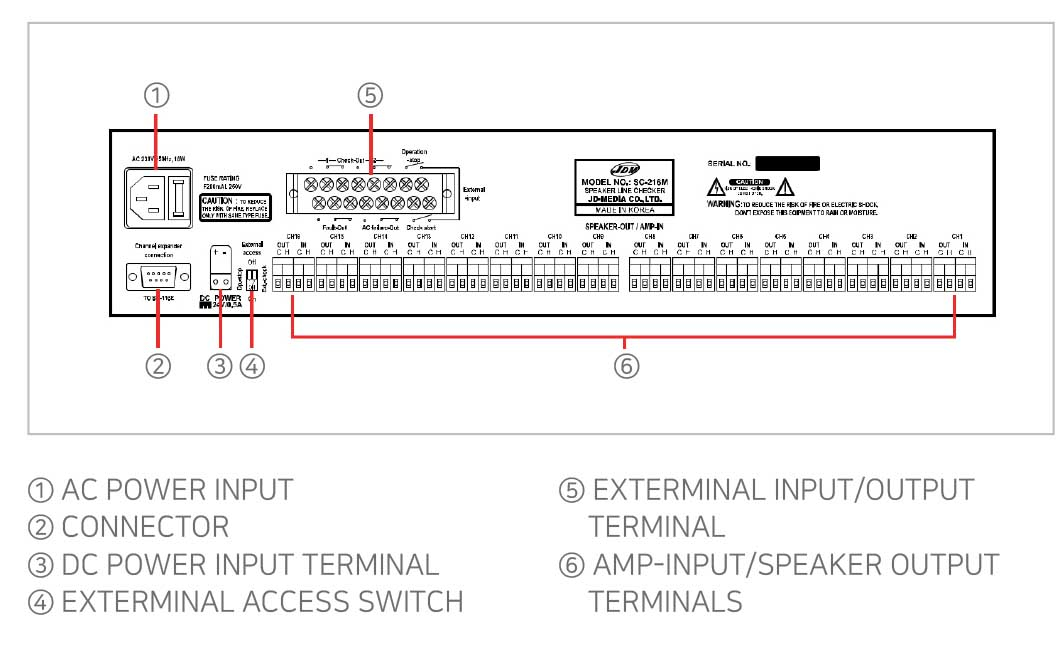

Description:

1) 230V AC power supply
2) Extension connector
3) DC 24V power supply
4) External connection switch
5) External input/output terminal block
6) Amplifier input and HP output terminal

Features:

Equipped with :

- Ground fault detection
- Loudspeaker impedance line control
- Speaker open line control
- Loudspeaker load check line control
- Loudspeaker load check under line control
- Programmable automatic line check in 1-minute and 24-hour intervals
- Double-spaced liquid-backlit crystal display with clear text output
- Interrupt to check if emergency announcement is in place
- Bridging of existing volume control with built-in relay during control
- Admissible speaker line check 100V / 70V
- Warning sound and lamp when speaker line fault occurs
- 24V AC and DC operation
- Standard desktop and 19" rack height

SPECIFICATION	SC-216M (CODE 02274)
Type	Contrôleur de Ligne Haut-parleur
Range	60 - 1600 ohm
Check time	Moins de 100msec / Canal
power consumption	23W
Signal input	16 Canaux
Signal output	16 Canaux
Output fault	2 Canaux
Power failure output	1 Canal
Start check input	1 Canal
Start check input	1 Canal
Operation notification	1 Canal
Resolution	10 bit / 1024 Step
LDC	16 caractères / 4 lignes
Power supply	AC 230V / 50 Hz / DC 24 V
Dimensions (W xD x H)	483 x 350 x 88 mm (2U)
Weight	5 kg
