8 message reader and recorder module for Special Security Plan

Name: 8 message reader and recorder module for Special Security Plan
Brand: RONDSON
SKU: DMT-PPMS

Reference : DMT-PPMS

SKU : 02359

EAN13 : 3701567907340

Tuner AM/FM / CD et MP3 avec interface USB/SD.

Reader-Recorder Module 8 messages for Special Security Plan

DMT-PPMS

Download (2.76MB)

DMT-PPMS

Download (399.04KB)

Description

Description :

The DMT-PPMS player is designed to broadcast 8 audio messages in order to inform and evacuate
a public place in case of danger.
It is therefore the perfect solution in the context of a Special Security Plan.
It operates on a 24 V DC power supply.

Characteristics :

Compatible player in WAV, VMA, MP3 format.
256 MB Memory
Mini USB port to play and rename audio files for updates (PC connection)

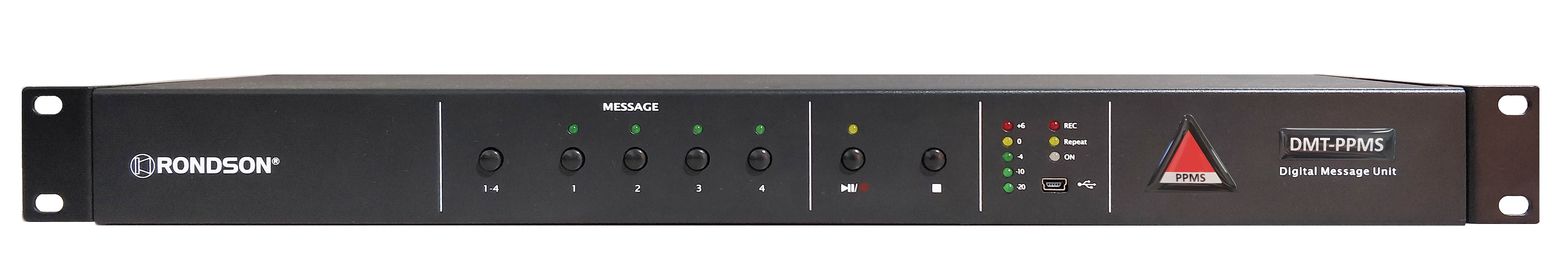

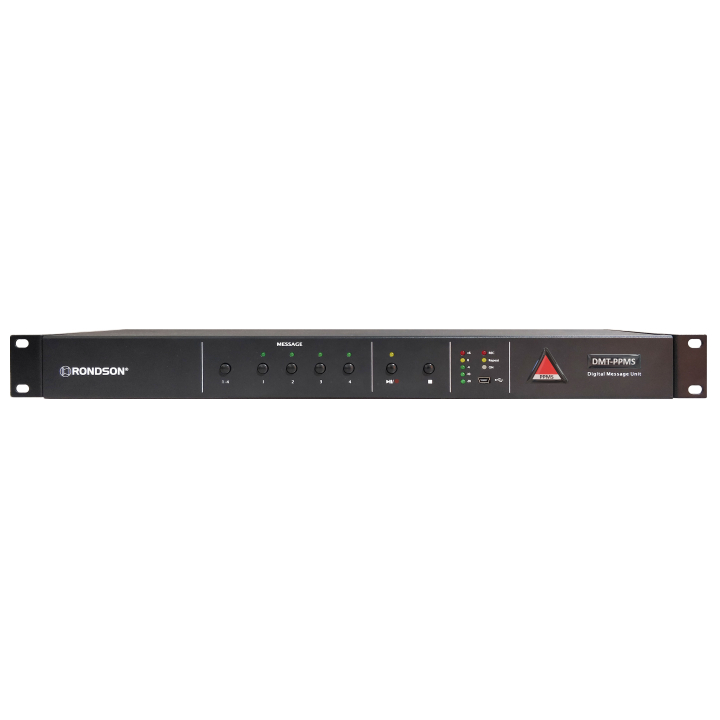

Common messages 1 to 4 (front panel) with the same priorities

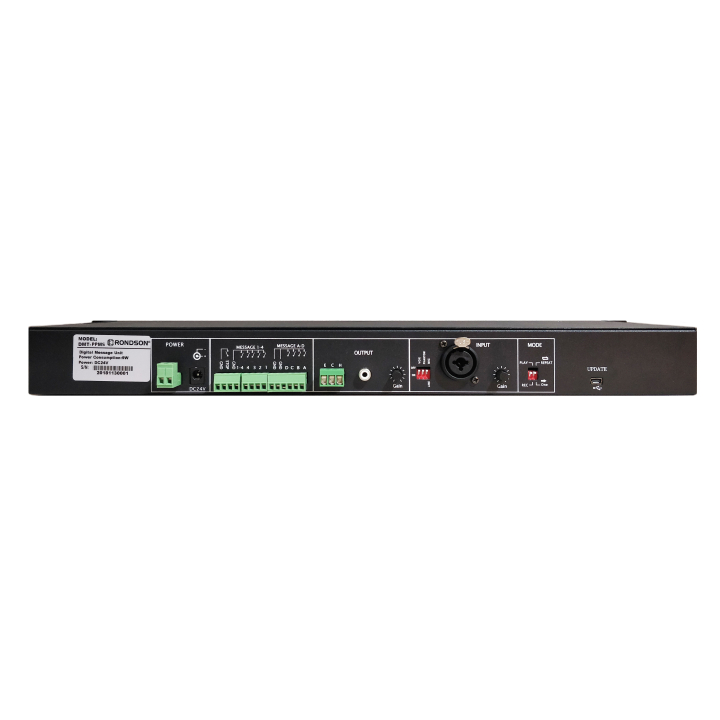

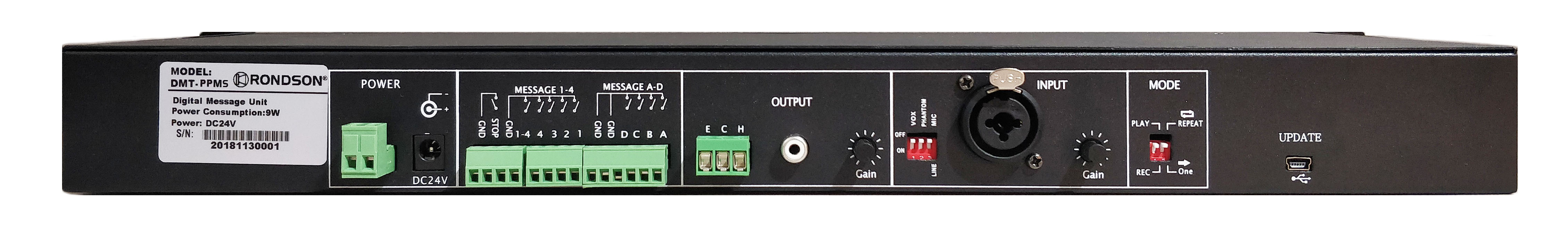

Messages A-D (rear panel on euroblock terminal block) have priority over 1-4, the priority is as follows A˃B˃C˃D=1=2=3=4
Player mode: Play and Repeat
Mic & Line input on XLR/JACK socket with VOX Dip Switch, Mic/Line, phantom
Recording mode: messages 1,2,3,4 can be recorded directly on the back panel.
Vumeter for output and recording
Standard rack 19ʺ 1 U

SPECIFICATIONS	DMT-PPMS
Type	8 message reader / recorder
Inputs	Mic :-50 dBV symmetrical / 10 kΩ LINE : -10 dBV symmetrical / 10 kΩ
Phantom power supply	DC 24 V / DIP SWITCH
Frequency Response	100 Hz – 20 000 Hz / -3dB/+3dB
Total harmonic distortion	< 0,05 %
Signal-to-noise ratio	Mic : – 65dBu / LINE : -75dBu
Reader	WAV, VMA, MP3
Recorder	Microphone and LINE recording
Outputs	+4dBV symétrique / 500Ω 0dBV symétrique / 1kΩ
Power supply	DC 24 V
Dimensions (W x D x H)	482 x 100 x 44 mm
Weight	2,3 kg
