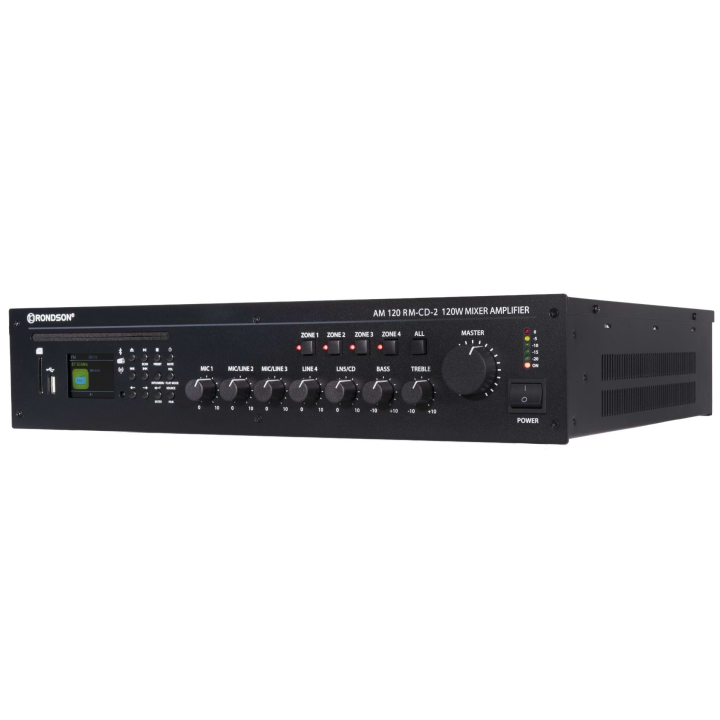

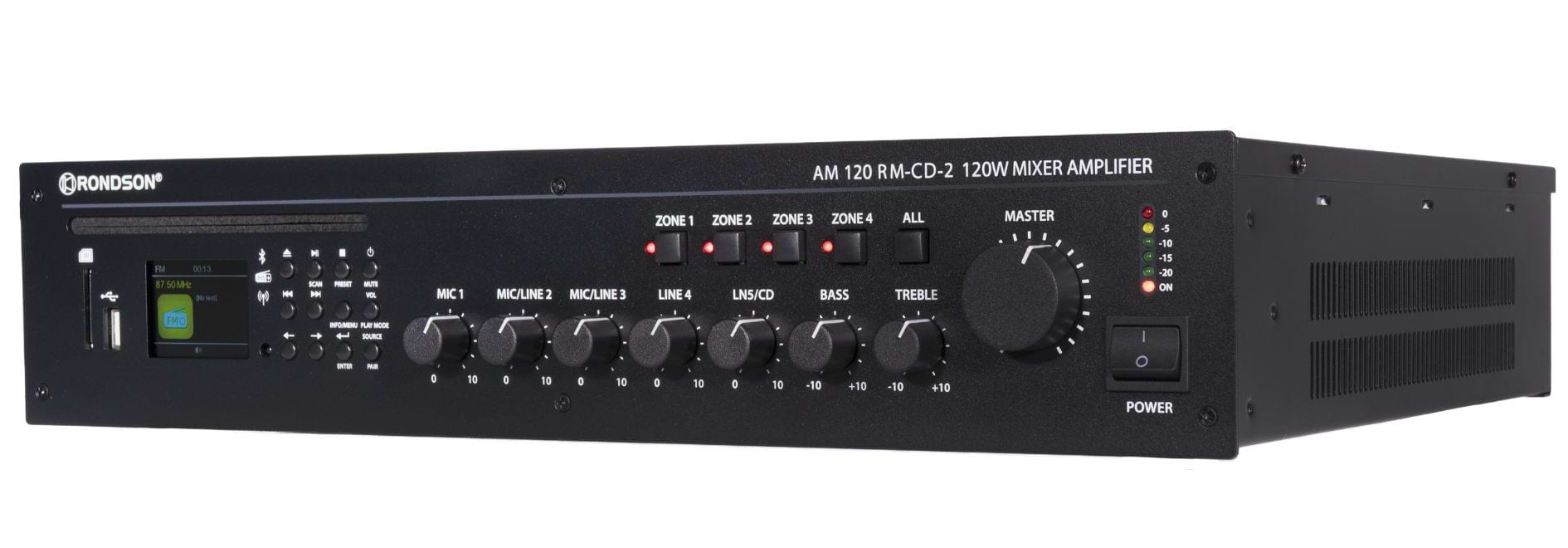

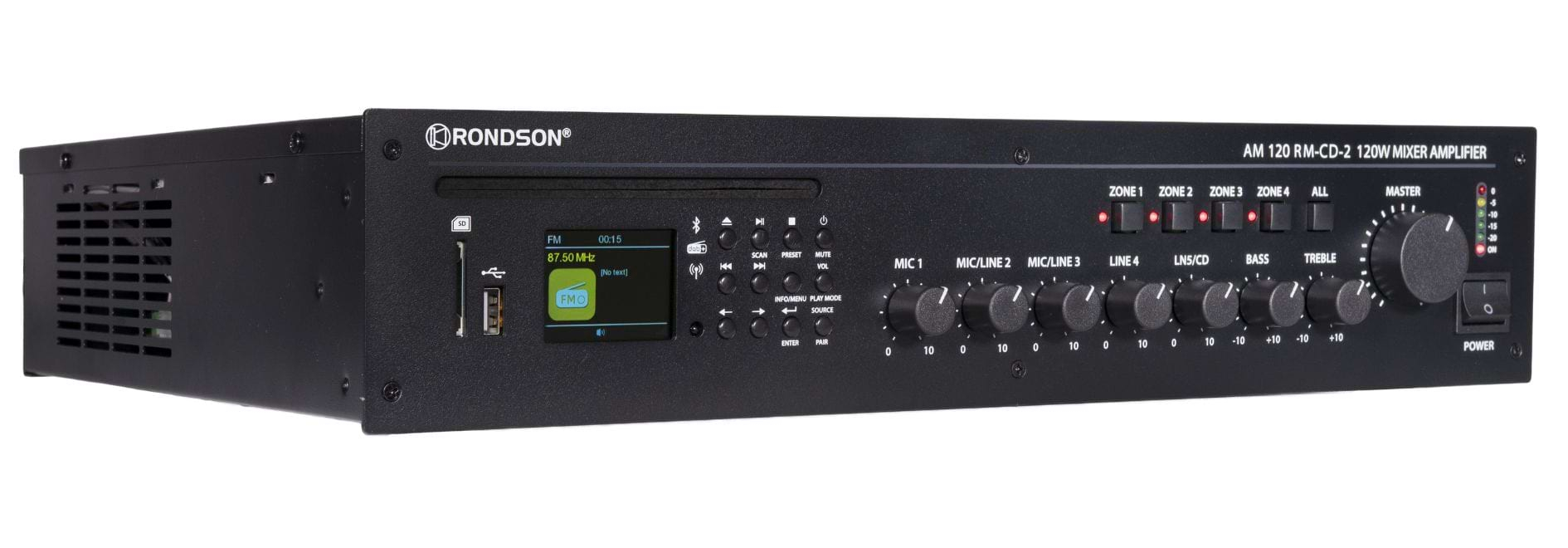

100V 4-zone amp preamplifiers with DC 24V

Name: 100V 4-zone amp preamplifiers with DC 24V
Brand: RONDSON
SKU: AM 120 RM-CD-2

Reference : AM 120 RM-CD-2

SKU : 02369

EAN13 : 3701567910579

120W preamplifier amplifier

Online 100V

Multimedia Player

Power output

120 W

TUNER

USB

Coupure sono

DC 24V

Serie AM RM-CD-2

AM 120 RM-CD-2

Description

Product sheet in PDF

Description :

This 4-zone mixer amplifier with DSP effect is available in 120 W

It offers 70 and 100 V speaker outputs as well as 8 Ω in Low Impedance.

It operates on mains 115 V-230 V - 50 Hz or DC 24V.

Features :

They are equipped with:

• 1 XLR microphone input with configurable phantom power supply DC 18V

• 2 JACK 6.35 mm microphone inputs switchable to line inputs

• MIC 1 Priority by Talk Over

• 2 auxiliary RCA inputs

• REC OUT outputs by zones

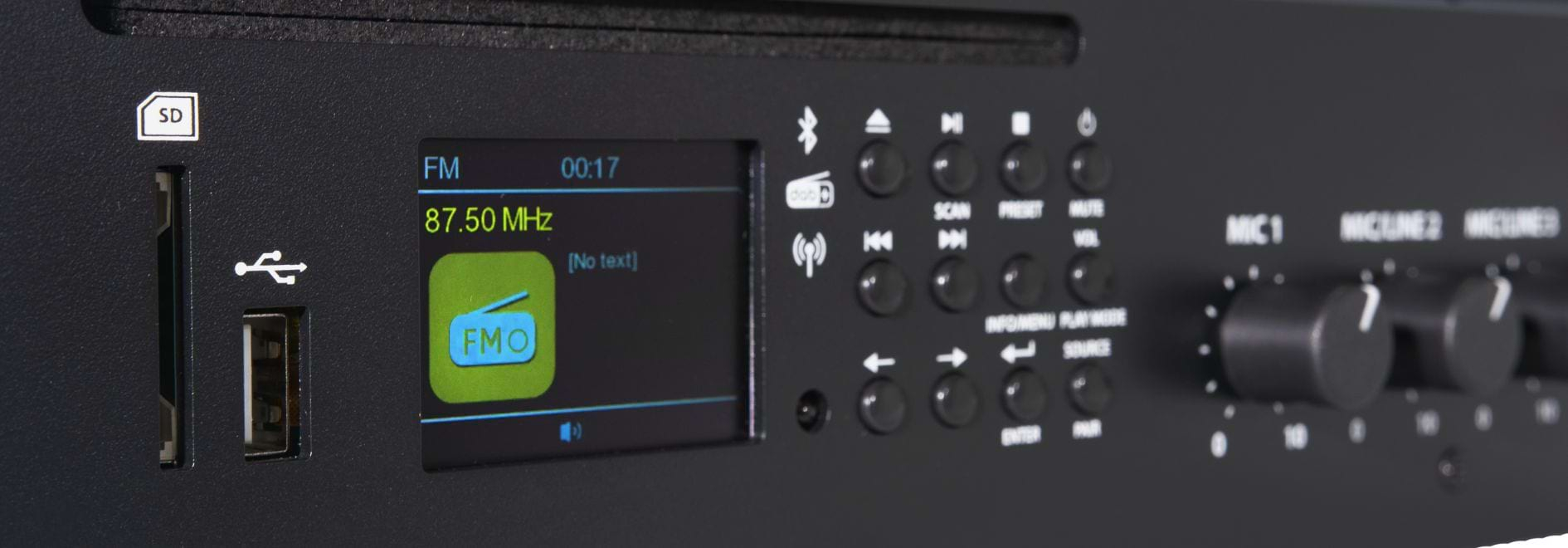

• FM Tuner Module and MP3, USB and SD CD player

• Bluetooth Player

• 4 selectable zones individually or together (ALL)

• Master volume adjustment

• Output level meter for each channel

• Dry contact for cut Sono "Music-cut"

• Thermal protection, overload and short circuit

• Brackets included

characteristics	AM 120 RM-CD-2
Type	mixer amplifier
Supply	AC 115V/230V — 50 Hz DC 24V
Output power	120 W RMS
HP ports	8 Ω / 70 - 100 V
Inputs/Sensitivity	50 dBV symmetrical / 5 kohm - 10 dBV symmetrical - 10 dBV symmetrical
Audio sources	Tuner FM / CD MP3 / USB / SD
Tone Settings	Srious : ± 10 dB à 100 Hz Acute : ± 10 dB à 10 kHz
Bandwidth	100 Hz – 16 000 Hz (± 3 dB)
Signal-to-noise ratio	MIC 1 à 3 : ≥ 70 dB LINE 2-5 : ≥ 80 dB
Distortion Total harmonic	< 2 %
Displays	power light Meters of the output levels
Consumption	400 W
Dimensions (L x P x h)	482 x 340 x 88 mm
Weight	12 kg
