100 Volt to 1 V line level adapter (ZA and PS series)

Name: 100 Volt to 1 V line level adapter (ZA and PS series)
Brand: JD-MEDIA
SKU: ATT 100

Reference : ATT 100

SKU : 01055

EAN13 : 8809267793463

Adaptateur de niveau lignes 100 Volts à 1 V (série ZA-PS)

100 Volt to 1 V line level adapter

ATT 100

Download (381.7KB)

Description

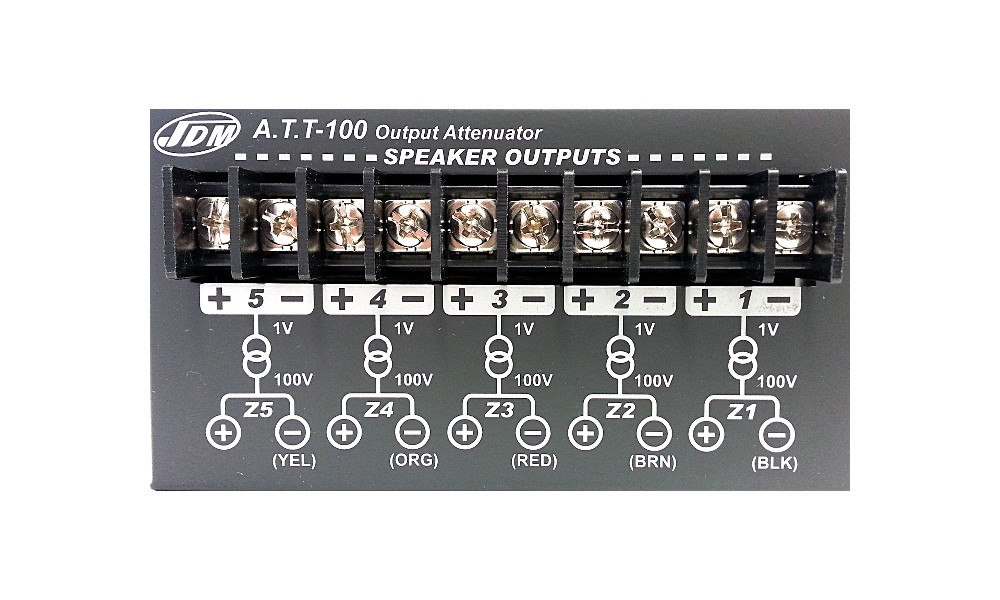

ATT-100 5-zone output attenuator for 100V in-line loudspeaker outputs.

The ATT-100 converts 100V loudspeaker signals into a line signal.

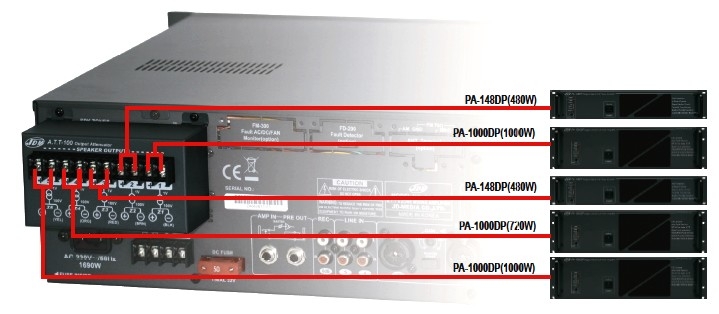

It is used, for example, when a line signal arriving at an existing 100V amplifier is to be used on one or more zones on a preamplifier, mixer or amplifier.

It allows the power to be reduced by adapting the output level from 100 V to 1 V and feeding the signal to another amplifier.
Connect to the loudspeaker output of a mixing amplifier to reduce the output power.
Easy to use on JDM mixing amplifiers (TA series, ZA series, PS series)
Screw mounting on the rear panel of a mixing amplifier
Isolation circuit between HP output and line output
New technology adapting the signal for long distance

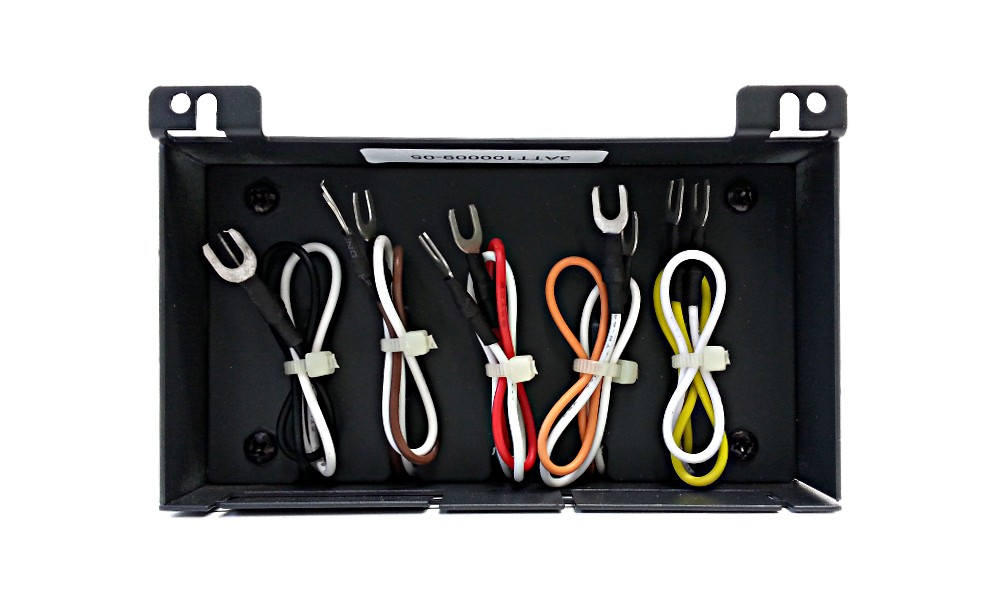

5 built-in transformers for each zone for control by 5 attenuators

SPECIFICATIONS	ATT-100 (code 01055)
Input / Output	100V : 1V A.T.T. (5 zones)
Frequency Response	35 Hz – 20 000 Hz ± 3 dB
Distorsion	< 0,4 %
Insulation	> 10M
Dimensions (W x D x H)	119 x 50 x 73 mm
Weight	0,4 Kg
