2 channel wall-mounted panel

Name: 2 channel wall-mounted panel
Brand: RONDSON
SKU: PA-WCP

Reference : PA-WCP

SKU : 02355

EAN13 : 3701567903724

Préamplificateur 6 entrées routables sur 4 zones de sortie

2 channel wall-mounted panel remote control

Zones

Description

Description

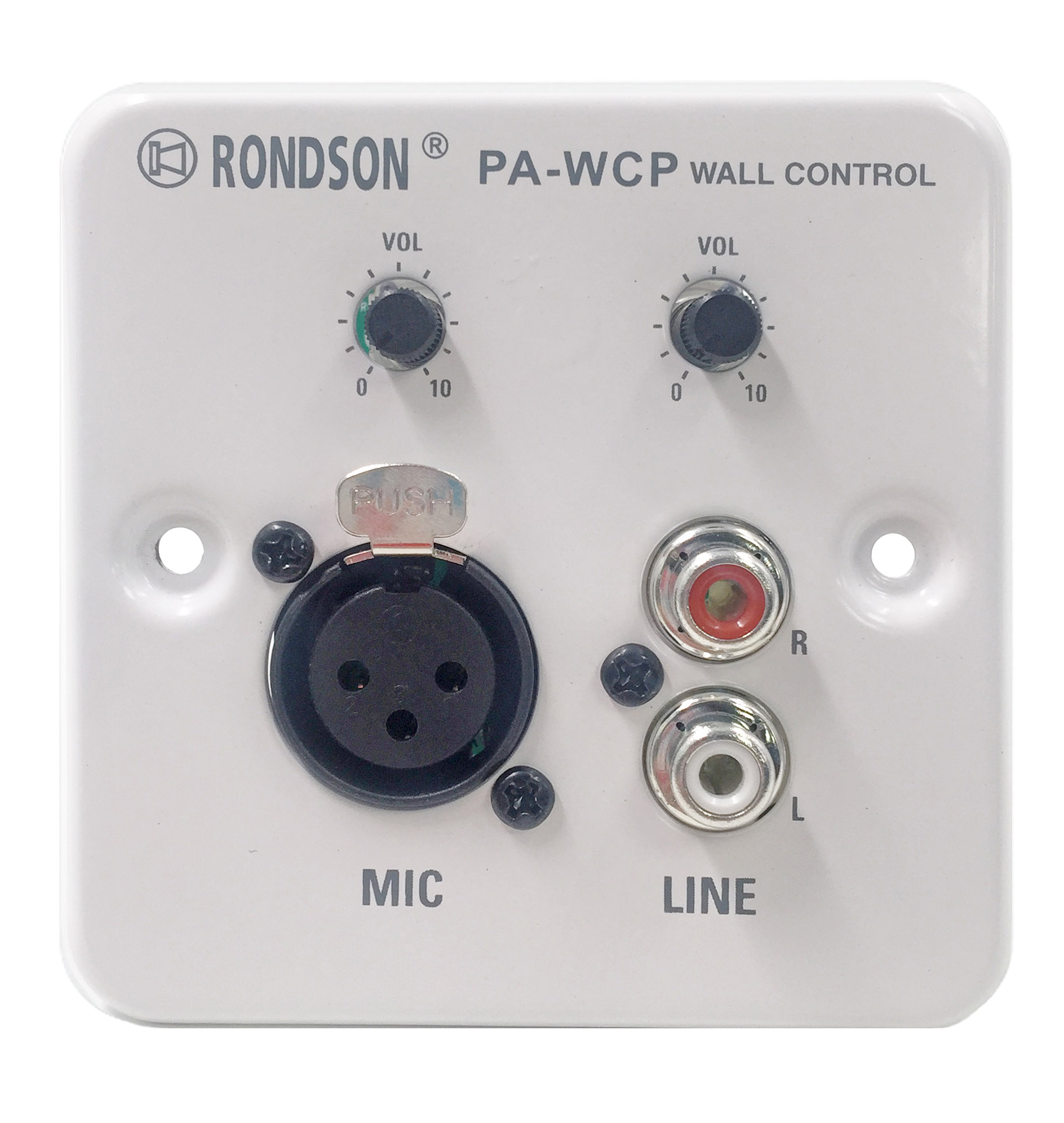

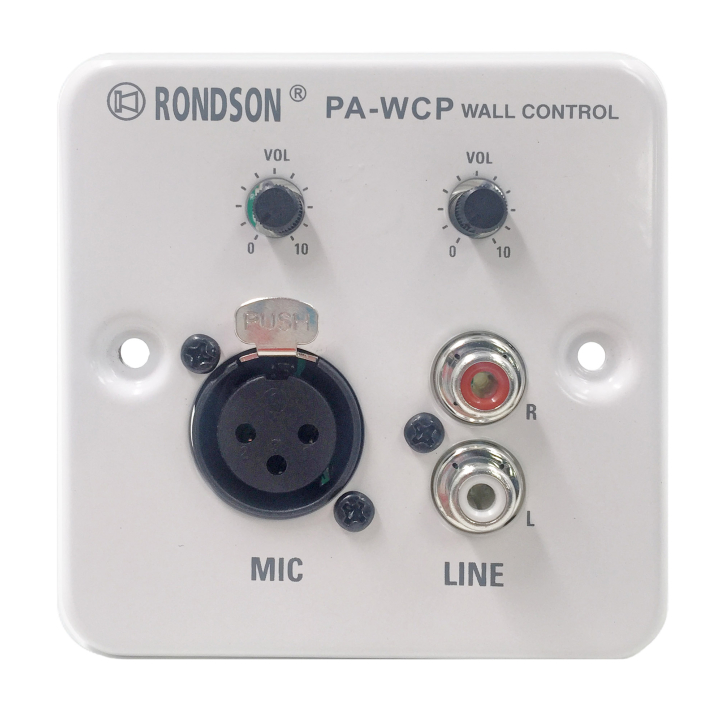

2-channel wall-mount animation deck that offers the possibility to mix an unbalanced stereo signal (RCA x2) with a microphone signal (XLR)

Settings
Independent volume control on both channels
Connections
2 RCA (LINE) inputs on the front panel
1 XLR (MIC) input on the front panel
Euroblocks on the rear side
DC 24 V External power supply supplied

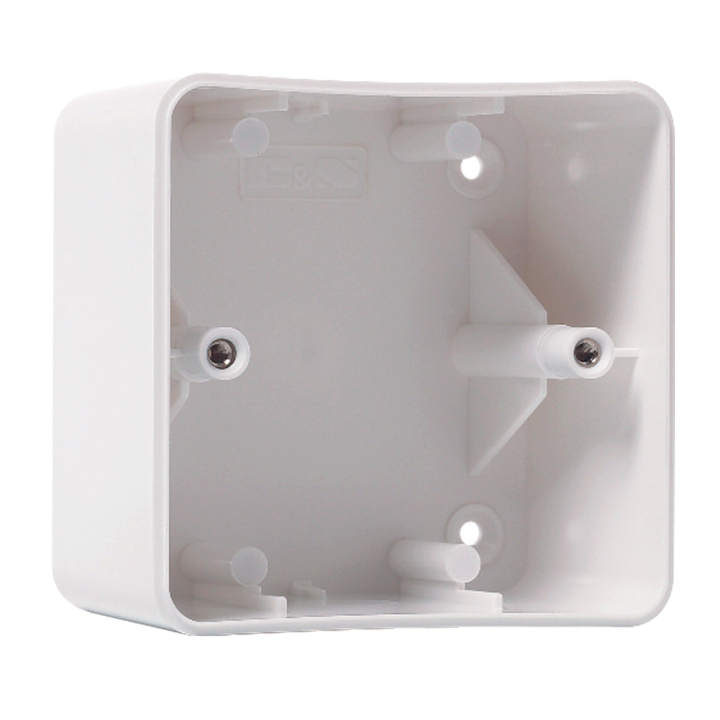

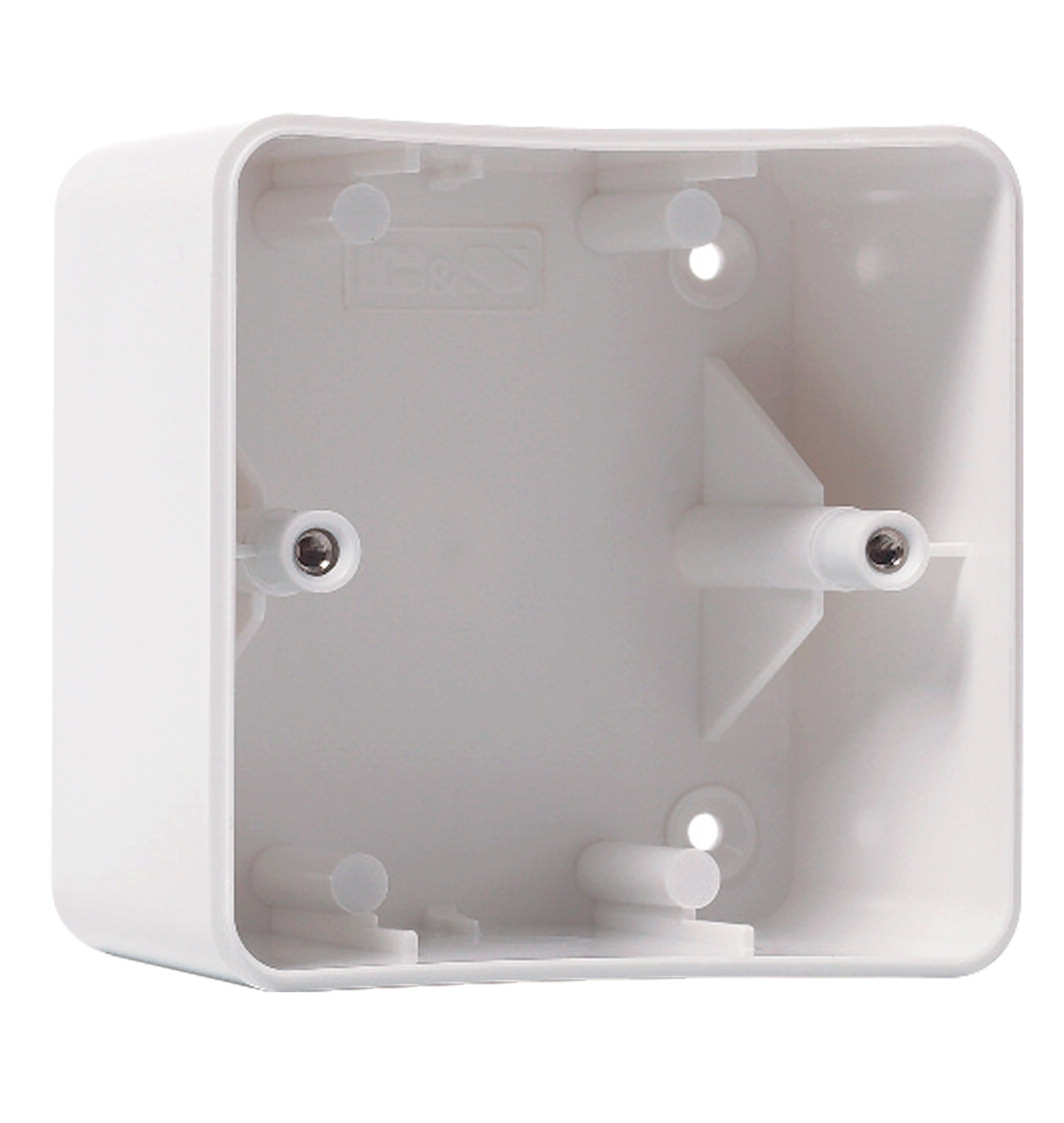

Wall-mounted white plastic box holder included (EC-3)

The main advantage is that this board is compatible with any amplifier-preamplifier.

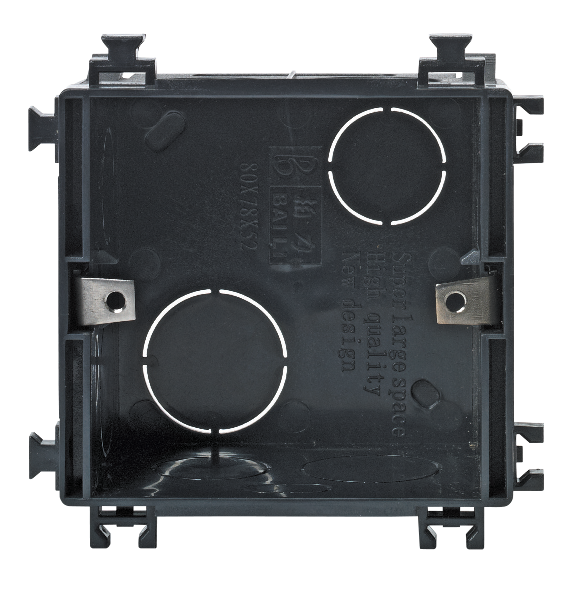

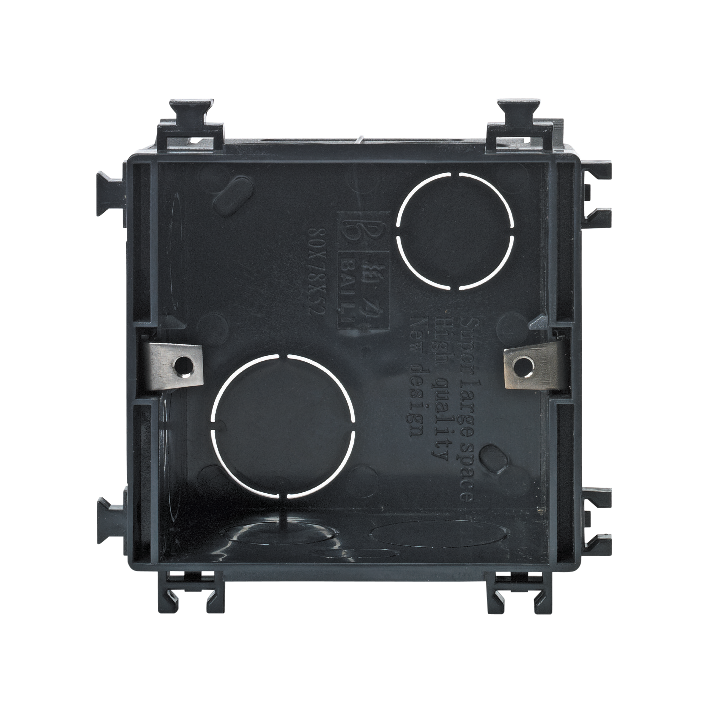

Option: Plastic flush-mounting box VC-1

SPECIFICATIONS	PA-WCP
Type	Wall-mounted panel
Output level	1 dB / 600 Ω balanced
Entrance fees / Sensitivities	MIC : -50 dB / 20 KΩ balanced LINE : 0 dB / 30 KΩ balanced
Frequency Response	20 Hz – 20 000 Hz
Total harmonic distortion	< 0,1 %
Signal to Noise Ratio	˃ 100 dB
Connecting	DC 24 V
Dimensions (W x D x H)	80 x 50 x 80 mm
Weight	0,15 Kg
