Wallmount panel 2-input 2-output wall plate JS-MATRIX compatible

Name: Wallmount panel 2-input 2-output wall plate JS-MATRIX compatible
Brand: SEGON PROFESSIONAL AUDIO
SKU: JS-MATRIXPA

Reference : JS-MATRIXPA

SKU : 02735

EAN13 : 3701567912092

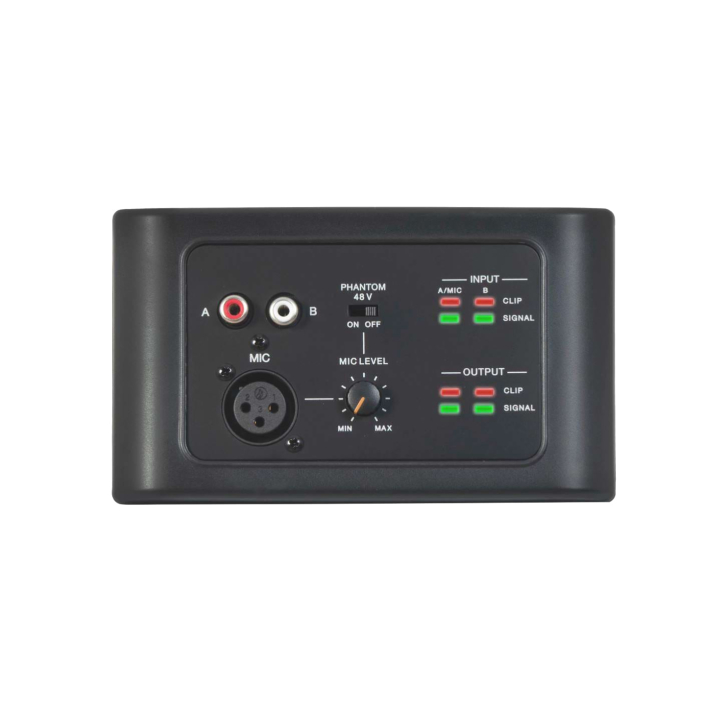

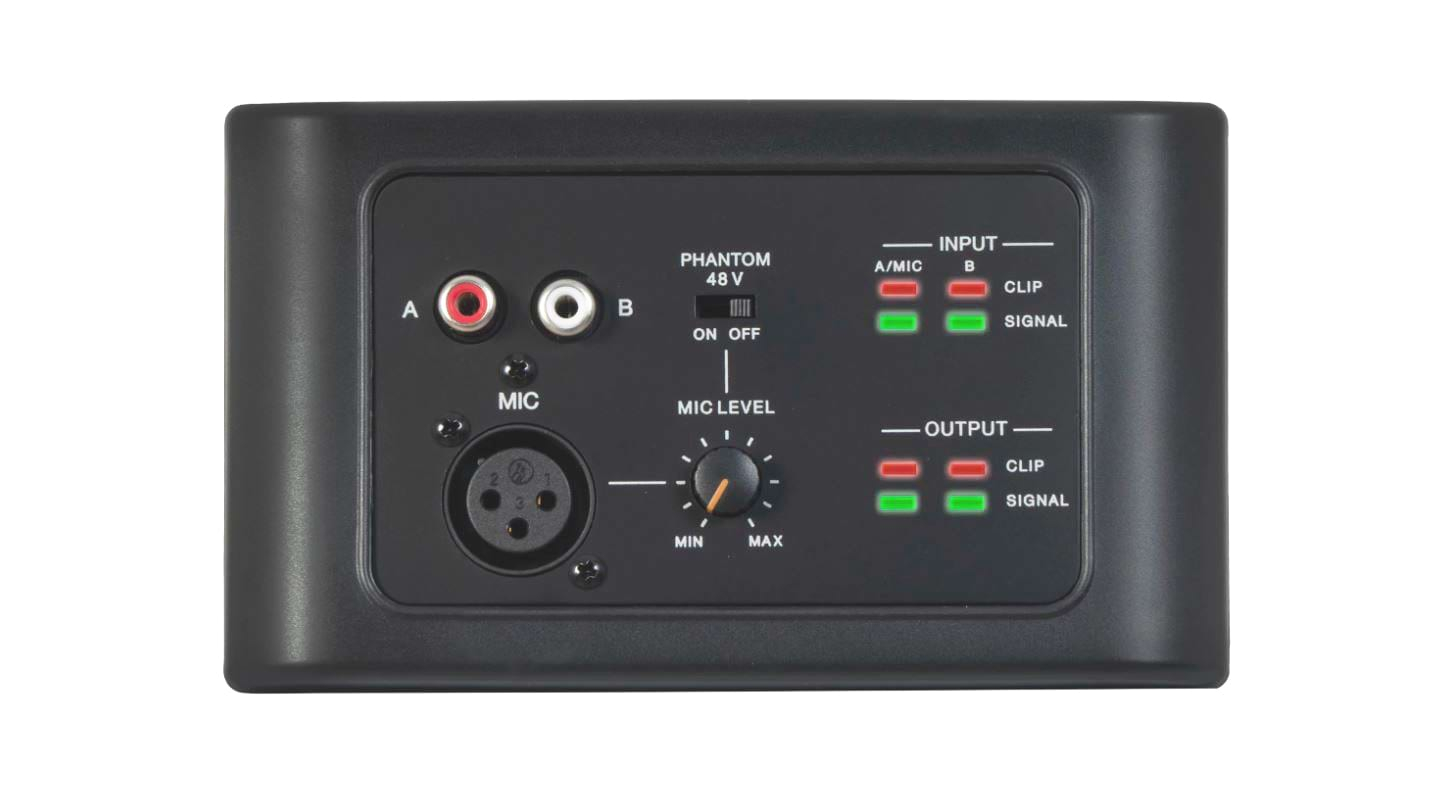

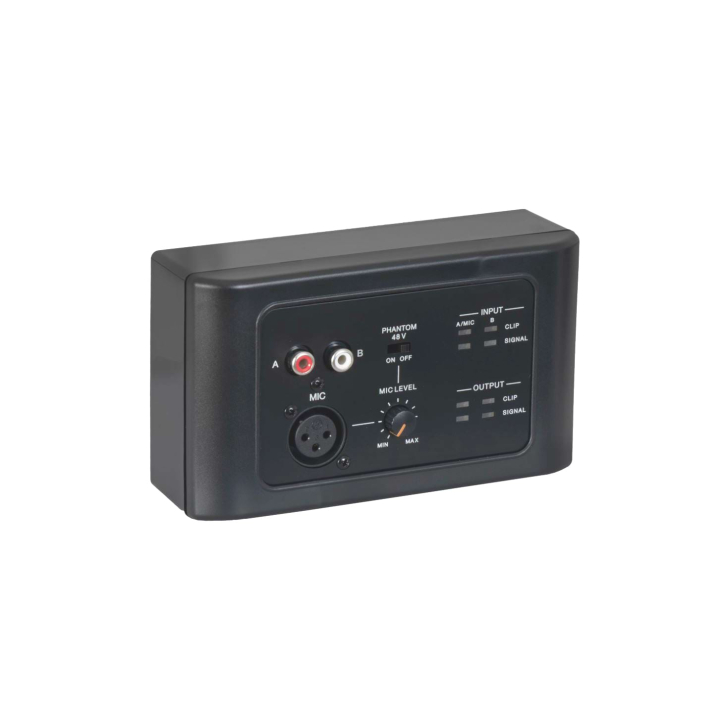

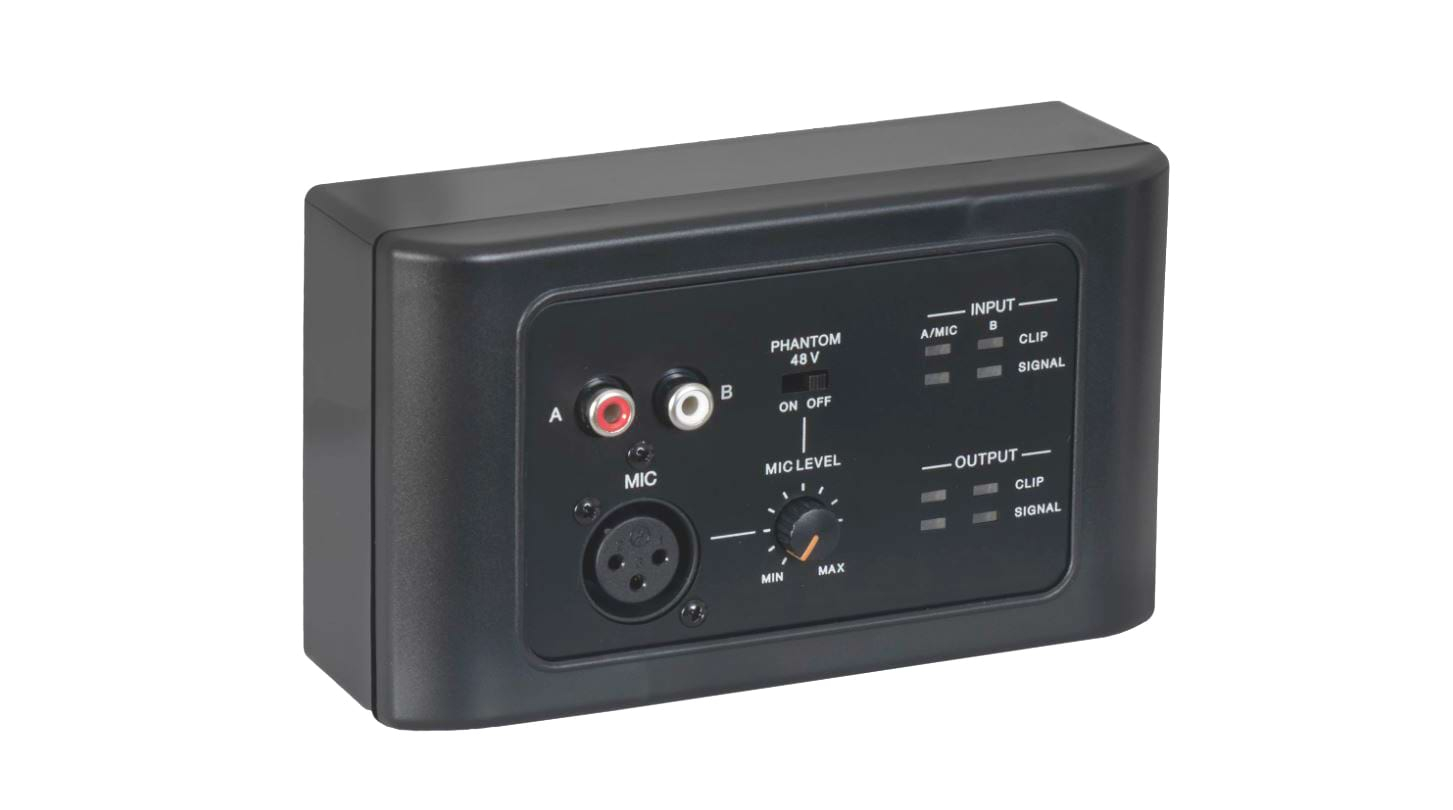

Wall-mounted source and volume selection board (MATRIX)

The JS-MATRIXPA panel is a remote audio input and output wall plate compatible with the JS-MATRIXPA matrix.
2 input channels and 2 output channels.
Connects to the system via an RJ-45, Cat 5e cable.

For installations with multiple audio sources and audience areas such as shopping centres, hotels, etc.

JS-MATRIXPA

Download (625.82KB)

Description

CHARACTERISTICS:	Audio input/output control for JS-MATRIX88 matrix. 2 input channels and 2 output channels. Converts and transmits digital audio to RD port. Signal presence and saturation LEDs for inputs and outputs.

INPUTS:	1 balanced mic, XLR 5.100 Ω, assignable to channels 10 or 12. 1 stereo RCA line, 5.100 Ω, 7'74 V, assignable to channels channels 9/10 or 11/12 1 RD Net port for connection to the matrix JS-MATRIX88, RJ-45

OUTPUTS:	2 balanced lines, 240 Ω euroblock, 7'74 V, assignable to digital channels 9/10 or 11/12

CONTROLS:	Microphone volume control Selectable phantom power supply.

CONNEXION:	Cable, RJ-45, Cat 5e

PHANTOM:	48 V

POWER:	24 V DC, 100 mA, per RD port

DIMENSIONS:	147 x 86 x 47 mm depth

WEIGHT:	Miniature, low-feedback, high-quality unidirectional electret condenser cartridge. For wireless equipment or electret condenser microphone inputs.

ACCESSORIES:	Surface box
