6W ceiling speaker at 100V

Reference : CSL-506
SKU : 02227
EAN13 : 3701567907791

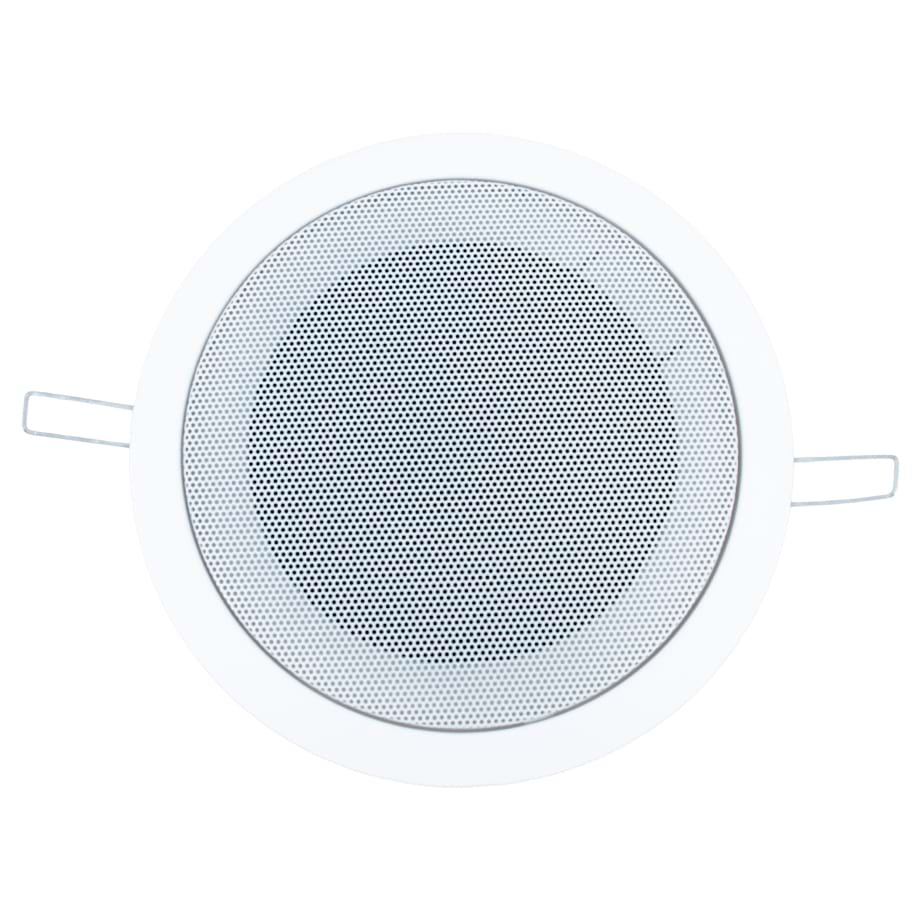

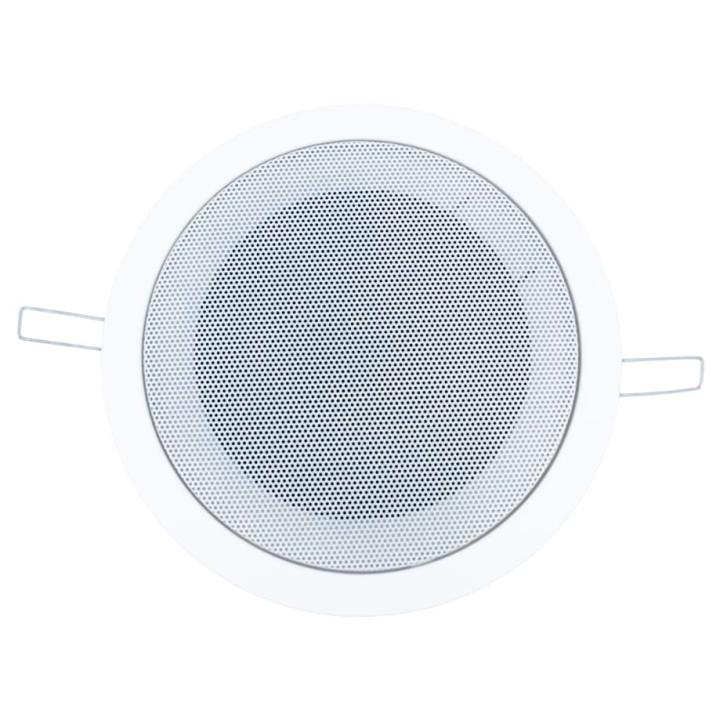

6W ceiling speaker

100V line

Power output
Impédance
Share

Description

DATA SHEET IN PDF

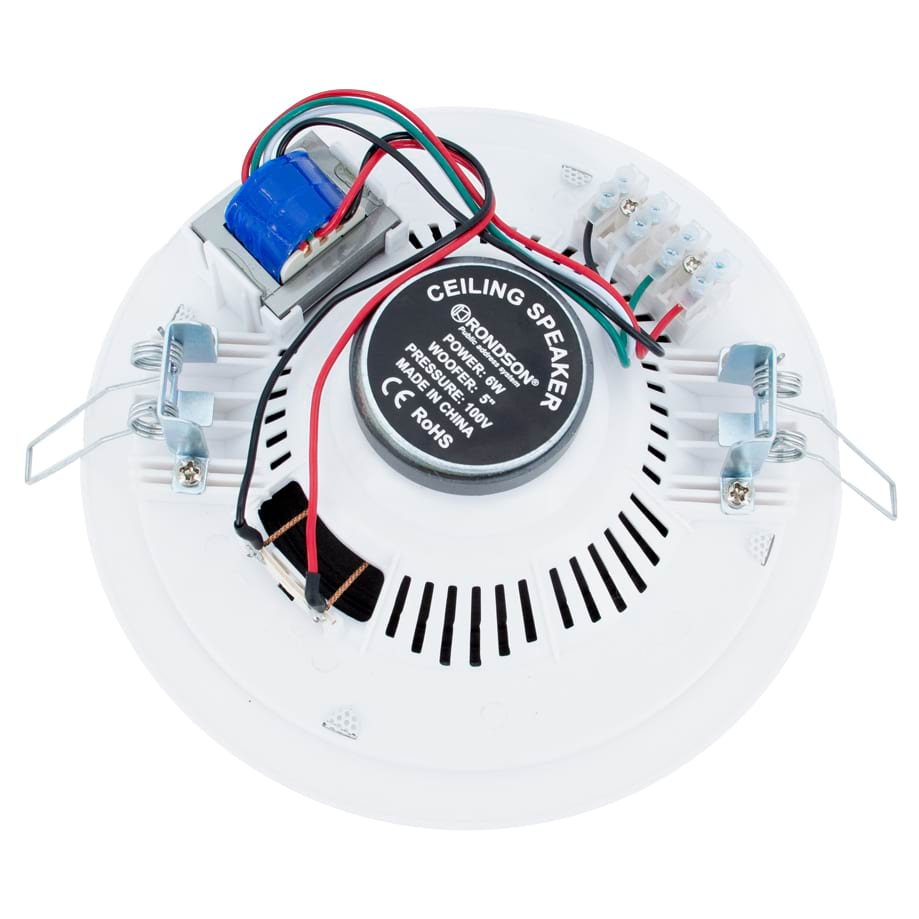

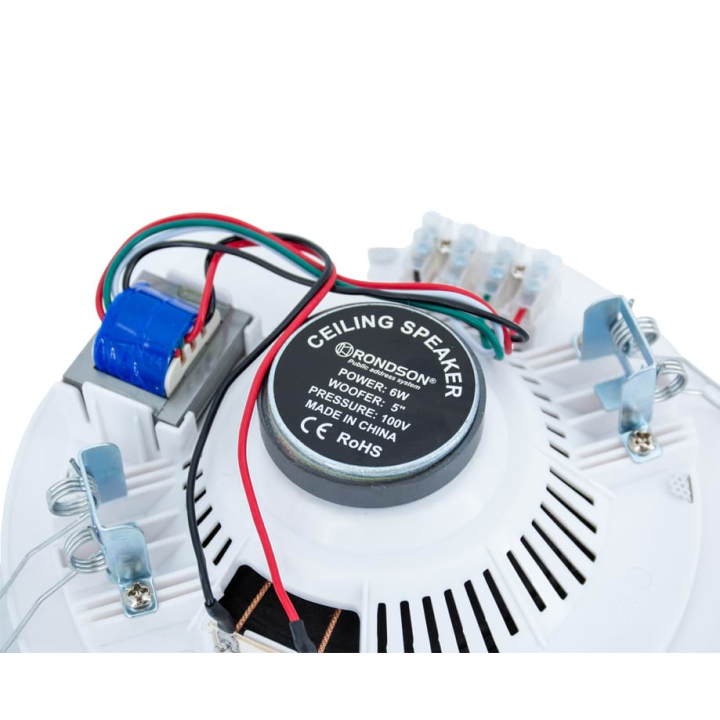

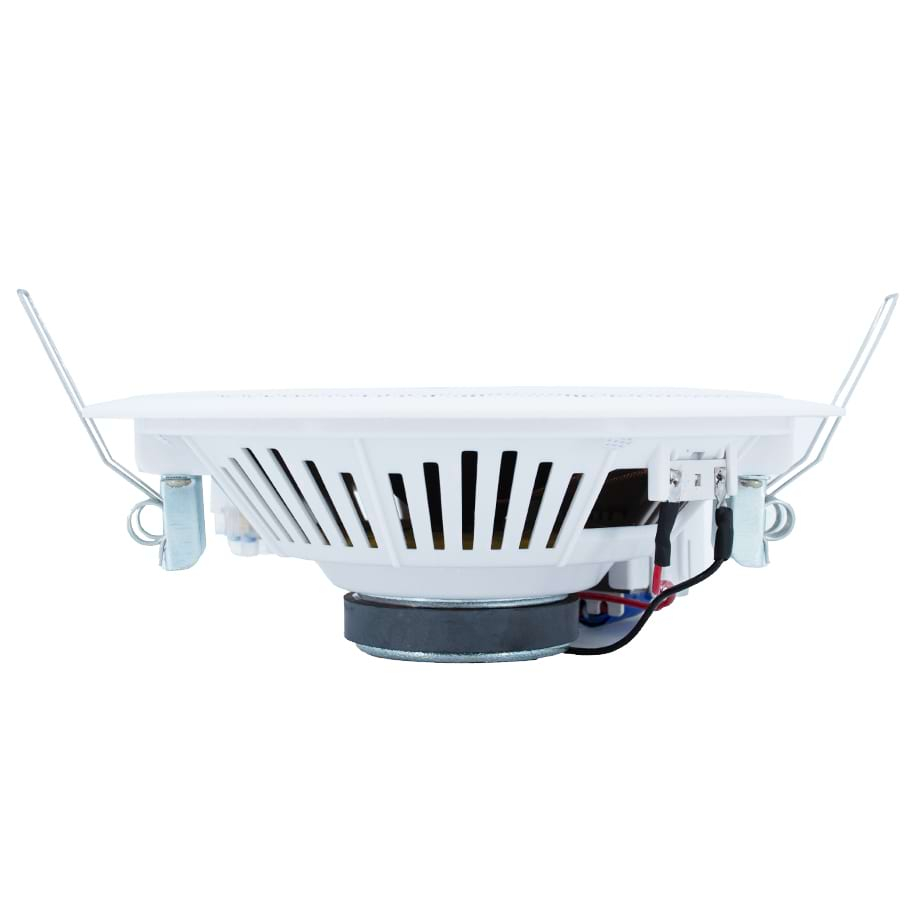

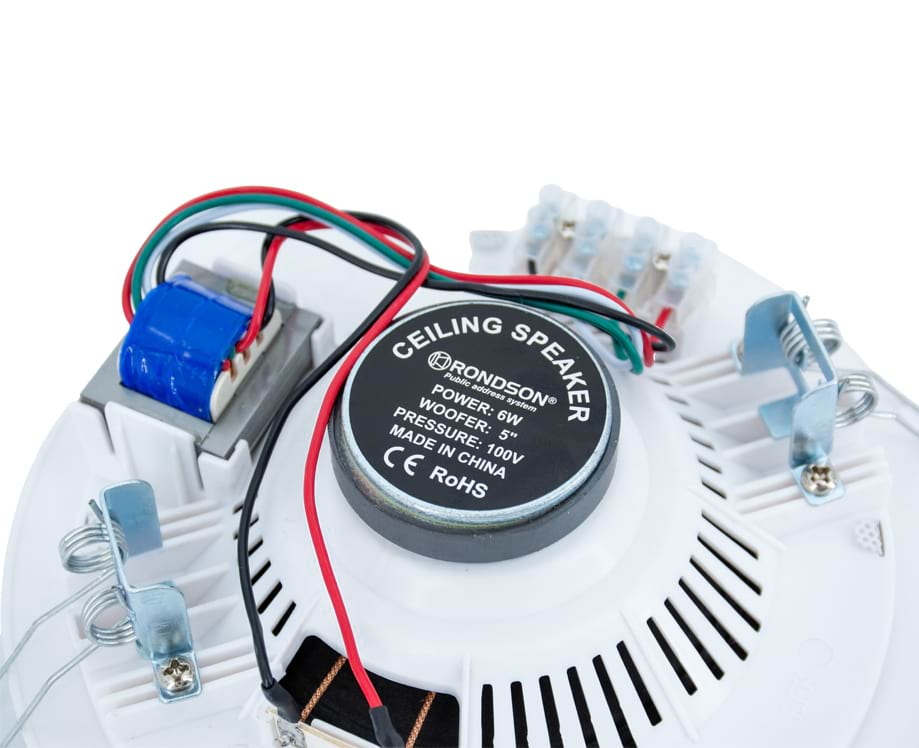

  • Quick-mounting ceiling speaker in plastic housing and metal grille, 70 and 100V line operation, 3-power selection on domino
  • Good price/performance ratio
  • Discreet and modern design
SPECIFICATIONS CSL-506
Type Ceiling loudspeaker
Material ABS + metal grid

Speaker

 Ø 130 mm - 8 Ω
Sensitivity 89 dB / 1 W / 1 m
Frequency Response 180 - 15000 Hz
RMS power line 6 - 3 - 1.5 W
Impedances 100V 1,7 KΩ / 3,3 KΩ / 6,6 KΩ
Connecting on domino

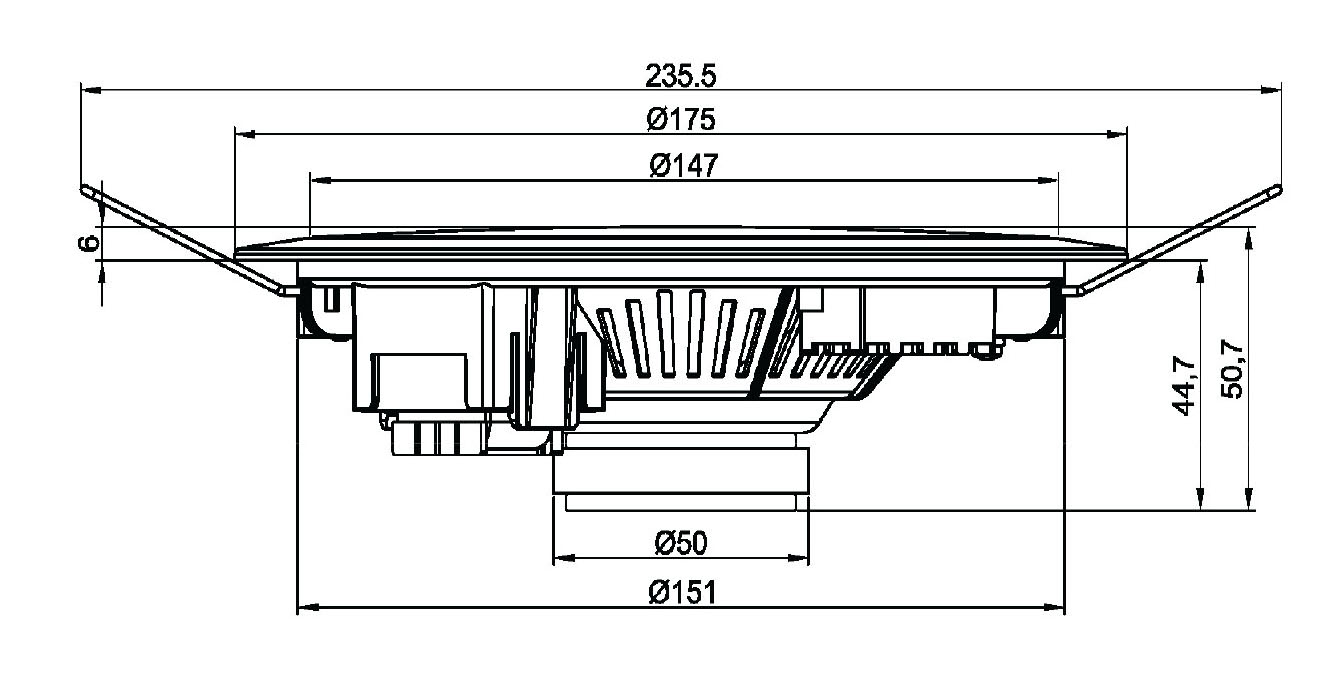

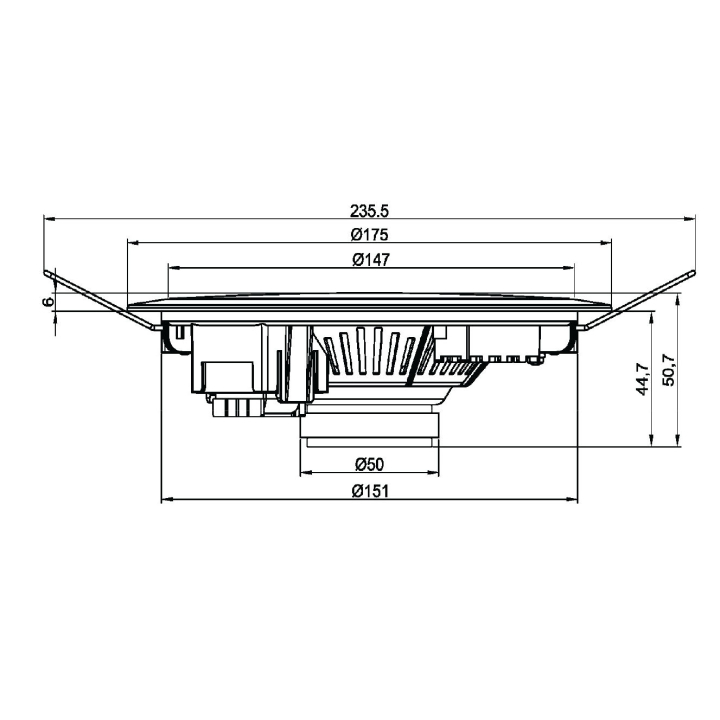

Dimensions (Ø x h) Ø 175 x 50,7 mm
Weight 0,5 Kg
Hole for mounting Ø 150 mm

Product Details

  • Brand
  • Reference
    CSL-506
  • SKU
    02227
  • EAN13
    3701567907791
