15W built-in speaker
Reference : IW-100T
SKU : 00082
EAN13 : 3701567905544
Description

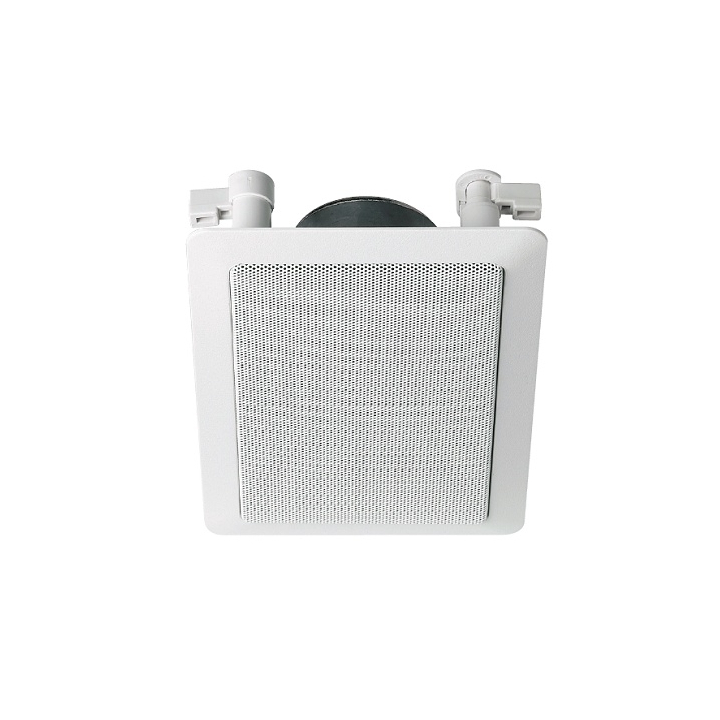

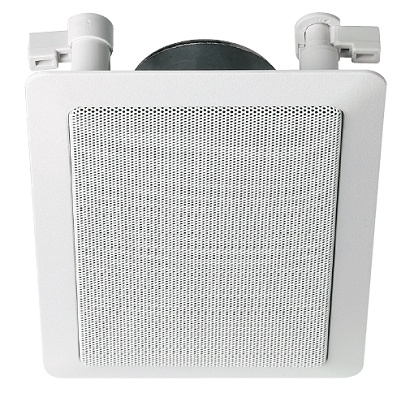

- 2-way rectangular in-ceiling speaker in HIFI quality for in-wall installation
- Fixation by 4 locking points (anti-theft system)

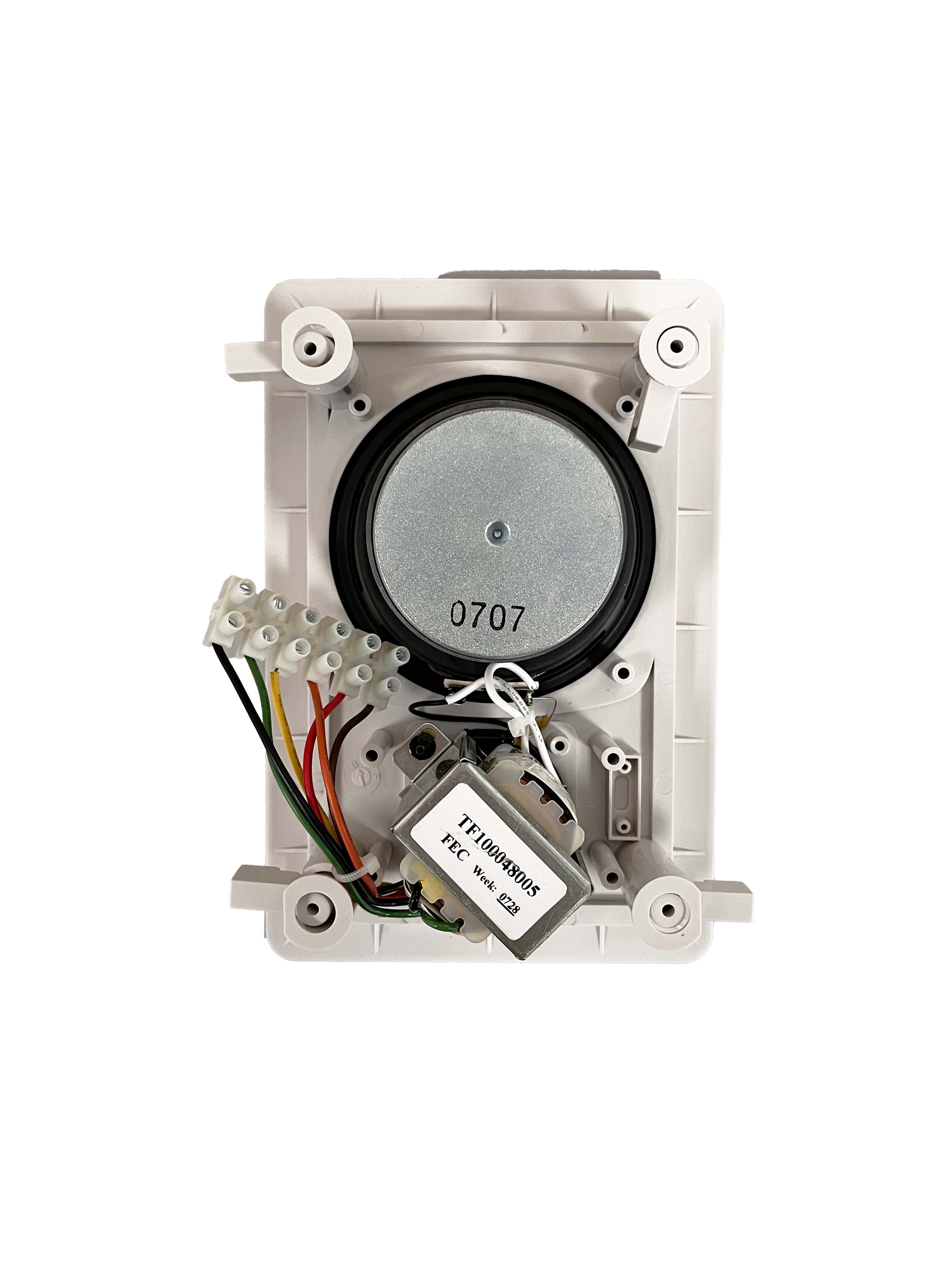

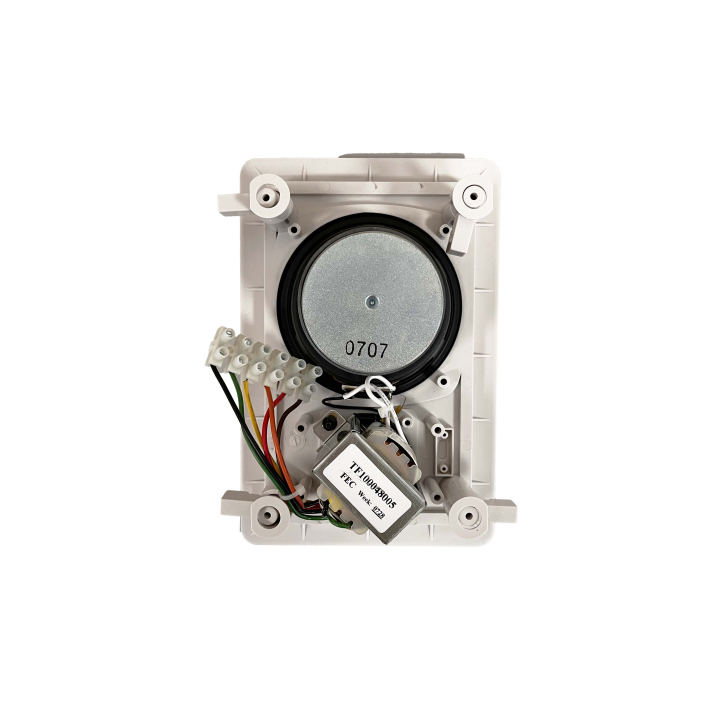

- Equipped with 10 cm woofer, tweeter and 100 V line transformer
|
SPECIFICATIONS |
IW 100 T |
|
Type |
Built-in speaker |
|
Material |
ABS + metal grill |
|
Speaker |
Woofer Ø 100 mm + Tweeter – 4Ω |
|
Sensitivity |
88 dB / 1 W / 1 m |
|
Frequency Response |
100 – 20000 Hz |
|
100 V Line power |
15 – 7,5 – 4 – 2 – 1 W RMS |
|
100 V Impedance |
666Ω / 1,33 / 2 / 4 / 8 KΩ |
|
Connecting |
On terminal block |
|
Dimensions (L x P x h) |
220 x 146 x 66 mm |
|
Weight |
1,3 kg |
|
Hole for mounting |
191 x 116 mm |
Product Details
-
Brand
-
ReferenceIW-100T
-
SKU00082
-
EAN133701567905544
