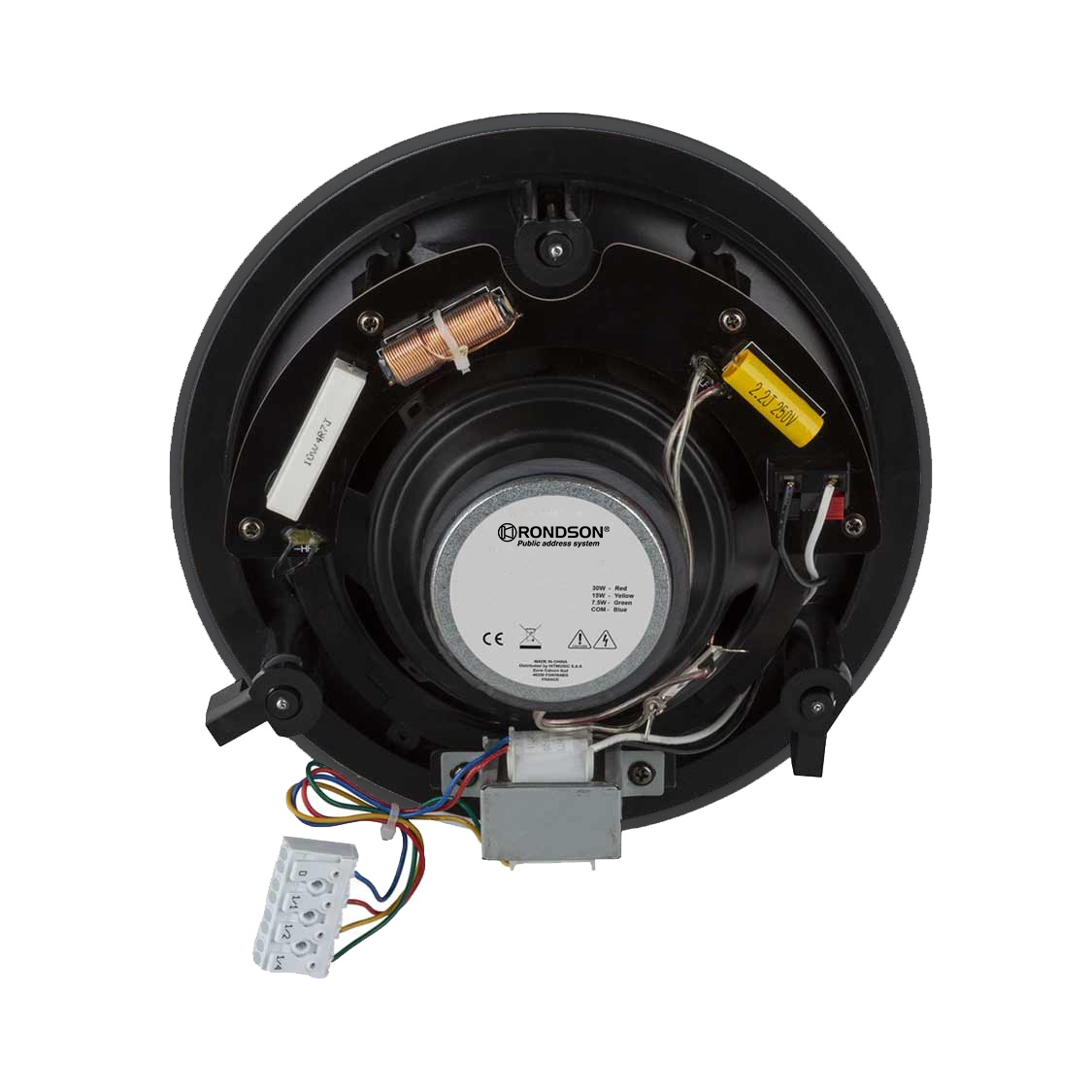

Ceiling speaker 20W in 100V
Reference : CSL 630 N
SKU : 02350
EAN13 : 3701567907821
5" Recessed Ceiling Speaker
20 - 10 - 5W
100V line
2-way coaxial
Black

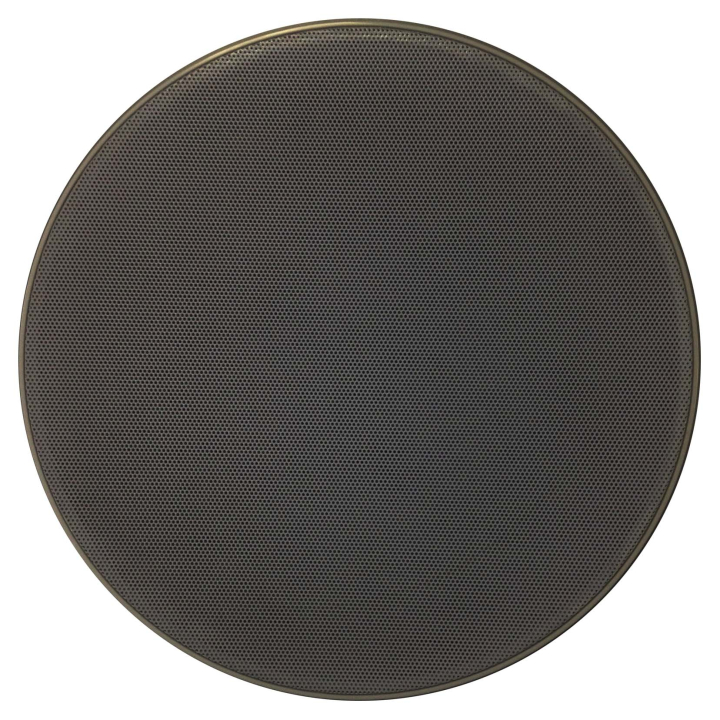

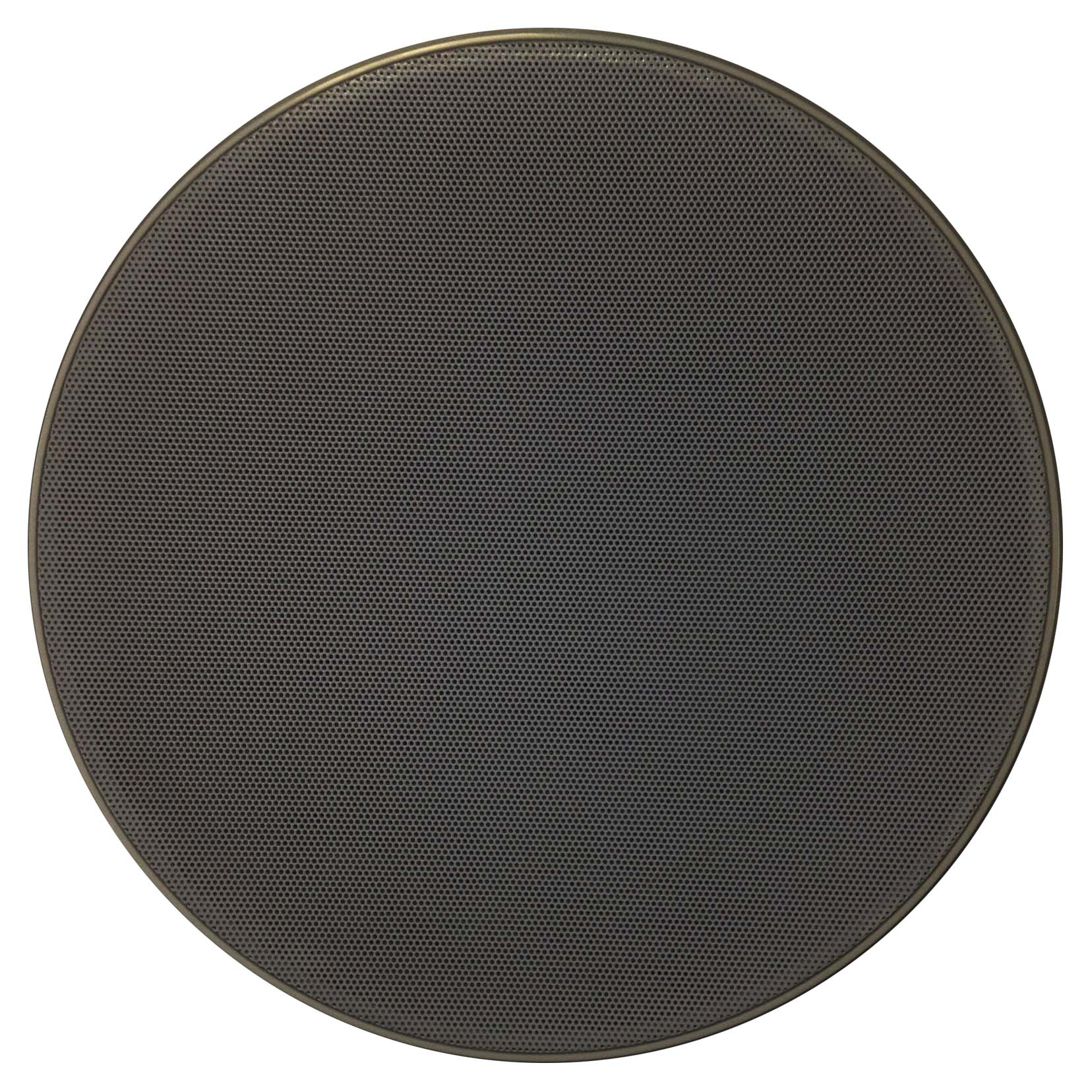

Flat, magnetized metal grille
Description
20W 2-way in-wall ceiling speaker for integration in all public places.
Quick and easy installation, flat and magnetic metal grille, ABS surround.
Ideally used for economical and high quality installation
Product Details
-
Brand
-
ReferenceCSL 630 N
-
SKU02350
-
EAN133701567907821
Data sheet
-
TypeHaut-parleur plafond 2 voies
-
SubjectGrille plate et aimantée en métal
-
ColoursBlack
-
100 V line impedances8 Ω
-
Loudspeakers12 cm
-
Sound pressure level91 dB / 1 W / 1 m
-
Bande passante80 Hz – 20 000 Hz
-
Coverage angle180°
-
Surface couverteÀ 4 ou 5 m de haut : 65 à 100 m2
-
Puissance ligne 100 V20 - 10 - 5 W RMS
-
Diamètre encastrementØ 170
-
ConnectionsSur fil
-
Dimensions (Ø × H)Ø 203 x 85 mm
-
Weight2.3 kgs
