Amplified LINE ARRAY speaker system

Name: Amplified LINE ARRAY speaker system
Brand: SEGON PROFESSIONAL AUDIO
SKU: JS-LINEA

Reference : JS-LINEA

SKU : 02643

EAN13 : 3701567905223

Amplified speaker system

100W passive speaker

1200W subwoofer

JS-LINEA

Download (3.06MB)

Description

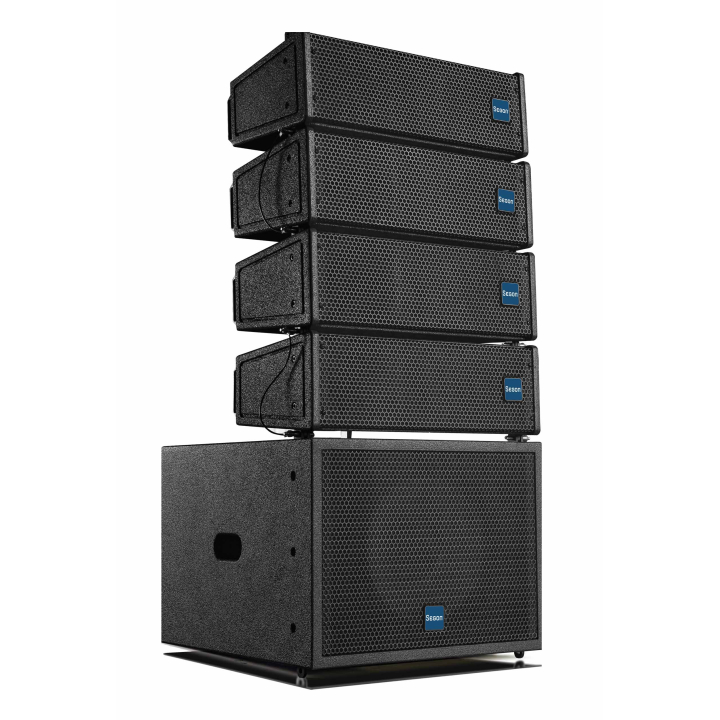

The Line Array LINEA system comprises four LINEA HPs, two 5“ two-way passive compact loudspeakers and a 12” LINEA subwoofer, integrated in a 3-channel Class D amplifier with DSP.

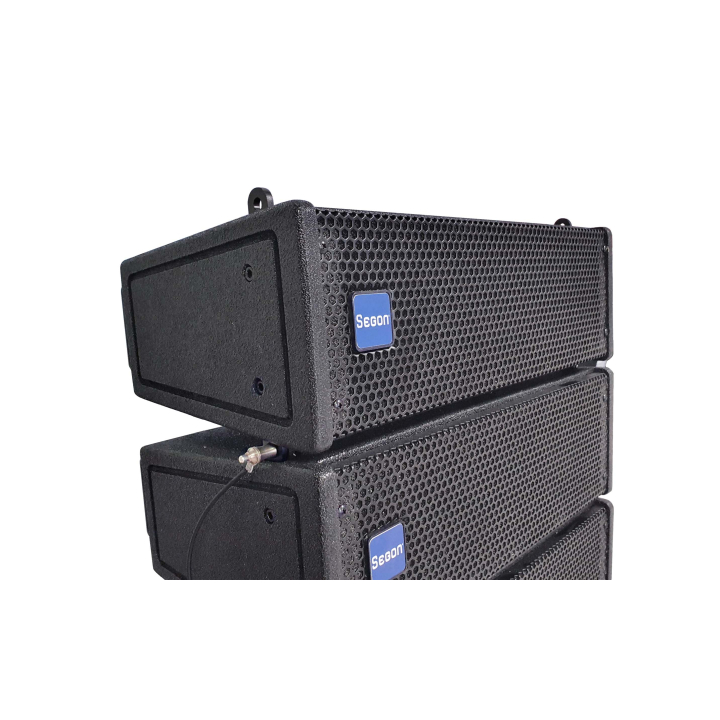

The LINEA HP features two 5” LF drivers with 30 mm voice coils and high-quality carbon fiber diaphragms, and one HF compression driver with 34 mm voice coil. The SUBWOOFER is characterized by its light, compact weight, long throw, high dynamics and reliability.

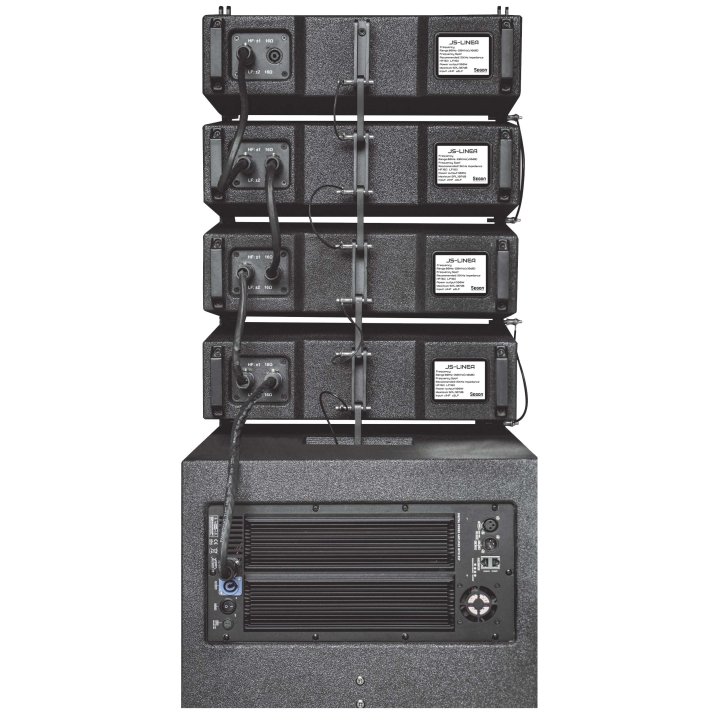

The SUBWOOFER is equipped with 3 Class D power amplifiers, in which 2 channel amplifiers output to the external 4×LINEA HP loudspeakers with power up to 600W/8Ω per channel, and the 3rd, channel power amplifier outputs up to 1200W to drive the internal 12” woofer.

Integrated DSP incorporating volume control, delay, crossover, phase, noise gate, compressor and 31-stage input PEQ and 10-stage output PEQ. PC software for parameter setting is available.

FEATURES	LINEA Speaker	LINEA SUBWOOFER
Type	2 way 2x5” passive loudspeaker	12” amplified subwoofer
Amplifier module	-	Class D power amplifier module 2×600W+1×1200W with DSP 2×600W(peak 2×1200W)
Power output	HF：40W(pic 160W) LF：100W(peak 400W)	1×1200W(peak 2400W) -
Frequency Range(-10dB)	LF:80Hz-2.5KHz HF:2.5KHz-20KHz	30Hz~20KHz
Frequency Response(±6dB	LF:100Hz-2.5KHz HF:2.5KHz-18KHz	48Hz~20KHz
LF Recommended Filter	-	30Hz(Butterworth24dB)-130Hz(Butterworth24dB)
MF Recommended Filter	60Hz(12dB/oct)-2.5KHz(24dB/oct)	80Hz(Butterworth12dB)-2KHz(Butterworth48dB)
HF Recommended Filter	2.5KHz(12dB/oct)-20KHz(24dB/oct)	2KHz(Butterworth24dB)-22KHz(Butterworth12dB)
Sensitivity	88dB(HF:101dB LF:86dB)	-
Maximum SPL	107dB(HF:116dB LF:105dB）Peak118dB	124dB
Impedance	HF:16Ω LF:16Ω	-
Pattern angle	120°×10°	-
Drivers	2×5" LF driver with 32mm voice coil	1×12" 100mm voice coil, 220 magnets woofer
Enclosure/Finish	1×34mm voice coil compression HF driver	-

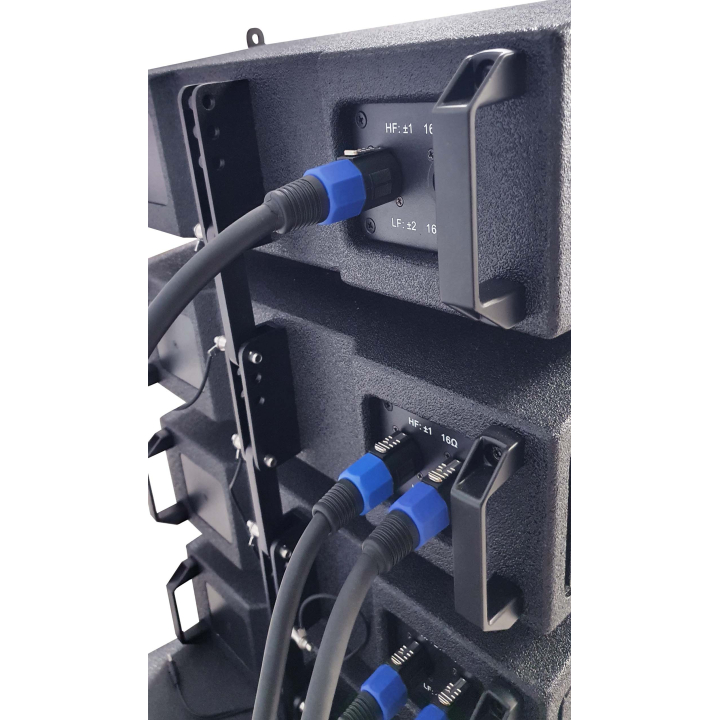

Connector	Plywood/black polyester paint 2×NL4 Speakon (HF:±1 LF:±2)	Plywood/black polyester paint PowerCON 20 input/output, Rj45 Control input/output, XLR input/output，1 NL4 Neutrik Speakon power output(HF:±1 LF:±2)
Accessories	Aluminum Alloy accessories LF:±2)	Aluminum Alloy accessories
Dimension(H×W×D)mm	188×480×278	358×480×516
Weight	13.5Kg	36.3Kg
