Active system with a 2 x 10' box, a medium column 8x4' TWS - 1000 W RMS

Name: Active system with a 2 x 10' box, a medium column 8x4' TWS - 1000 W RMS
Brand: SEGON PROFESSIONAL AUDIO
SKU: PULSE-X

Reference : PULSE-X

SKU : 02960

EAN13 : 3701567914836

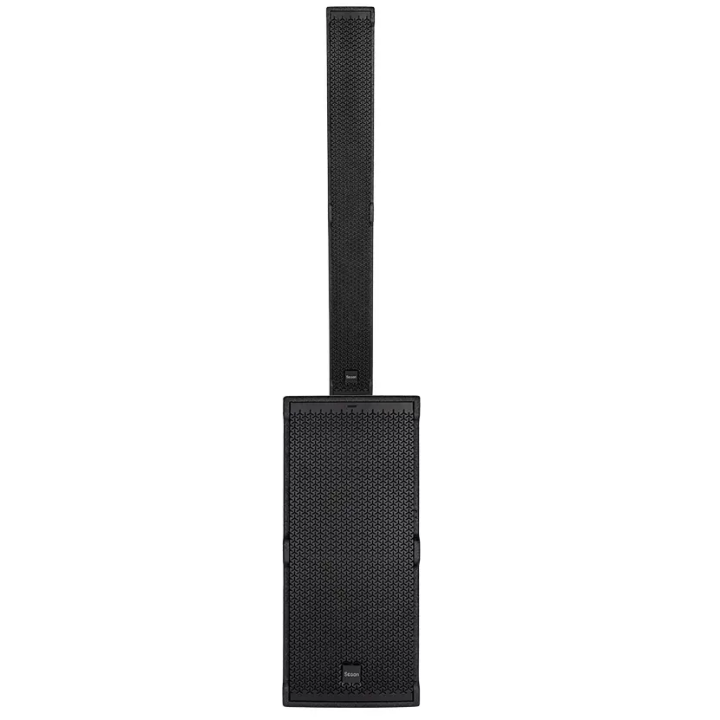

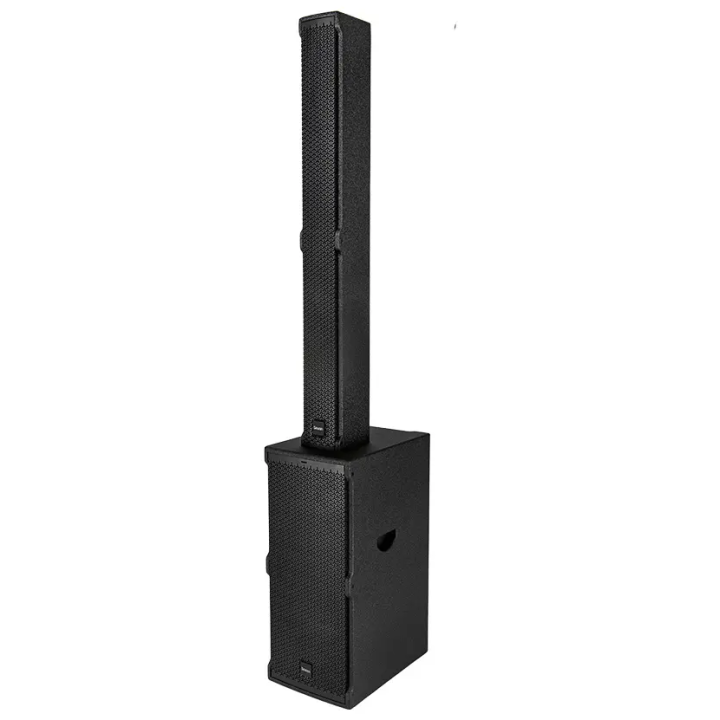

PULSE-X system active box and column 1000W RMS | Segon

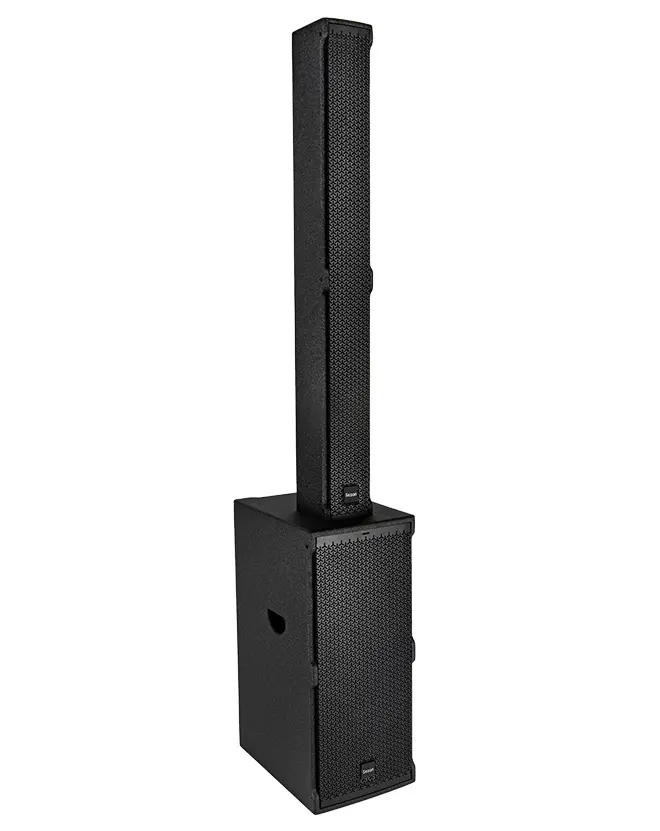

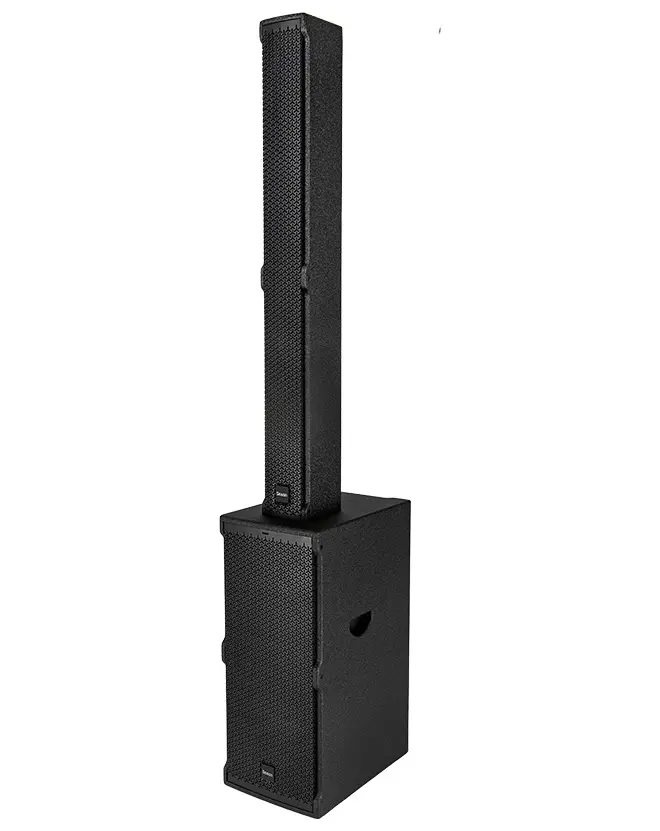

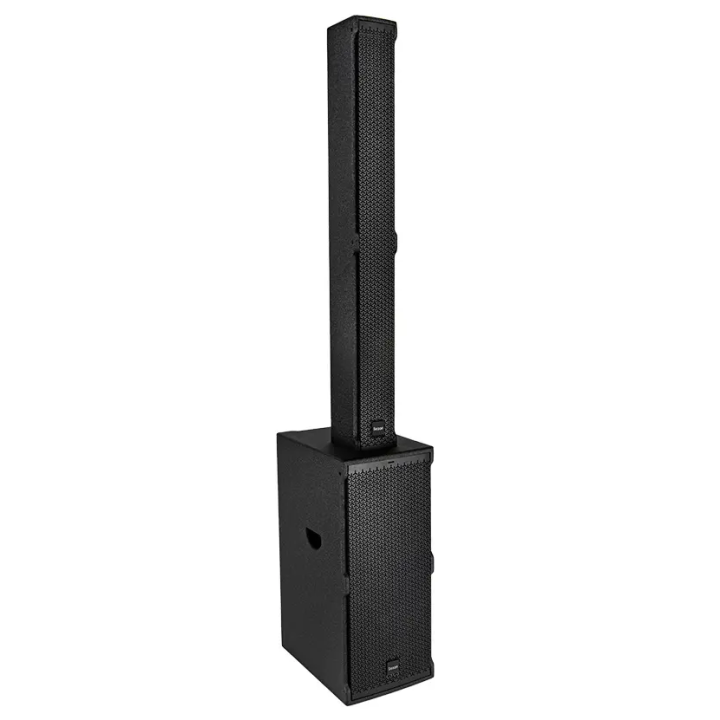

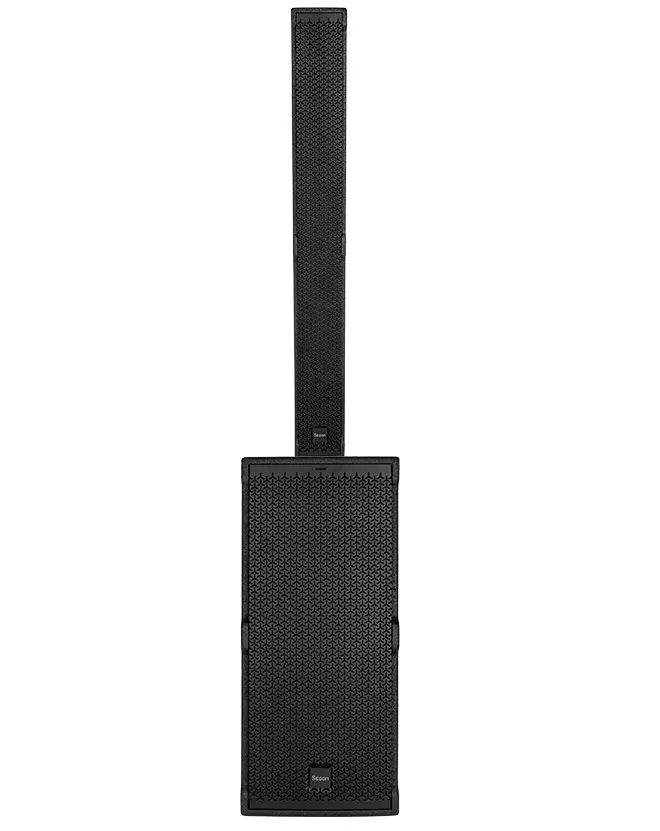

The PULSE-X active system comprises a 2x10" subwoofer enclosure and a column speaker, delivering a total power output of 1000W RMS (2000W max).

Notice d'utilisation

Download (1005.28KB)

Description

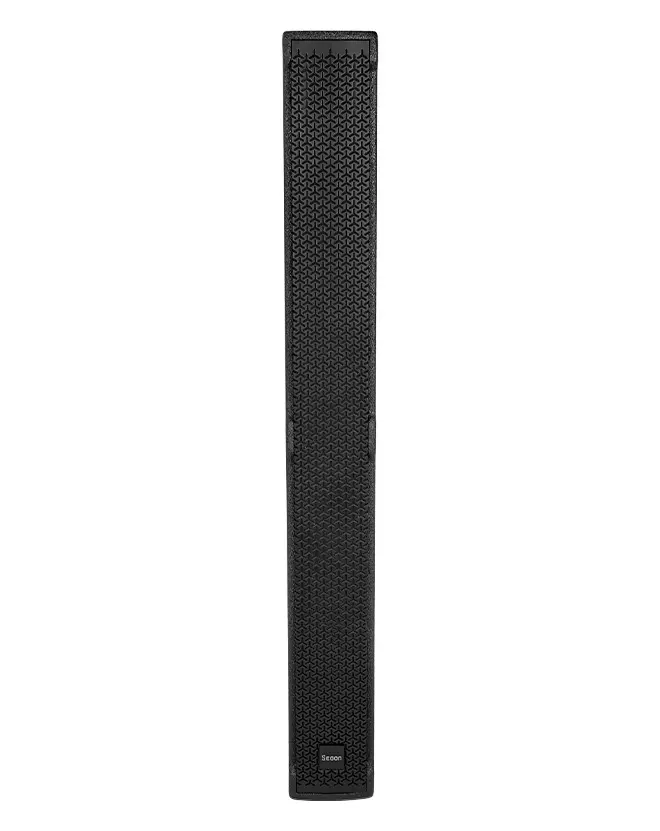

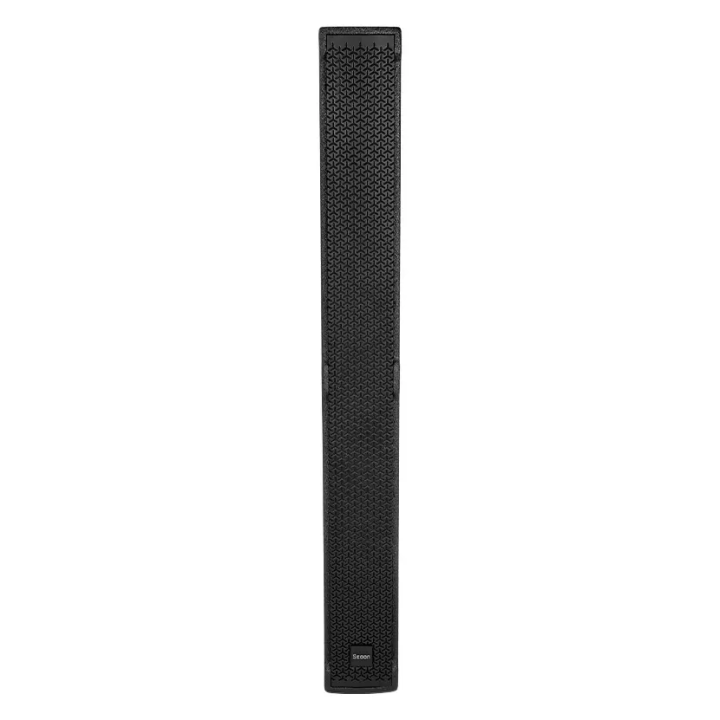

1000W RMS column speaker.

Designed for fixed or mobile installation with a modern look for high-quality performances: events, sound reinforcement for bars, restaurants, terraces, campsites...

Product Data Sheet (PDF):

Features

2-Way FULL RANGE
Bluetooth 5.3
Class D amplifier
Mains power only

Technical Specifications — PULSE-X
Specifications	PULSE-X
Type	Column speaker
Material	ABS + Metal grille
Frequency response	40 Hz - 20 kHz
Max SPL	130 dB
Crossover frequency	170 Hz
Transducers (LF / MF / HF)	LF: 2 × 10” cone (2.5” vc 65oz) MF: 8 × 4” HF: 1”
Net weight	36.8 kg / 81.1 lbs

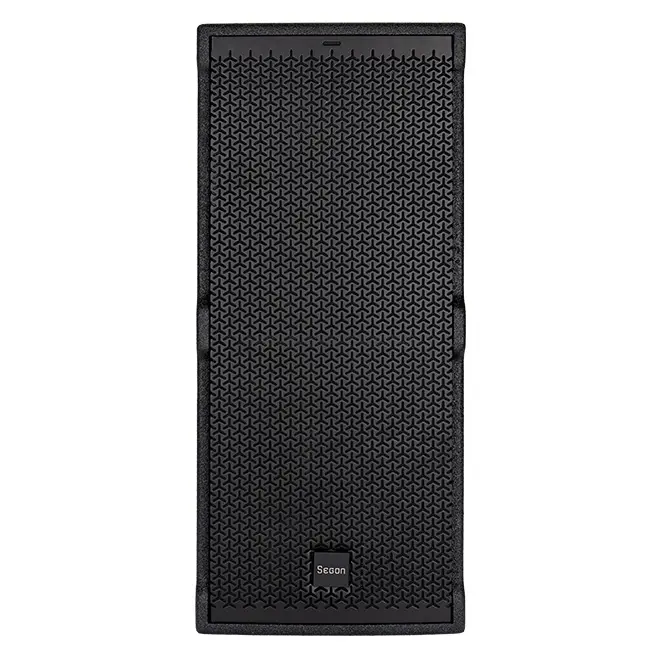

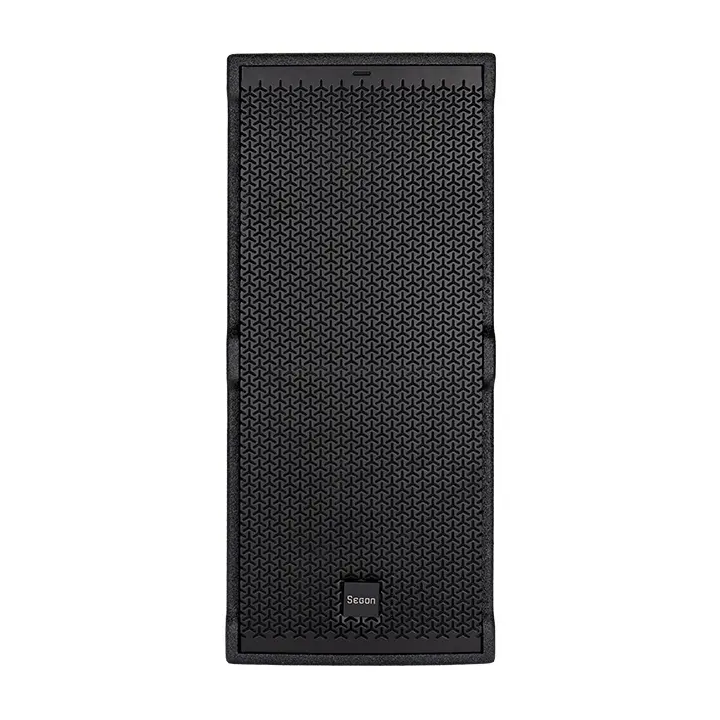

Dimensions (Subwoofer)	300 × 430 × 705 mm
Dimensions (Column array)	138 × 160 × 1185 mm
Output power (Peak / RMS)	2000 W / 1000 W
Amplifier type	Class D
Channels	2

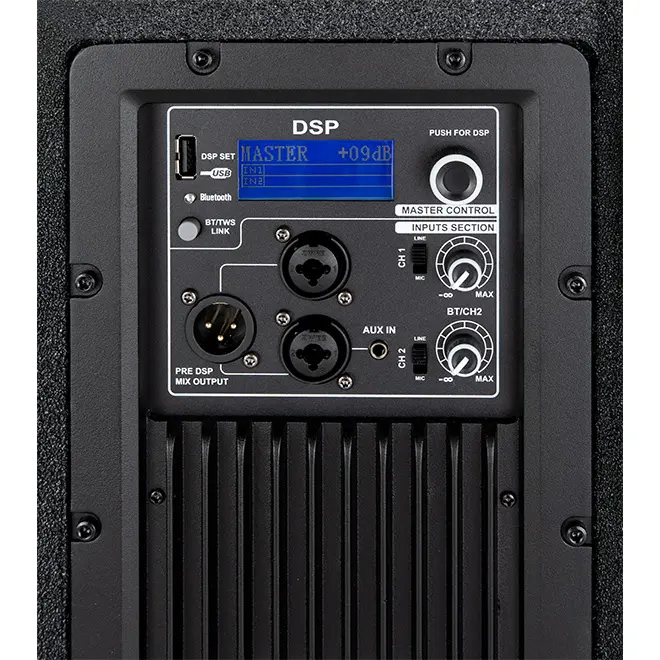

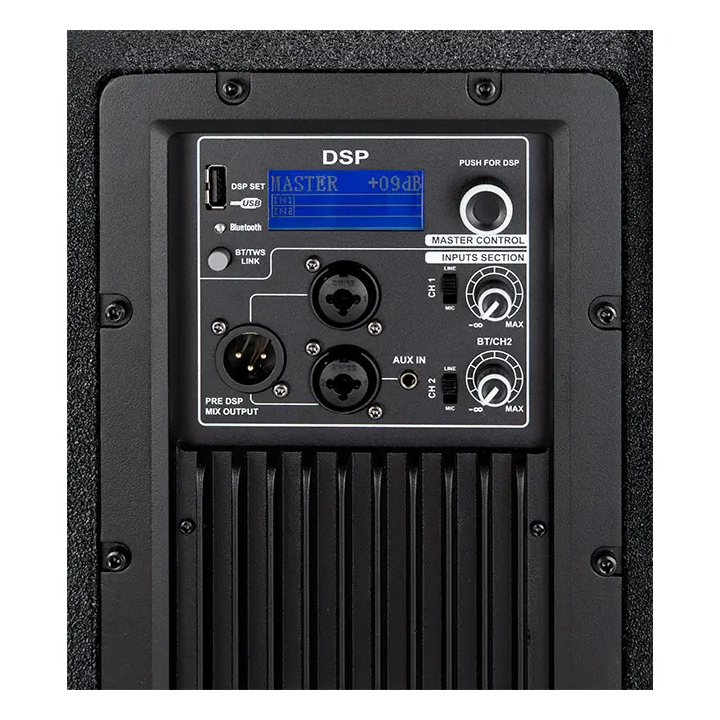

Inputs	2 x Combo XLR/6.35 mm TRS Jack; 1 x 3.5 mm Jack
Output	1 x XLR
Bluetooth	Yes (Bluetooth 5.3)
Power socket	IEC

Product Details

Brand
Reference

PULSE-X
SKU

02960
EAN13

3701567914836

Data sheet

Type

Enceinte colonne
Subject

ABS + metal grille
Bluetooth

5.3
Max SPL

130 dB
Haut-parleurs (LF / MF / HF)

LF : 2 × 10” cone (2.5” vc 65oz) MF : 8 × 4” HF : 1”
Sortie

1 x XLR
Bande passante

40 Hz - 20 kHz
Type d'amplificateur

Classe D
Fréquence de coupure

170 Hz
Puissance de sortie (Crête / RMS)

2000 W / 1000 W
Canaux

2
Prise secteur

IEC
Entrées

2 x Combo XLR/Jack 6,35 mm TRS ; 1 x Jack 3,5 mm
Dimensions (Subwoofer)

300 × 430 × 705 mm
Dimensions (Colonne)

138 × 160 × 1185 mm
Weight

36,8 kg / 81.1 lbs
