New rates available on 1 March 2024
0

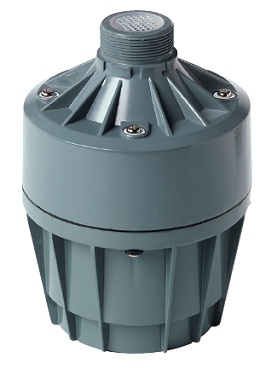

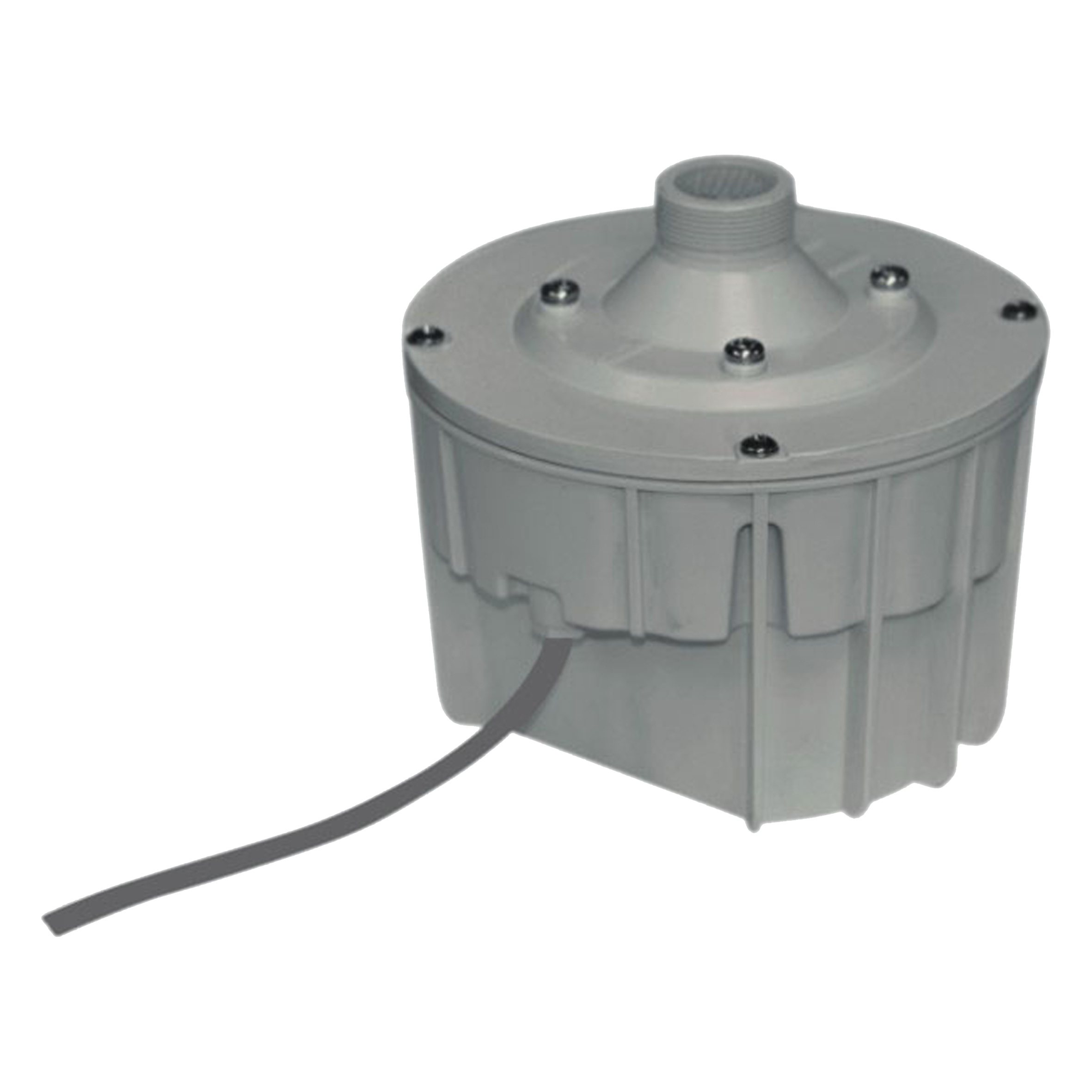

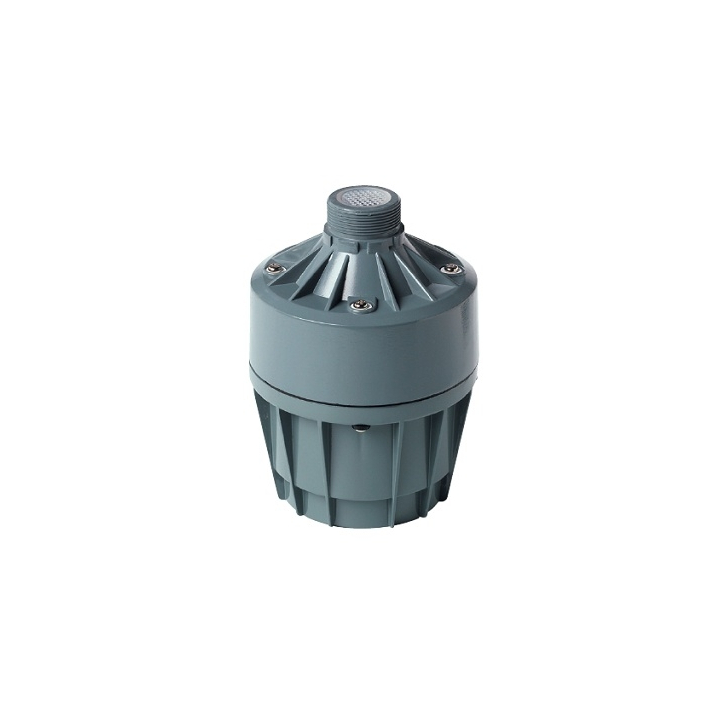

100V compression-chamber motors compatible with H 20 or H 20/4 horns
Référence : TU 35 ML - Code : 00133
Référence : TU 60 ML - Code : 00134
Référence : TU 100 ML - Code : 02301
Availability date:
In Stock
Warning: Last items in stock!
Delivered within 48/72h
For professionals
To log inFor individuals
Contact us
TU 35 ML | HORN SPEAKER H 20 |
Motor with transformer | 35 W / 100 Volts |
Sensitivity | 115 dB / 1 W / 1 m |
Frequency Response | 200 à 4 000 Hz |
100 V Line power | 35 – 20 – 10 W RMS |
100 V Impedances | 290 / 500 Ω /1 KΩ |
Dimensions | Ø 110 x 160 mm |
Weight | 1,8 kg |
Thread | 35 mm (1 3⁄8’’) |
Protection rating | IP65 |
TU 60 ML | HORN SPEAKER H 20 |
Motor with transformer | 60 W / 100 Volts |
Sensitivity | 115 dB / 1 W / 1 m |
Frequency Response | 200 à 4 500 Hz |
100 V Line power | 60 – 40 – 20 W RMS |
100 V Impedances | 170 / 250 / 500 Ω |
Dimensions | Ø 110 x 160 mm |
Weight | 2,1 kg |
Thread | 35 mm (1 3⁄8’’) |
Protection rating | IP65 |
TU 80 ML | HORN SPEAKER H 20 |
Motor with transformer | 80 W / 100 Volts |
Sensitivity | 115 dB / 1 W / 1 m |
Frequency Response | 200 à 4 500 Hz |
100 V Line power | 80 – 50 – 35 W RMS |
100 V Impedances | 125 / 200 / 290 Ω |
Dimensions | Ø 110 x 160 mm |
Weight | 2,1 kg |
Thread | 35 mm (1 3⁄8’’) |
Protection rating | IP65 |
TU 100 ML | HORN SPEAKER |
Motor with transformer | 100 W / 100 Volts |
Sensitivity | 115 dB / 1 W / 1 m |
Frequency Response | 100 Hz à 6000 Hz |
100 V Line power | 100 - 50 - 35 W |
100 V Impedances | 100 - 200 - 286 Ω |
Dimensions L x P x h | Ø 160 x 147,5 mm |
Weight | 3.16 Kg |
Material | Base plastique et couvercle en alu |
Thread | 35 mm |
Protection rating | IP65 |
