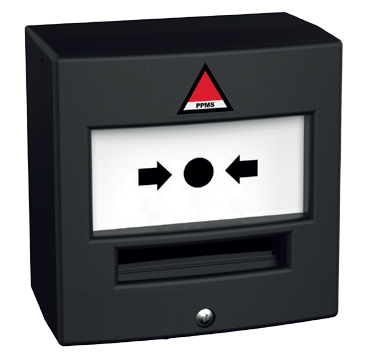

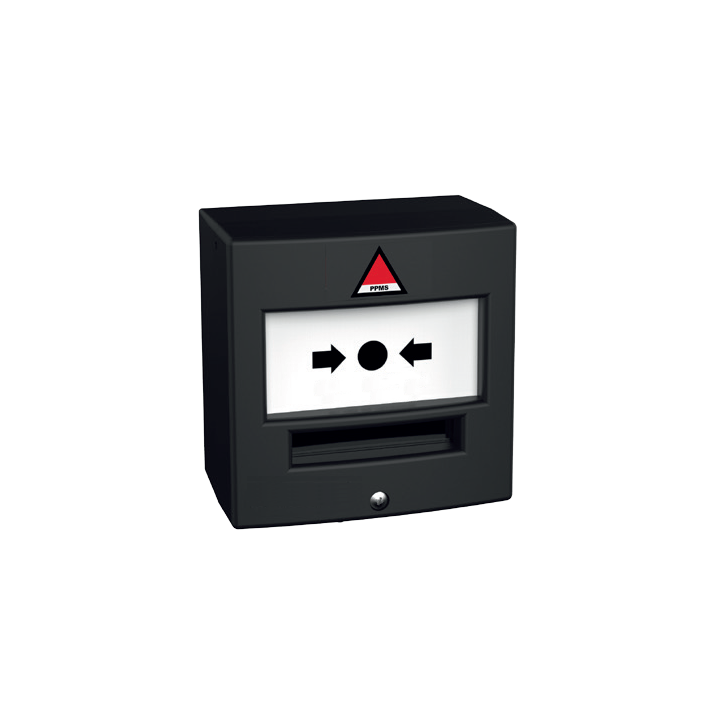

Universal black manual release - double contact

Reference : BP2

SKU : 02357

EAN13 : 3701567909160

Universal black manual trigger - double contact for PPMS alarms

Cablage BP1

Download (228.52KB)

Cablage BP1

Download (228.78KB)

Description

Description

Manual triggers for remote alarm management. They are generally used on PPMS (Plan Particulier de Mise en Sûreté) installations, particularly when schools are being brought up to standard.

Features

It is equipped with :

- A black ABS case

- Quick installation, surface or flush mounting

- Easy to use

CHARACTERISTICS	BP2
Type	Manual triggers
Contact	2
Material	Black ABS
Envelope protection	IP 40 / IK 07
Electric shock protection	Class II
Storage temperature	-10°C / + 70°C
HR operation	-95%
Degree of ignition	UL94-VO
Operating voltage	0-24Vcc
Switching capacity	250 vac -3
Resistance	1 kOhm - 1/2 W
Type A	Immediate operation
Connection	On wire
Dimensions mm (W x D x H)	87 x 87 x 53 mm
Weight	0,14 Kg
