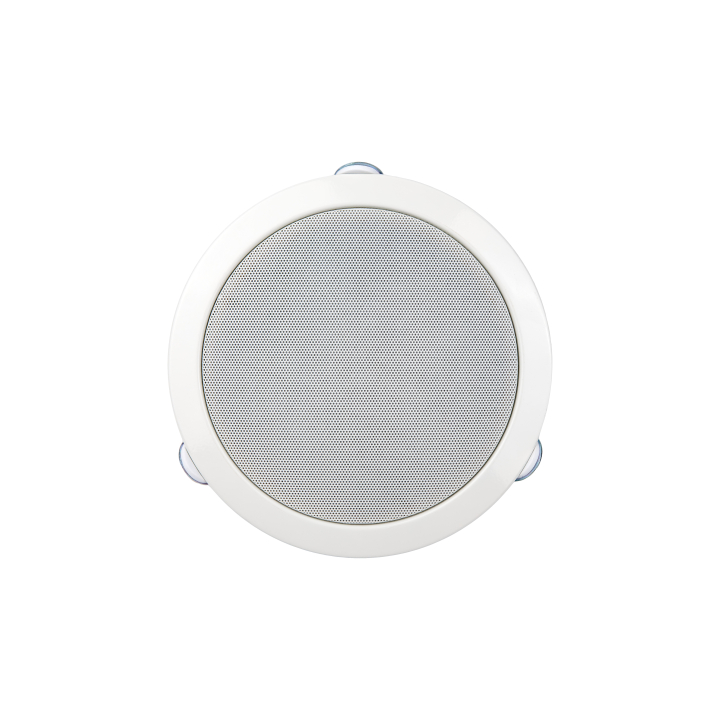

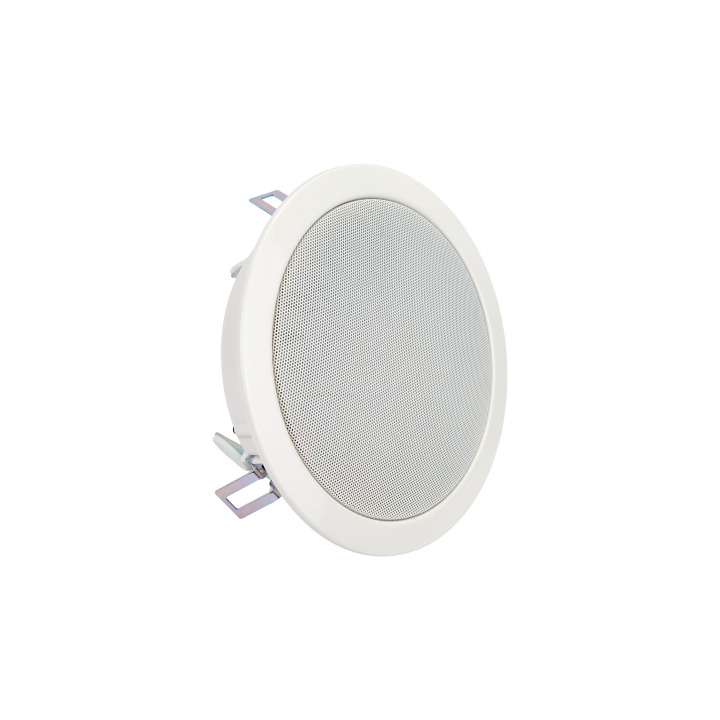

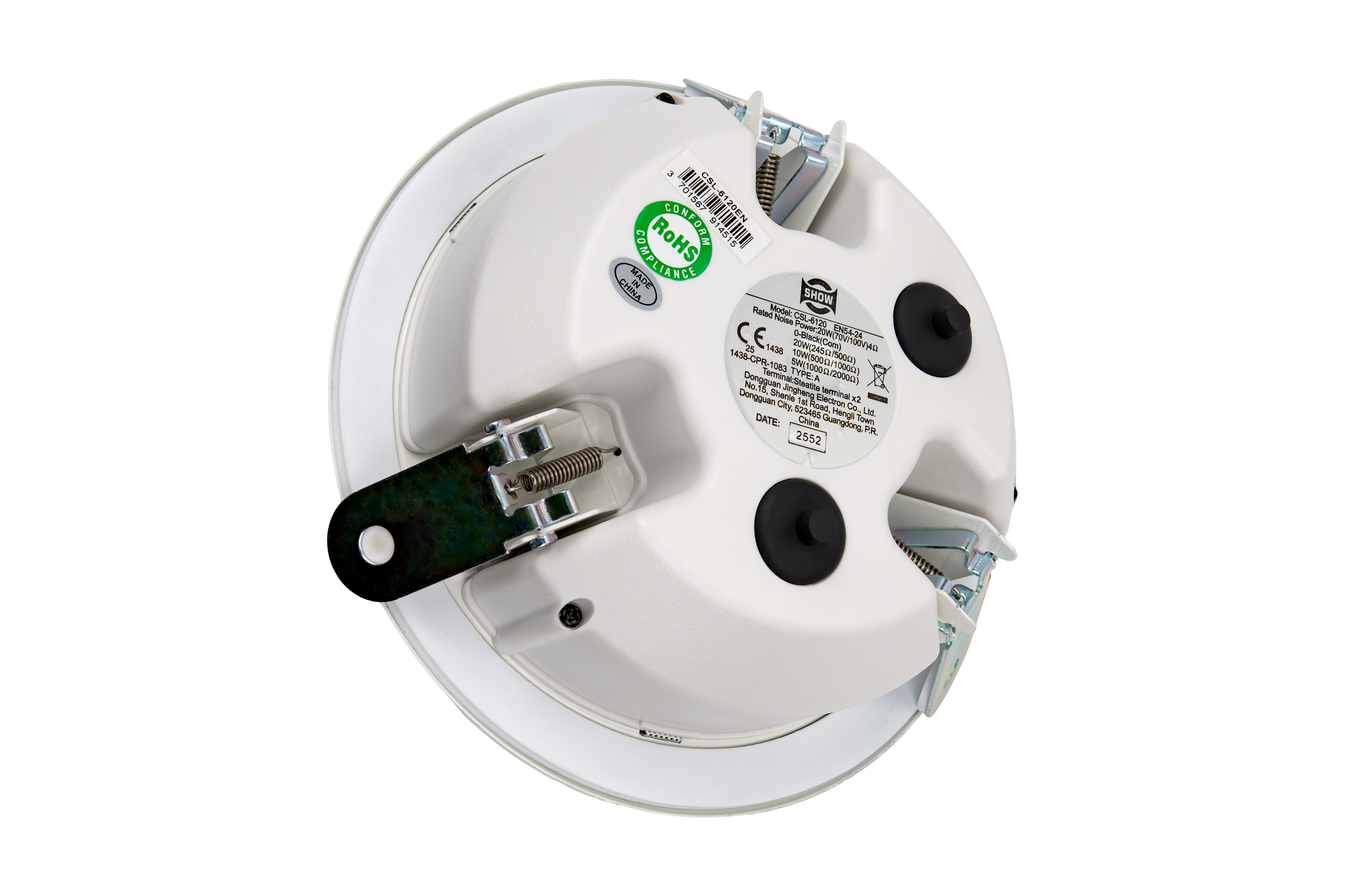

20W exhaust speaker in 100 V - EN 54-24
3701567907760
00056

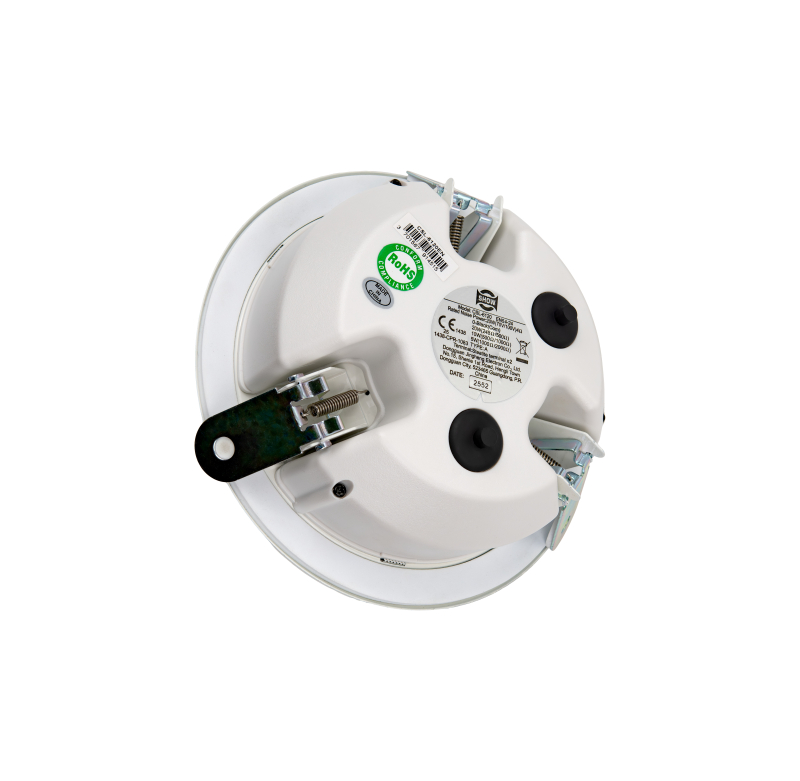

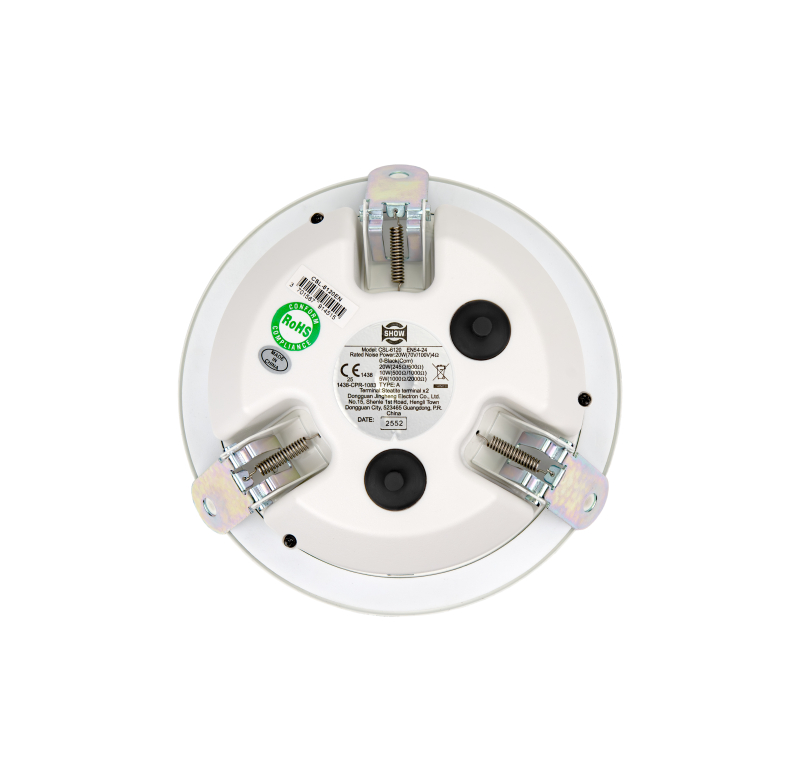

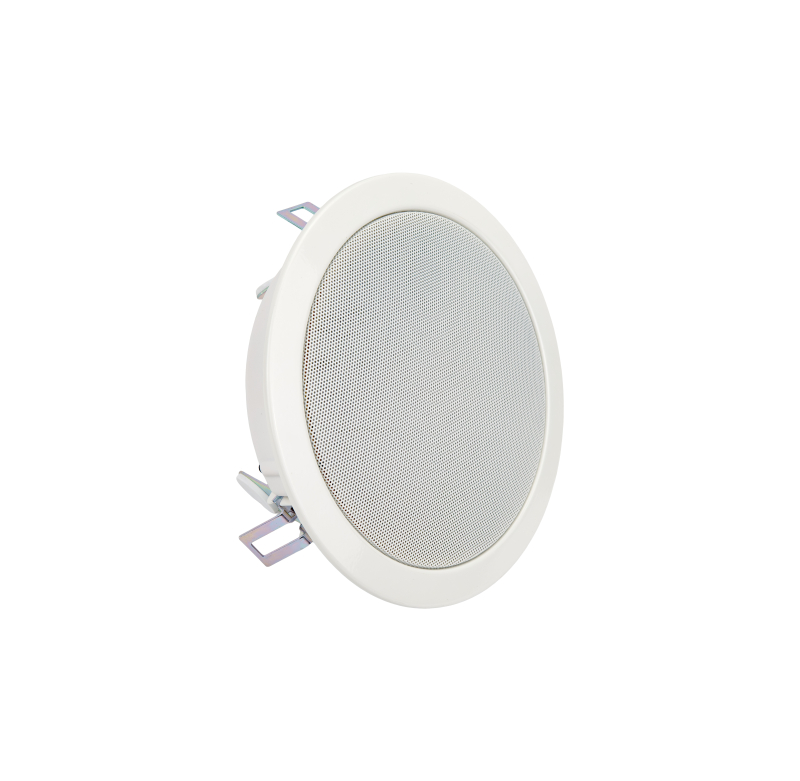

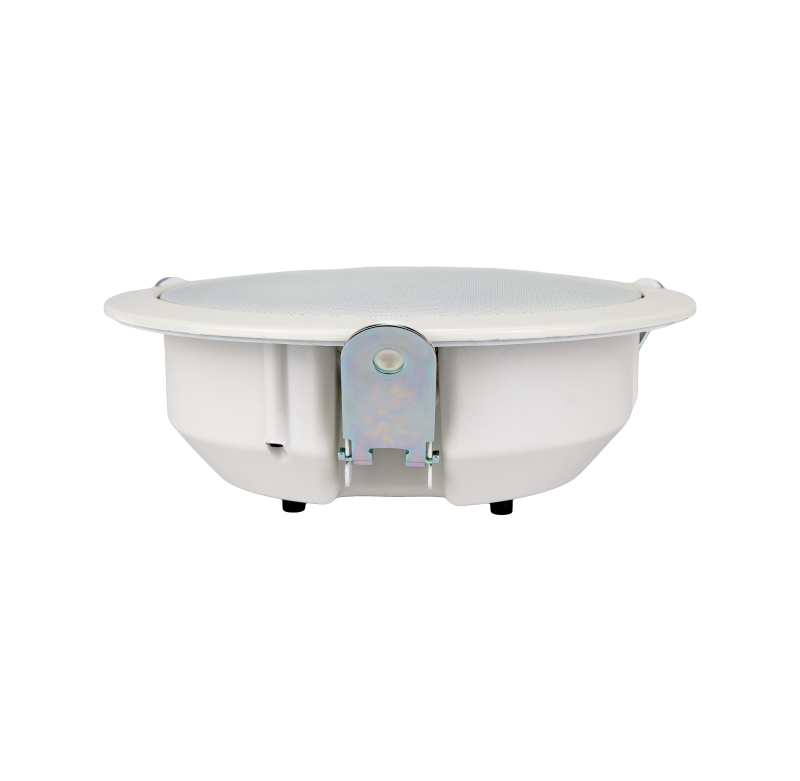

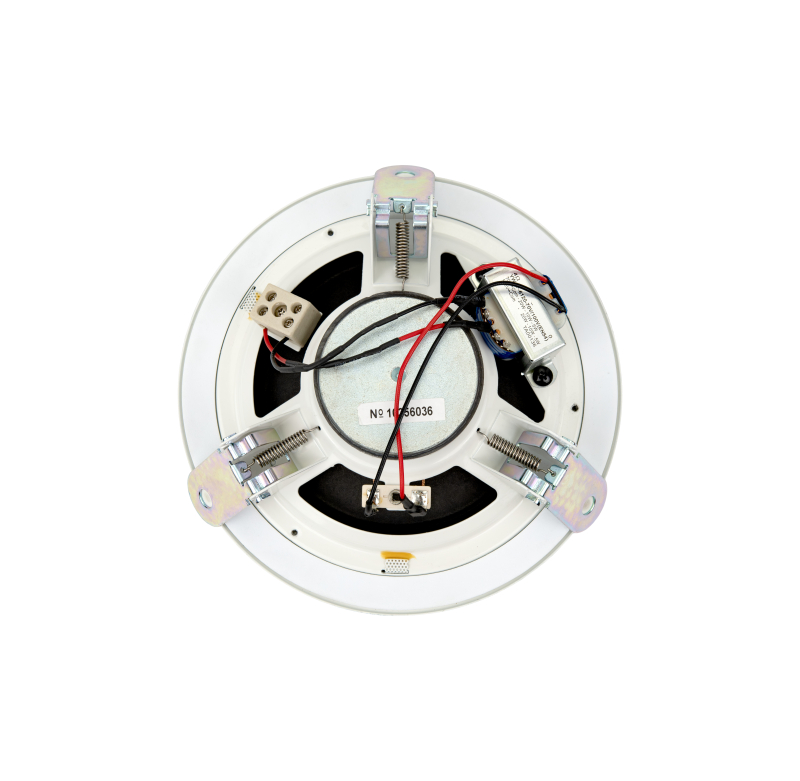

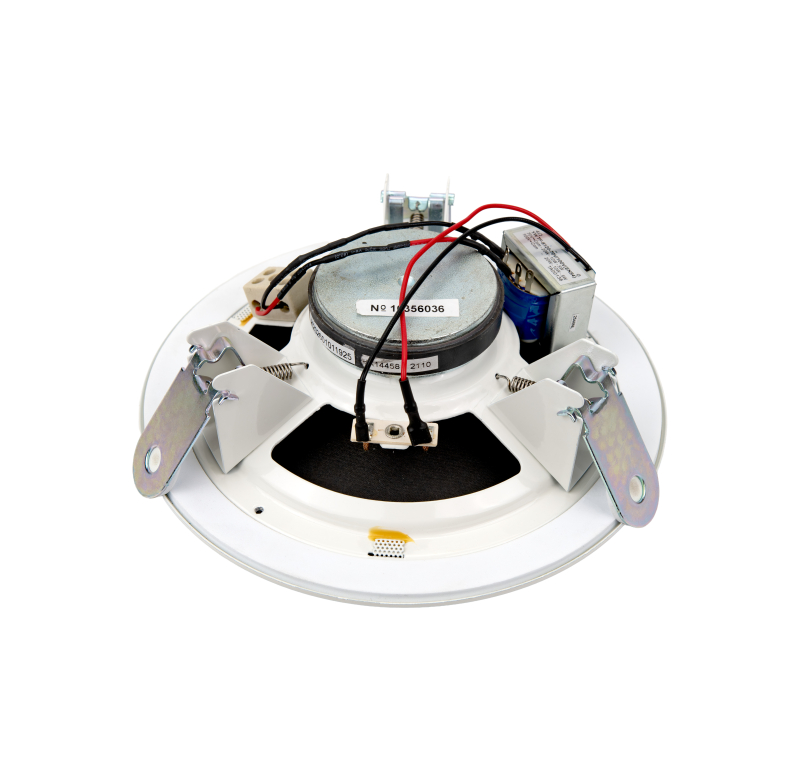

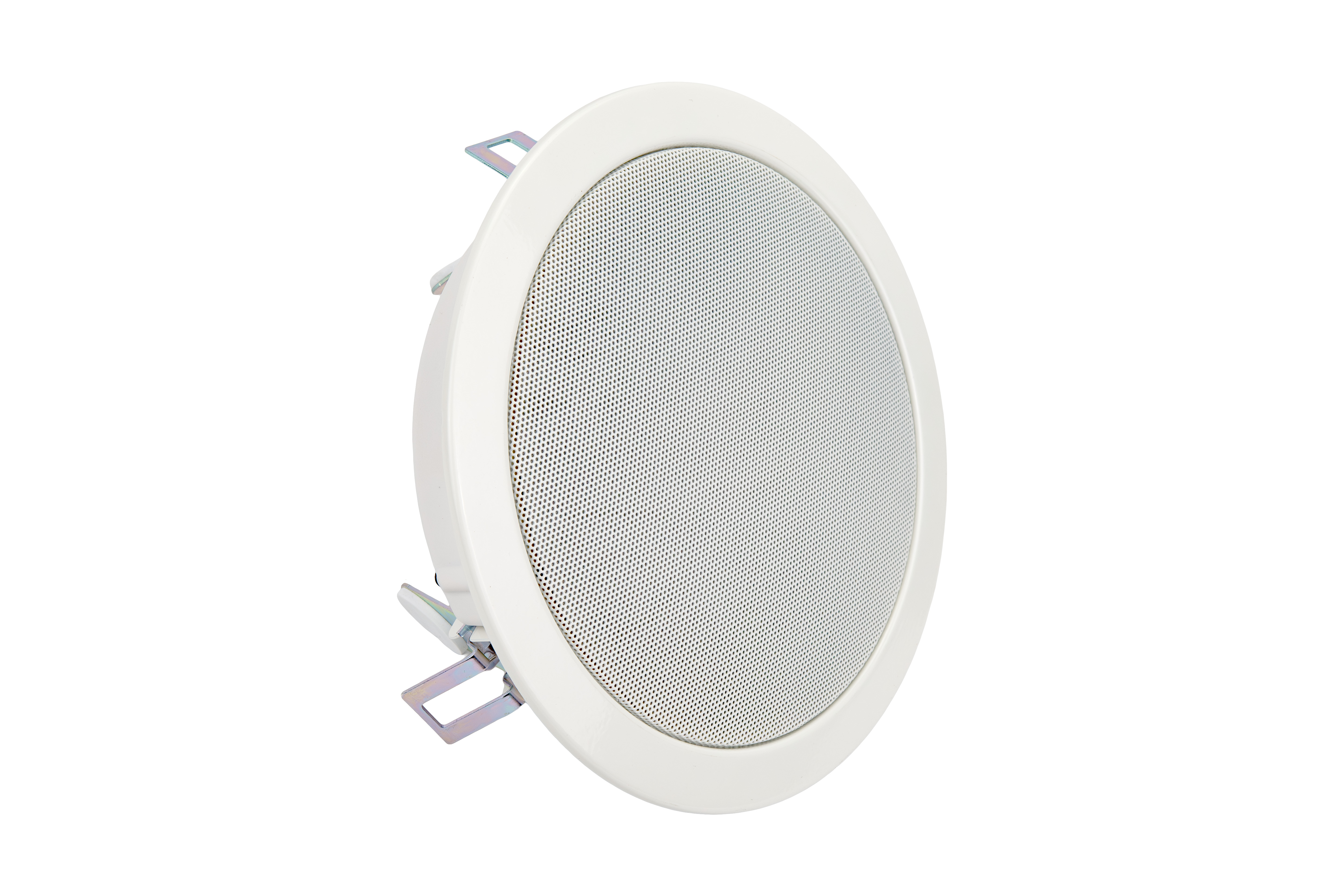

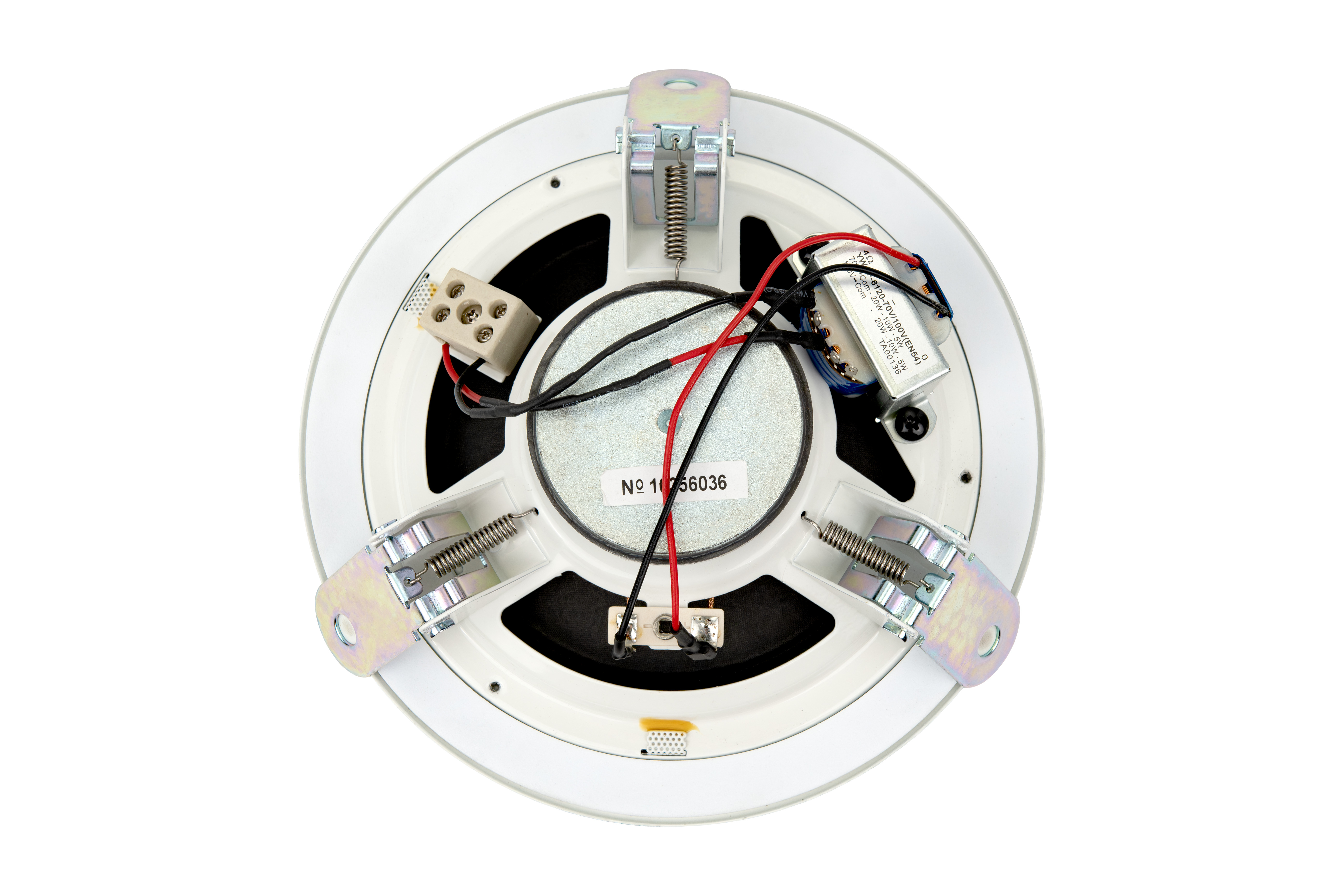

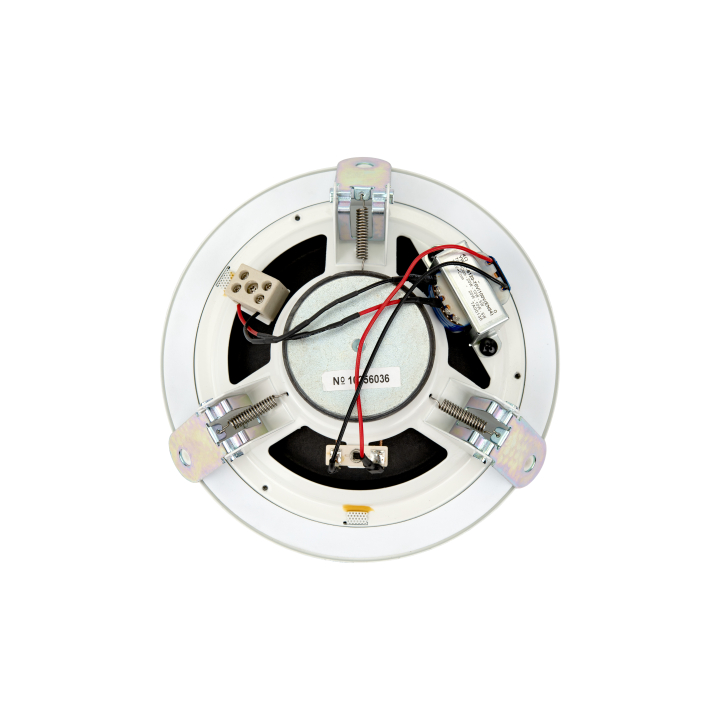

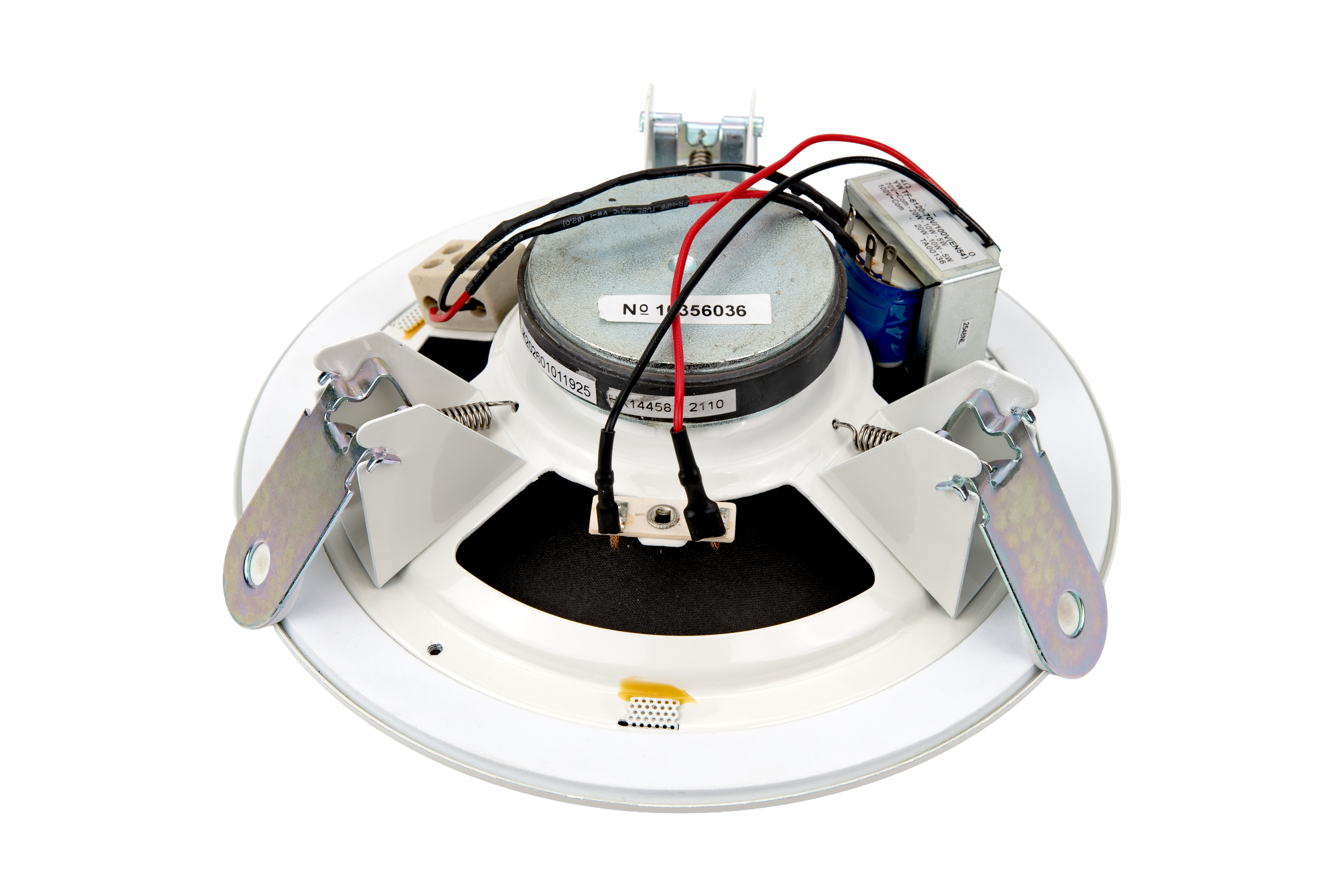

6.5" ceiling speaker for voice evacuation systems (70V/100V). Includes a fire dome and a thermal terminal block.
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usProduct data sheet in PDF
- Standard quality 20W ceiling speaker for flush mounting in all types of false ceilings
- Quick installation

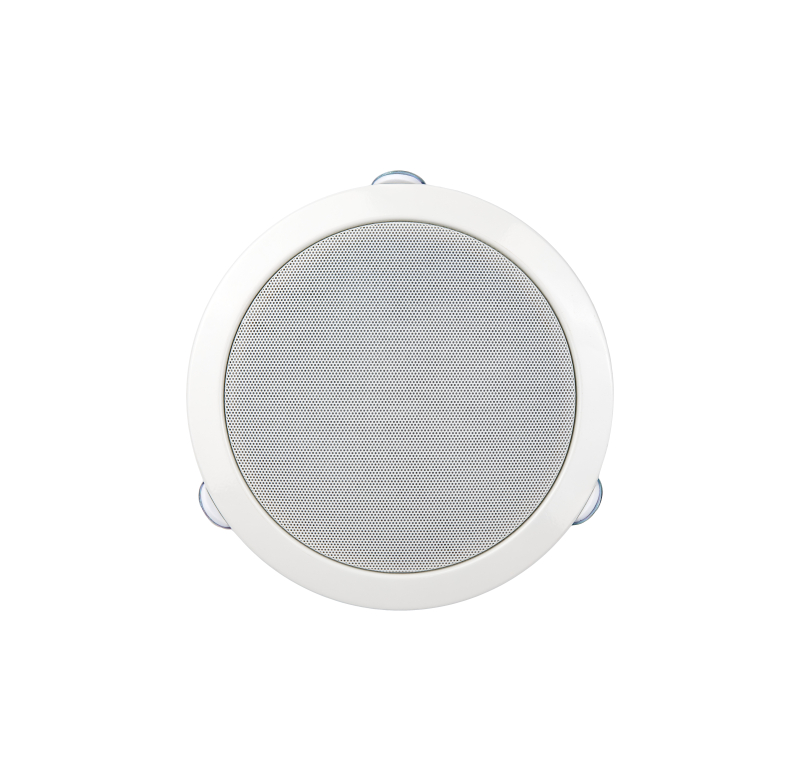

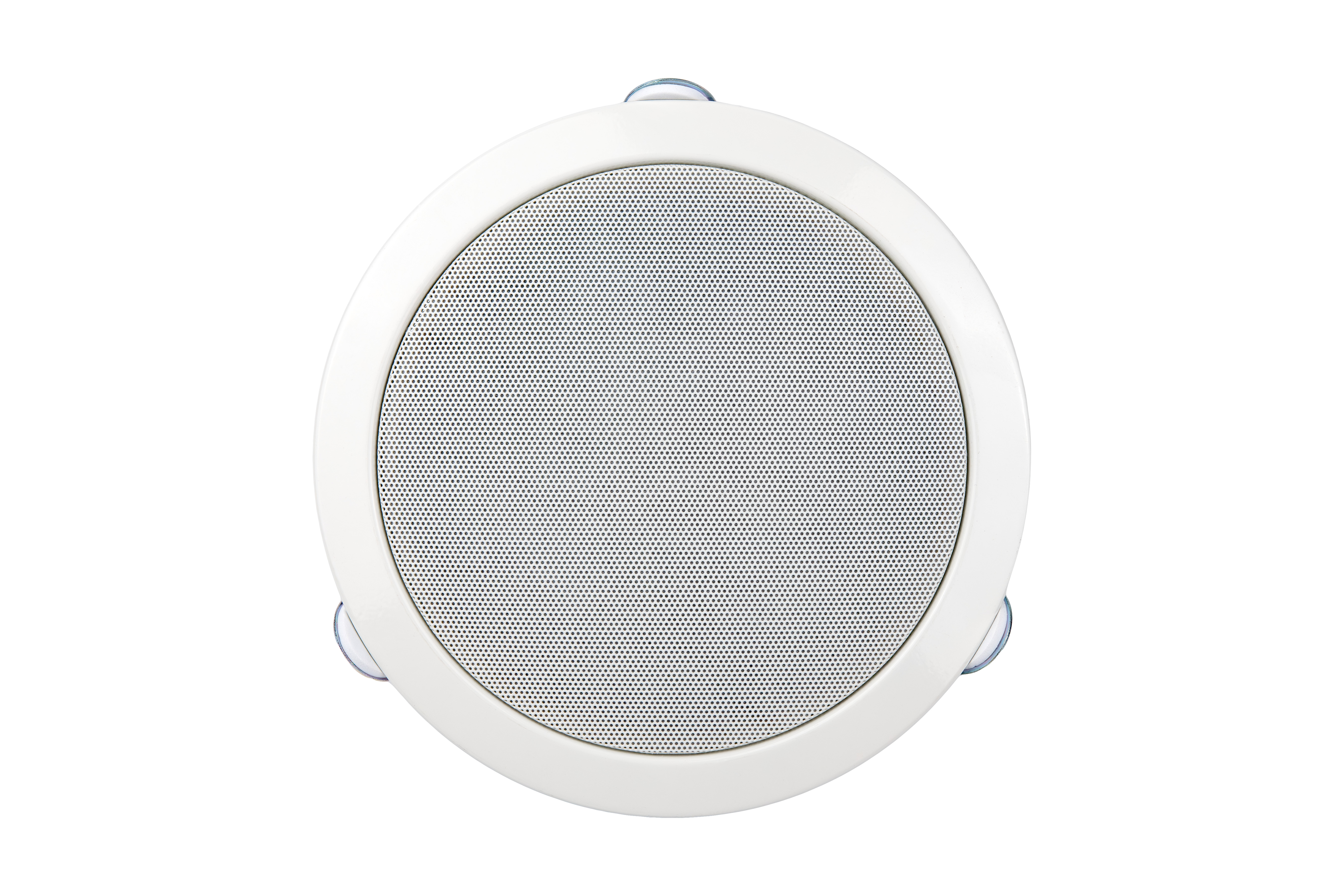

- Metal with white lacquered grille
- Applications: Professional offices, airports, restaurants, supermarkets, schools, hotels, fitness clubs, and shops.
| SPECIFICATIONS | CSL-6120EN |
|---|---|
| Type | Ceiling speaker |
| Certification | EN54 24 |
| Material | Steel |
| Color | White |
| Speaker | Ø 165 mm full range - 4 Ω / 6.5" |
| Sound Pressure Level | 101 dB SPL Max |
| Frequency response | 95 Hz - 20 kHz |
| Coverage angle | 180° |
| Coverage area | 4 or 5 m high: 65 to 100 m² |
| 100V line power | 20 – 10 – 5 W RMS |
| 100V impedances | 500 Ω (20W) / 1000 Ω (10W) / 2000 Ω (5W) |
| Connection | On wire |
| Dimensions (Ø x H) | Ø 200 x 63.7 mm |
| Weight | 1.10 kg (including bracket and fire dome) |
| Mounting diameter | Ø 199 mm x 13 mm (visible part) + 74 mm (depth) |
