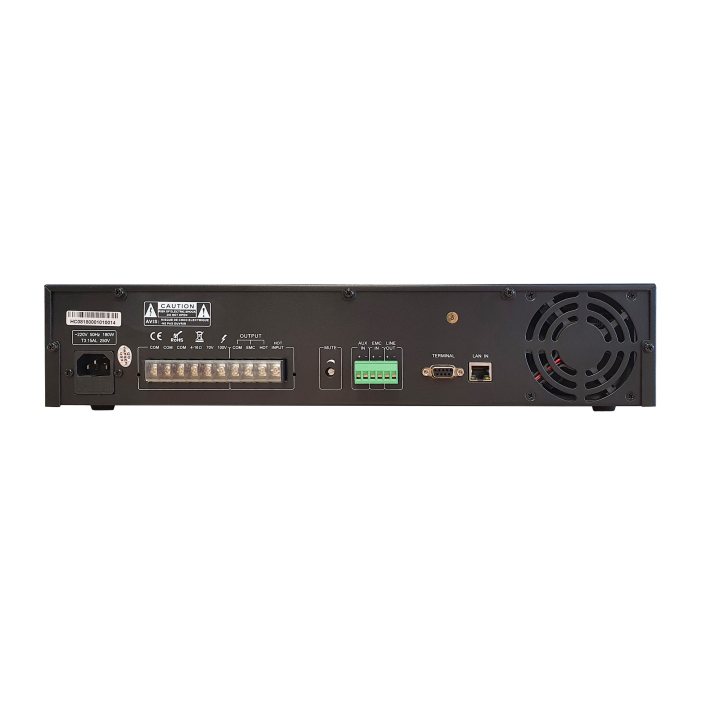

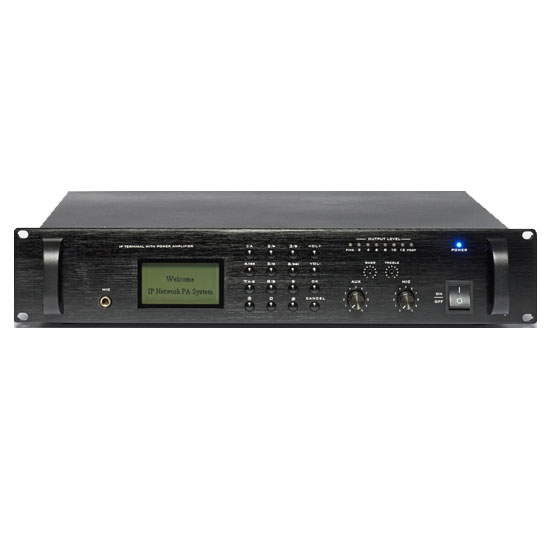

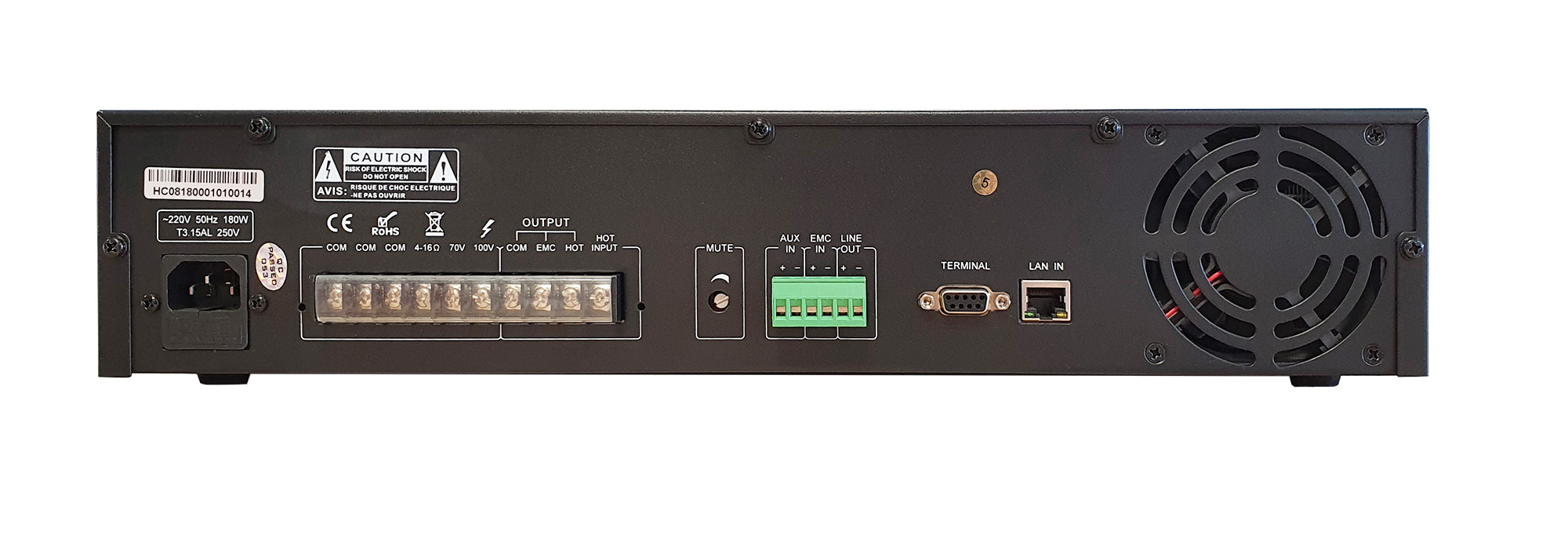

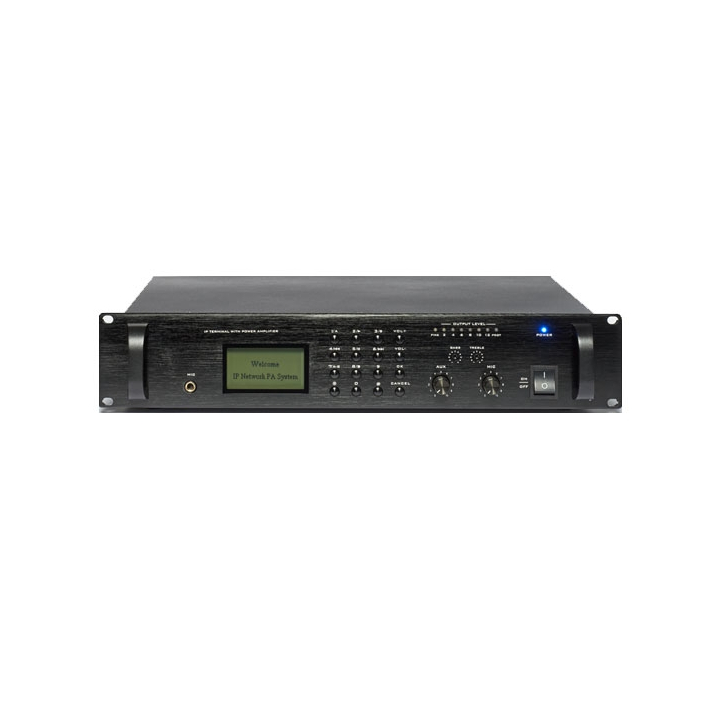

Amplifier - preamplifier with IP network adapter

Name: Amplifier - preamplifier with IP network adapter
Brand: RONDSON
SKU: AM 120 IP-2

Reference : AM 120 IP-2

SKU : 02238

EAN13 : 3701567910586

Out-of-Stock

Mixing amplifier on IP 120 W

Power output

120 W

Sonorisation sur IP

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Amplificateurs mélangeurs sur IP

Download (5.14MB)

AM 120 IP-2

Download (1.54MB)

Description

Description :

This 120 W RMS amplifier-preamplifier is equipped with an IP network adapter (1).
It offers 100 V and 70 V loudspeaker outputs as well as 4-16 Ω (in Low Impedance).
It operates on 230 V mains.

It works exclusively with the IP AM IP SOFTWARE software.
(1) Internet protocol (abbreviated to IP)

Characteristics :

High quality TCP/IP digital audio transmission, without interference
LCD display, all functions can be activated with a single button
Free digital audio control, multi-function combination and partition, local broadcast function
Built-in alarm cut-off function, no forced cut-off 24V, not limited to the amount of volume settings, 3-line connection
Power management, when there is no music or calls the unit goes into standby mode automatically.
Standby consumption is less than 3%, which corresponds to energy saving standards.
Each MIC, AUX and network source has an individual volume control.
Line out for extension
6 output level indicators
Progressive fan cooling function
Output HP 70V and 100V and 4 to 16 Ω

SPECIFICATIONS	AM 120 IP-2
Type	Amplifier Preamplifier with IP network adapter
Output power	120 W RMS
Power supply	AC 230V
Speaker outputs	70 et 100V , 4-16 Ω
Internet socket	RJ 45
Transmission speed	10 Mbps
Support	TCP / IP, UDP, IGMP (group broadcast)
Sound format	MP3 / MP2
Sound quality	16-bit stereo CD quality
Sampling	8 K - 48 K
Capacity	8 K - 512 kbps
Inputs/Sensitivity	MIC : 5 mV AUX : 350 mV
Frequency Response	60 Hz – 18 000 Hz (± 3 dB)
Signal-to-noise ratio	≥ 65 dB
Consumption	180 W
Total harmonic distortion	<0,1%
Protection and cooling	Fan, Thermal protection, overload and short-circuit
Dimensions (W x D x H)	484 x 303 x 88 mm - 19" - 2U
Weight	11 kg
