SIP paging gateway

Product Sheet in PDF

Features:

• Elegant design, can be integrated with other devices for internal installation.
• Emergency call button for active calls.
• NVR-compatible video recording with standard RJ45 interface.
• Recording output with standard 3.5 mm interface.
• Audio line-out port for expandable external active speaker.
• 10W to 30W mono channel output power amplifier, adjustable depending on input voltage.
• 10/100 Mbps adaptive network port with integrated PoE.
• Compatible with major platforms such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya...

Hardware Specifications:

• Keypad: Includes 3 keys, 2 for volume and 1 for reboot (soft reset).

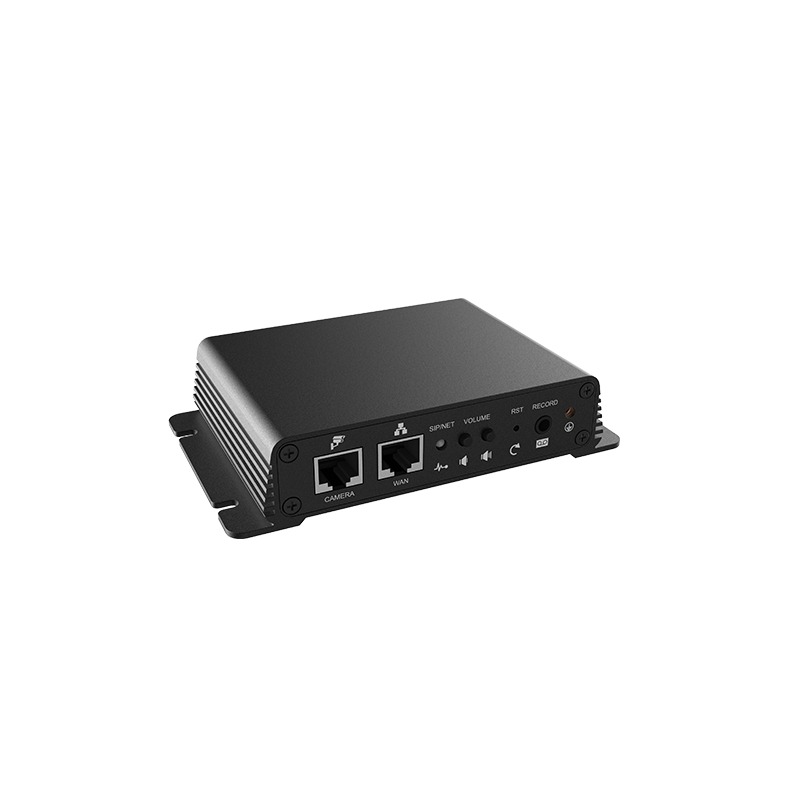

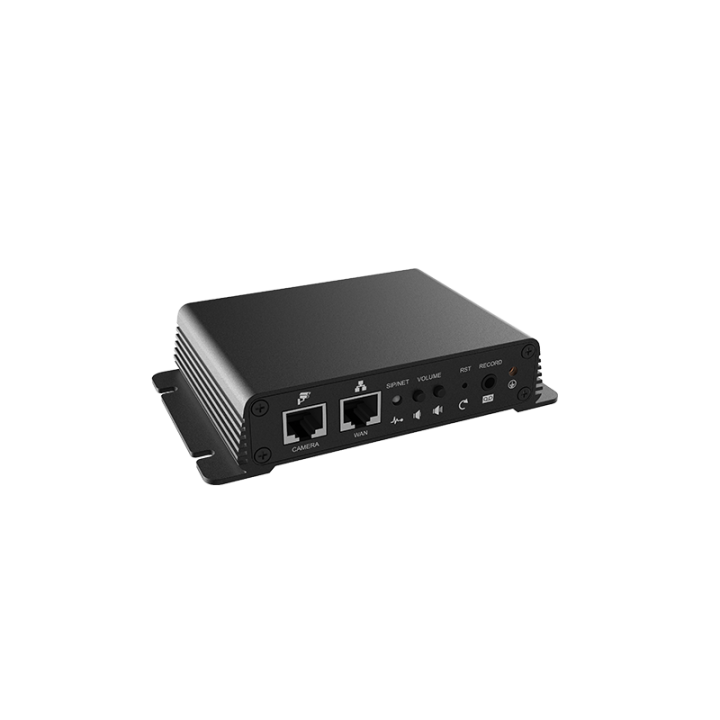

• RJ45 ports x2: Used for network connection.
• WAN port: Connected to the network, supports PoE.
• Camera port: Connected to the original camera.
• Blue LED x1 (SIP status and network status).
• Recording output port x1: Allows connection of an audio device. The output combines local microphone voice and call recording. Standard 3.5 mm interface.
• Grounding screw x1.

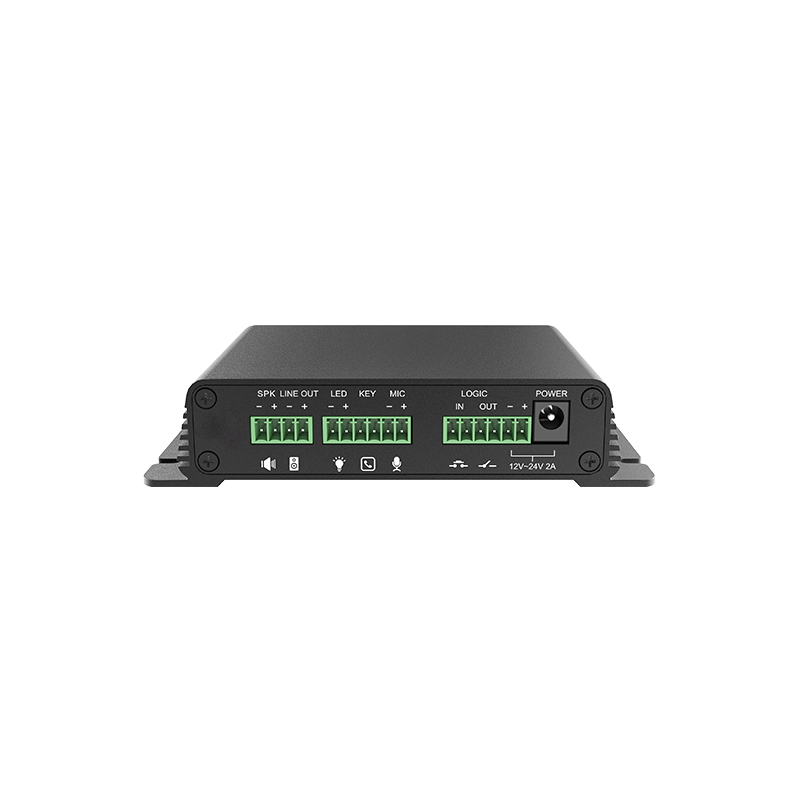

• Passive speaker port x1: Allows connection of a speaker. Output power varies according to supply voltage and resistance. Wire diameter: 18AWG or higher.
• Line output port x1: Used to connect an active speaker. Output volume is adjustable up to 1.2 Vpp.
• Audio: Supports narrowband codecs such as G.711a/u, G.723.1, G.726-32K, G.729AB, as well as wideband codecs such as G.722 and Opus. Also features full-duplex acoustic echo cancellation (AEC) and in-band/out-of-band DTMF (RFC2833 / SIP INFO).
