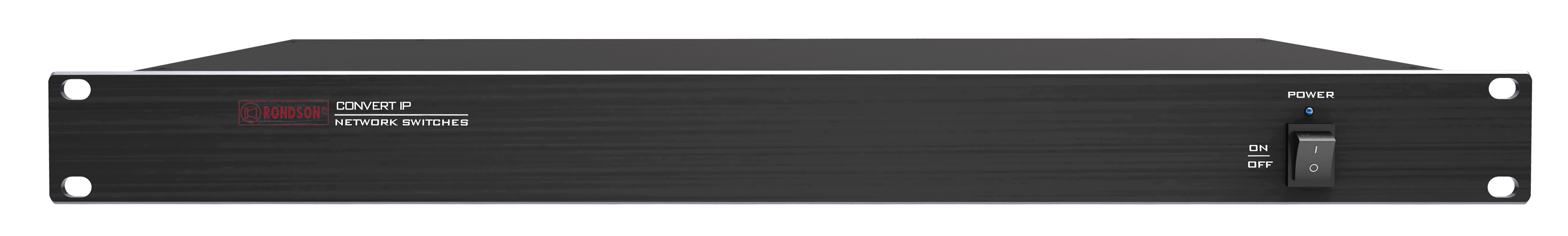

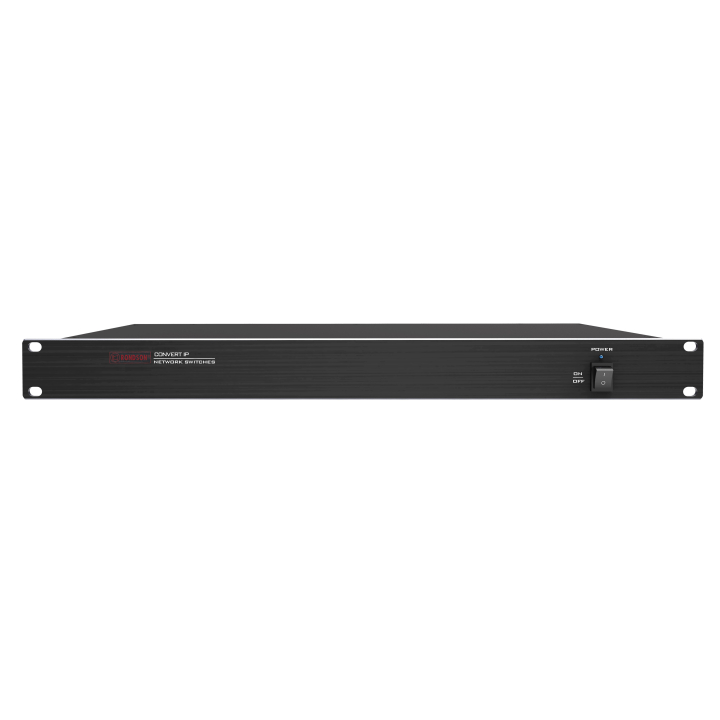

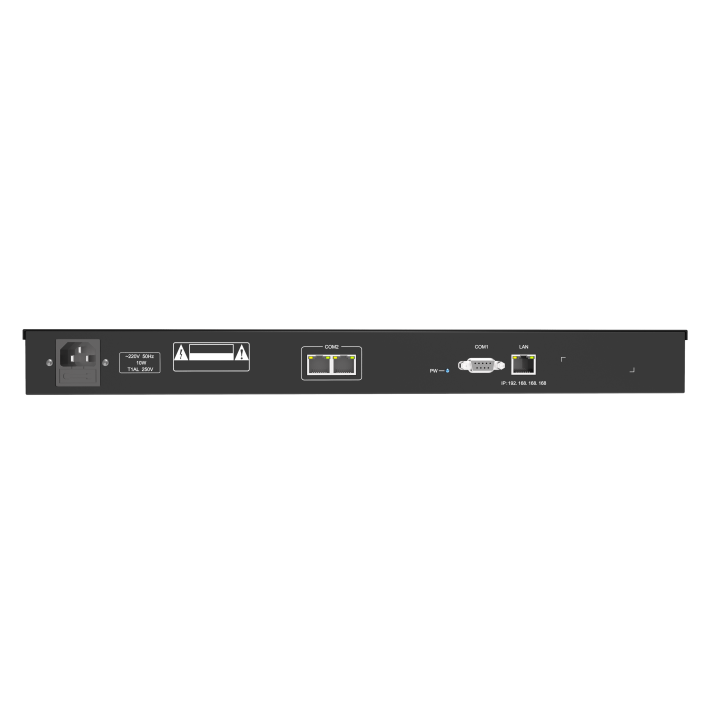

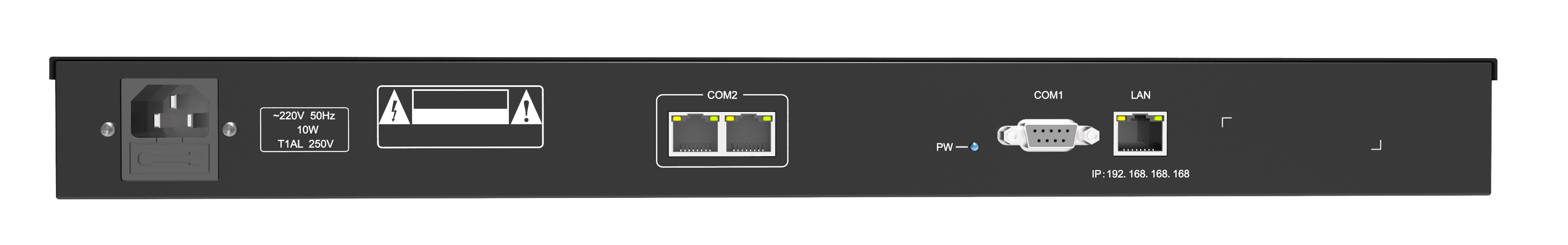

RS422 to TCP/IP data converter
Reference : CONVERT IP
SKU : 02363
EAN13 : 3701567908446
Description
Description :
The IP Convert is a data converter for converting RS422 data to TCP/IP data over long distance applications.
It must be synchronised with our LN 300 IP message reader.
Features :
- Converts TCP/IP data to RS422 data
- Synchronisation with message reader LN 300 IP
- 1 RJ45 socket for communication control
- (switch ethernet)
- 2 RJ45 sockets for connection to message reader and remote control
- Power indicator
- A SUBD9 communication port to change the IP address
- Power supply AC 110/230V
- Standard rack 19ʺ 1 U
| SPECIFICATIONS | CONVERT IP |
| Type | IP data converter |
| Internet socket | RJ 45 |
| Protocol communication | RS232 et RS422 |
| Power supply | AC 110-230 V - 50-60 Hz |
| Transmission speed | 4800/9600 bps |
| Consumption | < 10 W |
| Dimensions mm (W x D x H) | 482 x 123 x 44 mm |
| Weight | 2,72 Kg |
Product Details
-
Brand
-
ReferenceCONVERT IP
-
SKU02363
-
EAN133701567908446
