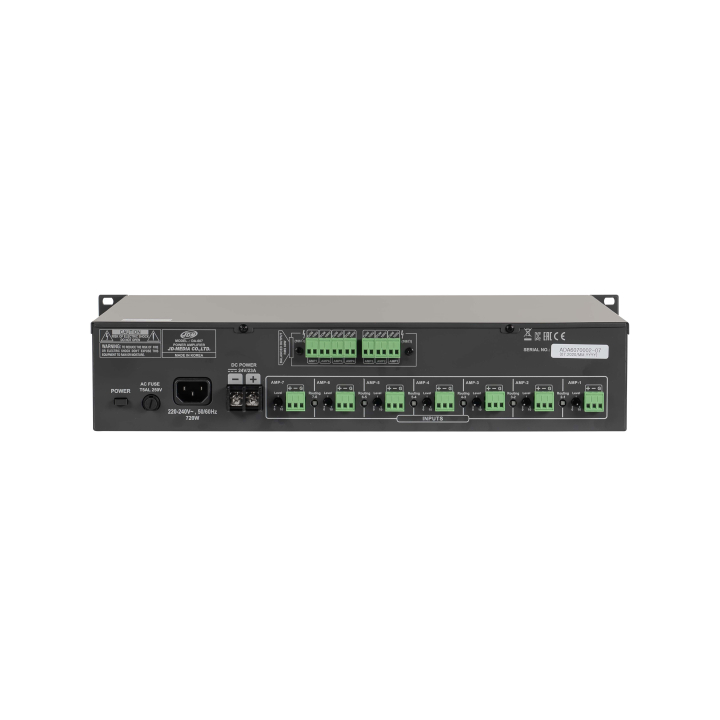

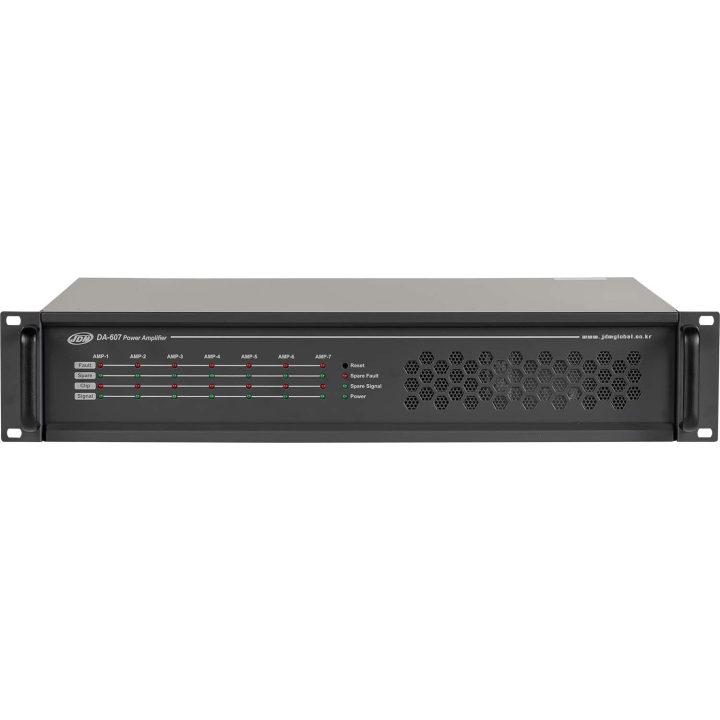

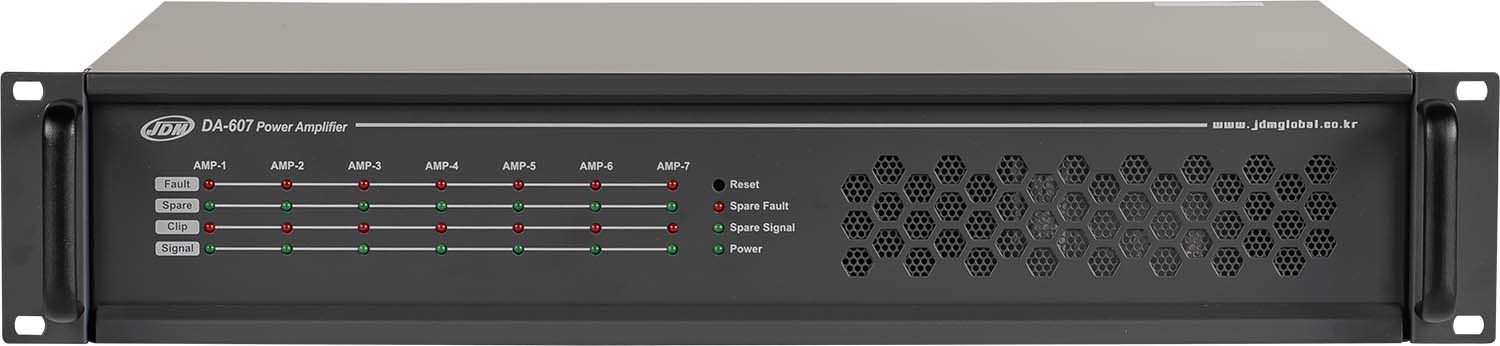

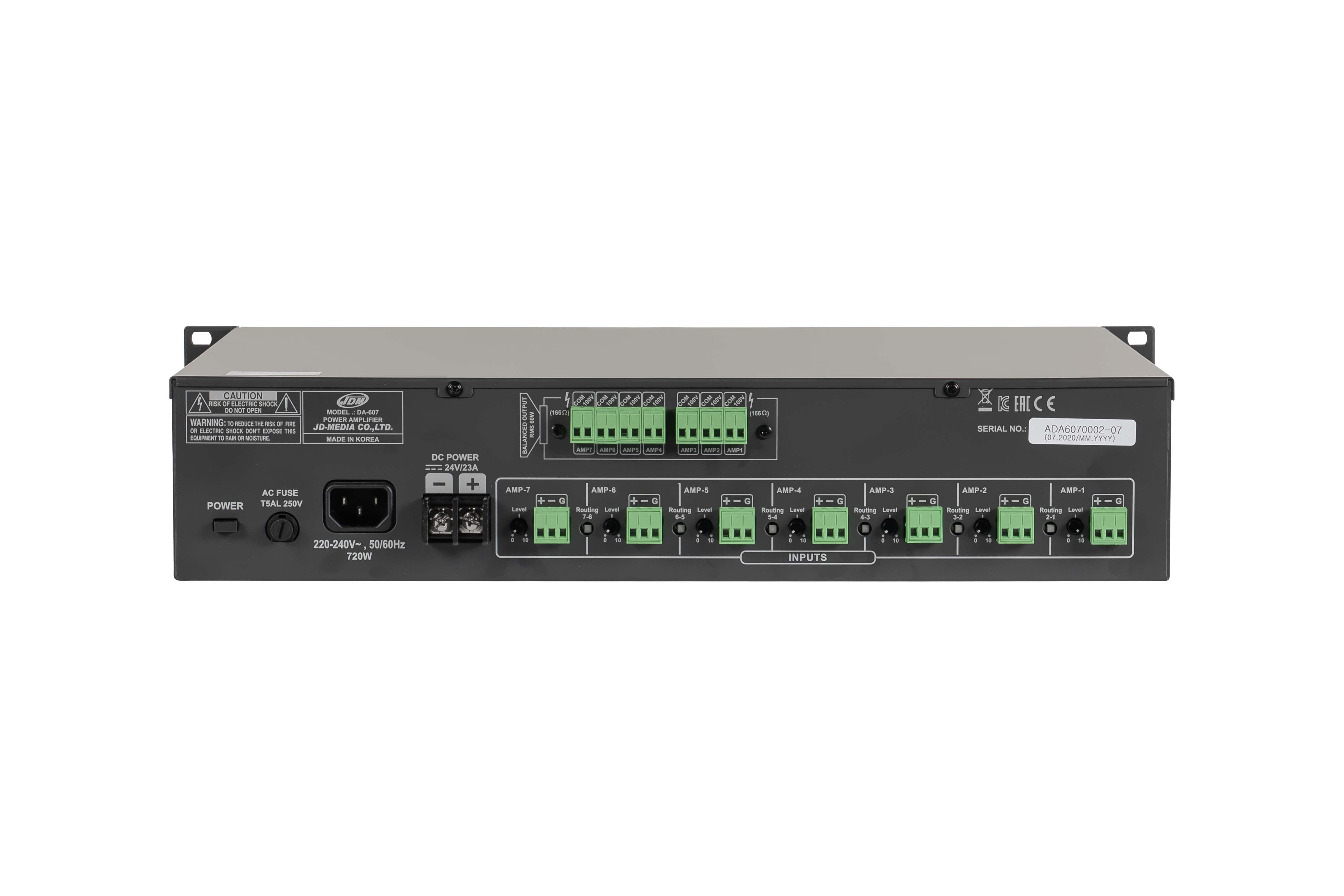

Power amplifiers 7 x 60 W

Name: Power amplifiers 7 x 60 W
Brand: JD-MEDIA
SKU: DA-607

Reference : DA-607

EAN13 : 8809267792947

Power amplifiers available in 3 powers :

Reference : PA 112 C - 120W - Code : 01090

Reference : PA 124 C - 240 W - Code : 01091 (out of stock)

Reference : PA 148 C - 480 W - Code : 01092

Power output

7 x 60 W

Description

SPECIFICATIONS

7 power amplifiers and 1 spare amplifier
Class A amplifier, linear power
Input link switch
LED display for checking the operating status of each channel
Comprehensive short-circuit, overload, overtemperature and low-current protection circuit.
High impedance (100V line)
If one of the amplifiers fails, the backup amplifier operates automatically.
Volume control for each channel
Designed for AC mains or 24V DC battery operation
Automatic variable-speed fan (thermal sensor)
Adjustable volume for each channel

CARACTÉRISTIQUES	DA-607
RMS output power	7 x 60 W
Output power consumption	720 W
Output impedance 100V	166.6 Ω
Frequency range	70Hz - 18 000Hz -3 dB
Signal-to-noise ratio	>80 dB
Harmonic Distortion	< 0.5 %
High-pass filter	200 Hz /-3dB
Input sensitivity / Impedance (PGM, PRIORITY)	0 dBu ( 0,775V) / 30 kΩ symétrique x 7 canaux
Power supply	AC 220V / 50 Hz / DC 24V
Dimensions (LxPxh)	483 x 375 x 88 mm (2U)
Weight	13.6 g
