Power amplifiers 7 x 60 W
8809267792947
Power amplifiers available in 3 powers :
Reference : PA 112 C - 120W - Code : 01090
Reference : PA 124 C - 240 W - Code : 01091 (out of stock)
Reference : PA 148 C - 480 W - Code : 01092
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usSPECIFICATIONS
- 7 power amplifiers and 1 spare amplifier
- Class A amplifier, linear power
- Input link switch

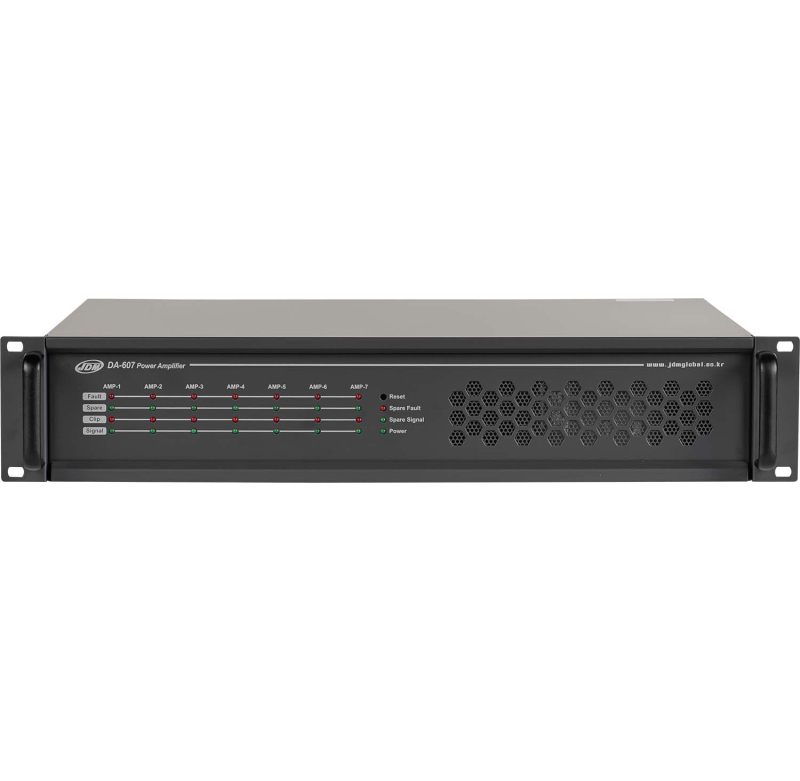

- LED display for checking the operating status of each channel
- Comprehensive short-circuit, overload, overtemperature and low-current protection circuit.
- High impedance (100V line)
- If one of the amplifiers fails, the backup amplifier operates automatically.
- Volume control for each channel
- Designed for AC mains or 24V DC battery operation
- Automatic variable-speed fan (thermal sensor)
- Adjustable volume for each channel
| CARACTÉRISTIQUES |
DA-607 |
|
RMS output power |
7 x 60 W |
|
Output power consumption |
720 W |
|
Output impedance 100V |
166.6 Ω |
|
Frequency range |
70Hz - 18 000Hz -3 dB |
|
Signal-to-noise ratio |
>80 dB |
|
Harmonic Distortion |
< 0.5 % |
|
High-pass filter |
200 Hz /-3dB |
|
Input sensitivity / Impedance (PGM, PRIORITY) |
0 dBu ( 0,775V) / 30 kΩ symétrique x 7 canaux |
|
Power supply |
AC 220V / 50 Hz / DC 24V |
|
Dimensions (LxPxh) |
483 x 375 x 88 mm (2U) |
|
Weight |
13.6 g |
