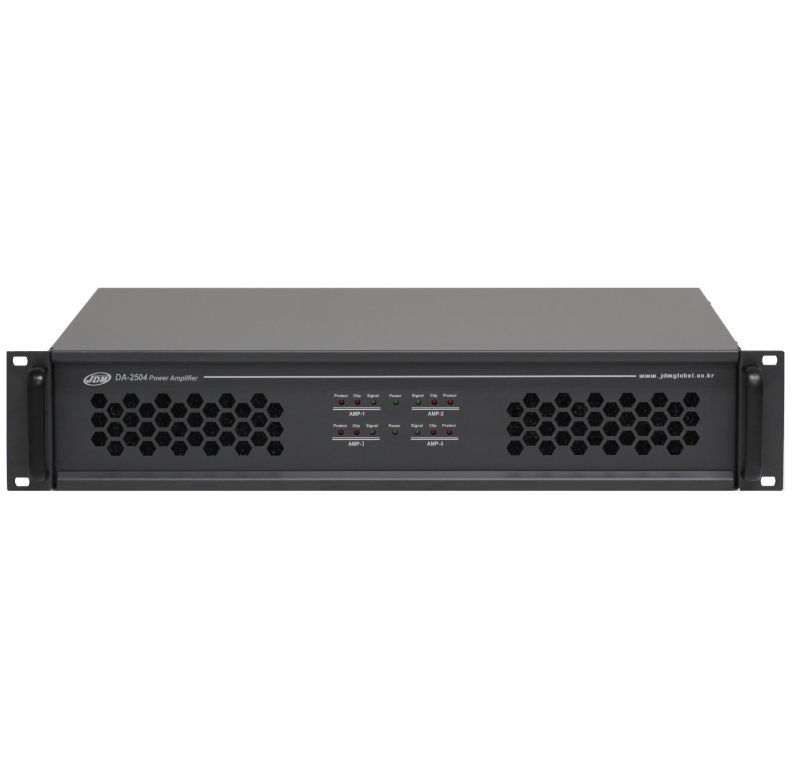

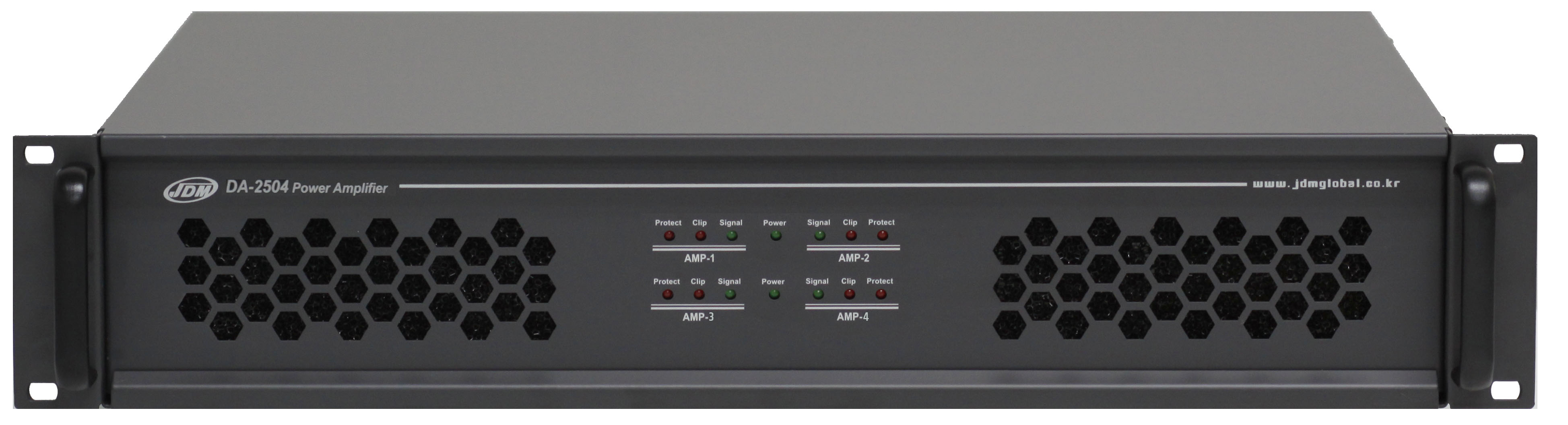

Power amplifiers 4 x 250 W
DA-2504
8809267792770
Power amplifiers
Reference : DA-2504 - 4 X 250 W - Code :
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usSPECIFICATIONS
Automatic variable-speed fan (thermal sensor)
- 100V outputs for HP line
- Designed for AC mains or 24V DC battery operation
- Optional fault monitoring module (FD 200) for monitoring amplifiers and HP lines (short-circuit and open-circuit faults)
- A level reset relay contact on the output terminal block enables
output terminal block enables emergency calls to be broadcast on
3 or 4-wire lines requiring 24VDC power supply
- RMS output power: 250W x 4
- The optional fault monitoring module enables you to
amplifier or loudspeaker line failure, the optional
amplifier when the switching system
FS-3381 is connected
| SPECIFICATION |
DA-2504 |
|
RMS output power |
4 x 250W |
|
Output power consumption |
1120 W |
|
Output impedance 100V |
20 Ω |
|
Frequency range |
50Hz - 18 000Hz -3 dB |
|
Signal-to-noise ratio |
>100 dB |
|
Harmonic Distortion |
< 0.5 % |
|
High-pass filter |
200 Hz /-3dB |
|
Input sensitivity / Impedance (PGM, PRIORITY) |
0 dBu ( 0,775V) / 60 kΩ symétrique |
|
Power supply |
AC 230V / 50 Hz / DC 24V |
|
Dimensions (WxDxH) |
483 x 375 x 88 mm (2U) |
|
Weight |
7.7kg |
