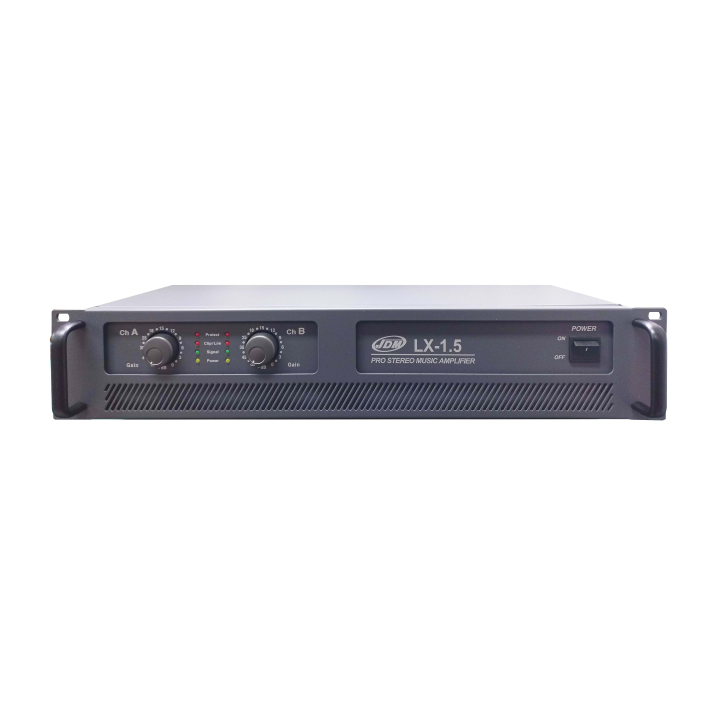

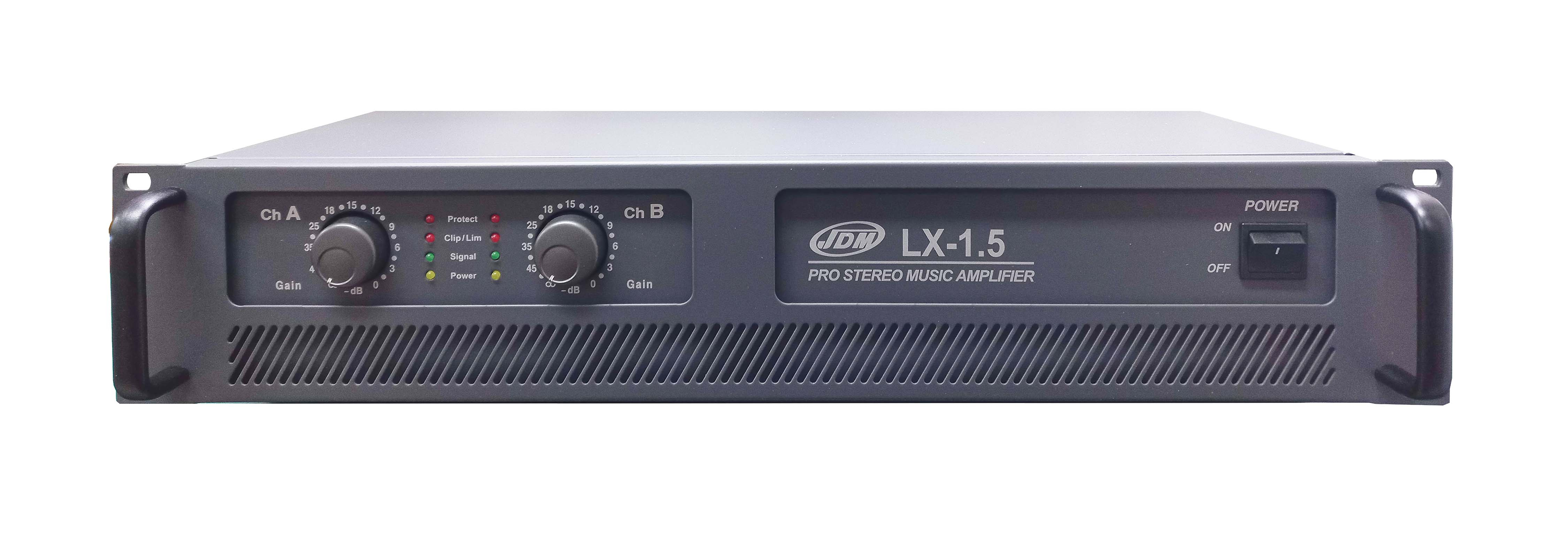

Professional stereo amplifier 2 x 270 W in low impedance 8Ω

Reference : LX-1.5
SKU : 01148
EAN13 : 8809267794026

Professional stereo amplifier 2 x 265 W in low impedance 8Ω

Power output
Impédance
Share

Description

CHARACTERISTICS

  • Delayed start function
  • Balanced XLR and 6.35mm jack inputs
  • Stereo 4 Ω and 8 Ω, mono bridged, low impedance
  • Detection circuit and signal limiter
  • Very low distortion

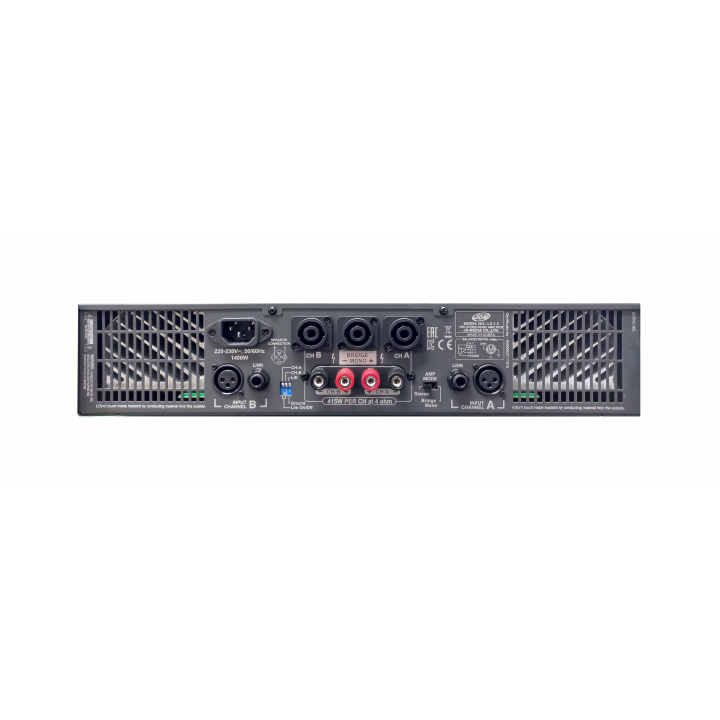

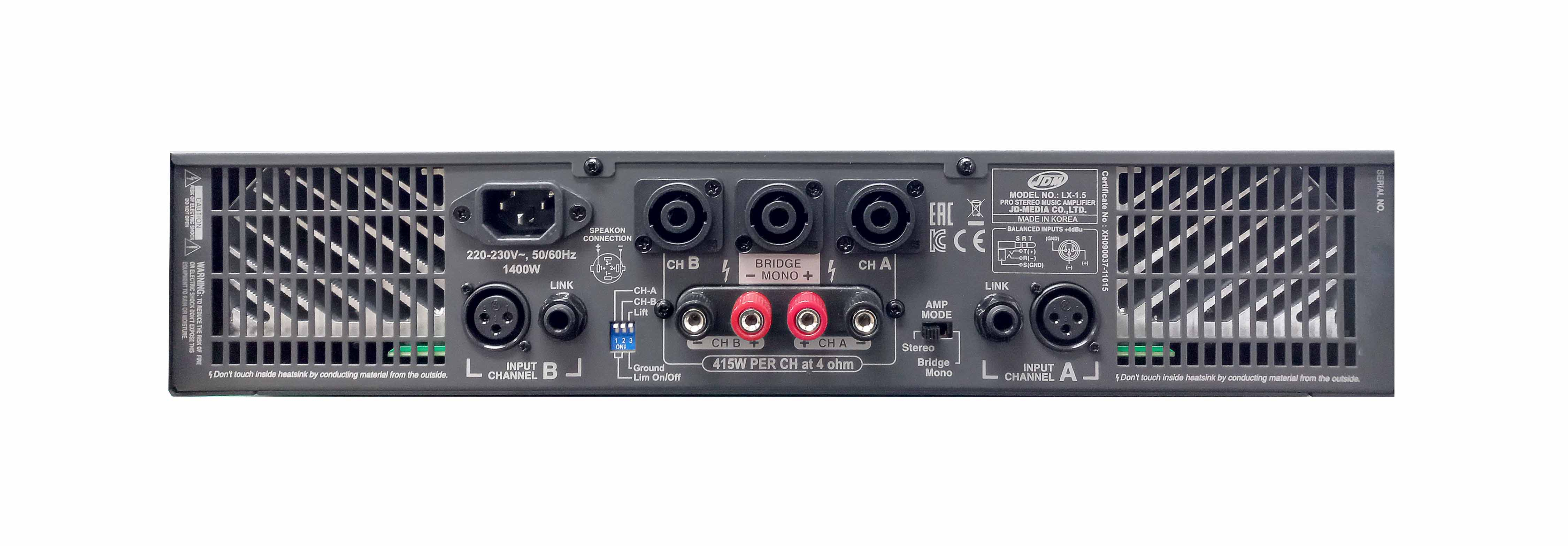

  • Screw terminal block and speakon connection
  • Variable speed automatic fan
  • Voltage protection
  • Overheating protection
  • Air circuit from the front of the unit for better ventilation and reliability.
SPECIFICATIONS

LX- 1.5 (CODE 01148)

Maximum output power

at 1 KHz, THD 1

- 8 Ω stereo

- 4 Ω stereo

- 8 Ω bridled

265 W

415 W

830 W

RMS output powers

at 1 KHz, THD 0,05 % :

- 8 Ω stereo

- 4 Ω stereo

250 W

385 W

Frequency Response under 4 Ω at rated power

20 Hz – 20000 Hz < -0,5 dB

Input sensitivity

+4 dBu (1,23 V) / 30 KΩ symmetrical

Setting the limiter

 10 Vrms (+ 22 dB)

Signal-to-noise ratio under 4 Ω at rated power

 > 100 dB

Damping Factor 8 Ω, f=1 KHz

 > 300

Turnover rate

 > 50 V/µs

Crosstalk 8 Ω at rated power

 > 65 dB

Power consumption under 4 Ω at rated power

 1400 W

Power supply

 230 V AC / 50 Hz
Dimensions (W x D x H)

483 x 380 x 88 mm
Weight

12,3 Kg

Product Details

  • Brand
  • Reference
    LX-1.5
  • SKU
    01148
  • EAN13
    8809267794026
