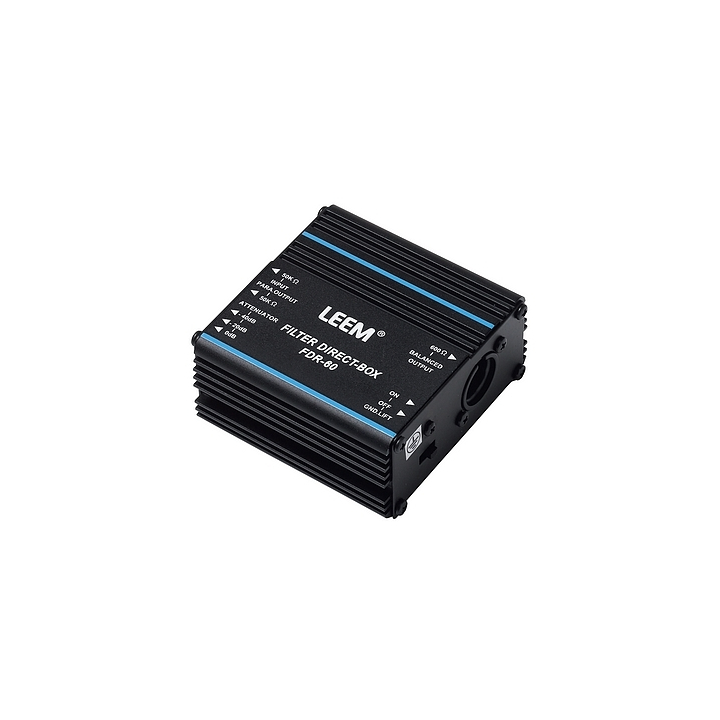

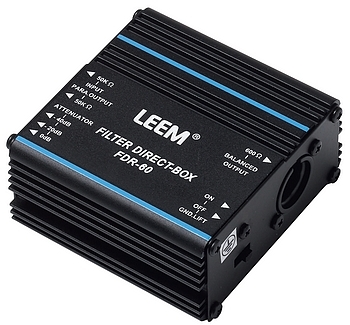

"DI BOX" direct box
Reference : FDR-60
SKU : 00346
EAN13 : 3701567906435
Description
Box for optimally transmitting a signal from a musical instrument to a mixing desk and stage amplifier.
The use of a transformer avoids interference caused by adaptation problems such as humming.
Galvanically separated inputs and outputs.
- Instrument output for dubbing
- 3-position attenuator (0dB / 20 dB / 40 dB)
- Broadband Balancing Transformer
- Earth leakage switch
- Thick metal case
| SPECIFICATIONS | FDR-60 |
|
Frequency Response: High to Low Impedance Low to High Impedance |
15-30 000Hz ±0 dB 30-20 000Hz |
| Inputs | Jack 50KΩ asymmetricals |
| Outputs | XLR 600Ω symmetricals |
| Transformer | 0 - 20 - 40 dB |
| Conversion report | 10:1 |
| Operating temperature | 0-40°C |
| Dimensions (W x D x H) | 100 x 100 x 45 mm |
| Weight | 0.3 Kg |
