Line level speaker level adapter

Name: Line level speaker level adapter
Brand: RONDSON
SKU: REVOLTOR

Reference : REVOLTOR

SKU : 02236

EAN13 : 3701567902925

Universal input adapter

REVOLTOR

Download (497.47KB)

Description

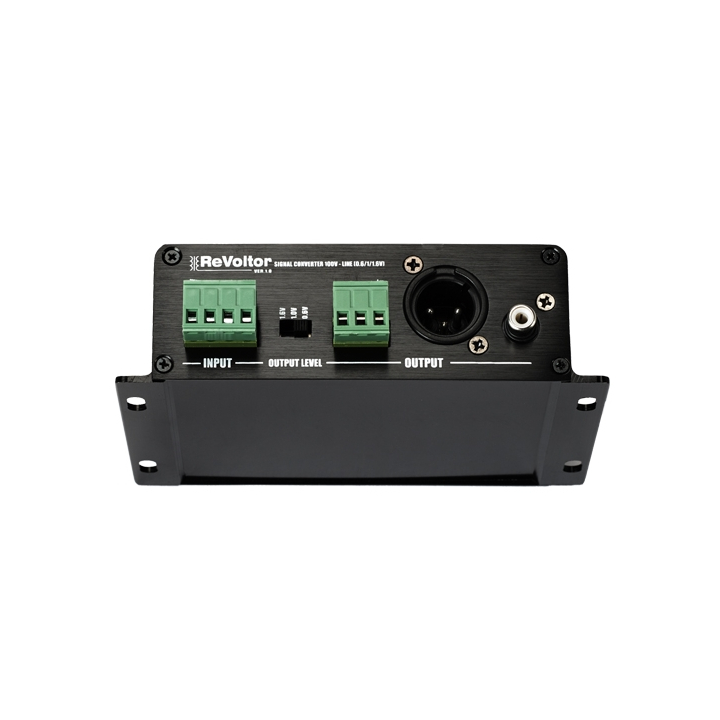

The REVOLTOR is a universal input adapter that can be used for a wide variety of connections and extensions.

One of its possibilities is to convert any loudspeaker signal into a balanced or unbalanced line level signal. The possible speaker signal inputs are 50 V, 70 V and 100 V.

The switch on the front panel allows you to choose the sensitivity of the output signal.

The inputs and outputs of the REVOLTOR are galvanised and fully isolated by an audio isolation transformer.

This makes the REVOLTOR a solution for blast and hum caused by ground loops.

The inputs are on Euro Terminal Block, XLR Male and RCA terminals.

SPECIFICATIONS	REVOLTOR
Type	Line level speaker level adapter
Input level Speaker	50 V / 70 V / 100 V
Connections	Inputs: Euro Terminal Block Outputs: Euro Terminal Block XLR Male RCA
Output level	0,6 V / 1,0 V / 1,6 v
Dimensions (W x D x H)	140 x 114 x 40 mm
Weight	325 g
