60W amplifier in 100V with Wifi and Bluetooth reader

Name: 60W amplifier in 100V with Wifi and Bluetooth reader
Brand: LONE AUDIO
SKU: LA-60WIAMP

Reference : LA-60WIAMP

SKU : 02741

EAN13 : 3701567911927

Magnetic Induction Loop Amplifier 200 m2

This WiFi internet streaming amplifier of 60W

Multimedia Player with Wifi and Bluetooth

100V Line

SEE THE VIDEO

Watch Video

Power output

60 W

BLUETOOTH

Impédance

100V

WIFI

Zones

LA-WIAMP series

Download (1.14MB)

LA-60WIAMP

Download (937.88KB)

Description

Datasheet in PDF

Description:

These wifi internet streaming amplifiers with media player are available in 2 power ratings: 60W and 120W.
Standard operation at 70 / 100V and low impedance 4-8-16 Ω.
They operate on 230V and DC24V.
For use in multi-room installations (up to 8 rooms) such as restaurants
such as Restaurants, boutiques, shops, hotels...

Features:

- Wifi player (linkplay63E1)
- AM/FM tuner and USB/SD/Bluetooth player
- 2 balanced MIC/LINE JACK 6.35 inputs
- 1 Tel input with ultra priority volume on all sources (AUX/ MIC)
- 1 priority MIC XLR input
- 2 LINE RCA inputs
- 1 LINE RCA output + 1 Music On Hold output on terminal block
- 1 individual volume control per input, 1 master volume control
- Thermal, overload and short-circuit protection
- Priority function (mute) on DC 24V terminal block
- Bluetooth pairing: "BT66078" mdp: 1234

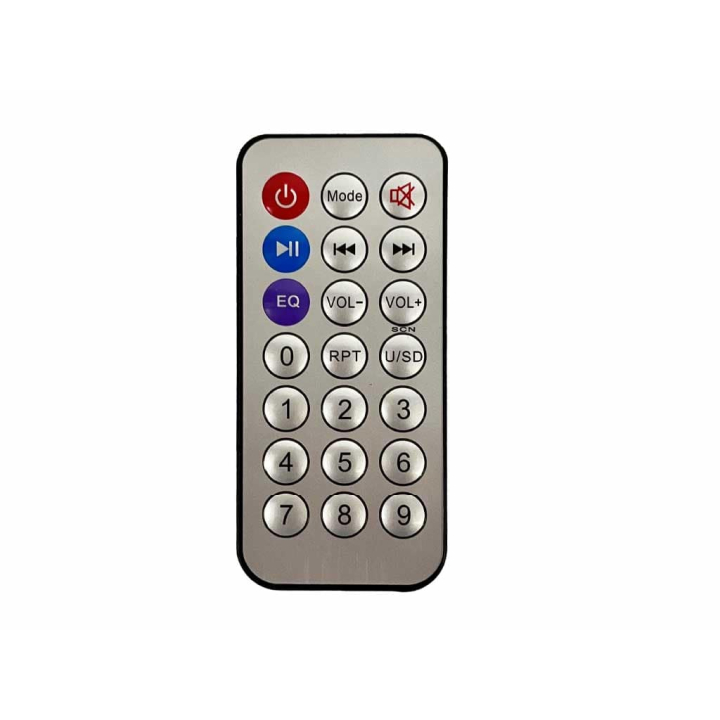

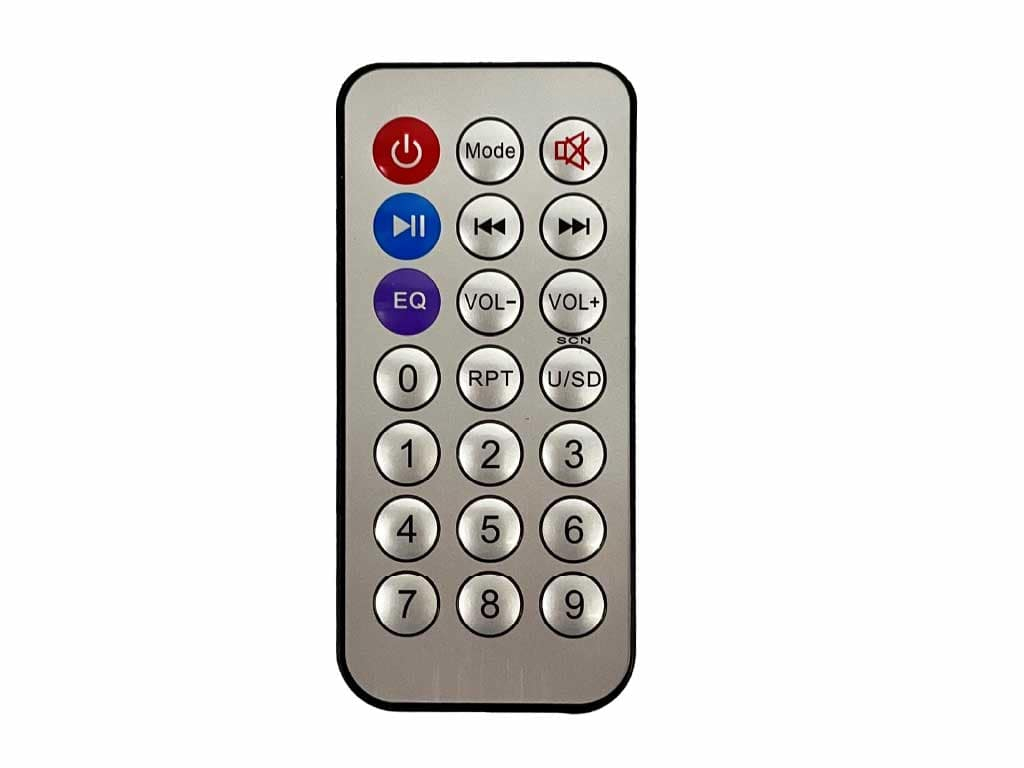

- Remote control

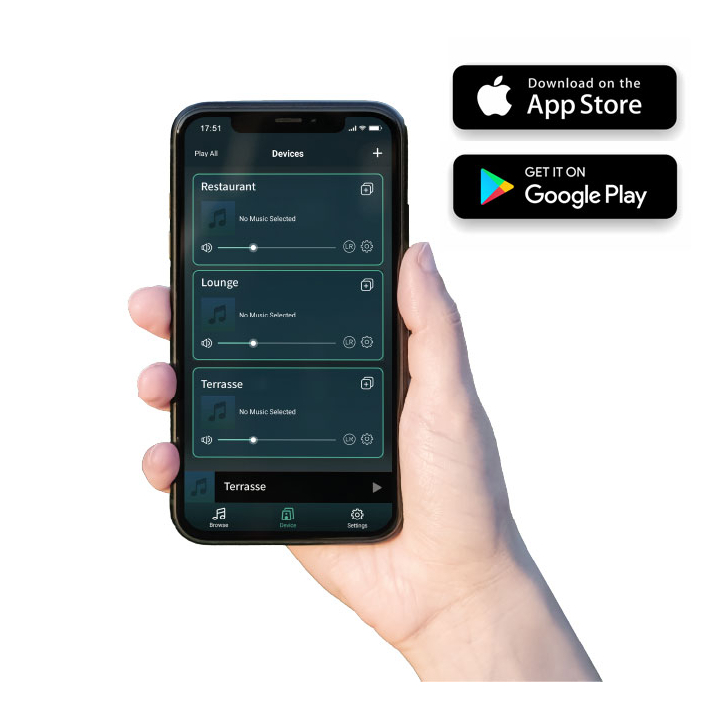

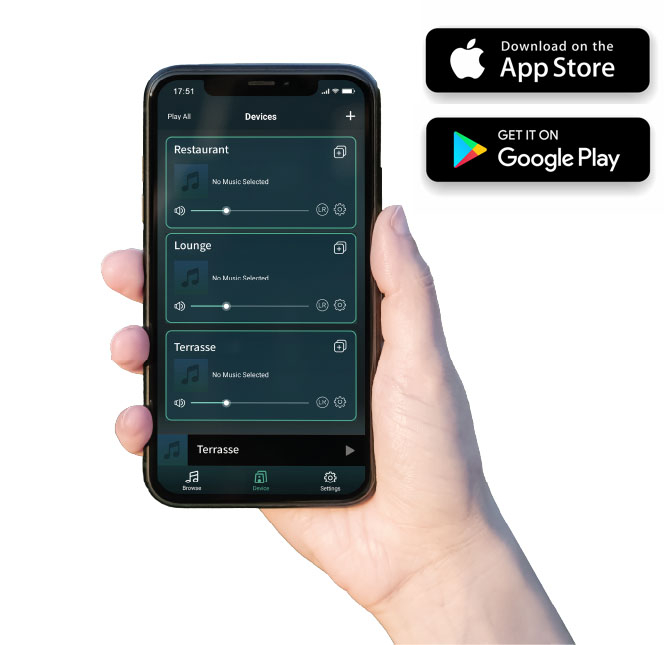

- 4STREAM web application available on Google Play (Android) or
Appstore (IOS) to configure your system via the following streaming platforms

SPECIFICATIONS	LA-60WIAMP	LA-120WIAMP
Type	Compact multimedia amplifiers
Power supply	AC 230 V / 50 - 60 Hz
Power output	60 W RMS	120 W RMS
Speaker output	4-8-16 Ω / 70 - 100V
Frequency bands	60 Hz – 15 000 Hz (± 3 dB)
Total harmonic distortion	< 0.5%
Signal-to-noise ratio	MIC : > 72 dB LINE : > 85 dB
Tone Settings	Bass : + 10dB à 100 Hz Treble : + 10 dB à 10 000 Hz
Cooling	Fan
Consumption	100 W	200W
Phantom power	+ DC24V switchable
Protection	Thermal, overload and short-circuit protection
Dimensions (W x D x H)	320 x 210 x 90
Weight	4.1 kg	4.7 kg
