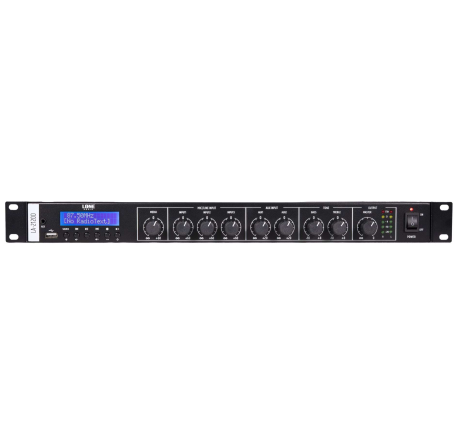

Class D stereo mixer amplifier 2 x 120W in 4 ohms

Reference : LA-2120D
SKU : 02844
EAN13 : 3701567912481

2 x 120W mixer power amplifier

Class D

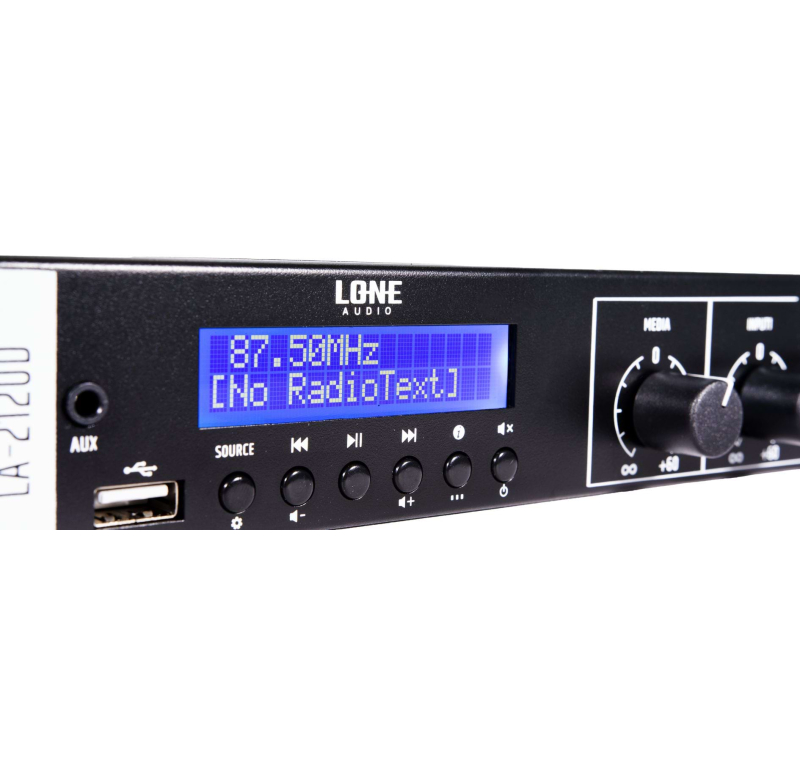

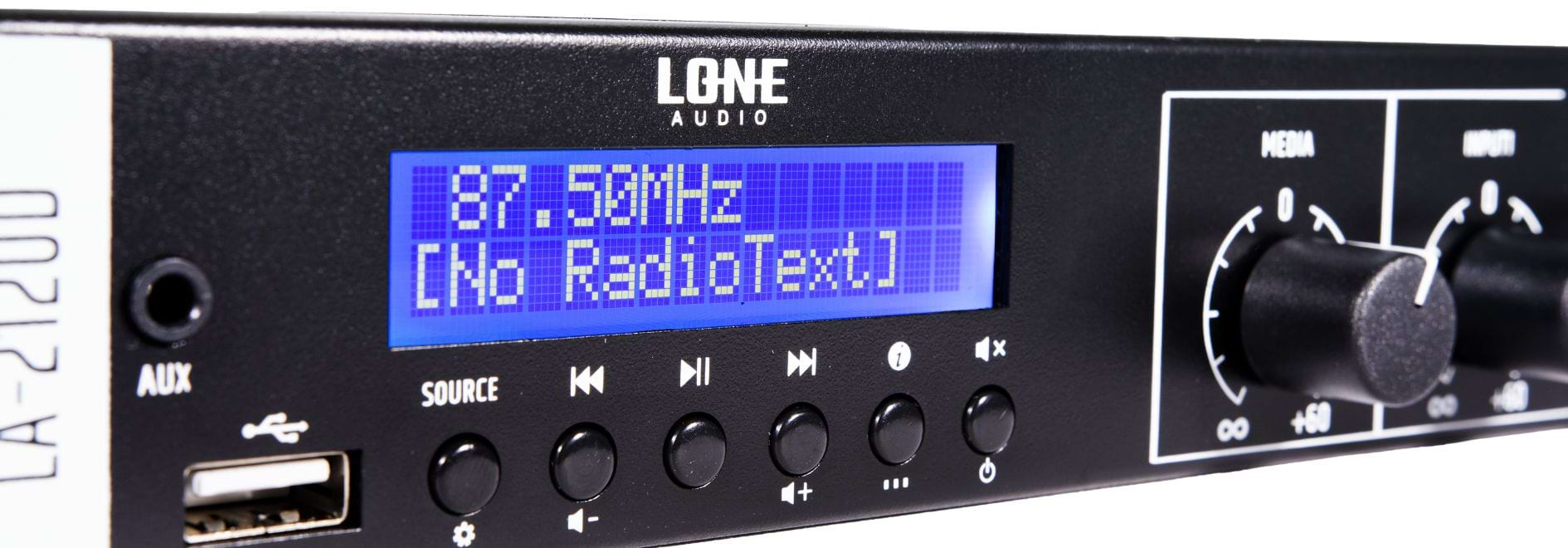

Multimedia player (Tuner / USB / Bluetooth)

Low impedance 4 Ω

19" rack-mountable (1U)

Power output
BLUETOOTH
USB
Impédance
Canaux
Share

Description

This power amplifier is available in 2 x 120W, with media player.

Standard low impedance 4 Ω operation.

They operate on AC mains 170-264V - 50Hz

Use for installations such as Restaurants, shops, hotels...

Features:

It is equipped with :

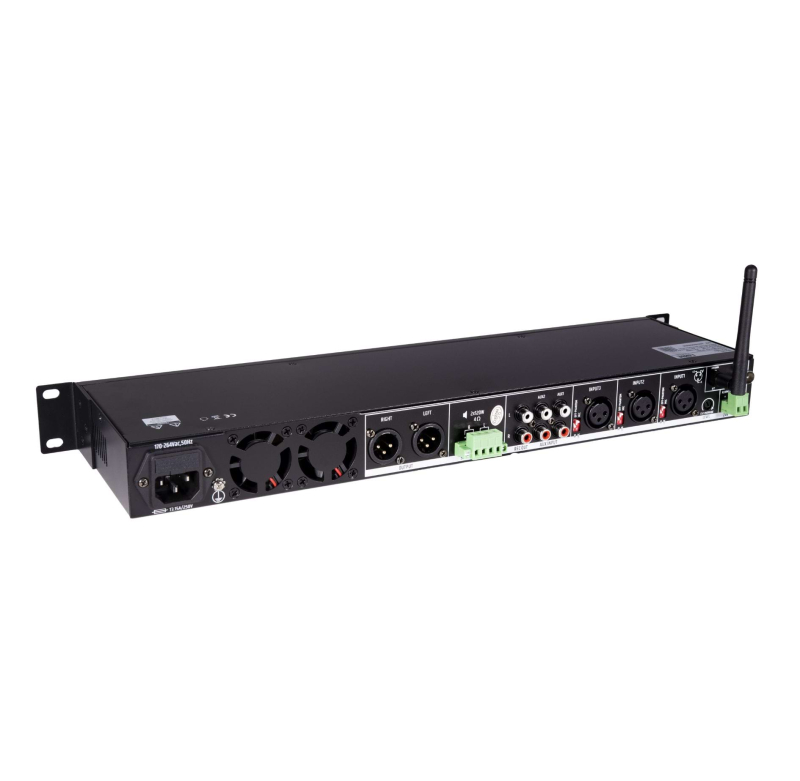

- 3 balanced XLR MIC inputs with phantom power/Mic DIP switch

- 2 RCA AUX inputs

- 1 3.5 mm jack input

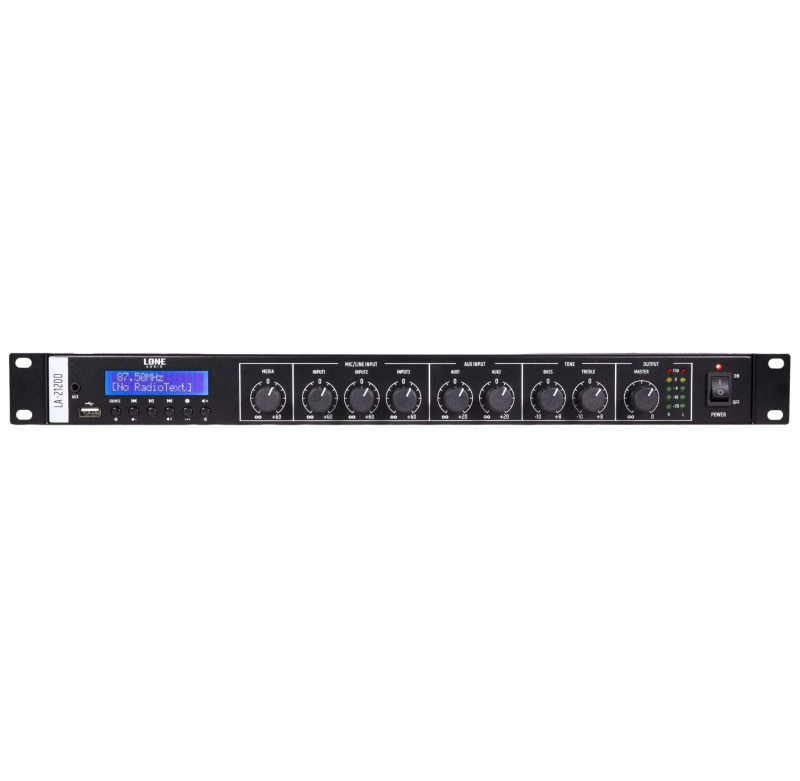

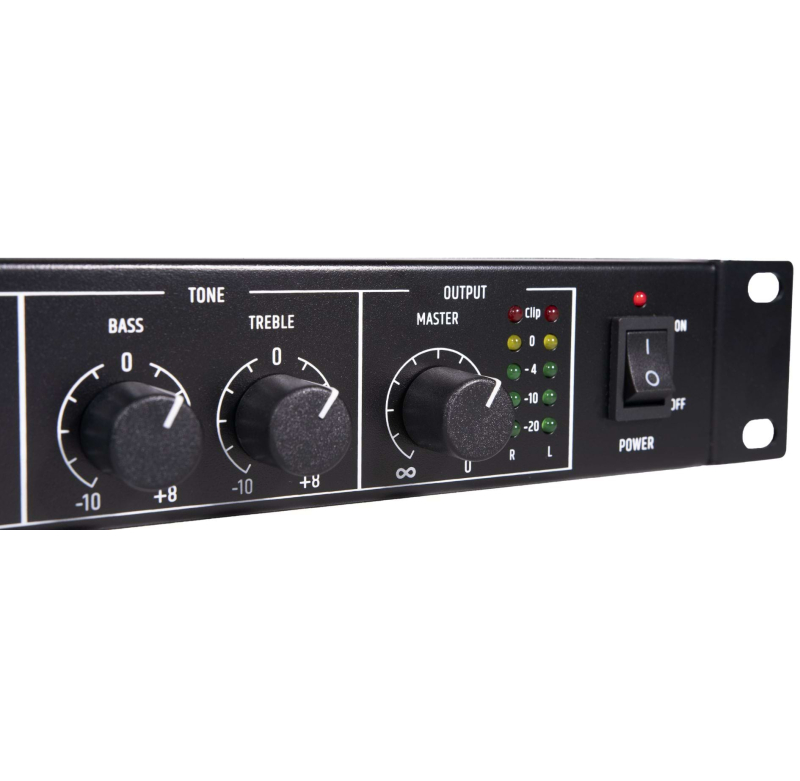

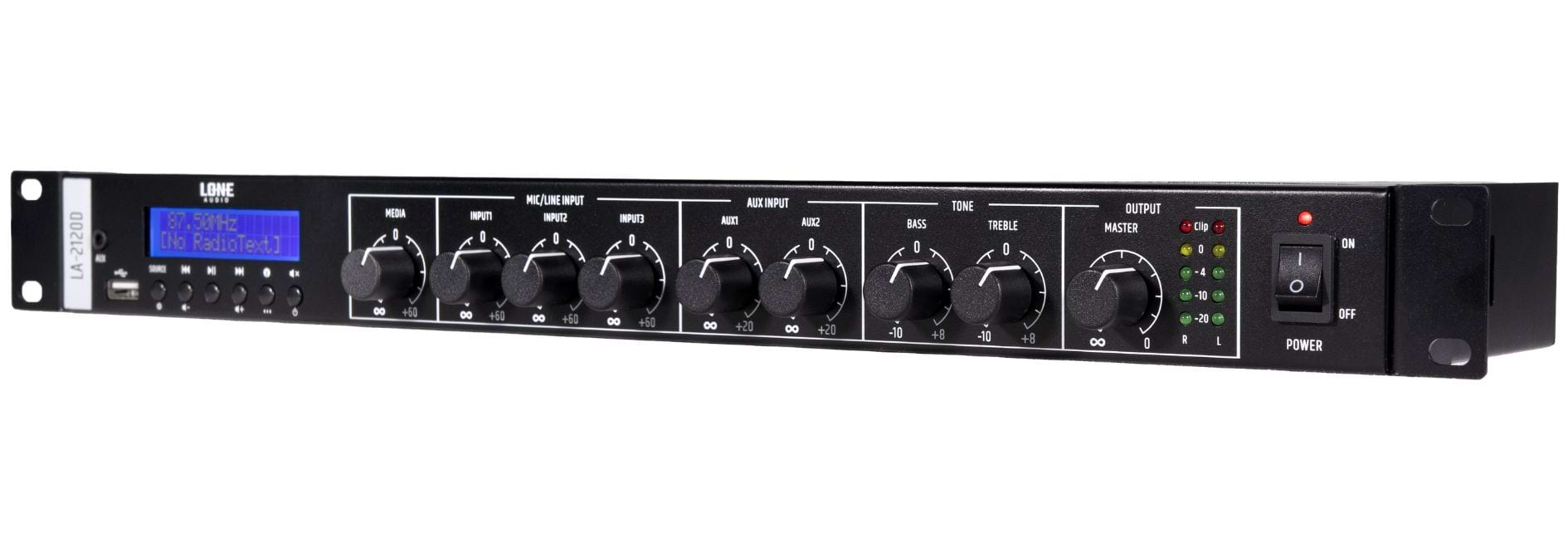

- Media, Mic, Line, Treble, Bass Master level front panel controls

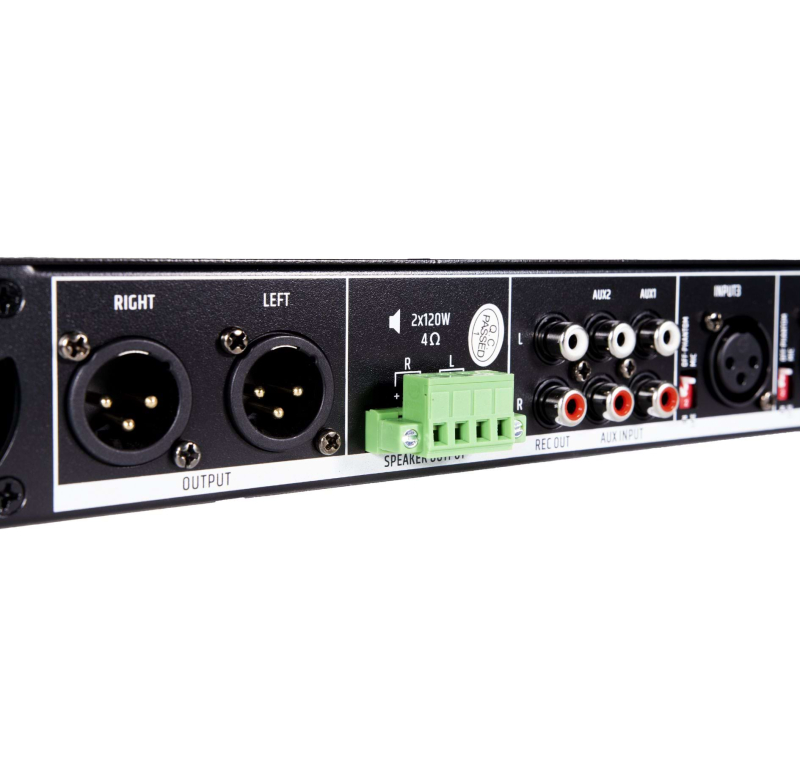

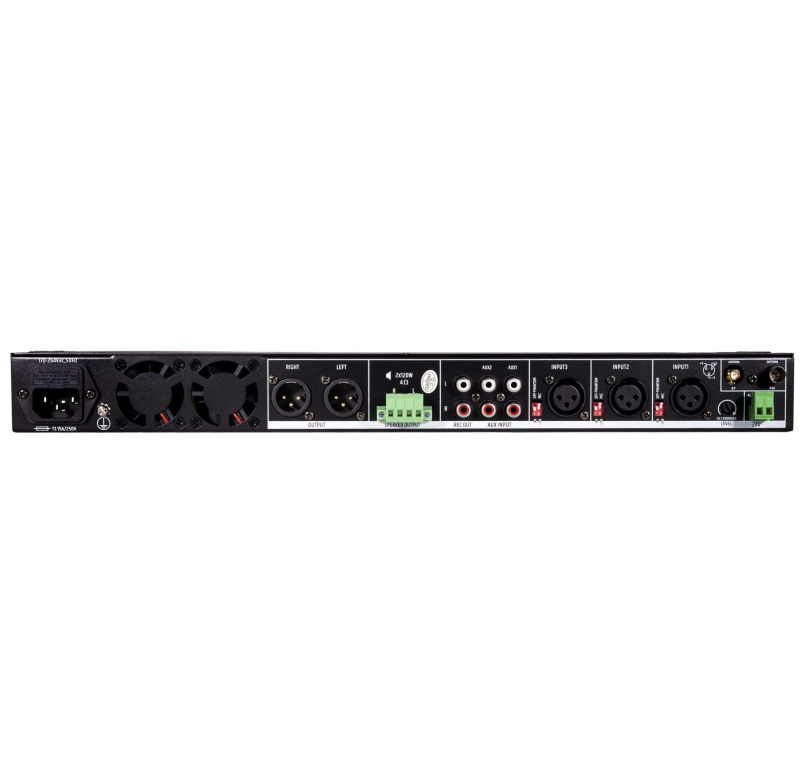

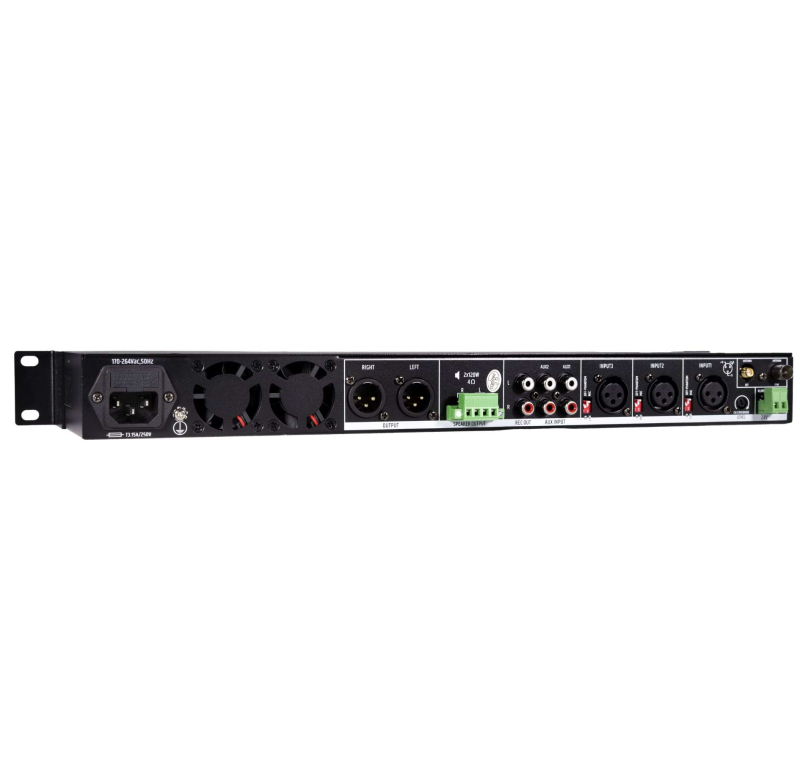

- 2 XLR outputs (LEFT / RIGHT) 1 RCA REC OUT

- 24 V Mute contact power supply

- 1 individual volume control per input,

- Thermal, overload and short-circuit protection.

Product Details

  • Brand
  • Reference
    LA-2120D
  • SKU
    02844
  • EAN13
    3701567912481

Data sheet

  • Type
    Amplificateur stéréo
  • Output power
    4 Ω Stereo : 2 x 120W
  • Speaker outputs
    4 Ω
  • Power consumption
    200W
  • Signal-to-noise ratio
    Micro : 55 dB Aux/ligne : 60 dB
  • Alimentation
    AC 220V/240 V – 50/60 Hz
  • Lecteur multimédia
    FM / USB / BLUETOOTH
  • Distorsion harmonique totale
    0,5 %
  • Bande passante
    Aux : 10Hz - 23 000Hz
    Line : 14Hz - 20 000Hz
    Mic : 20Hz - 18000Hz
  • Protection et refroidissement
    Ventilateur, Protection thermique, surcharge et court-circuit
  • Dimensions (W × D × H)
    482 x 130 x 44 mm
  • Weight
    1,96 kg
