6-zone 120W mixer amplifier in 100V with message reader

Name: 6-zone 120W mixer amplifier in 100V with message reader
Brand: RONDSON
SKU: AM-6120DMT

Reference : AM-6120DMT

SKU : 02937

EAN13 : 3701567914072

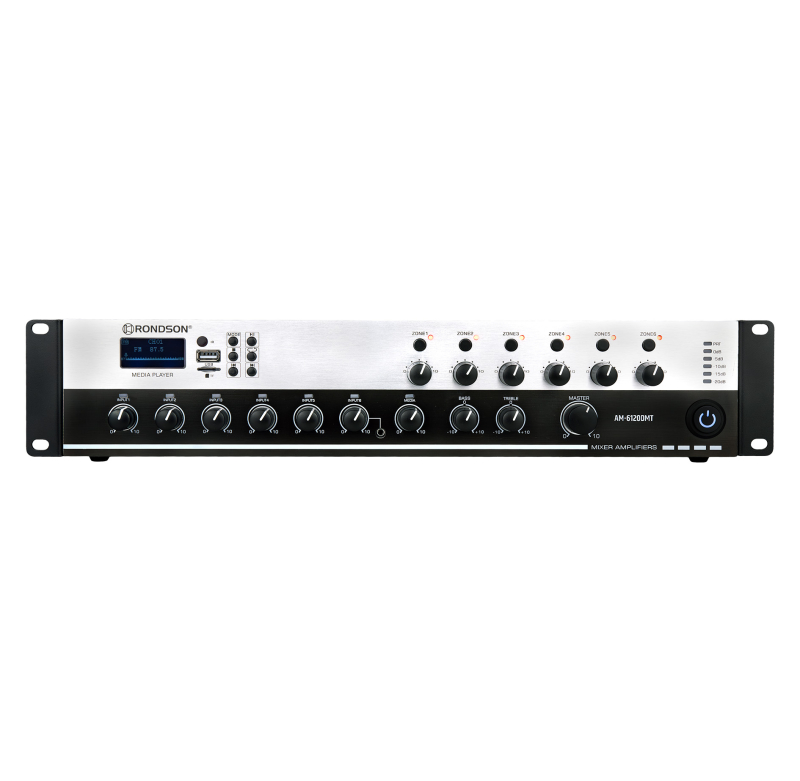

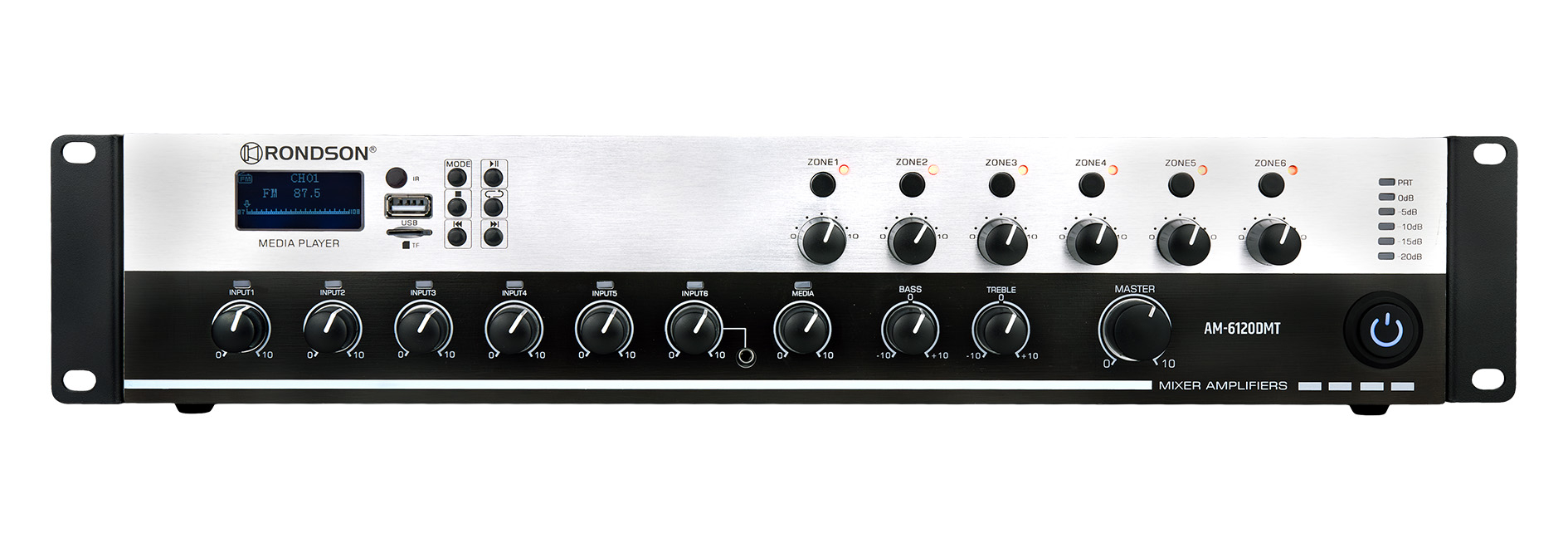

AM-6120DMT 6-zone 120W amplifier – Front view

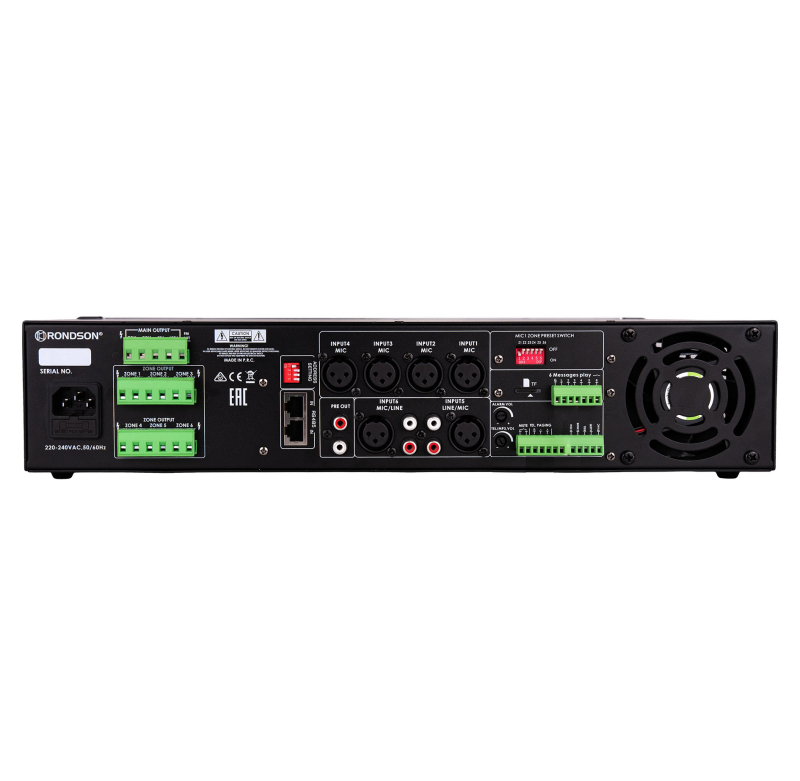

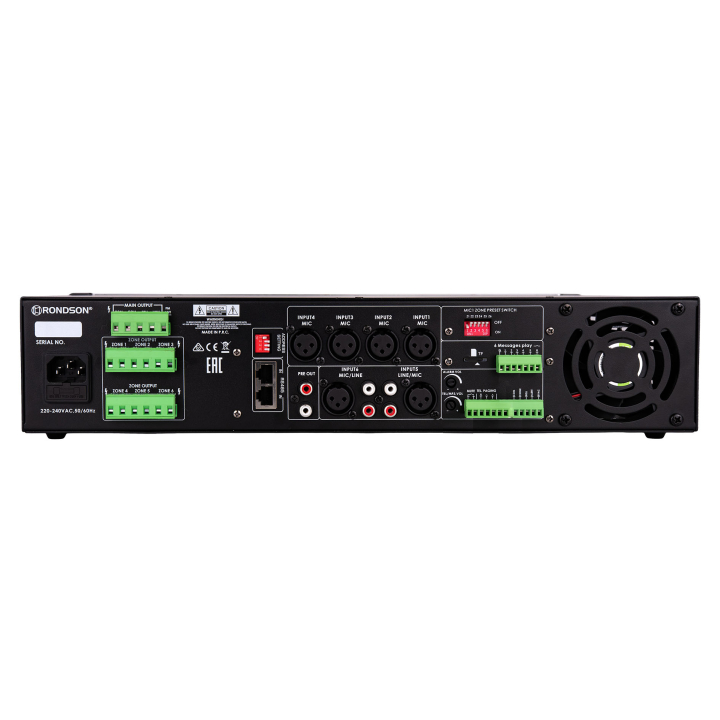

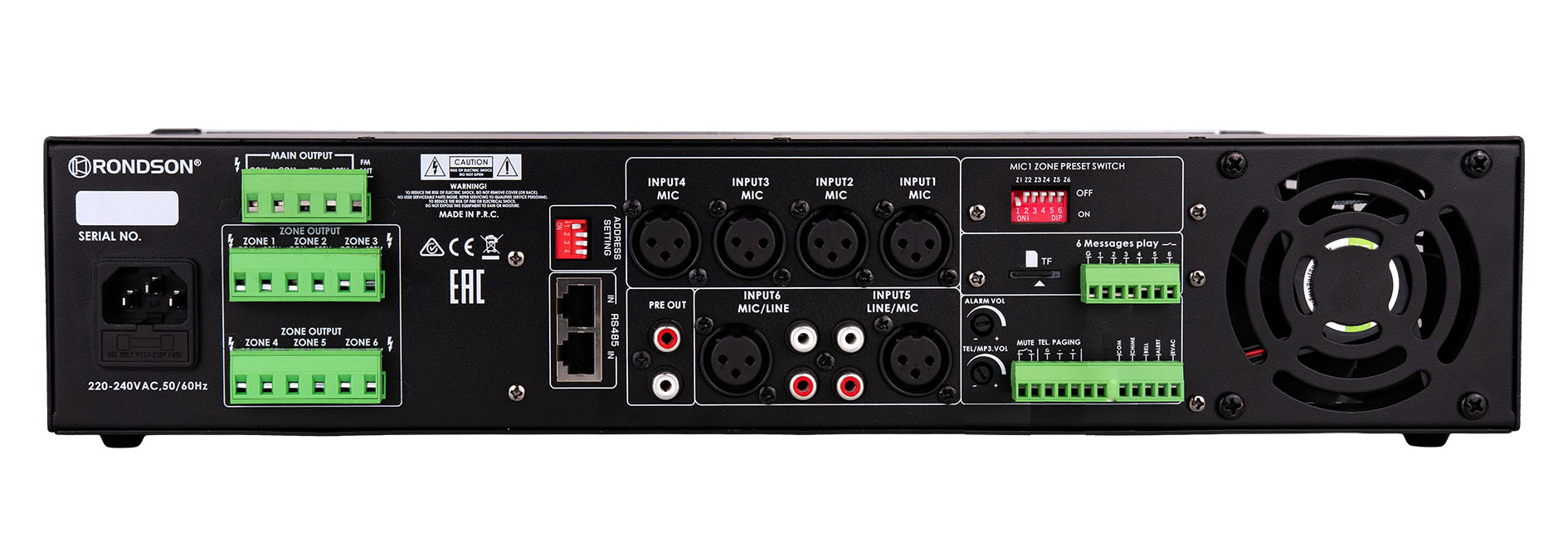

AM-6120DMT 6-zone 120W amplifier – Connections view

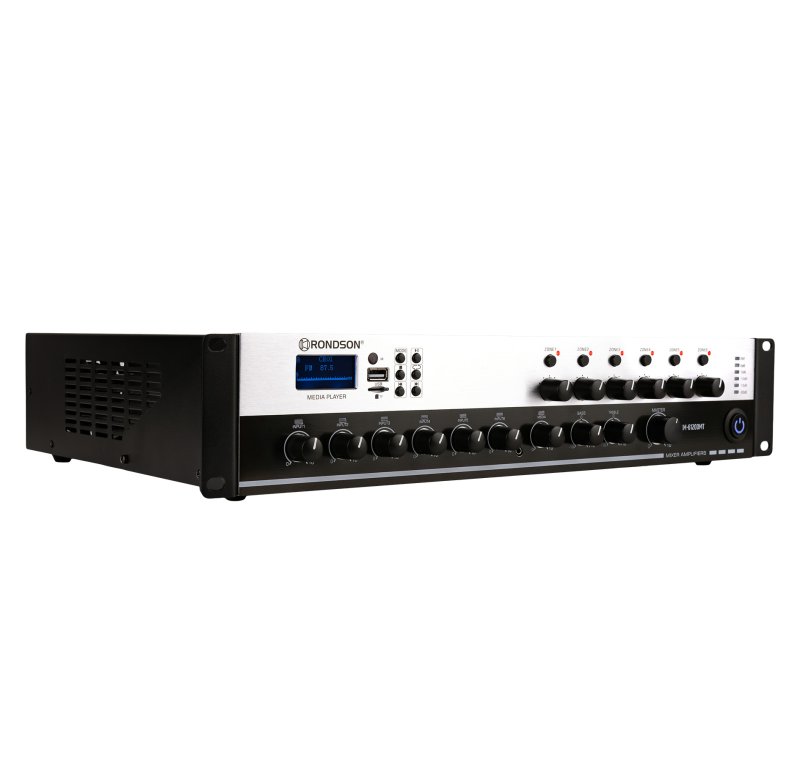

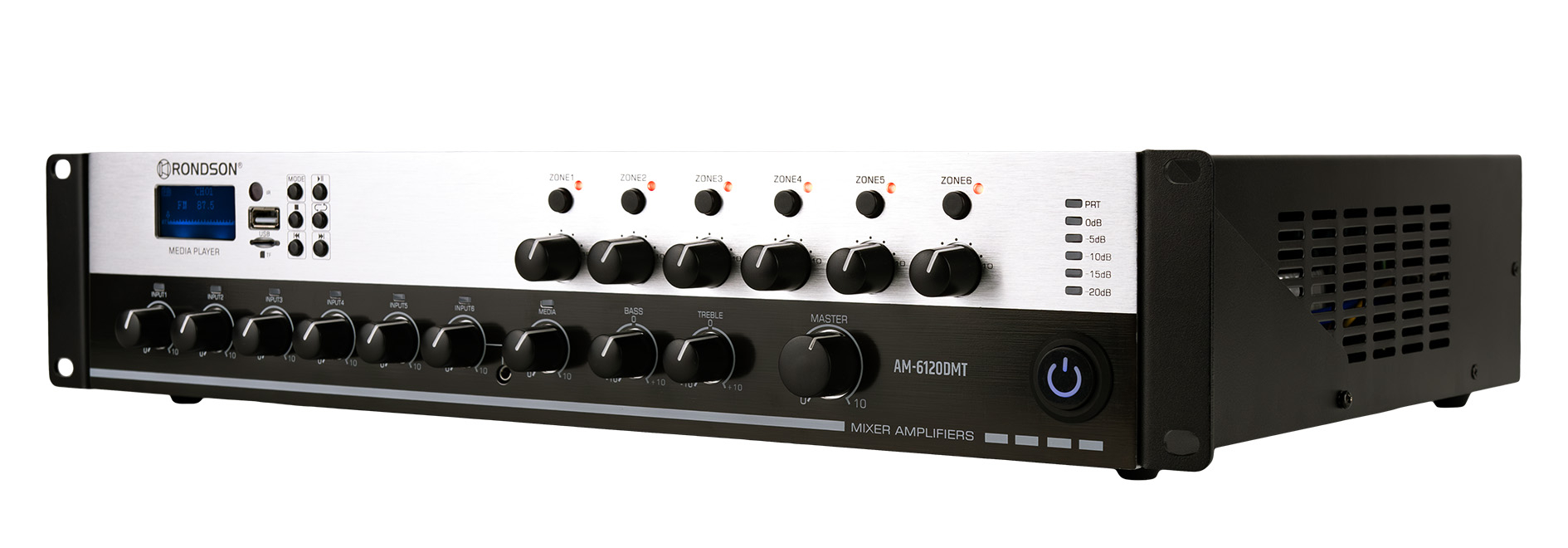

AM-6120DMT 6-zone 120W amplifier – 3/4 view (left)

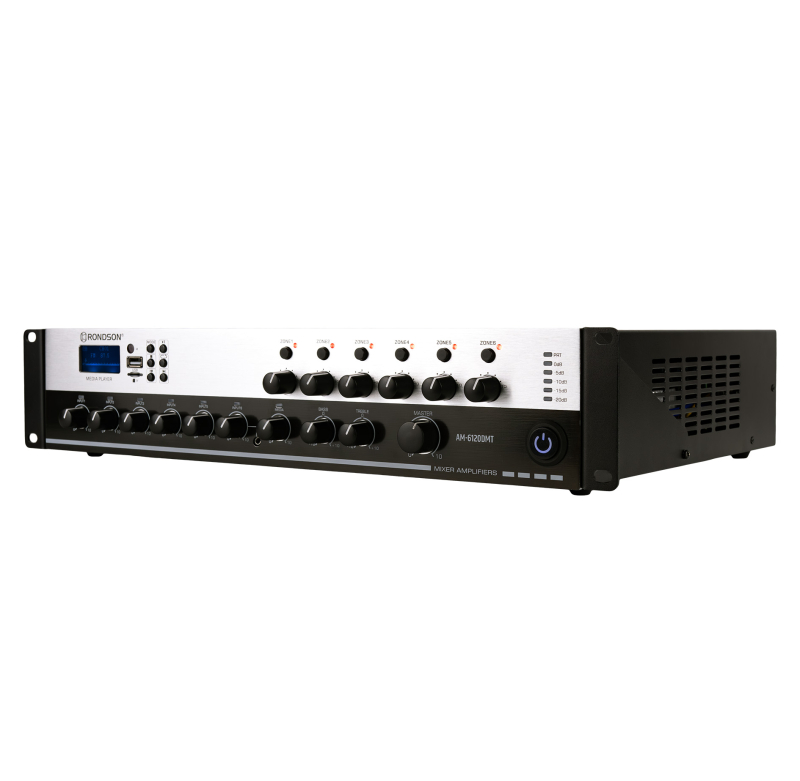

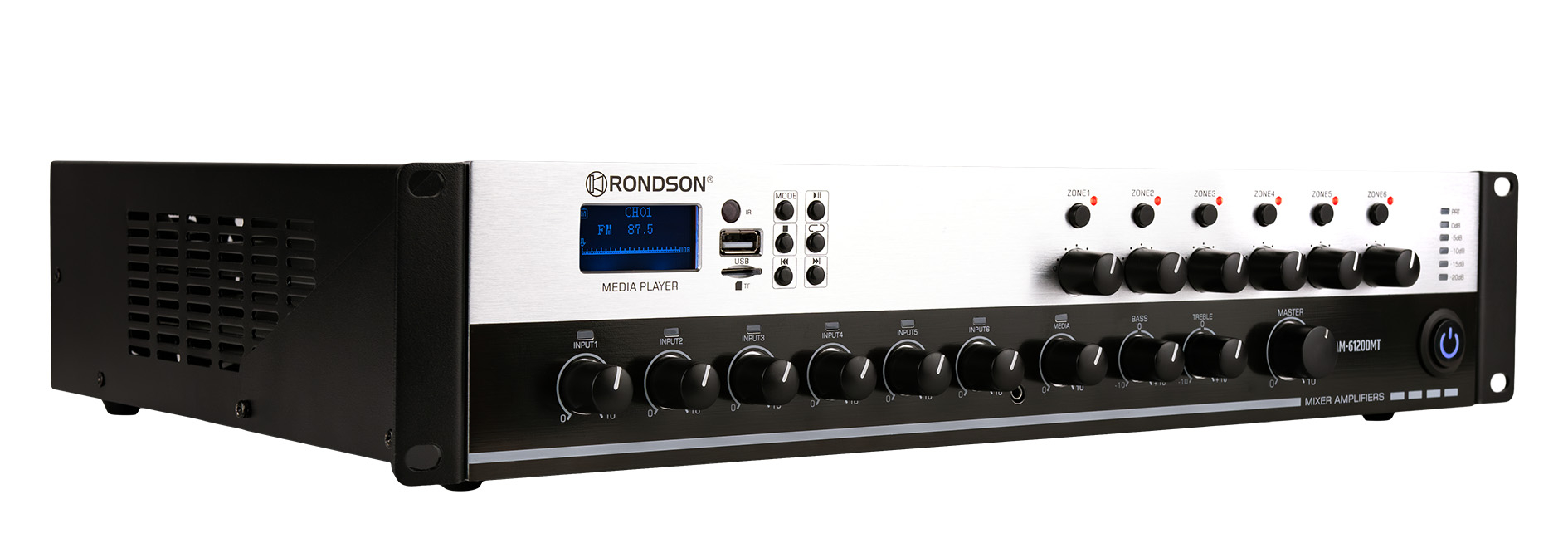

AM-6120DMT 6-zone 120W amplifier – 3/4 view, right-hand side

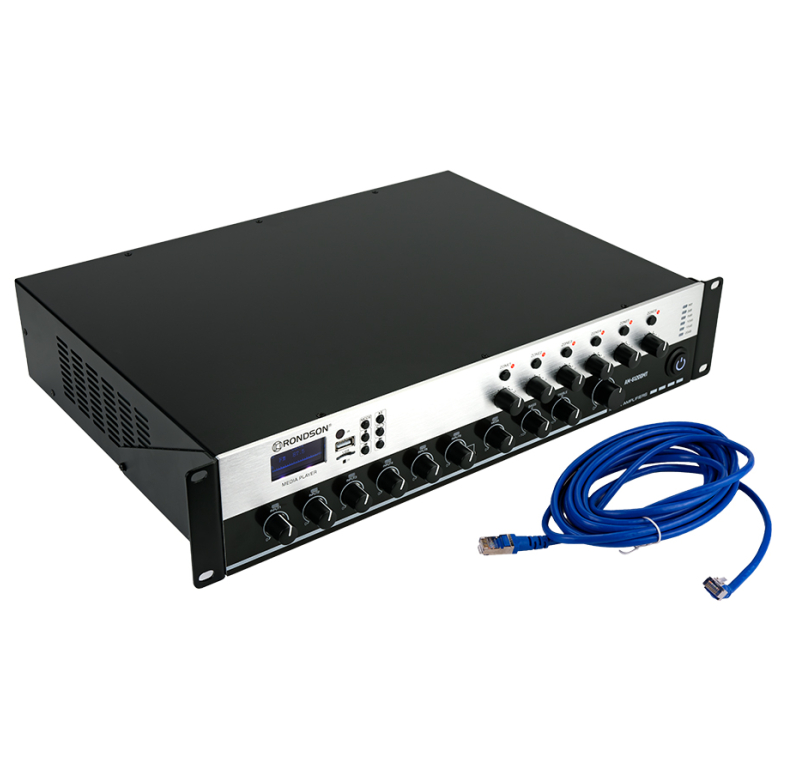

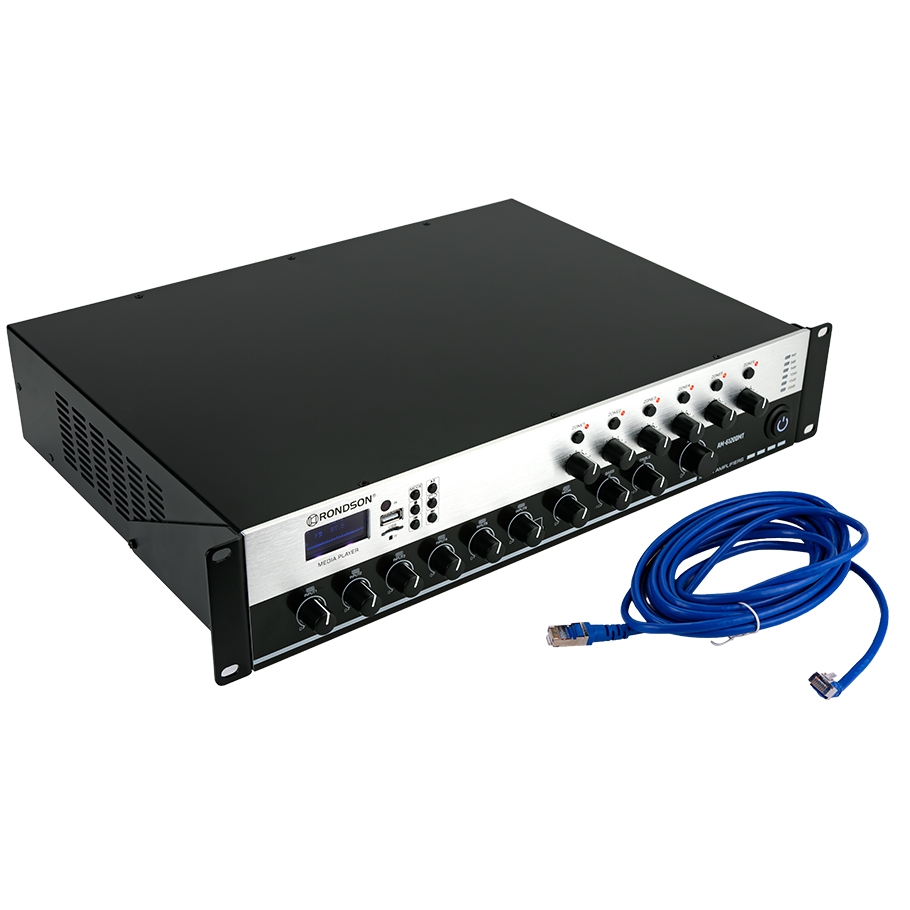

AM-6120DMT 120W 6-zone amplifier with lead

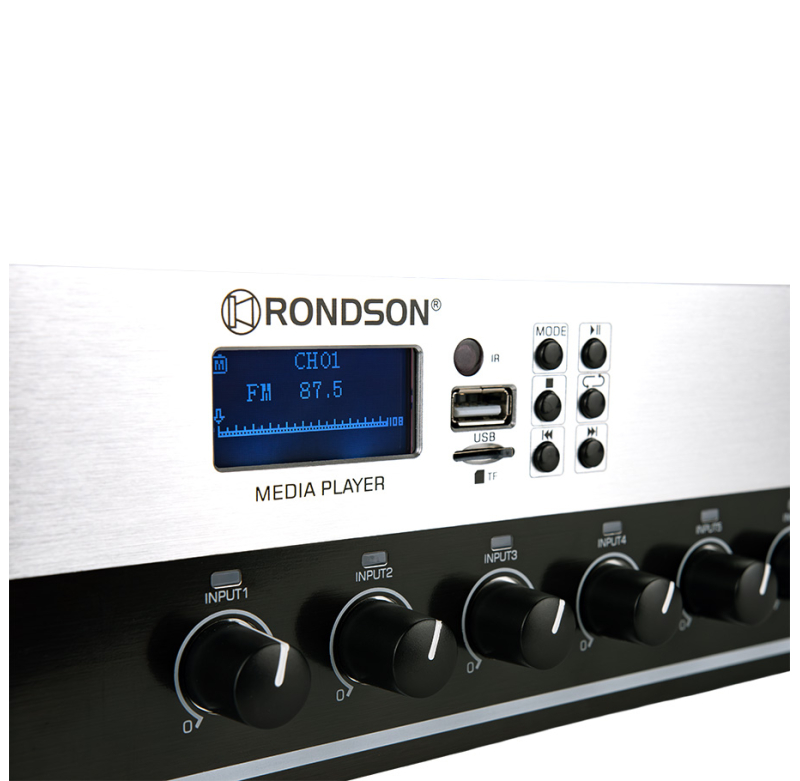

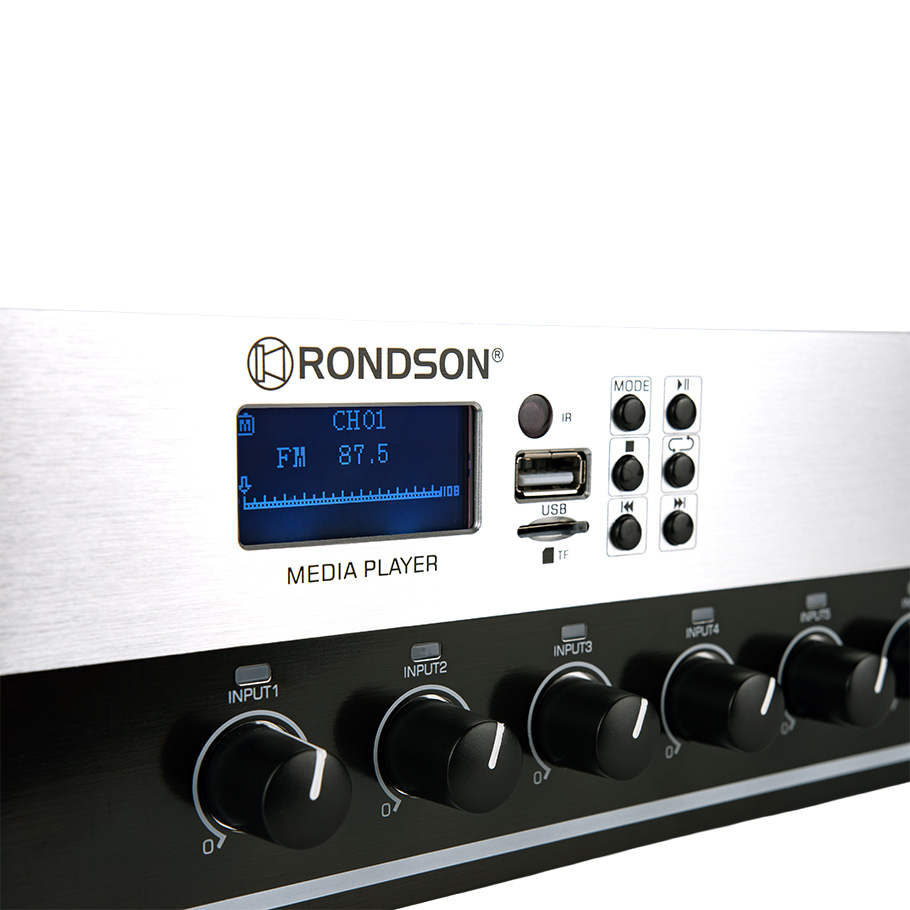

AM-6120DMT 6-zone 120W amplifier – Display and buttons

120W 6-zone preamplifier

Multimedia player (Tuner / MP3 / USB / SD / Bluetooth)

Built-in message reader

100V mains supply

24V DC

Rackable 19" (2U)

Power output

120 W

Sources Audio

BLUETOOTH

Coupure sono

Zones

Fiche Produit

Download (3.23MB)

AM-DMT SERIES

Download (3.22MB)

Description

This amplifier-mixer is available in: 6 x 120W
It offers a complete solution for multi-zone calls
It operates on 220 V mains – 50/60 Hz or 24 V DC.
It features built-in media players such as MP3, USB, SD, FM tuner and Bluetooth.
Built-in message reader

6-zone mixer amplifier
70/100V online use
Power: 120 W RMS
Built-in message reader
Microphone input 1, zone selection for output 1 to 6
remote control
USB stick
mini SD cards
AM-6MIC-compatible microphone stand

Product Details

Brand
Reference

AM-6120DMT
SKU

02937
EAN13

3701567914072

Data sheet

Type

6-zone mixer amplifier
Rated power

215W
Output power

120W
A/C Fuse

4A
Output impedance (70 V)

33.5 Ω
Output impedance (100 V)

67 Ω
MIC input

4mV
AUX input

300mV
Signal-to-noise ratio

80dB
THD

100V out -3dB 0.5%
Réponse en fréquence

20 Hz - 20 kHz
Pec out

650mV - 750mV
Dimensions (W × D × H)

483 x 88 x 320 mm
Weight

10 kgs

This new range of amplifiers offers a variety of all-in-one features. Multi-zone functionality, a multimedia player and pre-recorded messages, a call microphone console...

Michel Fontes

Product manager
