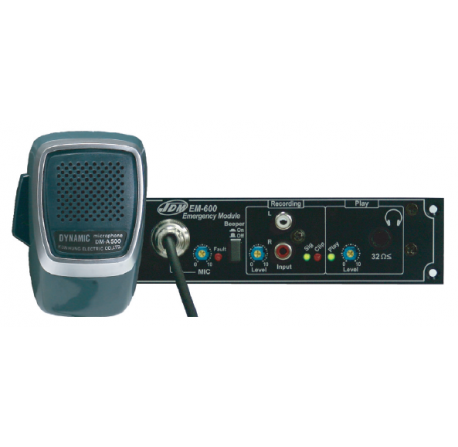

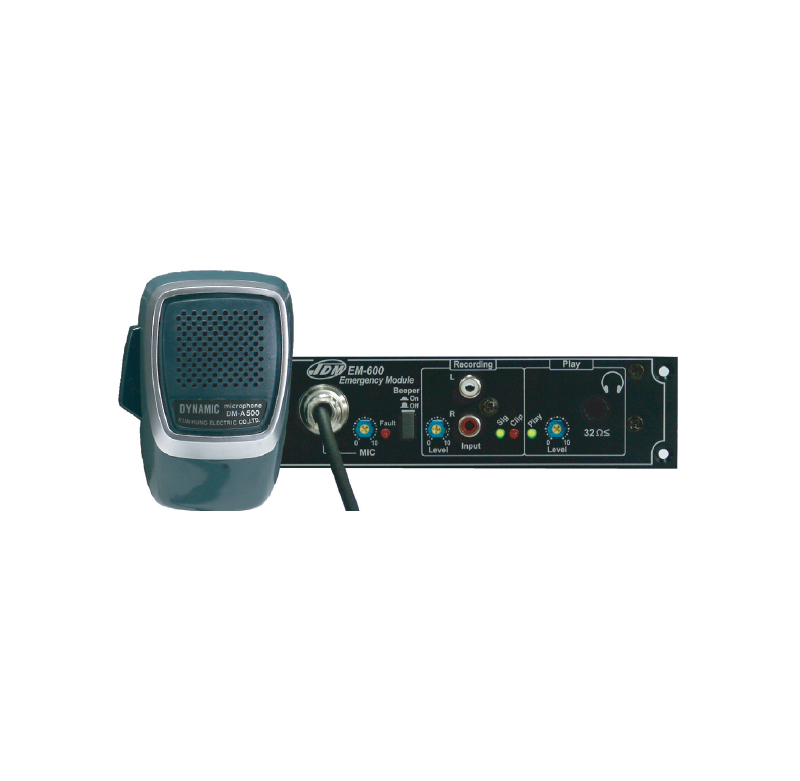

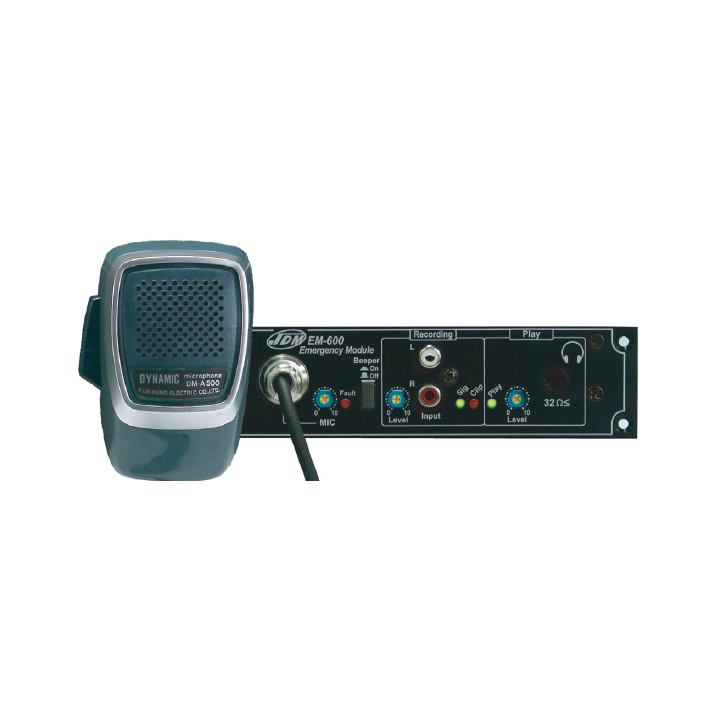

Fire evacuation message reader module with micro firefighter

Name: Fire evacuation message reader module with micro firefighter
Brand: JD-MEDIA
SKU: EM 600

Reference : EM 600

SKU : 01056

EAN13 : 8809267795092

Module lecteur de message d'évacuation incendie

Fire evacuation message reader module compatible with JD-MEDIA brand PS and ZA series amplifiers

EM-600

Download (4.84MB)

EM 600

Download (861.84KB)

Description

Product sheet in PDF format

Features:

• Automatic broadcast of evacuation messages in case of emergency

• Push-to-talk microphone included
• Easy to use for playback and recording
• 2 recording options: either via the built-in microphone or via the external message input
• Headphone jack input for monitoring recording
• No battery required for message storage
• Message lifespan: 100,000 recording cycles
• Internal microphone fault detector
• Priority over other calls in the event of an emergency message
• High-quality audio and voice playback
• Recording time: 60 seconds
• Message retention: 100 years (typical)

FEATURES	EM 600 (CODE 01056)
Starters	EXT. LINE: -10 dB / 10 kΩ unbalanced
Outings	Audio: 0 dB / 600 Ω - Siren: - 10 dB Headphones: 24 MW ≥ 32
Bandwidth	100 Hz – 3,400 Hz (fs=8 kHz)
Electrical voltage	+17 V
Power consumption	NOR 125 mA / Max 185 mA
Message recording duration	60 seconds.
Bandwidth	10 Hz – 20,000 Hz ± 1dB
Dimensions (W x D x H)	195 x 165 x 40 mm
Poids	0.6 kg
