Sound Limiter

Reference : LA SD
SKU : 02190
EAN13 : 3701567904868

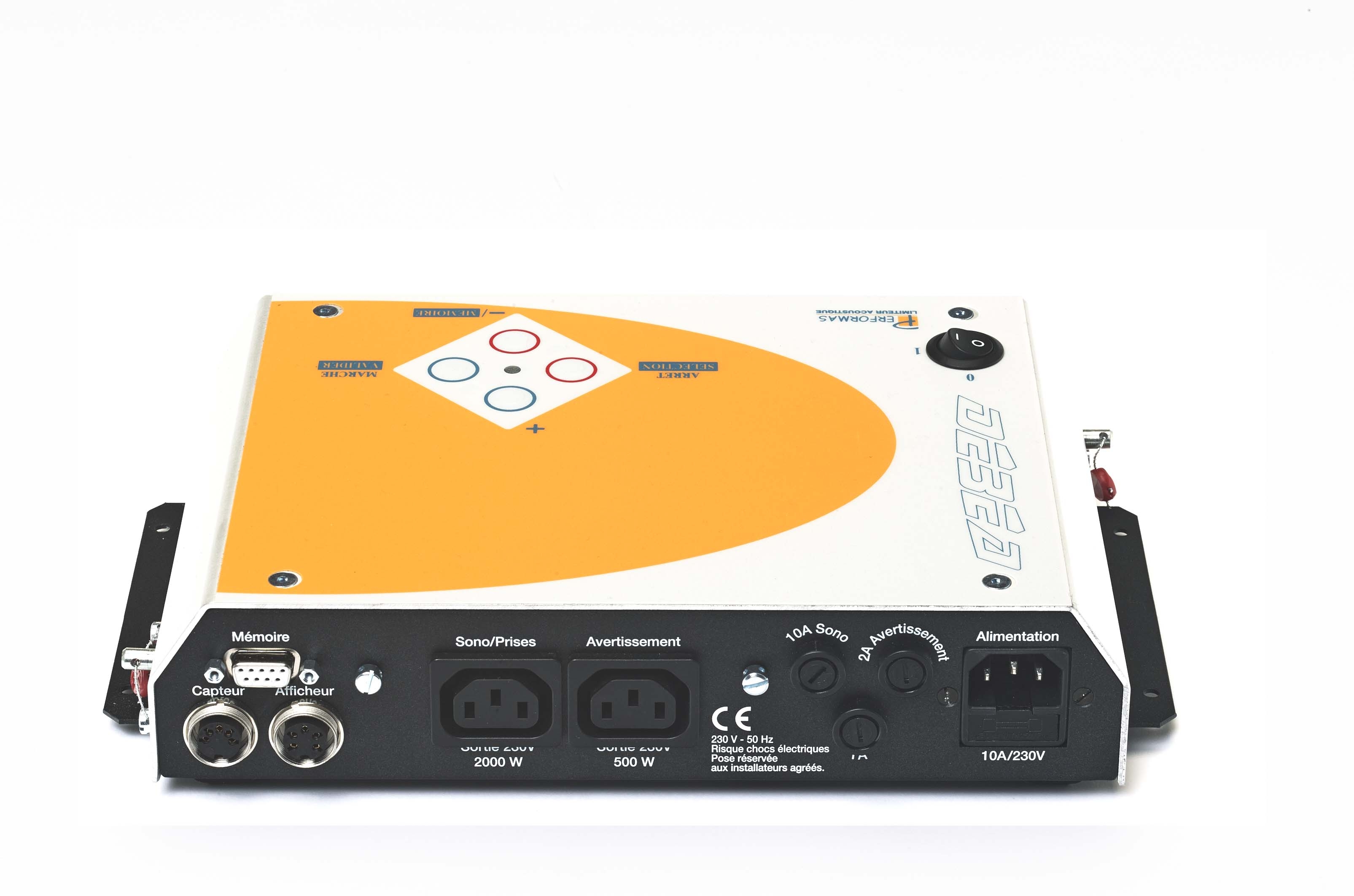

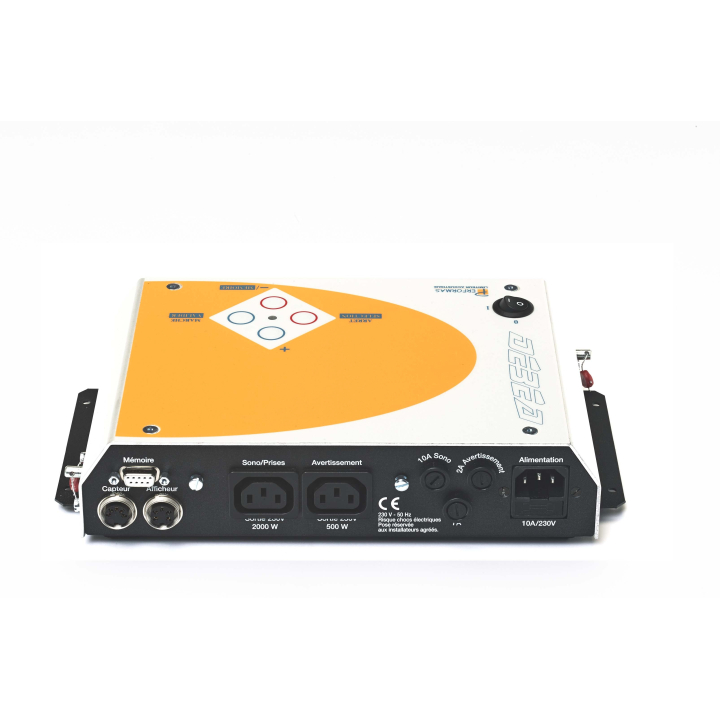

The LA SD acoustic sound limiter: compliance with Decree 2017-1244 for public access buildings playing amplified music

The LA SD acoustic sound limiter is the leading solution for ensuring your premises comply with Decree No. 2017-1244 of 7 August 2017 (which replaces Decree 98-1143), relating to the prevention of risks associated with noise and amplified sound in public access buildings.

Types d'applications
Share

LA SD Installateur

Download (4.71MB)

LA SD Utilisateur

Download (4.7MB)

Description

Who is affected by the requirement for a sound level limiter? Any venue open to the public or receiving members of the public, whether enclosed or open, that routinely plays amplified sound is subject to these regulations: bars, restaurants with music, nightclubs, function halls, theatres, concert halls, festivals, cinemas, reception venues, karaoke bars, clubs and nightspots.

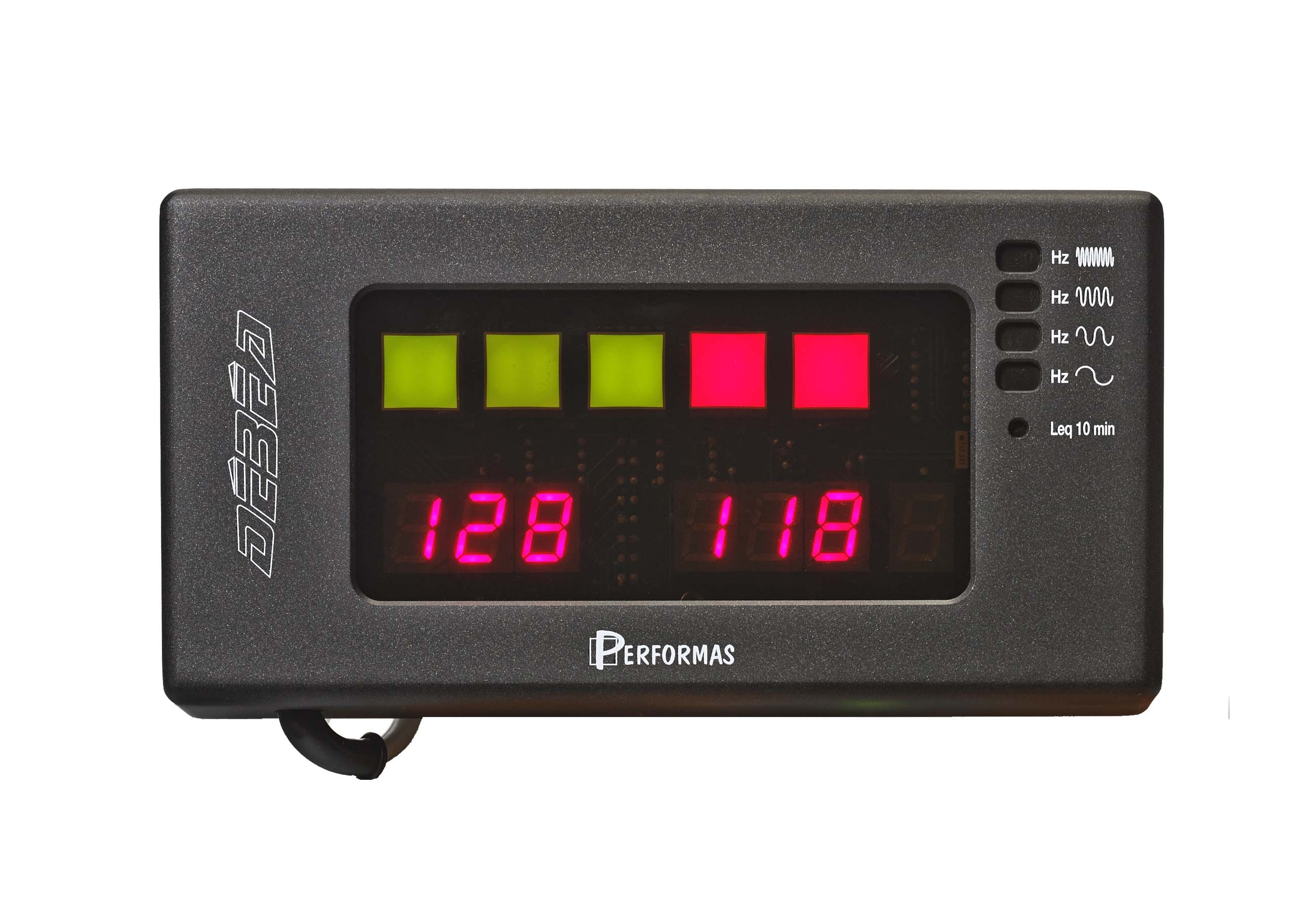

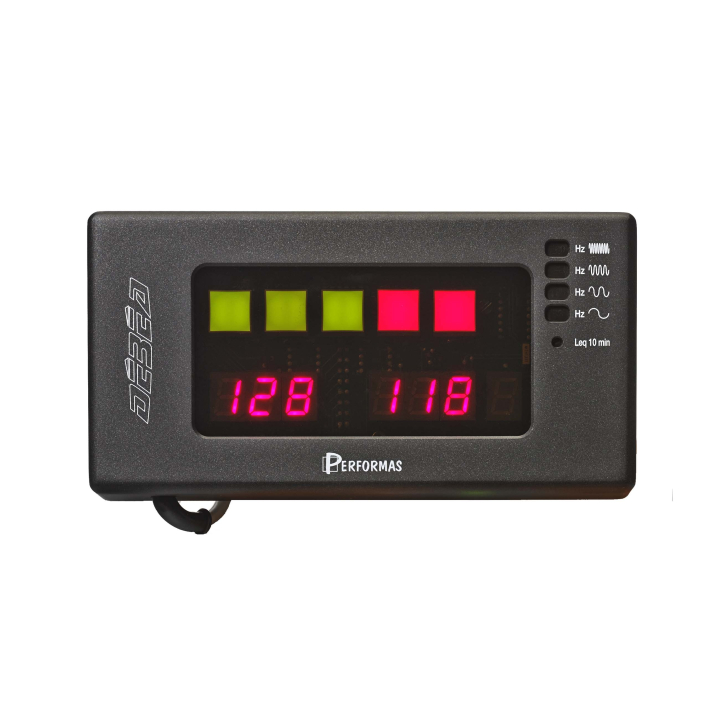

This sound pressure limiter works by cutting off the power supply to the sound system. The sound level meter and remote display allow you to monitor the dB level in real time and receive a visual warning before the power is cut off.

A simple solution to install, configure and use for sound level management.

Product Details

  • Brand
  • Reference
    LA SD
  • SKU
    02190
  • EAN13
    3701567904868

Data sheet

  • Type
    Limiteur acoustique dB
  • Subject
    Coffret acier, capot aluminium
  • Affichage
    Niveau instantané, niveau moyen, bargraph 5 pavés
  • Connectique fournie
    3 fiches type CEE 22 à verrouillage à plomber
  • Protections par fusible
    Carte logique, sortie alarme, sortie sono, général

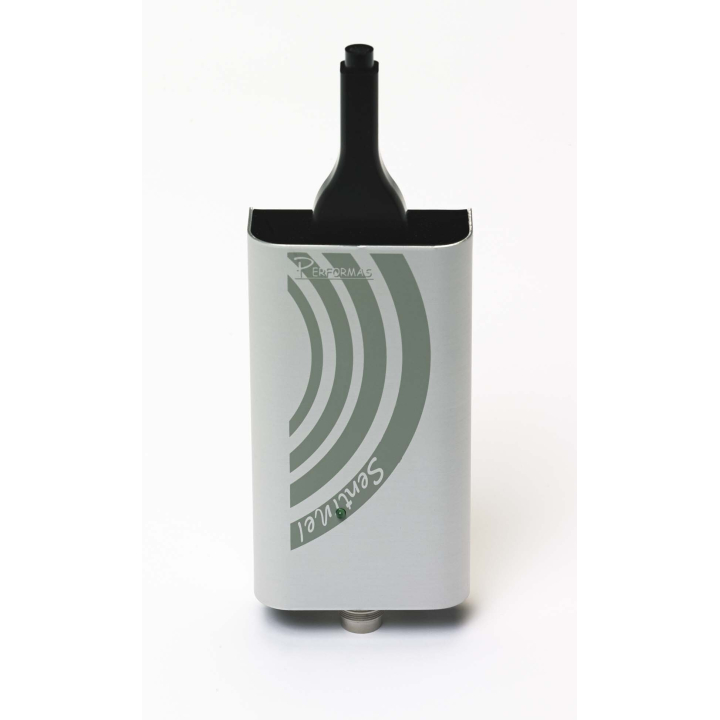

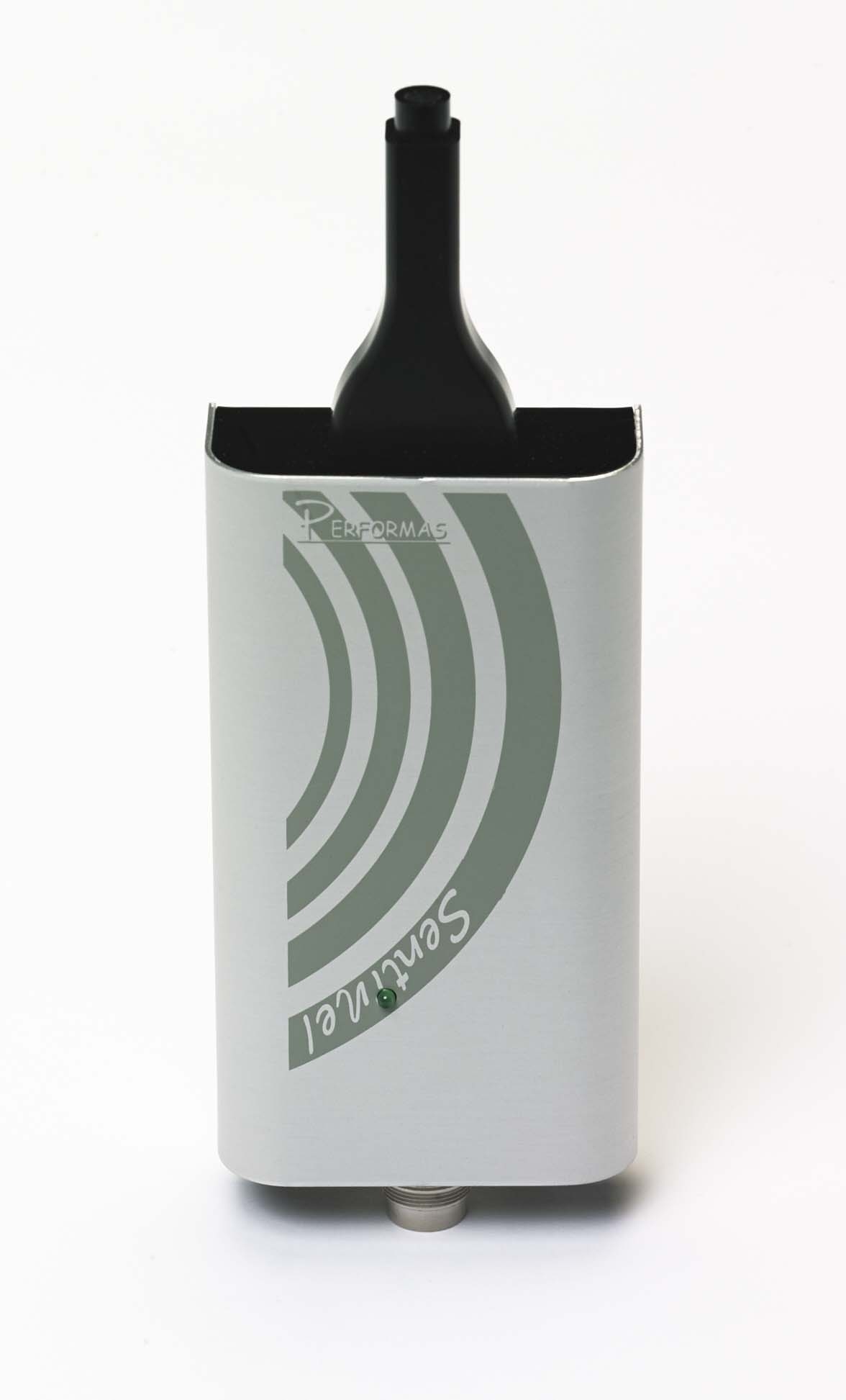

  • Boîtier sonomètre
    Marque 01 dB avec contrôle actif de la mesure, conforme au décret, boîtier aluminium capot plombé
  • Câble sonomètre
    20 m
  • Afficheur
    Usiné dans la masse, tout alu, posé sur pied orientable
  • Câble afficheur
    10 m
  • Paramétrage
    Utilisation clavier 4 touches, accès par code installateur
  • Seuils
    2 seuils programmables (portes fermées ou portes ouvertes)
  • Sortie alarme lumineuse
    500 Watts 230 Volts (pour gyrophare ou caisson lumineux)
  • Sortie sono
    200 Watts électriques
  • Historique
    Date/Heure de mise en marche et arrêt sur 60 jours Déplombage et utilisation du by-pass, défaut du capteur, réglages des paramètres, nbre d’actions, LAeq 10 minutes, avec possibilité de trier les événements. Récupération sur RS232 en face avant
  • Fixation
    Murale ou à poser
  • Conformité
    Conforme au décret 98/1143 du 15/12/1998
  • Dimensions (W × D × H)
    260 x 175 x 57 mm
  • Weight
    2 kgs
