Reader Recorder Module 8 messages

Name: Reader Recorder Module 8 messages
Brand: RONDSON
SKU: DMT-8M

Reference : DMT-8M

SKU : 02358

EAN13 : 3701567907357

Tuner AM/FM / CD et MP3 avec interface USB/SD.

Player Recorder 8 audio messages

Mini USB PC Connection

DC 24V

USB

DMT-8M

Download (6.61MB)

DMT-8M

Download (655.32KB)

Description

Product sheet in PDF

Description :

The DMT-8M player offers the possibility to broadcast and record 8 audio messages.
Used to read information and evacuation messages for an audience.
It operates on DC 24V power supply.

Features :
Compatible player in WAV, VMA, MP3 format
256 MB of Memory
Mini USB port that allows to play and rename audio files for updates (PC connection)
Messages 1 to 4 (on the front) common with the same priorities

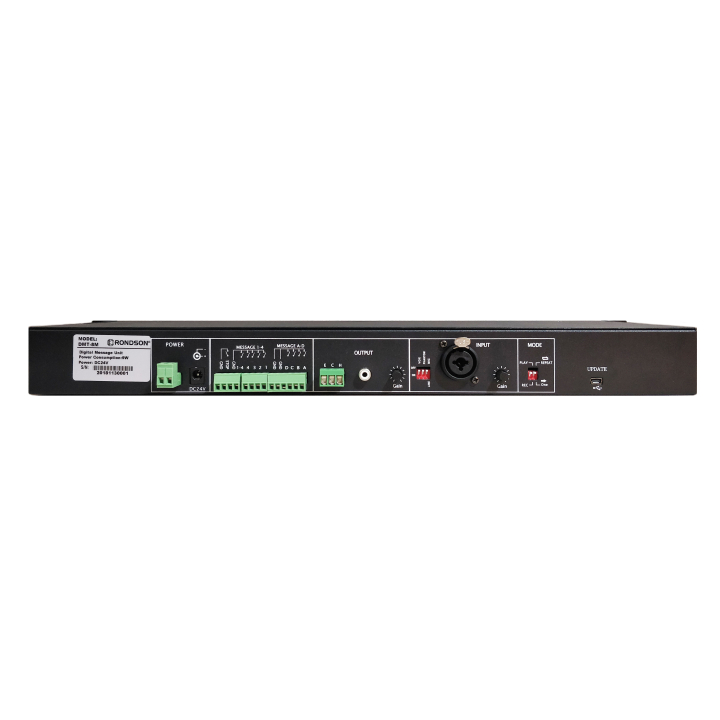

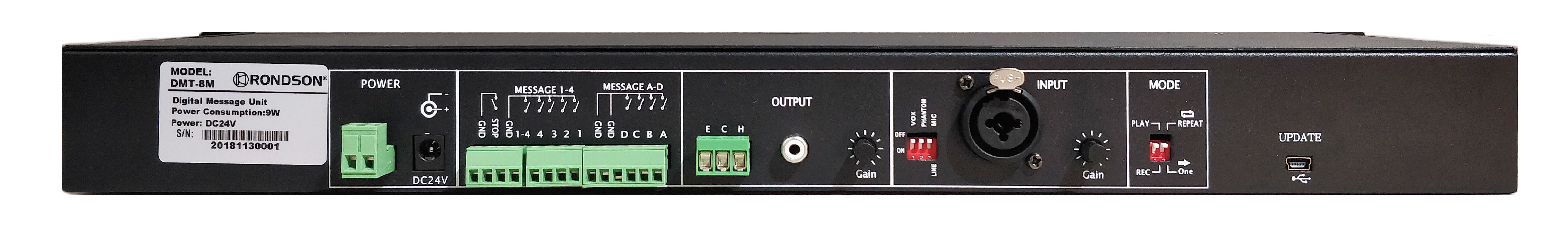

A-D messages (on the rear face of the euroblock terminal block) have priority over 1-4, the priority is presented as follows A B C D=1=2=3=4
Player mode: Play & Repeat
Mic & Line input on XLR/JACK with Dip Switch VOX, Mic/Line, phantom
Recording mode: messages 1,2,3,4 can be recorded directly on the rear panel
Meter for outputs and recording
Standard 19-inch rack 1 U

characteristics	DMT-8M
Type	Player Recorder audio messages
Entries	mini USB port
Phantom power	DC 24V / DIP SWITCH
Dandwidth	100 Hz – 20 000 Hz / -3dB/+3dB
Total harmonic distortion	< 0,05 %
Signal-to-noise ratio	Mic : – 65dBu / LINE : -75dBu
Player	WAV, VMA, MP3
Recorder	Enregistrement Micro et LINE
Outputs	+4dBV symétrique / 500Ω 0dBV symétrique / 1kΩ
Supply	DC 24 V
Dimensions (L x P x h)	482 x 100 x 44 mm
Weight	2,3 kg
