Internet Radio player, Tuner and Wifi-LAN network set

Name: Internet Radio player, Tuner and Wifi-LAN network set
Brand: JD-MEDIA
SKU: IR-100R

Reference : IR-100R

SKU : 02764

EAN13 : 809267796082

Lecteur CD et MP3 avec interface USB/SD/MMC

Internet Radio player, Tuner and Wifi-LAN network set

TUNER

USB

IR-100R

Download (779.8KB)

IR-100R

Download (782.35KB)

Description

PDF product sheet

Description :

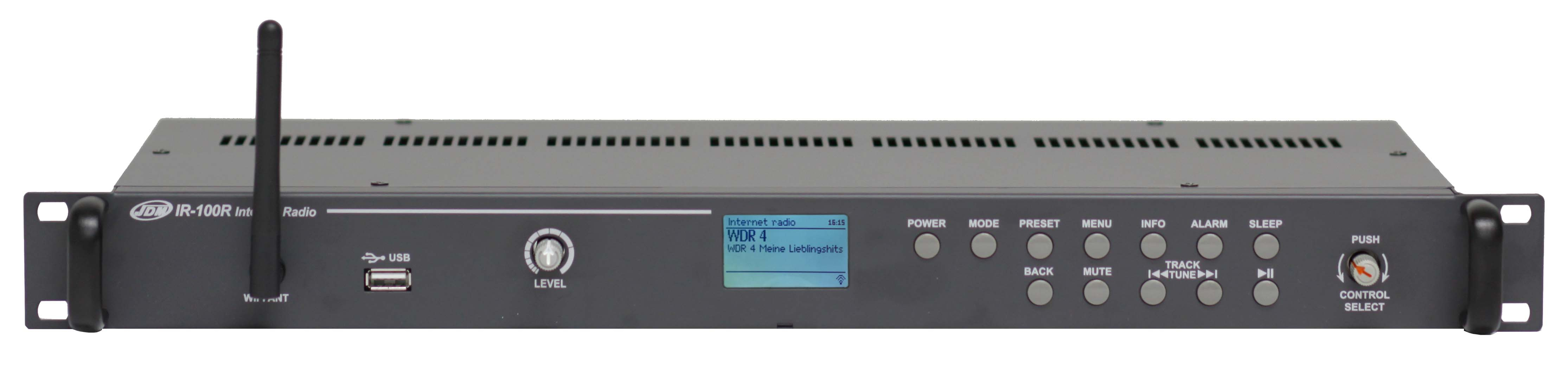

The IR-1OOR player in 19'' rack format with illuminated function keys is equipped with Internet radio, FM-RDS tuner, digital DAB/DAB+ tuner, USB port, AUX input and headphone output. Connection to a WiFi/LAN network is possible.

The box is equipped with an Infra Red remote control, a clearly legible LCD screen and a user-friendly switchable navigation menu in 13 languages, including deutsch - français - español - italiano and english complete the functionality.

The Internet Radio function offers access to thousands of radio stations from all over the world. With the help of Frontier Silicon Radio Portal (website) and via a web browser, you can organise your Internet radio stations and favourites and synchronise them with the device. The prerequisite is a working WiFi/W-LAN/LAN connection!

The device is network compatible and can be integrated into an existing network. Thus, you can stream your audio files stored on your Windows PC to the IR-100 (UPnP) and use the PC as a music server (prerequisite: from Windows 7 and Media Player 10 or higher).

Features :

FM RDS radio player (87.5 - 108 Mhz), internet radio, USB
The USB 2.0 interface can receive USB flash drives up to 32 GB.
Internet access is possible via WIFI, RJ 45, RS 232
Stereo audio output
Standard rack 19" 1U

SPECIFICATIONS	IR-100R
Type	Internet Radio FM-RDS Tuner USB drive
Inputs	1 x RS-232 1 x RJ-45 USB AUX IN
Outputs	1 x RCA stereo L/R Antenna
Power supply	AC 230 V 50 Hz
Frequency Response	20 – 12 500 Hz
Output level	0,9 V ± 2 dB
Separation of channels	> 60 dB @ 1 kHz
Distortion Rate	< 0,5 %
Signal-to-noise ratio	> 70 dB
Dimensions (W x D x H)	483(L) x 44(H) x 200(P)
Weight	2,4 kg
TUNER SECTION
Frequency Range	FM 87,5 – 108 MHz
Signal-to-noise ratio	> 60 dB
Separation of channels	30 dB @ 1 kHz
Frequency Response	100 – 10 000 Hz
